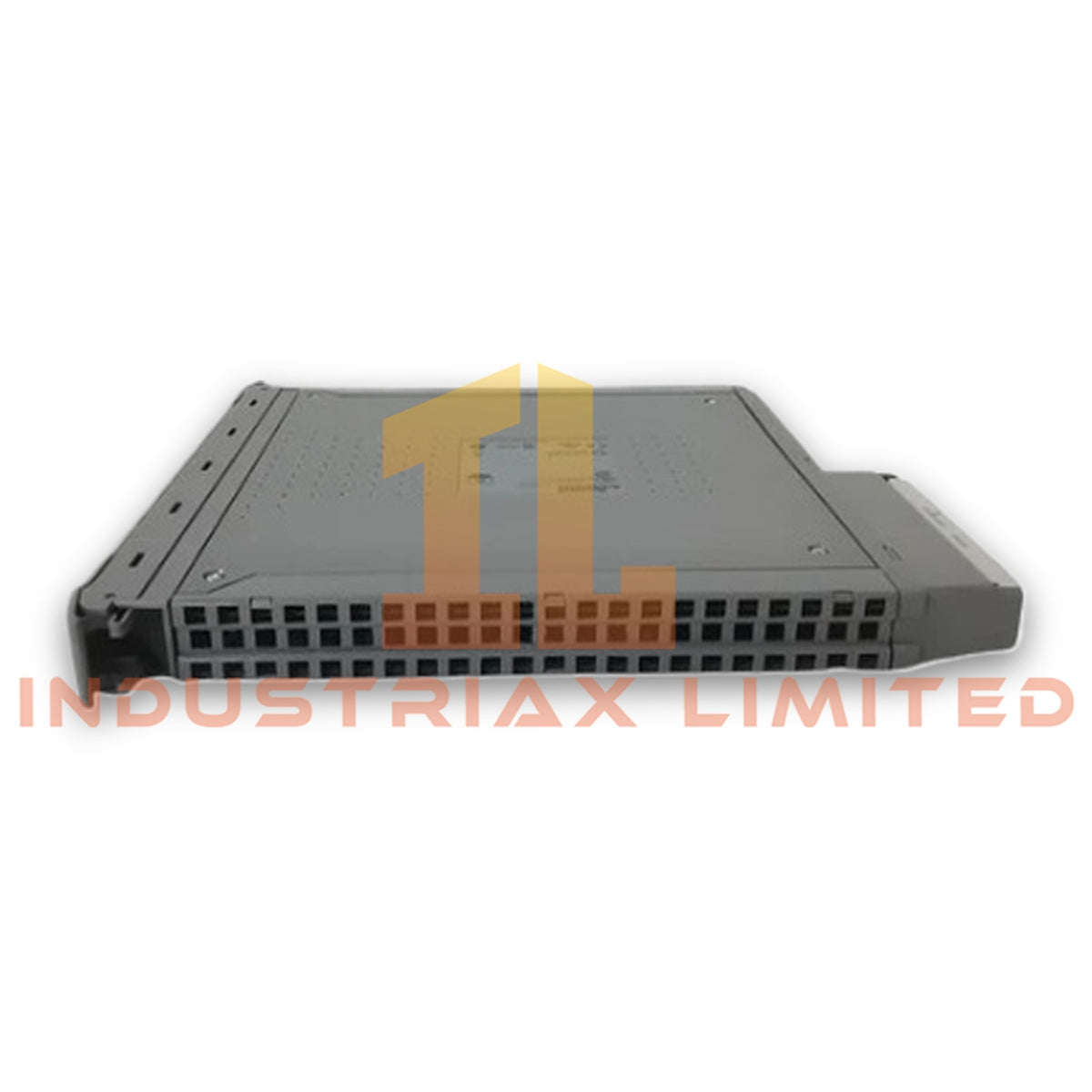

ICS Triplex T8312-7 Trusted TMR Expander Interface Adapter Unit

Configured for inter-chassis communication in the Trusted TMR control platform, the ICS Triplex T8312-7 (T8312 Trusted TMR Expander Interface Adapter Unit) provides direct electrical execution between a Trusted Controller Chassis and connected Expander Chassis. The unit transfers interface signals through shielded connections, supports locking connectors, and operates from a regulated +5 VDC power rail while maintaining electrical isolation between connected circuits.

Hardware Specifications

Parameter	Specification
Model	T8312-7
Brand	ICS Triplex
Product Type	Trusted TMR Expander Interface Adapter Unit
Trusted Series	Trusted TMR
Origin	USA
Manufacturer	ICS Triplex
Shipping Location	Xiamen, China
Weight	0.6 kg
Dimensions	30 x 12.5 x 6.3 cm
Power Supply	+5 VDC ±2 %
Power Consumption	0.8 W (idle)
Isolation	500 VDC
Operating Temp	0 deg C to +70 deg C
Storage Temp	-40 deg C to +85 deg C
Humidity	5 % to 95 % RH, non-condensing
EMC	Fully shielded enclosure
Connectors	Locking connectors
System Capacity	Version available for systems supporting up to four Expander Chassis
Primary Function	Controller and Expander Chassis interconnection

Triple Modular Redundancy (TMR) Architecture

The T8312-7 forms part of the ICS Triplex Trusted TMR hardware infrastructure. It supports physical communication between the Controller Chassis and remote Expander Chassis while preserving the signal integrity required by a triple modular redundancy (TMR) 2oo3 architecture. In addition, the 500 VDC electrical isolation reduces the possibility of ground potential differences propagating between interconnected assemblies. The fully shielded construction also improves electromagnetic compatibility when the adapter operates inside industrial control cabinets.

Frequently Asked Questions

Q: Does the T8312-7 perform control logic execution?
A: No. The T8312-7 functions as a hardware interface adapter that establishes electrical interconnection between the Trusted Controller Chassis and Expander Chassis. It does not execute application logic.

Q: Can the adapter be installed in systems with multiple Expander Chassis?
A: Yes. According to the available product information, one version supports Trusted systems configured with up to four Expander Chassis.

Q: What installation practices help maintain EMC performance?
A: Use the specified locking connectors, maintain the cable shielding continuity, route communication cables separately from high-energy power wiring, and ensure that the cabinet grounding follows the system installation manual.

Field Installation Guidelines

• Verify that system power is isolated before installing or removing the adapter unit.
• Confirm that the mating connectors are fully engaged before applying power.
• Preserve cable shield continuity between the Controller Chassis and Expander Chassis.
• Separate interface cables from high-voltage and variable-frequency drive cables to reduce electromagnetic coupling.
• Avoid excessive bending or tension on interconnecting cables near the locking connectors.
• Install the module within the specified operating temperature and humidity limits.
• Confirm chassis grounding before commissioning the communication path.
