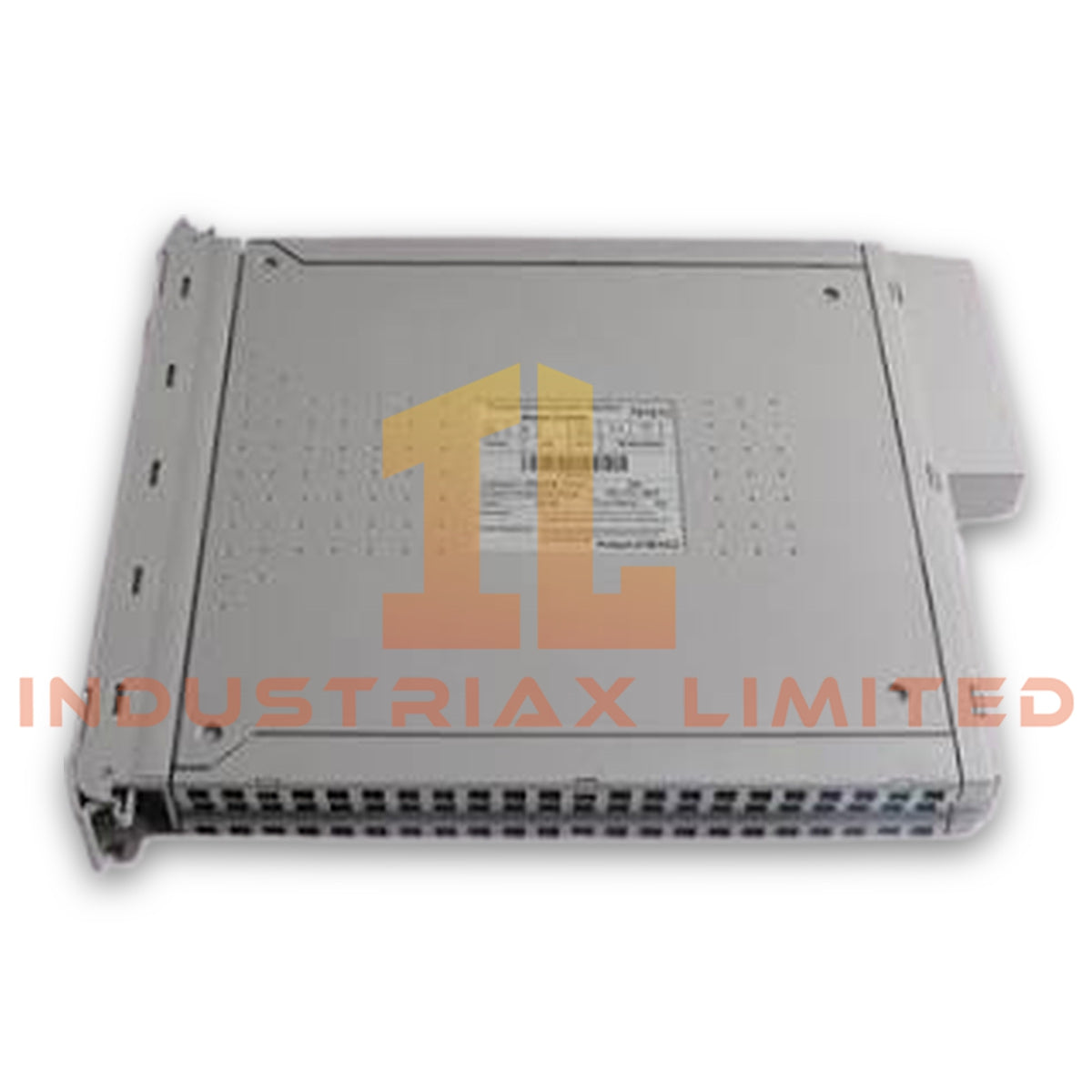

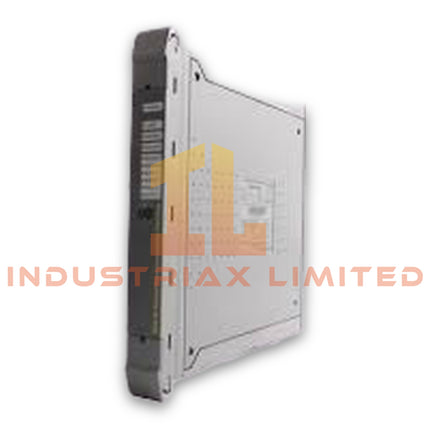

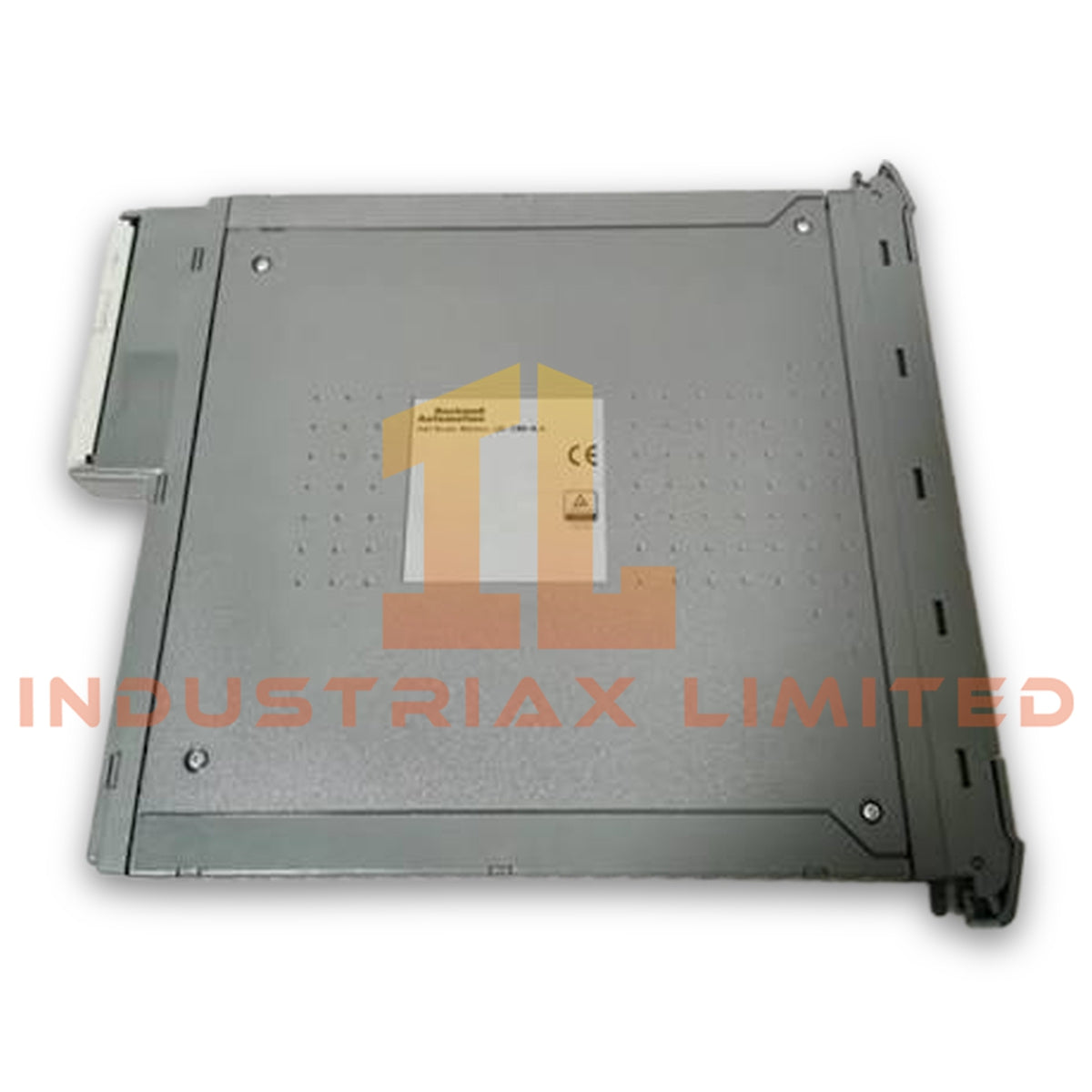

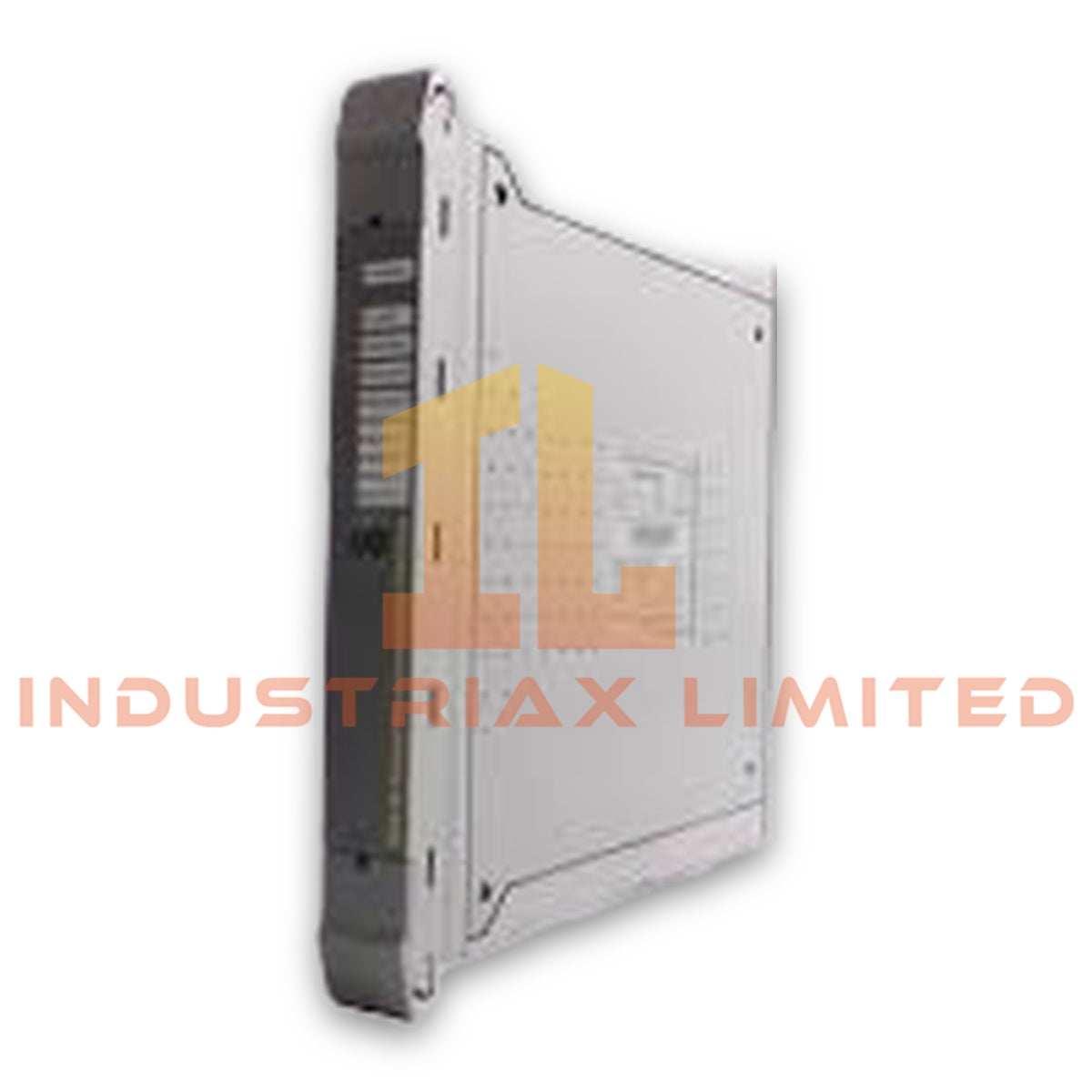

ICS Triplex T8151C Trusted Communications Interface

Configured for high performance data communication within the Trusted safety system, the ICS Triplex T8151C (T8151 Trusted Communications Interface) provides direct physical communication between the Trusted controller chassis and external supervisory or engineering equipment. The module integrates dual Ethernet interfaces, four serial communication ports, and a front panel diagnostic serial interface while exchanging data through the Trusted backplane under controlled electrical isolation.

Suffix Breakdown & Model Matrix

The supplied documentation identifies T8151C as a complete catalog number. No official suffix breakdown or option matrix is specified in the available manufacturer data. Therefore, no suffix interpretation is provided.

Hardware Specifications

Parameter	Specification
Model	T8151C
Brand	ICS Triplex
Product Type	Trusted Communications Interface
Manufacturer	ICS Triplex
Origin	USA
Shipping Location	Xiamen, China
Tariff Code	8537101190
Weight	0.9 kg
Dimensions	3 x 30.2 x 26.5 cm
Power Supply	+5 V DC
Power Consumption	6-10 W
Supply Voltage Tolerance	+/- 5%
Isolation	1500 V AC
Ethernet Ports	Dual Ethernet
Serial Ports	4 Serial Ports
Diagnostic Interface	Front Panel Serial Diagnostic Port
Operating Temperature	0 to +60 deg C
Storage Temperature	-40 to +85 deg C
Relative Humidity	5-95% RH, non-condensing
Status Indication	Fault and Status Indicators

Triple Modular Redundancy Communication Architecture

The T8151C exchanges communication data through the Trusted platform while maintaining electrical isolation between communication interfaces and internal electronics. The module supports integration into the Triple Modular Redundancy (TMR) architecture used by the Trusted safety system, allowing communication functions to operate alongside redundant control processors without changing the voting logic implemented by the controller.

Galvanic isolation rated at 1500 V AC reduces electrical coupling between communication circuits and connected equipment. Meanwhile, dual Ethernet interfaces provide network connectivity, whereas four serial ports support connections to legacy communication devices, engineering stations, or maintenance equipment. The dedicated front panel serial diagnostic port also simplifies commissioning and troubleshooting without requiring removal of the module from the chassis.

Frequently Asked Questions

Q: Does the T8151C support online replacement during controller operation?
A: Hot replacement capability depends on the Trusted controller configuration and maintenance procedures. Follow the system documentation before removing or inserting any communication module while power is applied.

Q: What communication interfaces are available on the module?
A: The module provides dual Ethernet interfaces, four serial communication ports, and one front panel serial diagnostic connection for maintenance and diagnostics.

Q: Why is galvanic isolation included in the communication interface?
A: The 1500 V AC isolation barrier limits electrical interference and helps separate external communication circuits from internal controller electronics.

Field Installation Guidelines

• Verify that the module part number matches the designated Trusted system slot before installation.
• Disconnect field communication cables before inserting or removing the communication module unless the system maintenance procedure explicitly permits otherwise.
• Route Ethernet and serial communication cables separately from high voltage power conductors to reduce electromagnetic interference.
• Terminate cable shields according to the plant grounding standard and avoid multiple shield grounding points unless specified by the system design.
• Confirm adequate chassis ventilation so the operating temperature remains within 0 to +60 deg C.
• Inspect Ethernet connectors, serial connectors, and backplane contacts for contamination or mechanical damage before energizing the system.
• After installation, verify fault and status indicators before placing the communication interface into normal operation.
