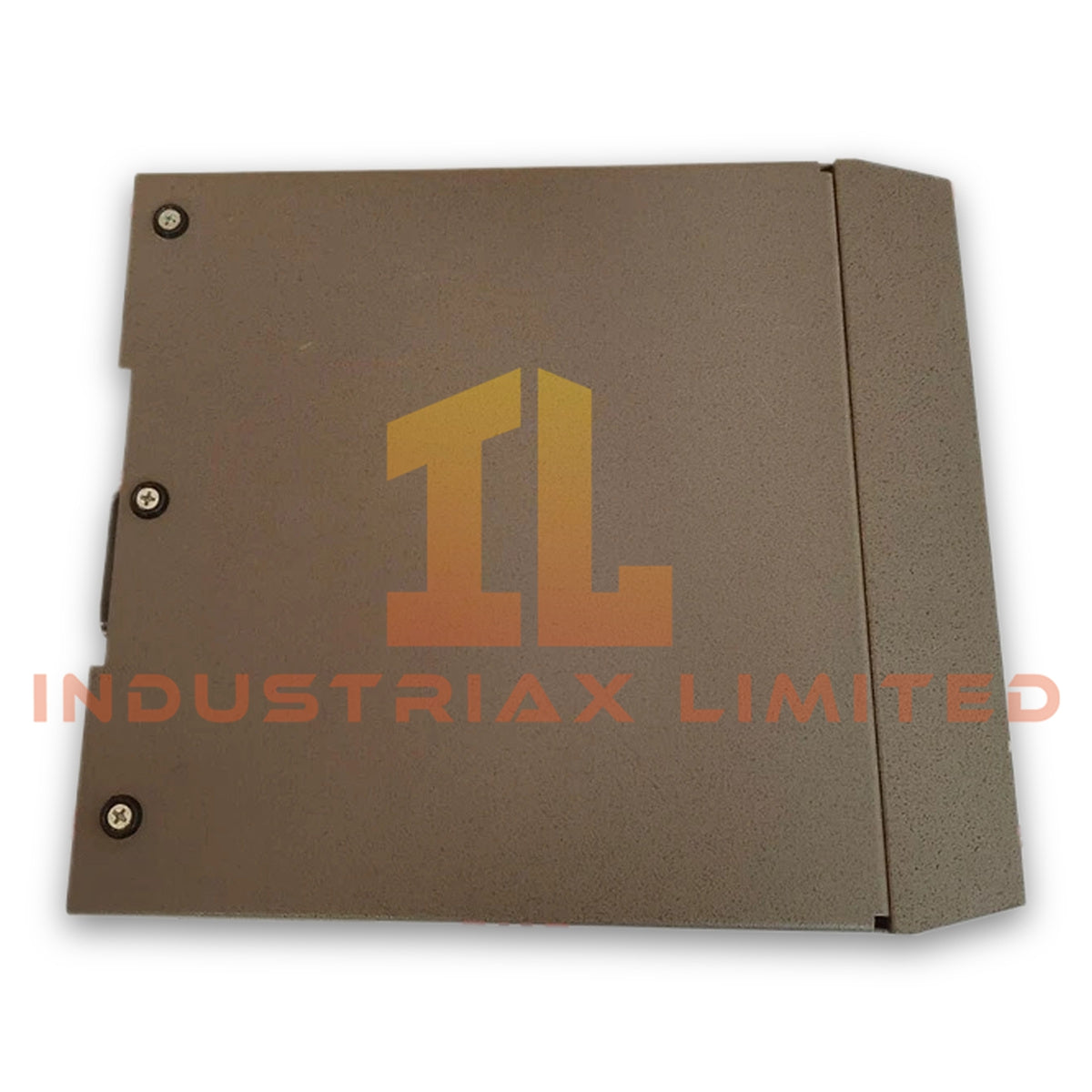

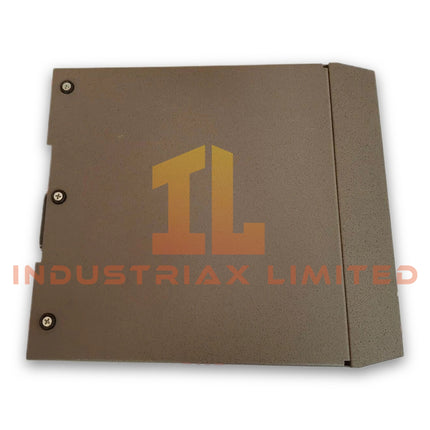

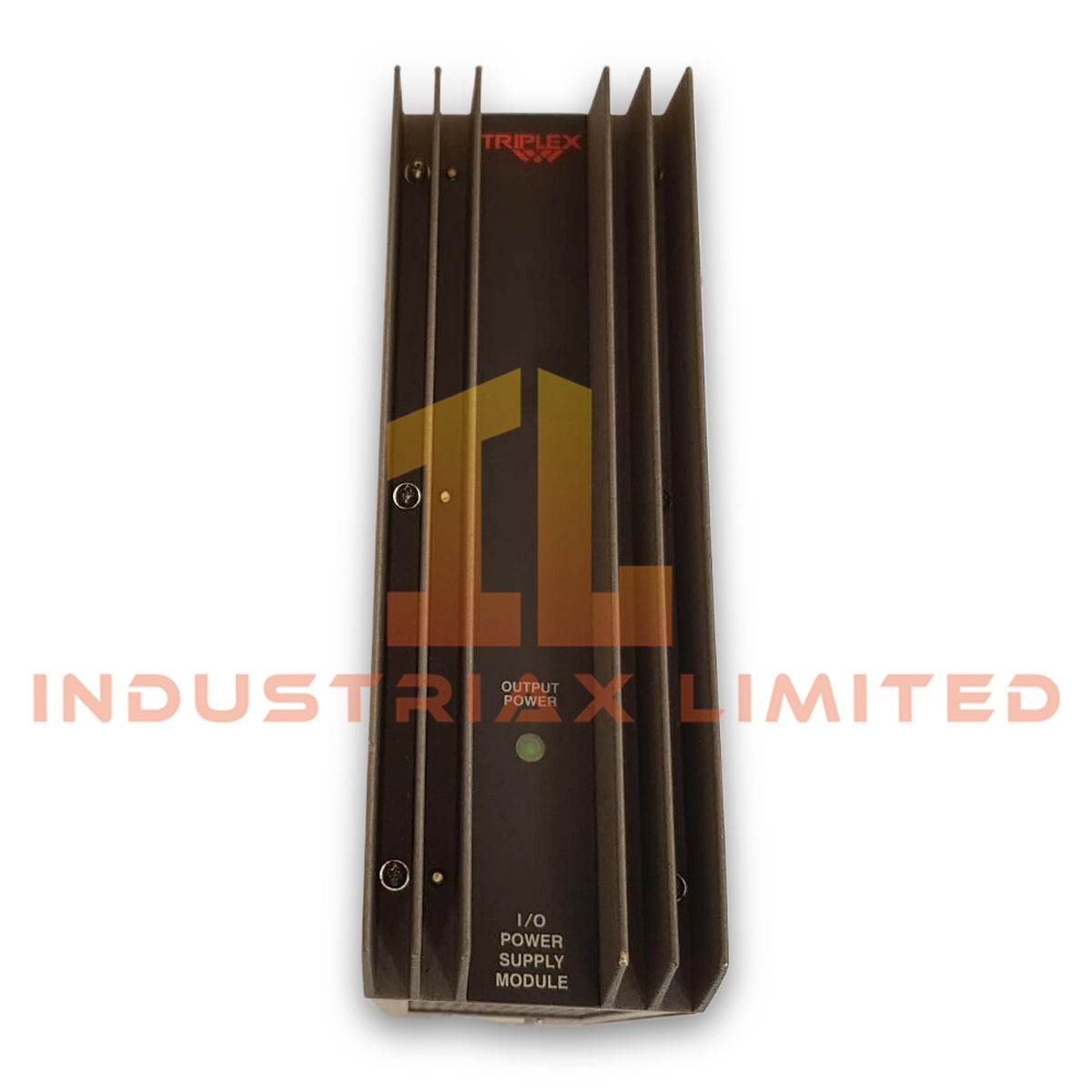

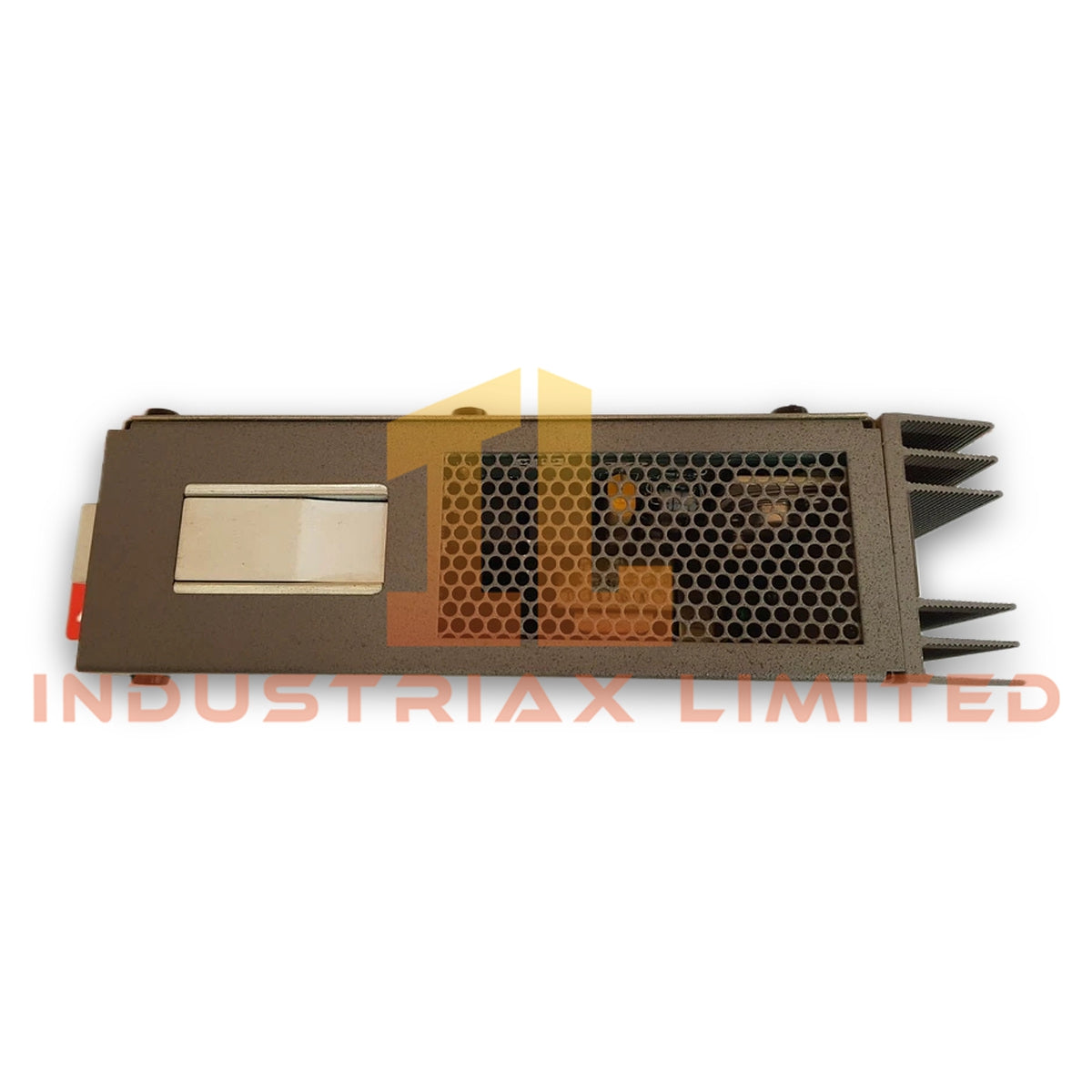

ICS Triplex T3511 I/O Power Supply Module

Configured for regulated I/O power distribution in ICS Triplex safety control systems, the ICS Triplex T3511 (T3511 I/O Power Supply Module) provides 170 to 263 VAC input power conversion and supplies regulated DC power to compatible I/O assemblies. The module supports TMR system architectures and chassis-level power distribution.

Hardware Specifications

Parameter	Specification
Model	T3511
Brand	ICS Triplex
Product Type	I/O Power Supply Module
Origin	USA
Input Voltage	170 to 263 VAC
Nominal Input Voltage	220/240 VAC
Input Frequency	47 to 63 Hz
Output Voltage	+15 VDC
Maximum Power Output	Up to 150 W
Fuse	2 A, 250 V, 3AG Slow Blow
Compatibility	ICS Triplex chassis and I/O assemblies, including T3501 chassis
Mounting	Rack/chassis mount
Operating Temp	-20 deg C to +70 deg C
Storage Temp	-40 deg C to +85 deg C
Relative Humidity	5% to 95% non-condensing

TMR Safety Power Architecture

The T3511 supplies DC power to I/O assemblies within an ICS Triplex control architecture. Its power-conversion function supports system-level redundancy arrangements where multiple power paths can maintain I/O operation.

Furthermore, the T3511 uses a regulated +15 VDC output according to the supplied specifications. The 170 to 263 VAC input range accommodates nominal 220/240 VAC supply systems. Front-panel status indicators provide local indication of DC output status.

The module also supports hot-swappable system configurations according to the supplied product information. Maintenance personnel should verify the specific chassis power architecture before removing or installing a powered module.

Frequently Asked Questions (FAQ)

Q: What input supply does the T3511 accept?
A: The T3511 accepts 170 to 263 VAC at 47 to 63 Hz, with 220/240 VAC identified as the nominal input range.

Q: What DC output does the T3511 provide?
A: The supplied specification identifies a regulated +15 VDC output with a maximum power rating of up to 150 W.

Q: Can the T3511 operate in a redundant safety system?
A: Yes. The T3511 is specified for ICS Triplex TMR system architectures and compatible chassis-level I/O power arrangements. The exact redundancy configuration depends on the installed chassis architecture.

Field Installation Guidelines

• Install the T3511 only in a compatible ICS Triplex chassis or rack assembly.
• Verify the chassis power arrangement before connecting the AC input supply.
• Confirm that the available supply remains within the specified 170 to 263 VAC range.
• Maintain physical separation between AC power wiring and low-level signal wiring where the chassis installation permits.
• Connect protective earth and chassis grounding according to the system installation requirements.
• Keep power wiring mechanically secured and prevent strain on module or chassis connectors.
• Before replacement, verify the approved hot-swap procedure for the specific ICS Triplex chassis configuration.
• After installation, inspect the module seating and verify the front-panel DC output indication.
• Do not exceed the specified 150 W maximum output rating.
• Use the specified 2 A, 250 V, 3AG slow-blow fuse type when fuse replacement is required.
