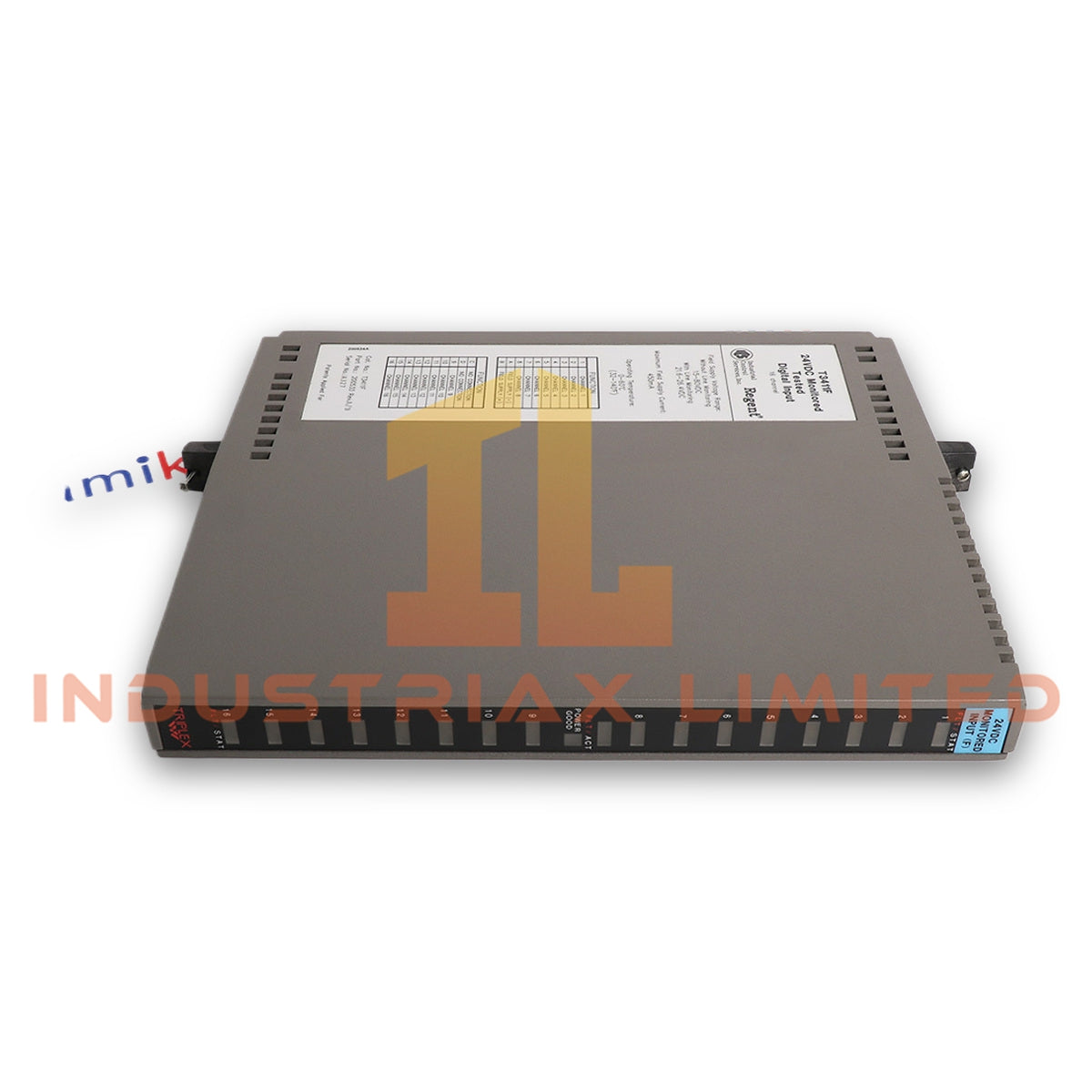

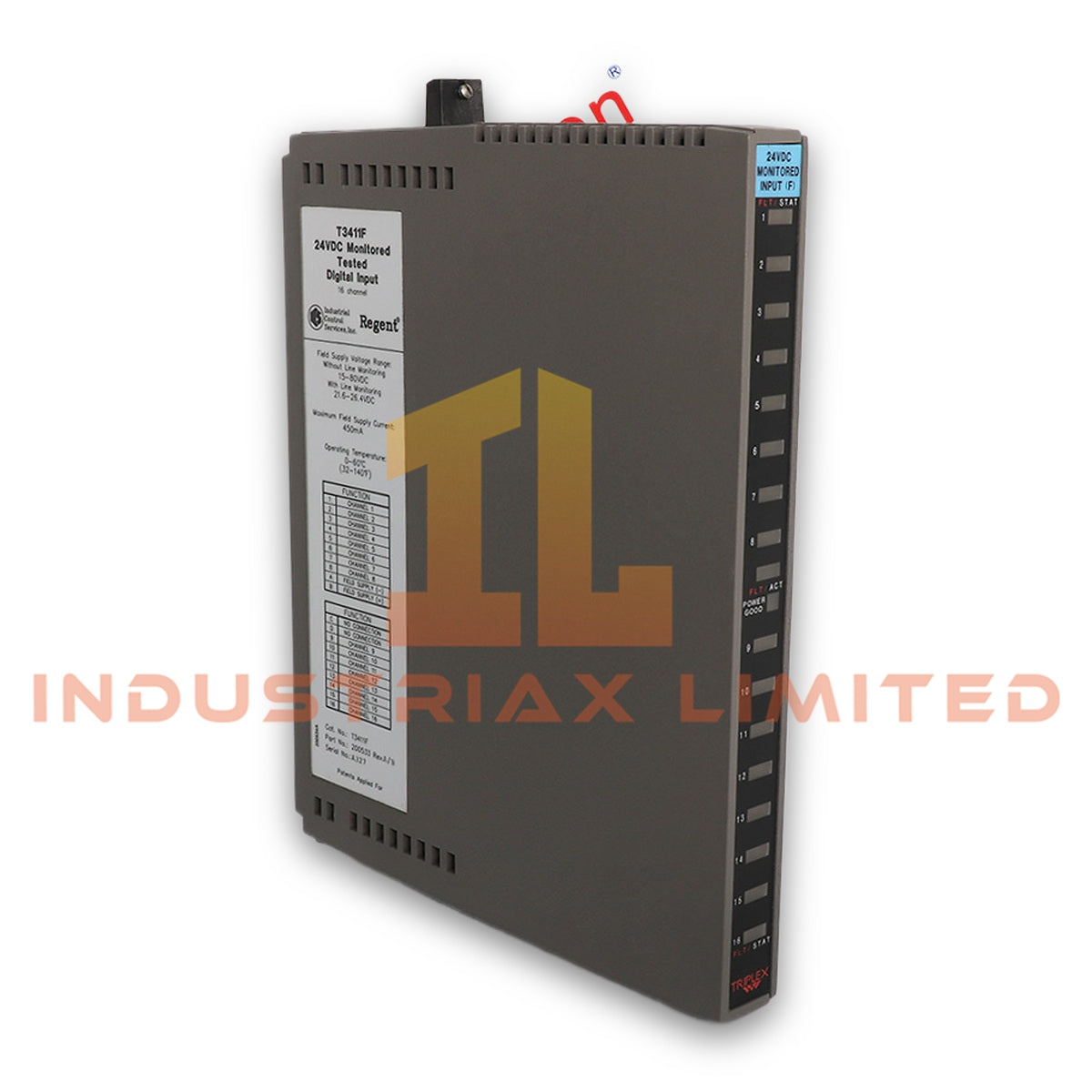

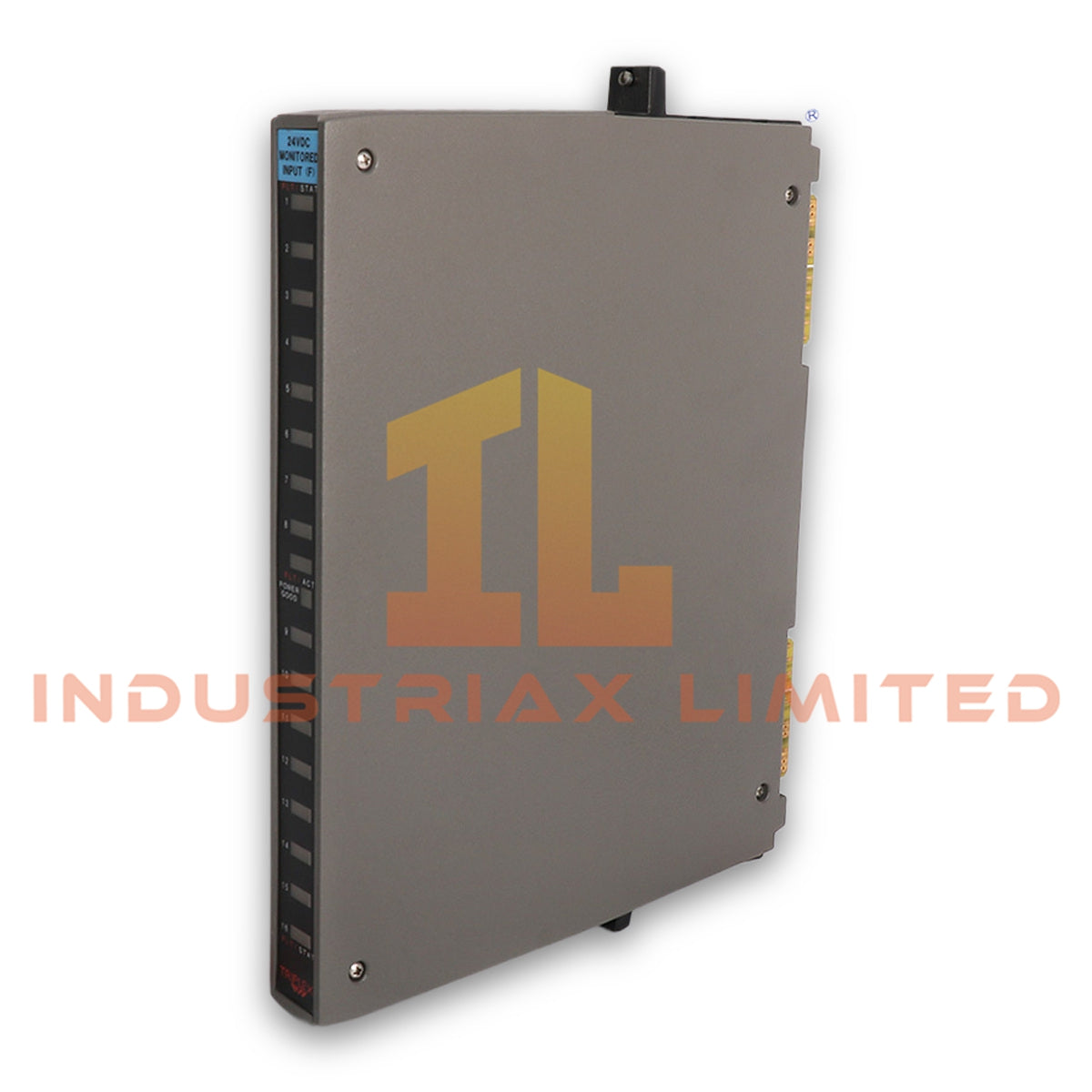

ICS Triplex T3411F Monitored Digital Input Module

The ICS Triplex T3411F, also cataloged as the T3411F Monitored Digital Input Module, acquires 16 DC field inputs and supervises input circuit conditions within the ICS Triplex Trusted TMR safety control architecture.

Hardware Specifications

Parameter	Specification
Model	T3411F
Brand	ICS Triplex
Product Type	Monitored Digital Input Module, Field Powered
System Architecture	Trusted TMR
Input Channels	16
Field Power	24 - 48 VDC
Input Impedance	47 kOhm at 24 VDC
Turn-On Voltage	> 12 VDC
Turn-Off Voltage	< 5 VDC
Operating Temp	-20 deg C to +60 deg C
Storage Temp	-40 deg C to +85 deg C
Humidity	5 - 95 % RH, non-condensing
Weight	1.4 kg
Dimensions	3.1 x 26.4 x 35.5 cm shipping size
Origin	USA
Place of Shipment	Xiamen, China
Tariff Code	8537101190
Stock Status	1 unit

TMR Safety and Input Circuit Monitoring

The T3411F operates within an ICS Triplex Trusted TMR architecture and processes discrete DC field signals through 16 monitored input channels. The supplied specifications identify external 24 - 48 VDC field power and a 47 kOhm input impedance at 24 VDC.

The module supports automatic testing of its input circuits. In addition, the design supports fault-tolerant operation when installed in parallel with another module of the same type. This arrangement provides redundant signal acquisition while the control system evaluates channel status.

The T3411F also supports hot replacement. Therefore, maintenance personnel can replace the module without treating the input circuitry as a conventional fixed wiring assembly, subject to the system's approved maintenance procedures.

The supplied documentation describes line monitoring for field wiring conditions, including open-circuit and short-circuit detection. However, the exact diagnostic thresholds for these fault states are not specified in the supplied data and should be verified against the applicable Trusted system manual.

Frequently Asked Questions (FAQ)

Q: How many digital input channels does the T3411F provide?
A: The T3411F provides 16 monitored digital input channels.

Q: What field power does the T3411F require?
A: The supplied specification lists a 24 - 48 VDC field power range.

Q: Does the T3411F support module replacement during system operation?
A: The supplied product information identifies the T3411F as hot-replaceable. The replacement procedure must follow the applicable Trusted system maintenance instructions.

Field Installation Guidelines

• Verify the module model and system slot assignment before installation.
• Confirm that the field supply remains within the specified 24 - 48 VDC range.
• Keep field input wiring separated from high-voltage and high-current conductors to reduce electrical interference.
• Terminate field wiring according to the approved Trusted system wiring documentation.
• Maintain appropriate shield and protective-earth practices where shielded field cables are used.
• Inspect terminal connections for secure mechanical engagement before applying field power.
• Verify input polarity and field-device contact configuration before commissioning.
• After installation, perform the applicable system diagnostics and input-channel tests.
• For hot replacement, follow the approved Trusted maintenance procedure and verify the module status after insertion.
