Description

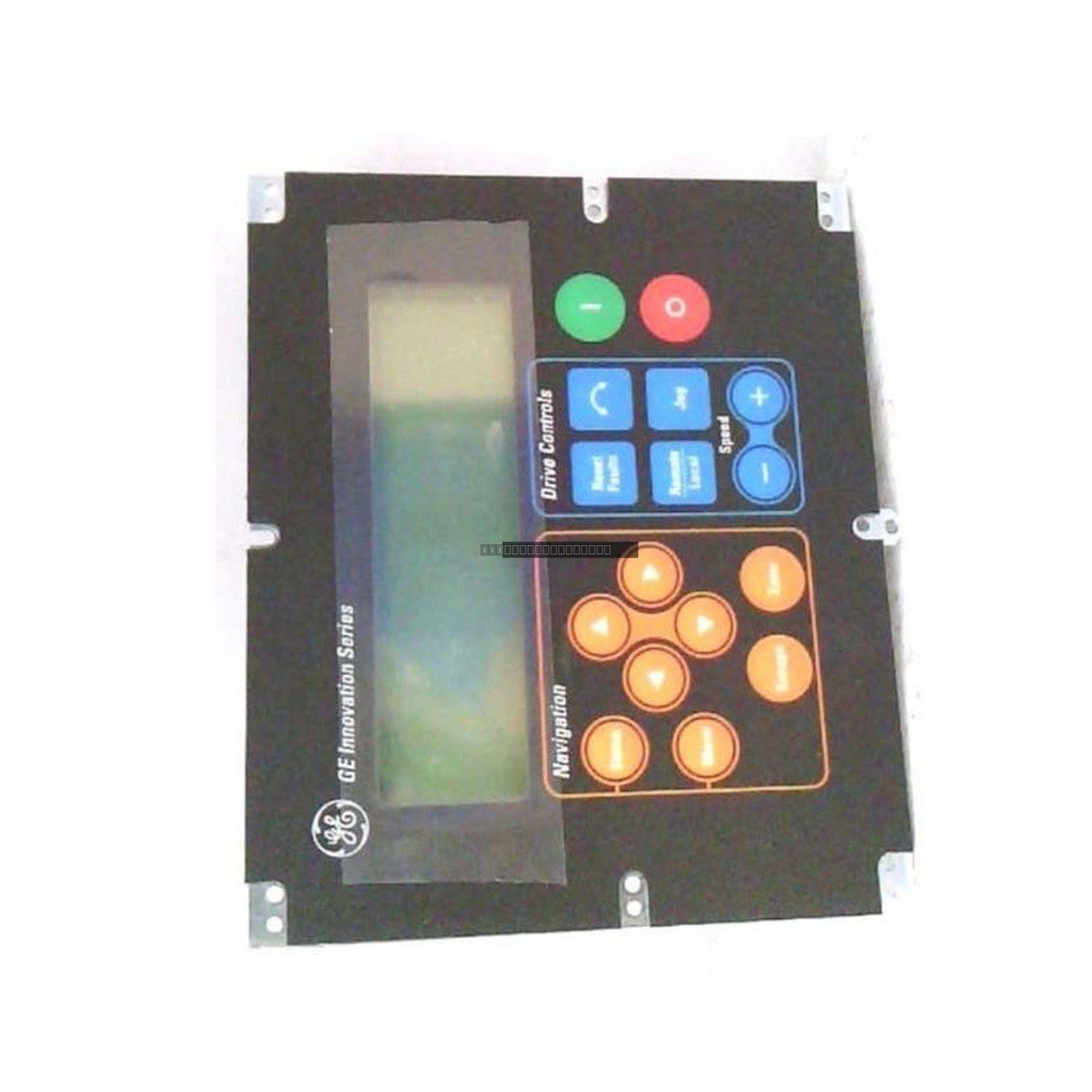

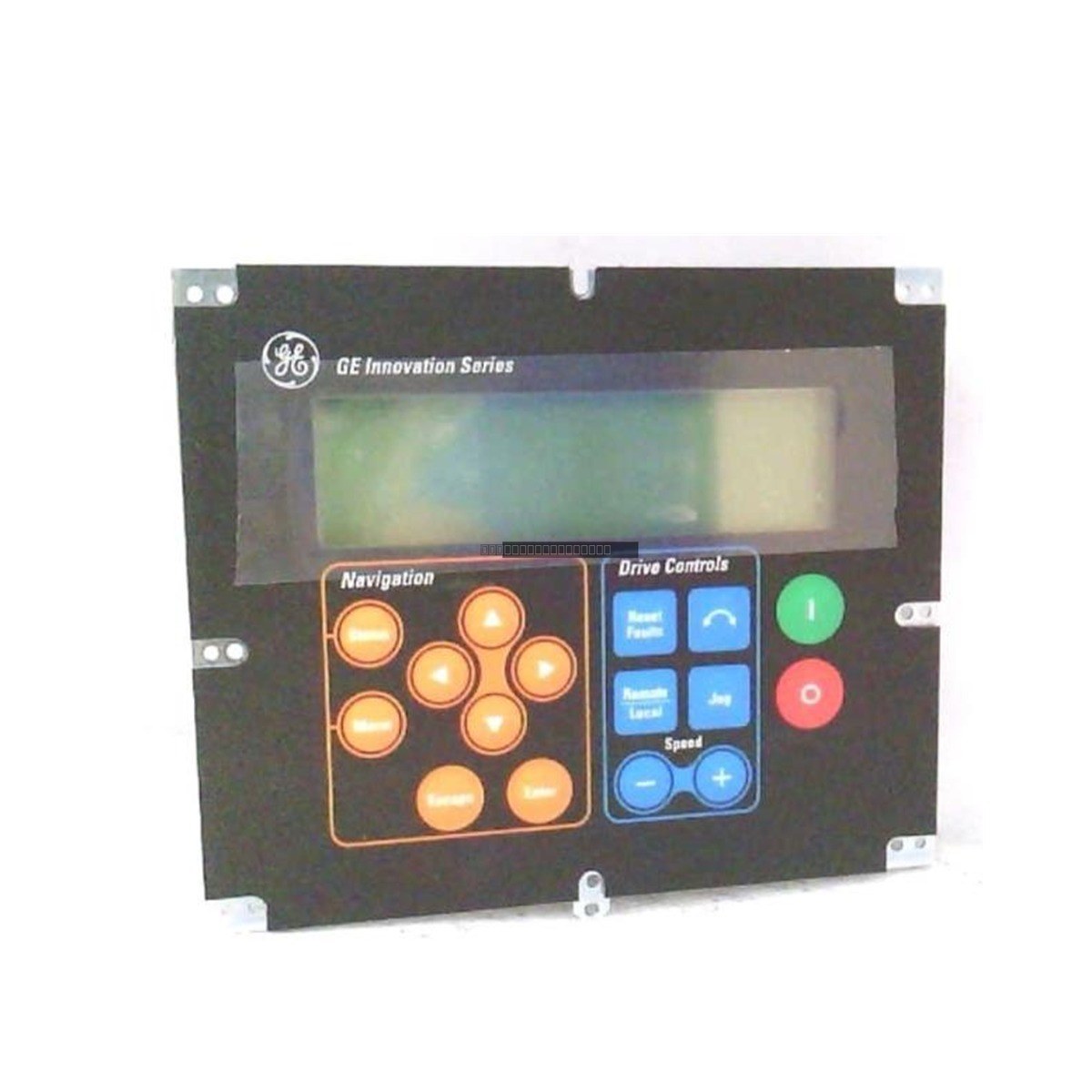

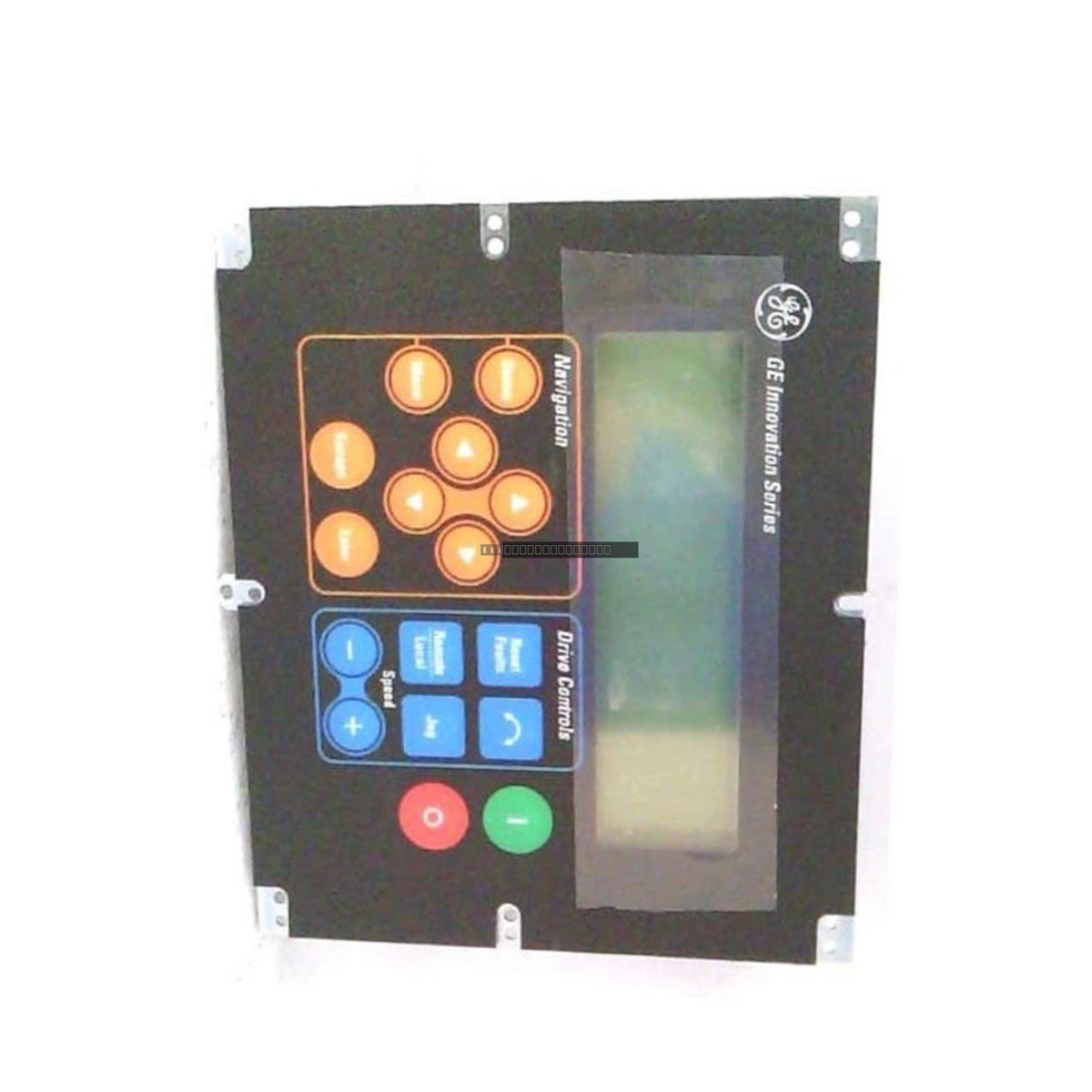

The IC752SPL014 is a specialized Operator Interface Terminal (OIT) engineered for seamless integration with the GE EX2100 Excitation Control System. This unit functions as a primary diagnostic and control portal, facilitating the management of synchronous generator excitation in diverse power generation environments, including thermal, hydro, and combined-cycle plants. By providing real-time status reporting, alarm annunciation, and precise parameter adjustment, it enables operators to maintain generator performance and system stability.
Features
- Designed specifically for the GE EX2100 Excitation Control ecosystem.
- Facilitates rapid fault isolation and synchronization management for excitation bridges.
- Hardened hardware architecture suitable for high-vibration industrial environments.
- Centralized data hub for monitoring field voltage, field current, and reactive power compensation.
- Optimized for real-time interaction with Excitation Control Boards (ECB) and digital regulator modules.
Applications
This operator interface is intended for use in power generation facilities where the EX2100 system manages generator excitation. It is commonly deployed in control rooms or local excitation enclosures to provide operators with the visibility required for load fluctuation management and grid disturbance response.
Technical Specifications
| Model |
IC752SPL014 |
| Brand |
GE Fanuc |
| Series |
EX2100 Excitation Control |
| Communication |
Dedicated EX2100 serial/Ethernet link |
| Operating Temperature |
0 to 50 degC |
| Weight |
14.51 kg |
Installation Guidelines
- Ensure the unit is mounted in a clean, dry environment within the specified temperature range.
- Verify that the panel-mount cutout meets the standard EX2100 enclosure specifications for a secure fit.
- Always power down the excitation control bus before attempting to connect or disconnect the interface module to prevent electrical damage.
- Ensure proper grounding of the chassis to the enclosure to minimize electromagnetic interference (EMI).
- Route communication cables away from high-voltage power lines to maintain signal integrity.
FAQ
What is the primary function of the IC752SPL014?
The IC752SPL014 acts as an operator interface terminal for the GE EX2100 system, allowing users to monitor and adjust parameters for synchronous generator excitation control.
Is this unit suitable for high-vibration environments?
Yes, the IC752SPL014 is built with a heavy-duty chassis specifically designed to withstand the vibration levels typically found in power plant excitation enclosures.
