Description

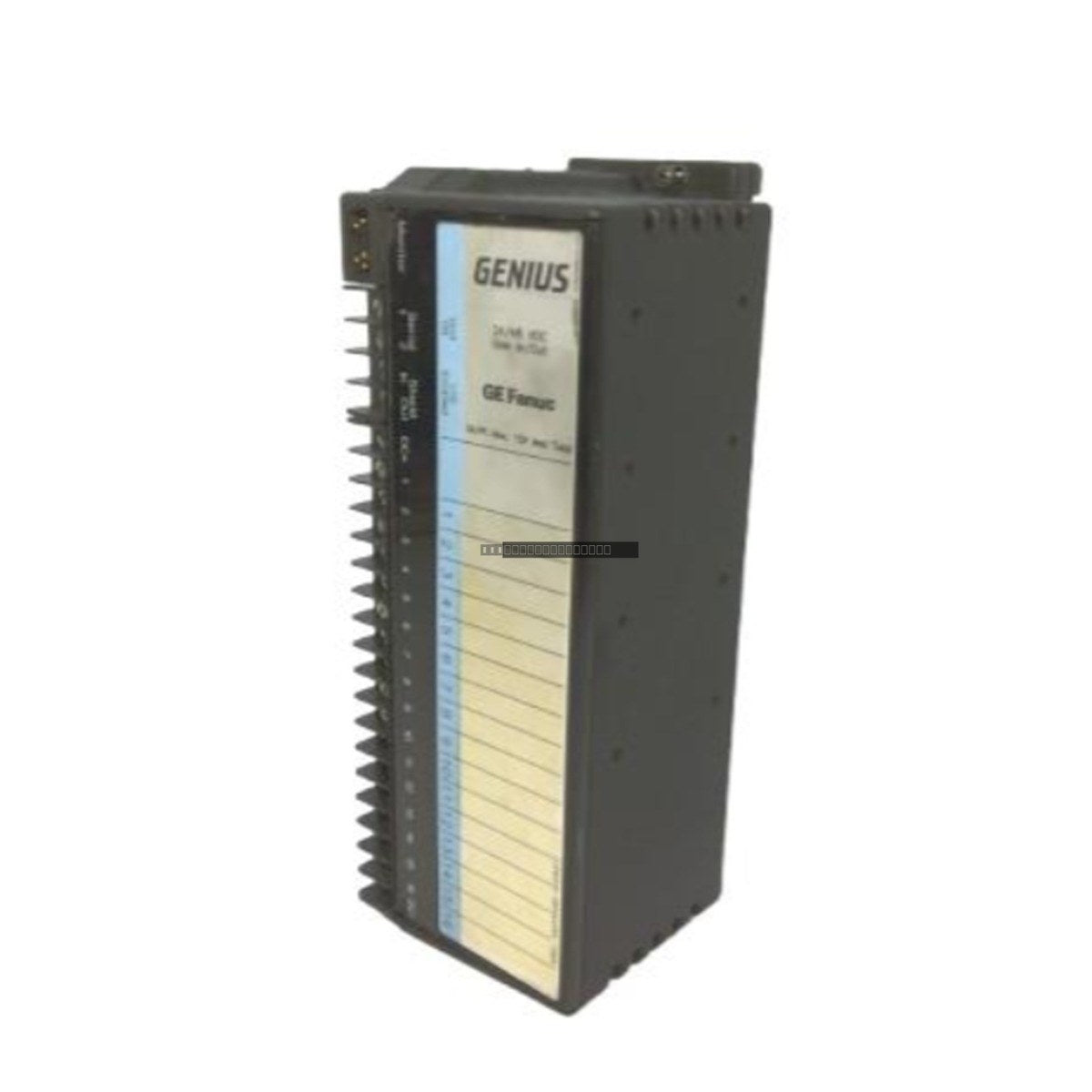

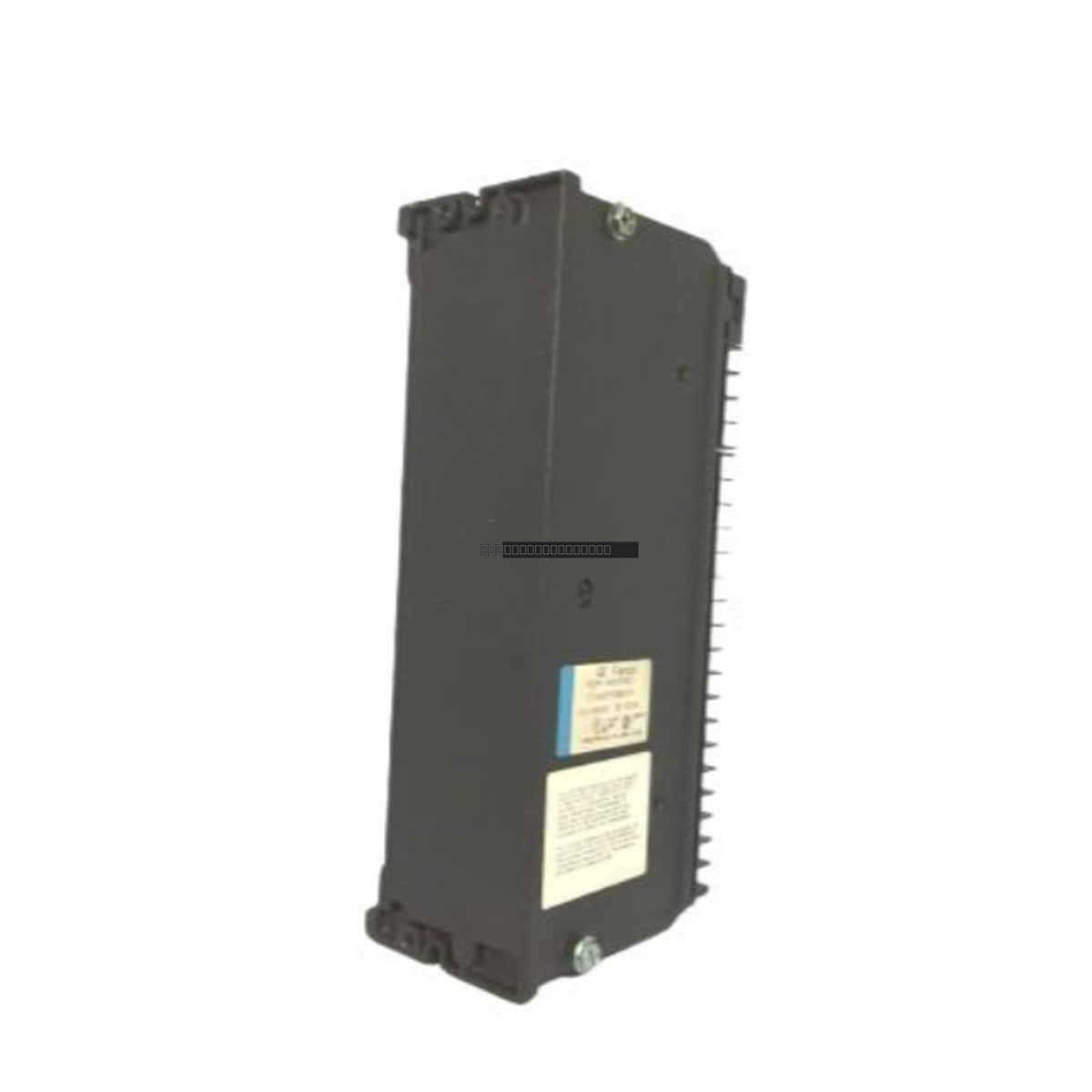

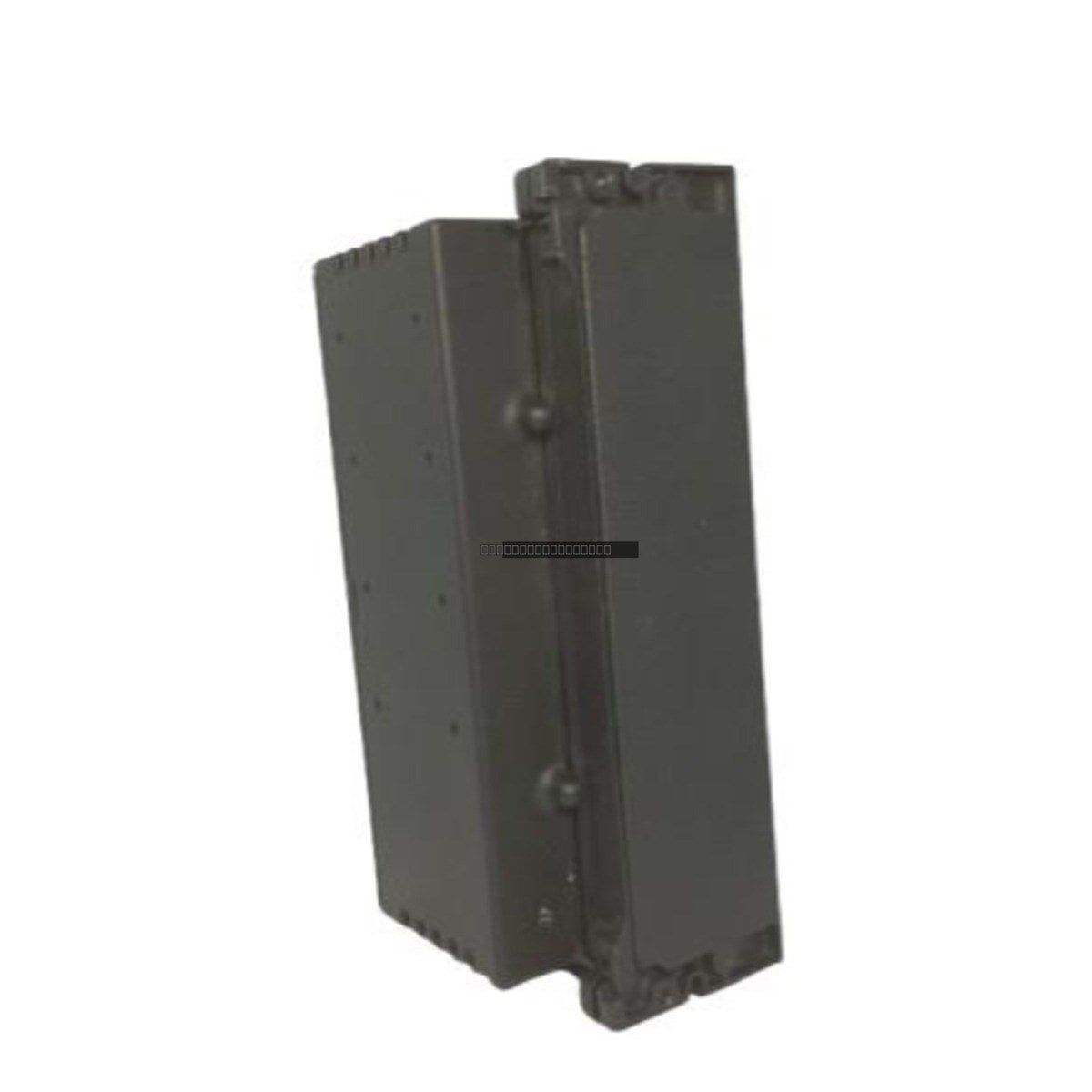

The General Electric IC660TSD021 is a terminal assembly designed for use within the GE Genius I/O system. This component serves as a critical interface for the IC660BBD021 I/O block, facilitating secure and reliable field wiring connections for industrial automation applications. It is engineered to support solid-state sensors and provides configurable input filtering to ensure signal integrity in demanding environments.

Features

• Designed specifically for compatibility with the IC660BBD021 Genius I/O block.
• Supports integration with solid-state sensors for versatile field device connectivity.
• Configurable input filter timing ranging from 5 to 100 milliseconds to mitigate noise.
• Robust construction suitable for standard industrial control cabinet environments.

Technical Specifications

Product Model	IC660TSD021
Manufacturer	General Electric
Product Type	Terminal Assembly
Compatibility	IC660BBD021 I/O Block
Operating Temperature	0 to 60 degC (32 to 140 degF)
Relative Humidity	5 to 95% (non-condensing)
Input Filter Time	5 to 100 ms

Installation Guidelines

• Ensure the main power is disconnected before installing or removing the terminal assembly from the I/O block.
• Verify that the terminal assembly is properly seated and locked into the corresponding I/O block to ensure reliable electrical contact.
• Follow standard industrial wiring practices, ensuring that field wires are properly stripped and secured within the terminal blocks to prevent loose connections.
• Maintain proper cable routing to separate signal wiring from high-voltage power lines to reduce the risk of electromagnetic interference (EMI).
• Operate within the specified temperature and humidity ranges to ensure long-term reliability of the electronic components.

FAQ

What is the primary function of the IC660TSD021?

The IC660TSD021 is a terminal assembly that provides the physical wiring interface for the GE Genius I/O block, allowing field devices to communicate with the control system.

Is this module compatible with other Genius I/O blocks?

This terminal assembly is specifically designed for compatibility with the IC660BBD021 I/O block. Please consult your system documentation before attempting to use it with other models.

What are the environmental requirements for this module?

The module is designed to operate in temperatures between 32 and 140 degrees Fahrenheit (0 to 60 degC) and supports a relative humidity range of 5 to 95 percent.
