Description

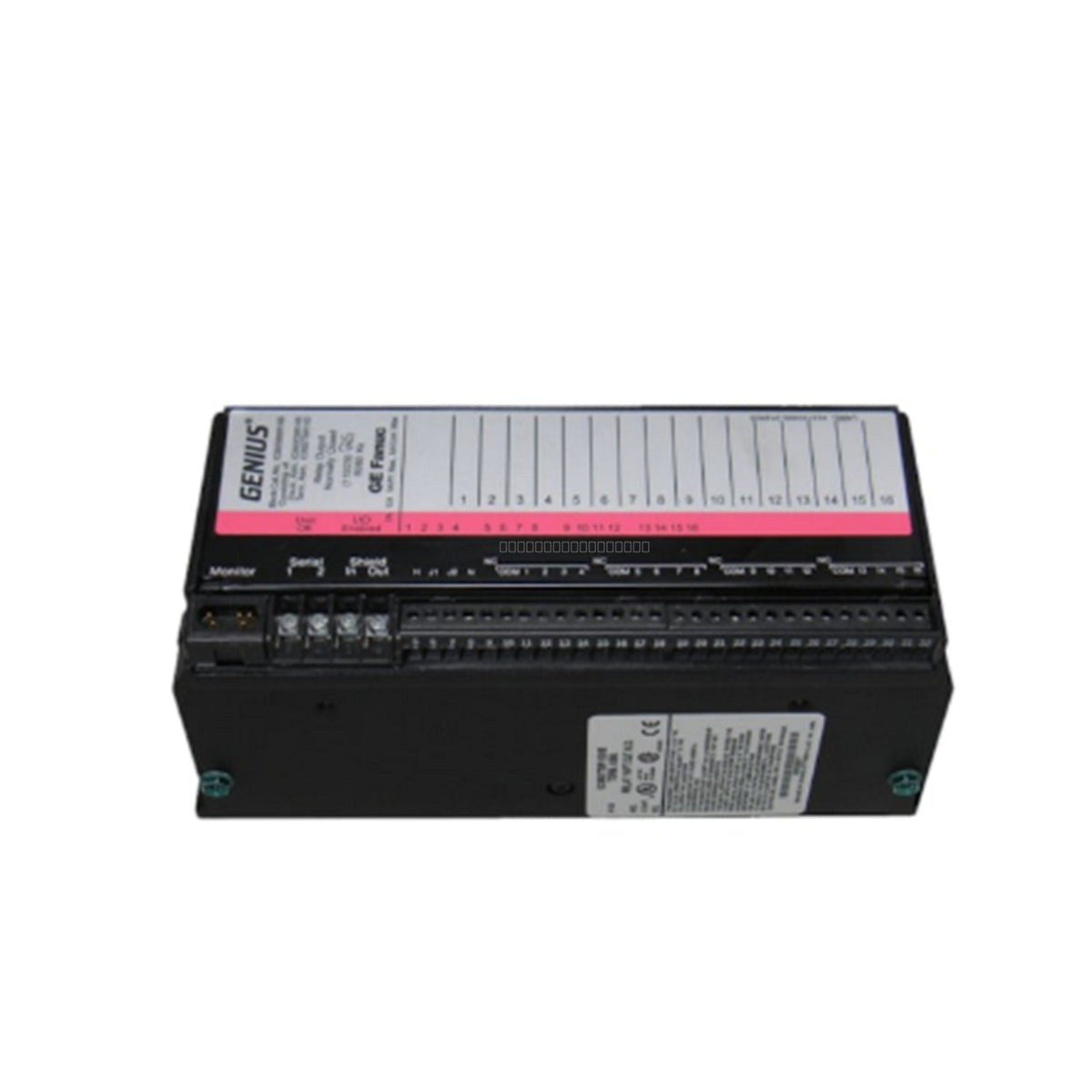

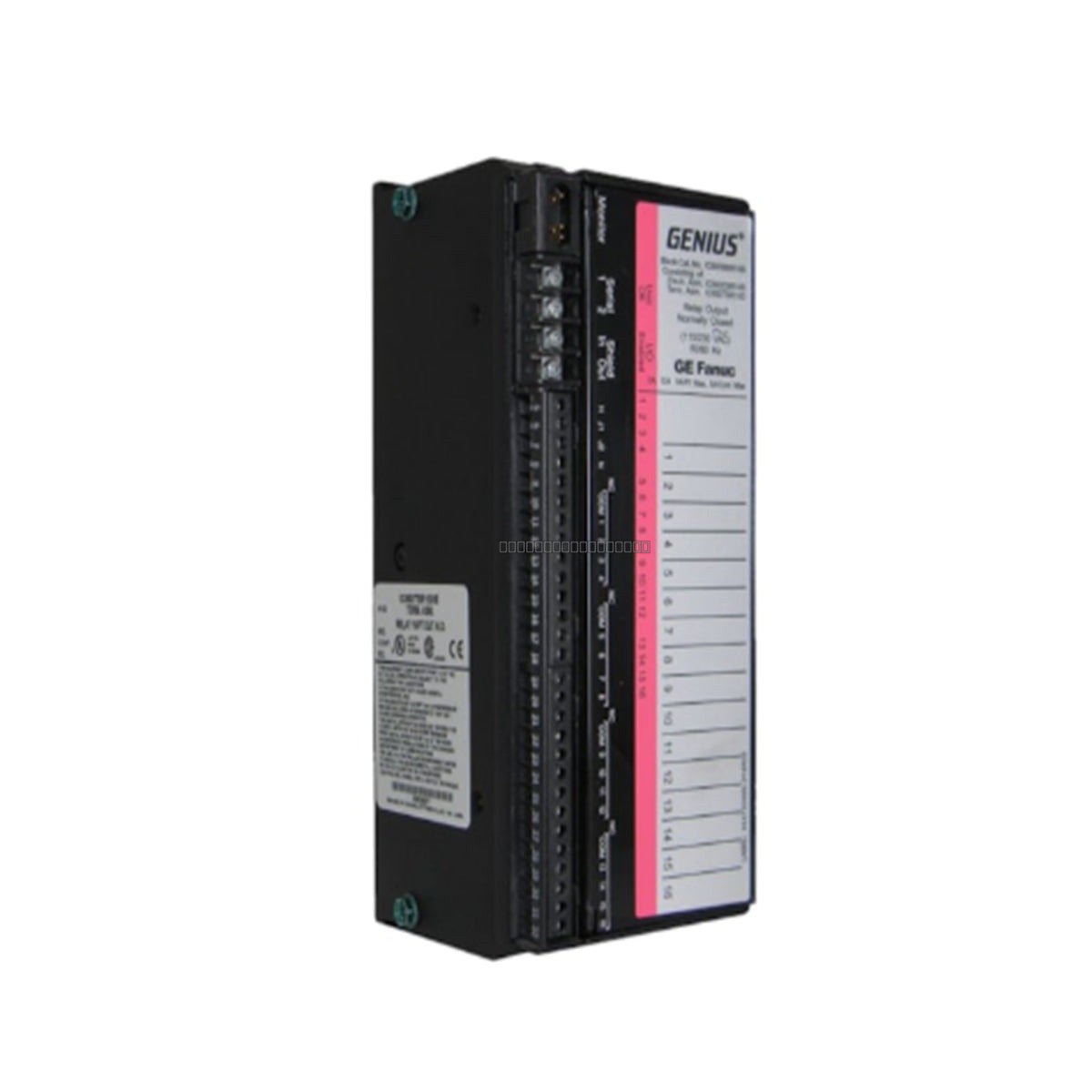

The GE Fanuc IC660BBR100 is a 16-point Relay Output Block belonging to the Genius I/O product series. This module is designed to provide reliable discrete output control in industrial automation environments, facilitating the interface between a controller and field devices. The unit features a robust design capable of handling both AC and DC voltage applications, offering flexibility for various control system architectures.
Features
- 16 isolated relay outputs configured in 4 groups of 4 outputs each.
- Normally Closed (NC) output contact configuration.
- Supports CPU redundancy for high-availability control applications.
- Compatible with the Genius I/O communication network.
- Designed for industrial environments requiring reliable switching of field loads.
Technical Specifications
| Manufacturer |
General Electric (GE Fanuc) |
| Series |
Genius I/O |
| Part Number |
IC660BBR100 |
| Product Type |
Relay Output Block |
| Number of Outputs |
16 |
| Output Configuration |
4 Groups of 4 Outputs |
| Output Voltage Type |
AC or DC |
| Power Requirements |
87 mA at 115 VAC |
| Redundancy |
Supported |
Installation Guidelines
- Ensure the control system is powered down before installing or removing the module from the I/O rack.
- Mount the block in a location that allows for adequate ventilation to prevent overheating during operation.
- Use appropriate shielded cabling for communication and I/O connections to minimize electromagnetic interference (EMI).
- Verify that all field wiring is properly secured to the terminal blocks and that the voltage ratings of the connected loads do not exceed the relay specifications.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
FAQ
What is the primary function of the IC660BBR100?
The IC660BBR100 is a Genius I/O relay output block used to interface a PLC or controller with field devices, providing 16 discrete outputs for control operations.
Does this module support AC and DC loads?
Yes, the IC660BBR100 is designed to handle both AC and DC voltage types for its relay outputs, providing versatility in industrial control applications.
Is this module compatible with redundant CPU systems?
Yes, the IC660BBR100 supports CPU redundancy, making it suitable for critical control processes where system uptime is essential.
