Description

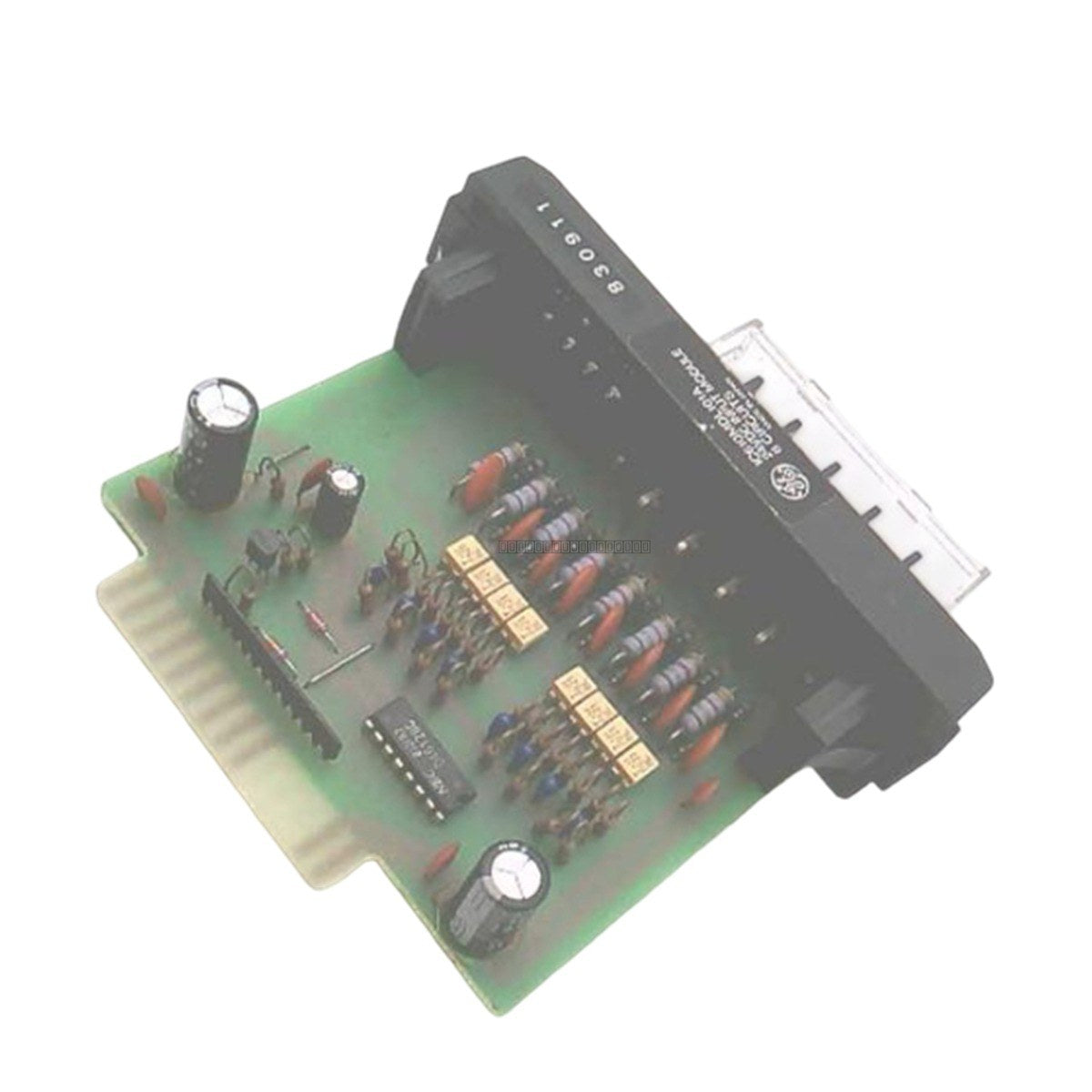

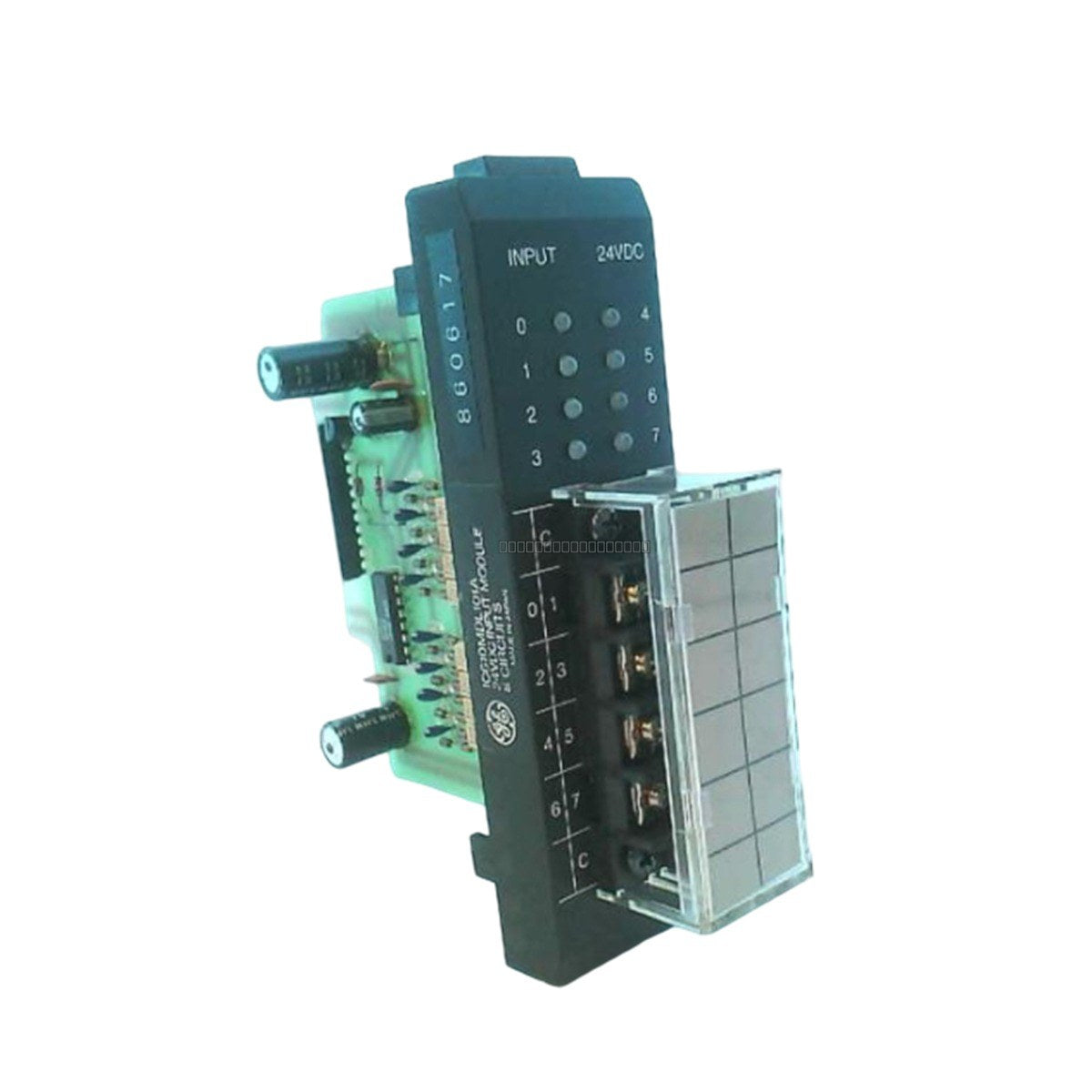

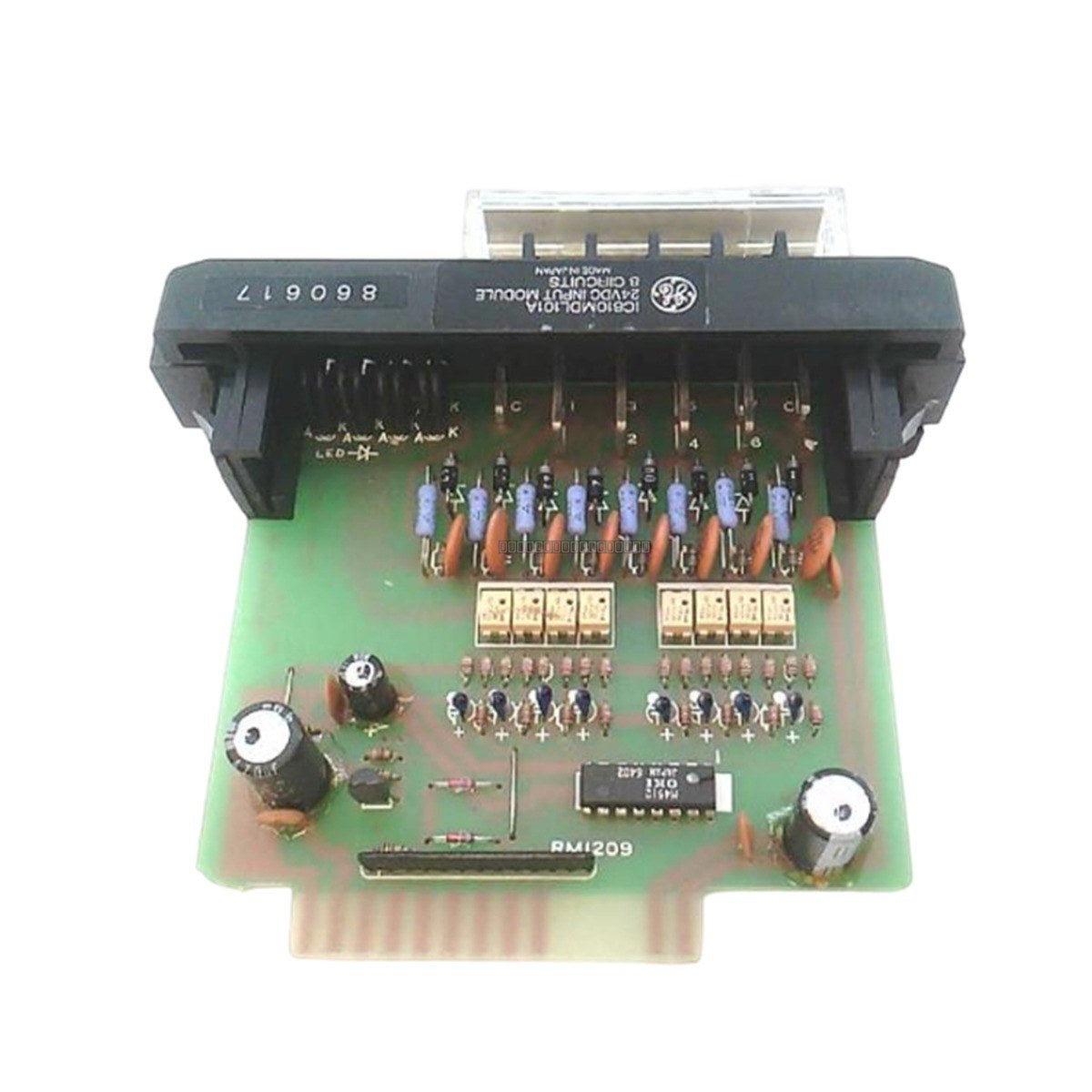

The GE Fanuc IC610MDL101 is an 8-point DC input module specifically engineered for the Series One programmable logic controller (PLC) platform. This module serves as a critical interface between field devices and the controller, providing reliable signal acquisition for automated assembly lines, material handling systems, and machine control applications. By utilizing a sink-type input architecture, the IC610MDL101 ensures stable detection of binary field signals while providing electrical isolation to protect sensitive control logic from external noise.
Features
- 8-point discrete DC input capacity for high-density signal monitoring.
- Sink-type input configuration for standard industrial field device compatibility.
- Integrated LED status indicators for each channel to facilitate rapid visual diagnostics and troubleshooting.
- High-impedance signal processing (1.8 kOhm) to minimize loading on field sensors.
- Rack-mount design for seamless integration into existing Series One PLC backplanes.
- Direct power draw from the system rack, simplifying installation and reducing external cabling requirements.
Applications
The IC610MDL101 is widely utilized in legacy automation systems where the Series One platform remains in operation. Typical applications include:
- Automated manufacturing and assembly lines.
- Material handling and conveyor control systems.
- Local machine control cabinets requiring discrete sensor feedback.
- Process monitoring where binary state detection is required for sequence control.
Technical Specifications
| Parameter |
Specification |
| Model |
IC610MDL101 |
| Series |
Series One |
| Module Type |
8-Point Sink Input Module |
| Max Input Voltage |
36 VDC |
| Input Current |
18 mA per point |
| Input Impedance |
1.8 kOhm |
| Off-State Current Leakage |
3 mA max |
| Internal Power Consumption |
14 mA per ON circuit at 24 VDC |
| Mounting |
Rack-mount |
Installation Guidelines
-
Power Down: Always disconnect power from the PLC rack before inserting or removing the module to prevent electrical arcing or damage to the backplane connectors.
-
ESD Protection: Handle the module by its edges or housing. Use a grounded wrist strap when handling internal components to prevent electrostatic discharge damage.
-
Mounting: Ensure the module is fully seated in the rack slot and the retention screws are tightened to maintain a secure electrical connection to the backplane.
-
Wiring: Use shielded cables for field inputs to minimize EMI/RFI interference. Route signal cables away from high-voltage power lines and motor drive cabling.
-
Environment: Ensure the control cabinet provides adequate ventilation to maintain operating temperatures within the specified range for the Series One system.
FAQ
Is this module compatible with Series One Plus systems?
Yes, the IC610MDL101 is designed for the GE Fanuc Series One platform and is generally compatible with Series One and Series One Plus rack configurations.
What does the sink-type input mean?
A sink-type input means the module provides the return path for the current. The field device (such as a switch or sensor) connects the input terminal to the positive supply voltage to trigger the input.
