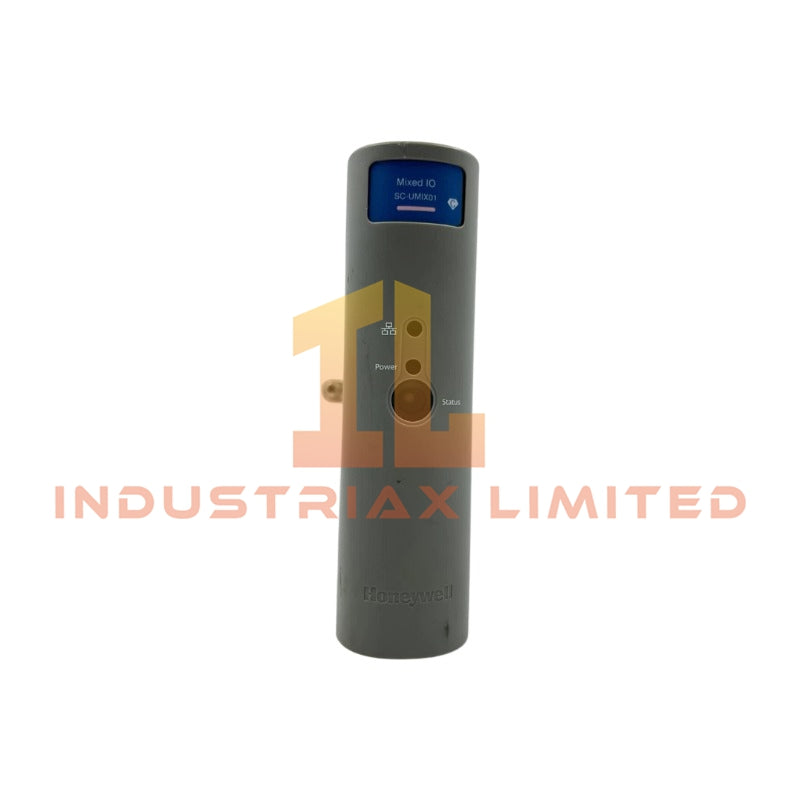

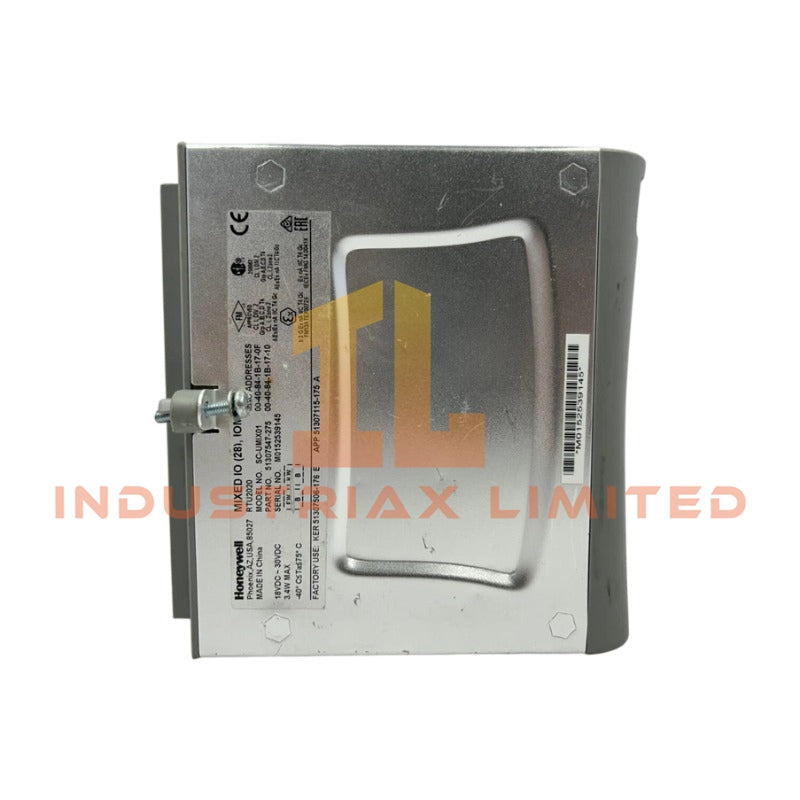

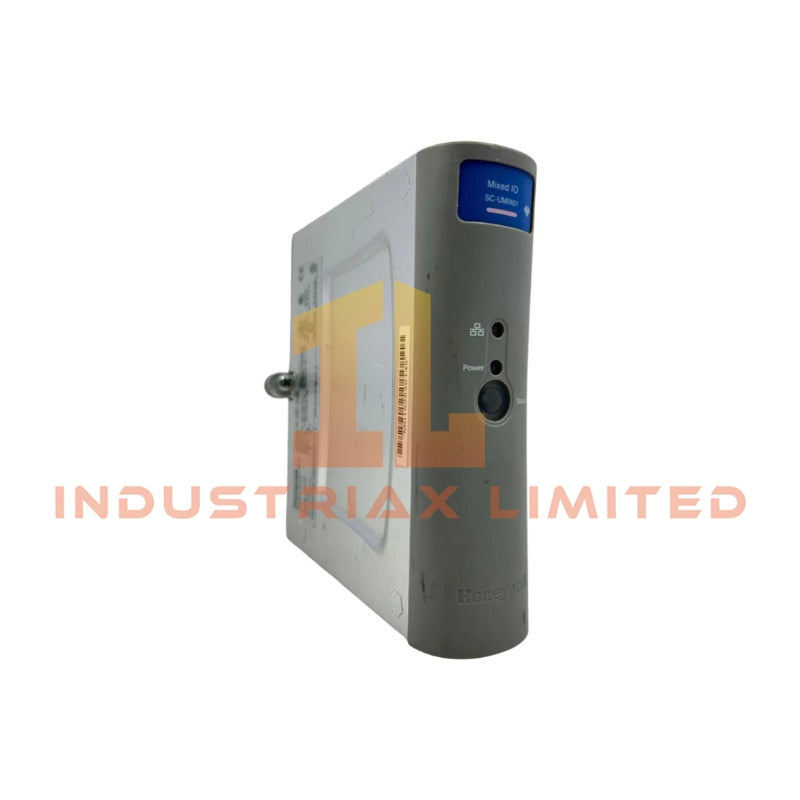

Honeywell SC-UMIX01 Mixed I/O Module

The Honeywell SC-UMIX01 51307547-275, also cataloged as the SC-UMIX01 Mixed I/O Module, operates as a configurable signal interface component for mixed analog and digital channel processing within Honeywell ControlEdge RTU 2020 systems.

Hardware Specifications

Parameter	Specification
Model	SC-UMIX01
Part Number	51307547-275
Brand	Honeywell
Origin	USA
Module Type	Mixed Input/Output Module
System Compatibility	Honeywell ControlEdge RTU 2020 / Experion ControlEdge systems
Channel Capacity	28 configurable I/O channels
Signal Type	Analog and digital field signals
Analog Input Range	0-10 VDC or 4-20 mA
Digital Input Voltage	24 VDC
Digital Input Configuration	Software-selectable pull-up or pull-down resistors
Operating Voltage	12 VDC to 24 VDC
Communication Interface	Controller backplane integration
Supported Protocols	Modbus RTU, DNP3, EtherNet/IP via controller module
Operating Temp	-25 deg C to +60 deg C
Storage Temp	-40 deg C to +85 deg C
Relative Humidity	5% to 95% RH, non-condensing
Mounting Method	DIN-rail or baseplate modular mounting
Cooling Method	Natural convection

Process Signal Interface and DCS Connectivity

The SC-UMIX01 integrates mixed signal acquisition and output functions through configurable channels. Moreover, the module accepts analog field inputs using 0-10 VDC and 4-20 mA signal formats while supporting 24 VDC digital input processing. The channel configuration allows the controller software to define signal behavior according to the connected field devices.

For Honeywell process control architectures, the module supports instrument loop integration based on standard industrial signal methods. Therefore, applications using 4-20 mA HART loop protocol interfaces, FOUNDATION Fieldbus / Profibus PA networks through compatible controller gateways, and channel-to-channel isolation requirements can use the module as part of a distributed I/O configuration.

The module provides surge protection and ESD shielding at I/O ports. In addition, the hardware design maintains electrical separation between field wiring and controller communication paths to reduce signal interference during industrial operation.

Frequently Asked Questions

Q: Does the SC-UMIX01 support both analog and digital signals in the same hardware unit?
A: Yes. The module provides 28 configurable channels that can process combined analog and digital I/O configurations according to software settings.

Q: What field signal types can the SC-UMIX01 accept?
A: The module supports analog signals of 0-10 VDC and 4-20 mA, along with 24 VDC digital input signals.

Q: Can the SC-UMIX01 operate as a standalone communication device?
A: No. The module communicates through the ControlEdge RTU 2020 controller architecture and depends on the main processor module for network protocol handling.

Field Installation Guidelines

Install the SC-UMIX01 on the designated ControlEdge RTU mounting structure according to the controller hardware configuration manual. Verify that the supply voltage range matches the 12 VDC to 24 VDC operating requirement before connecting field wiring.

Use shielded cables for analog signal connections when the installation environment contains high electromagnetic interference sources. Connect cable shields according to the site grounding standard and avoid routing low-level analog wiring together with high-current power conductors.

Separate digital and analog field wiring where possible to reduce coupling noise. Confirm terminal assignments, channel configuration parameters, and controller database settings before commissioning the module.
