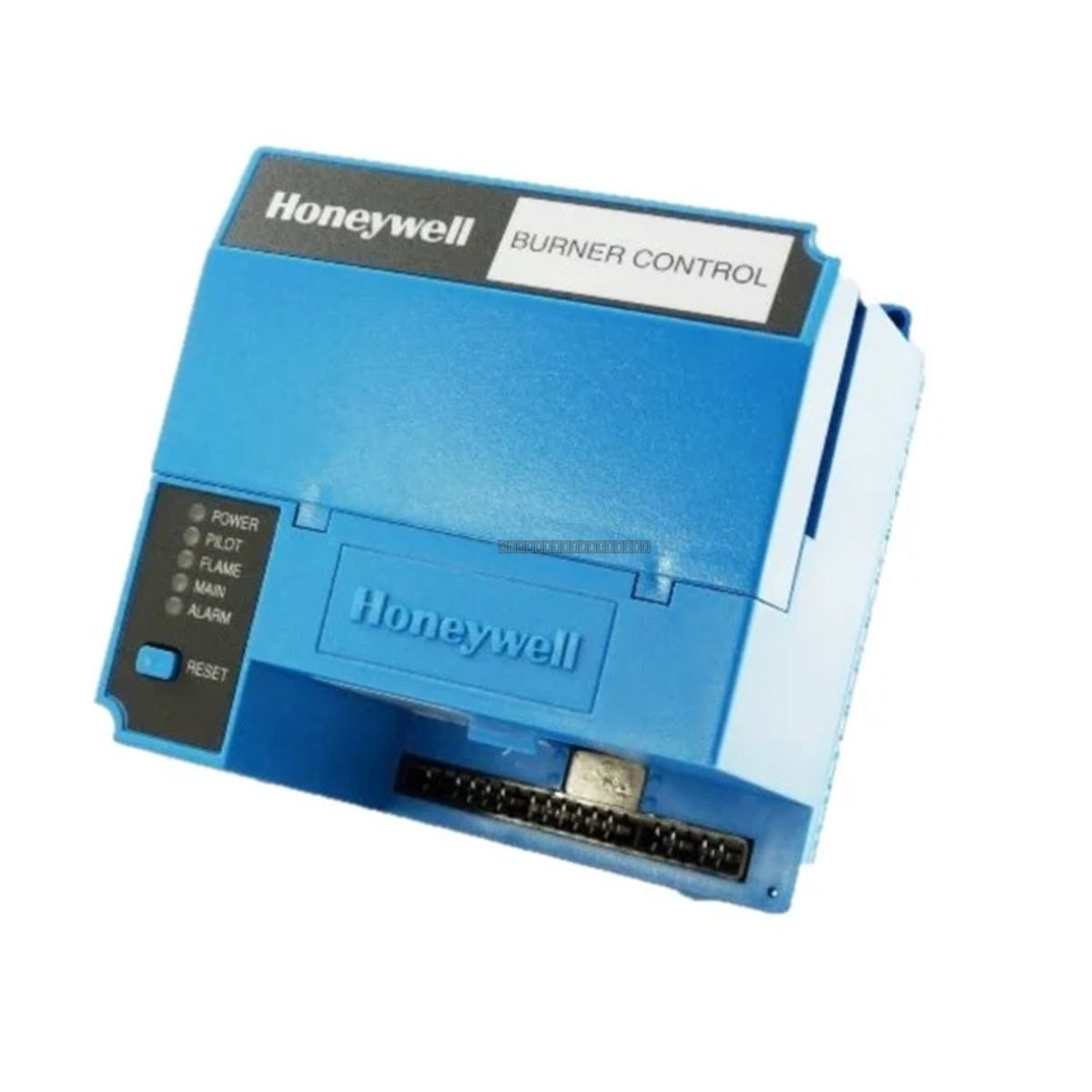

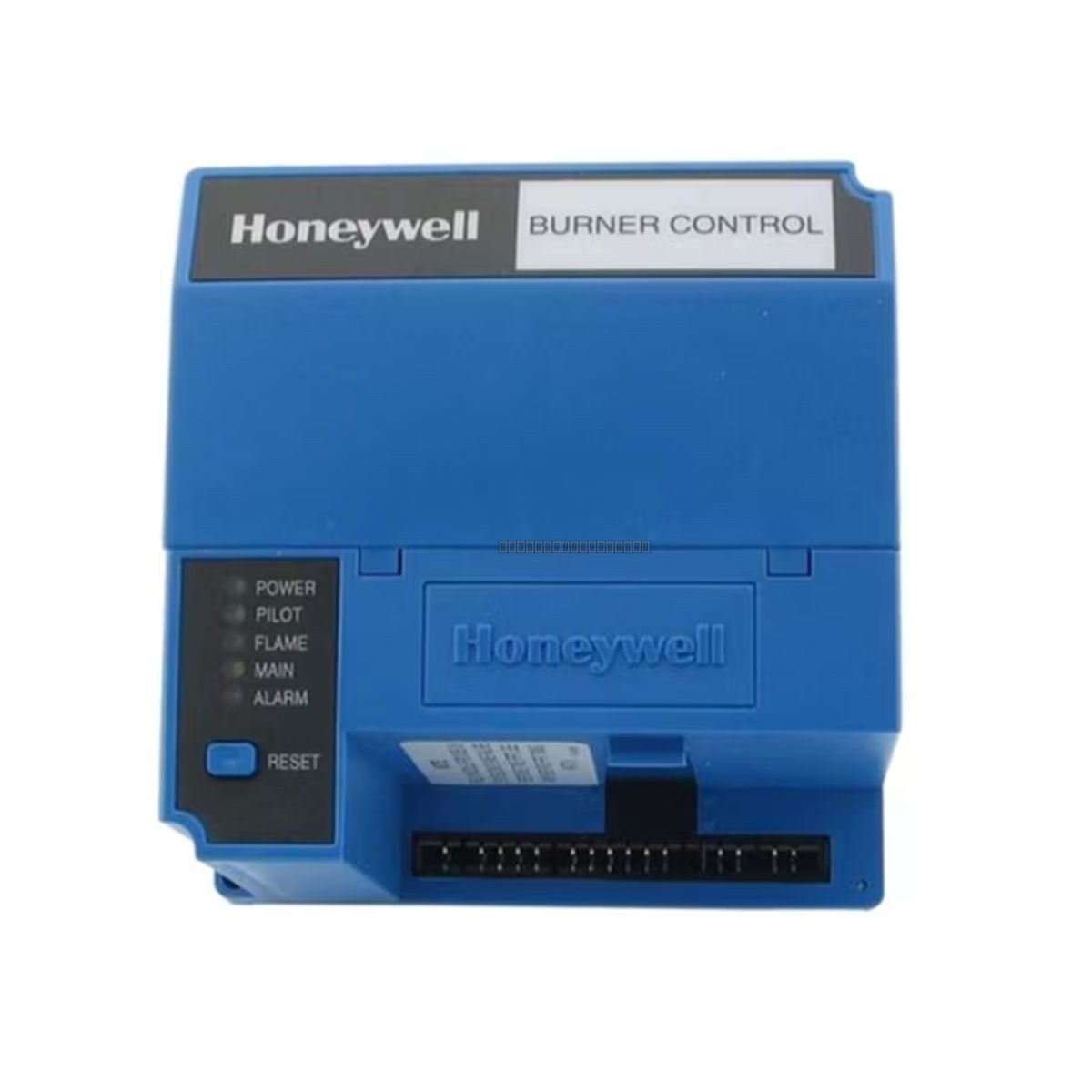

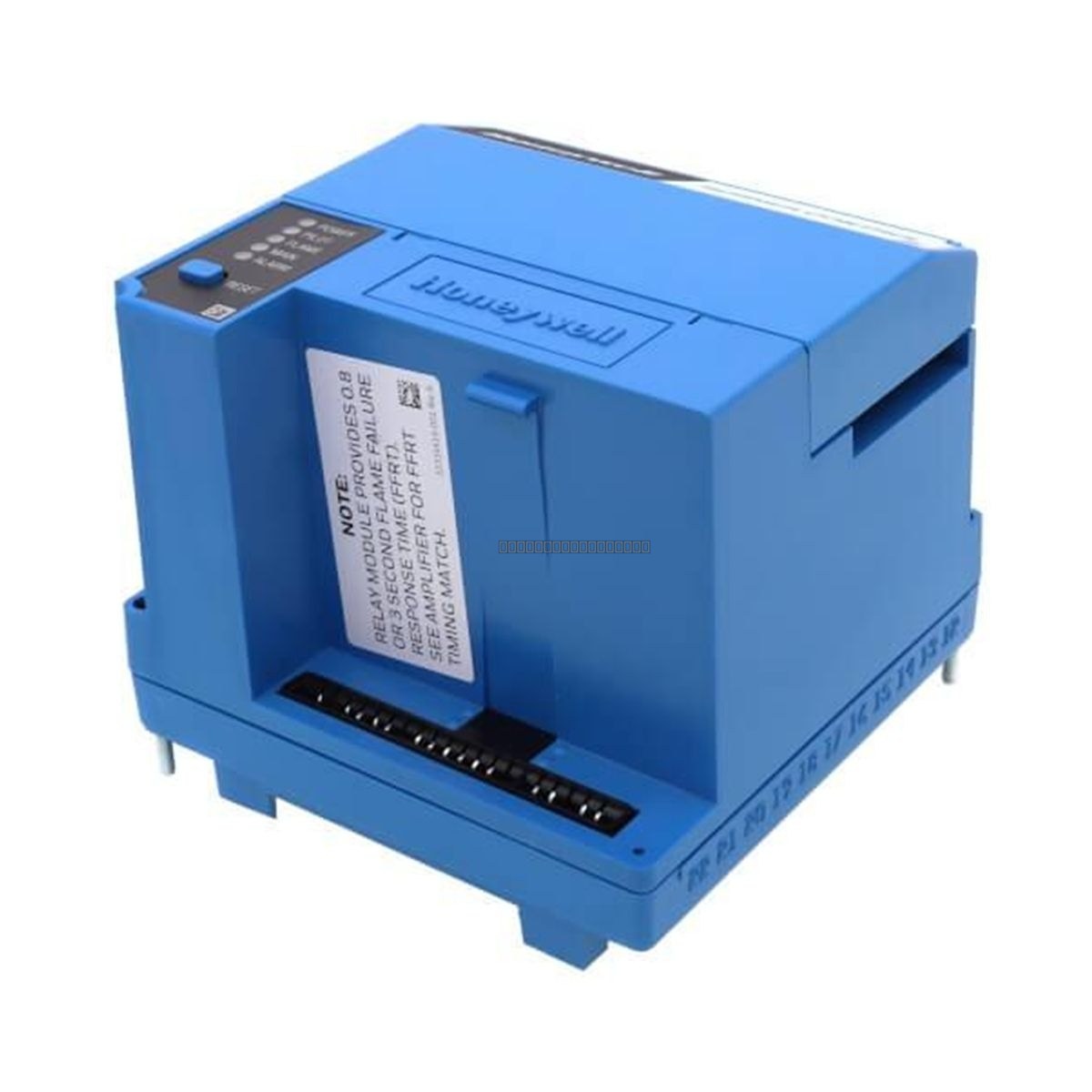

The Honeywell RM7897C1000 is a relay-based combustion safety controller from the 7800 Series, engineered for precise burner management in industrial applications. This module provides reliable ignition sequencing, flame supervision, and interlock monitoring, ensuring safe operation for boiler systems, process furnaces, and power generation units.
Features
- Integrated burner purge and ignition sequencing control.
- Configurable pilot flame establishment timing (selectable 4-second or 10-second windows).
- Delayed main fuel valve actuation for enhanced safety.
- Robust relay-based architecture designed for stability in high-EMI industrial environments.
- Support for configurable interlock input mapping to interface with external safety devices.
- Preignition control logic to validate safety conditions before fuel introduction.
Applications
This module is widely utilized in industrial combustion management, including:
- Commercial and industrial boiler systems.
- Refinery and petrochemical process heaters.
- Power generation burner management units.
- Industrial furnace ignition and flame monitoring systems.
Technical Specifications
| Model |
RM7897C1000 |
| Series |
7800 Series |
| Supply Voltage |
120 VAC |
| Frequency |
50/60 Hz |
| Power Consumption |
Approx 6 W |
| Pilot Establishing Time |
4 s or 10 s (selectable) |
| Operating Temperature |
0 to 60 deg C |
| Mounting |
Plug-in module for 7800 Series chassis |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module from the chassis.
- The module must be installed in a 7800 Series compatible burner control chassis.
- Verify that all external interlocks and flame detectors are correctly wired to the system backplane according to the specific burner application diagram.
- Maintain proper grounding of the chassis to prevent electrical noise interference.
- Ensure the operating environment remains within the specified 0 to 60 deg C temperature range to prevent relay degradation.
- Follow all local and national safety codes regarding burner management and combustion safety.
FAQ
Is the RM7897C1000 programmable?
No, the RM7897C1000 is a factory-configured relay module. It does not support field-programmable software logic; however, it offers selectable hardware timing and interlock configurations as defined by the model specifications.
What is the primary function of the pilot establishing time?
The pilot establishing time defines the duration the controller allows for the pilot flame to be proven before the main fuel valve is energized. This model allows for a 4-second or 10-second window to accommodate different burner ignition characteristics.
