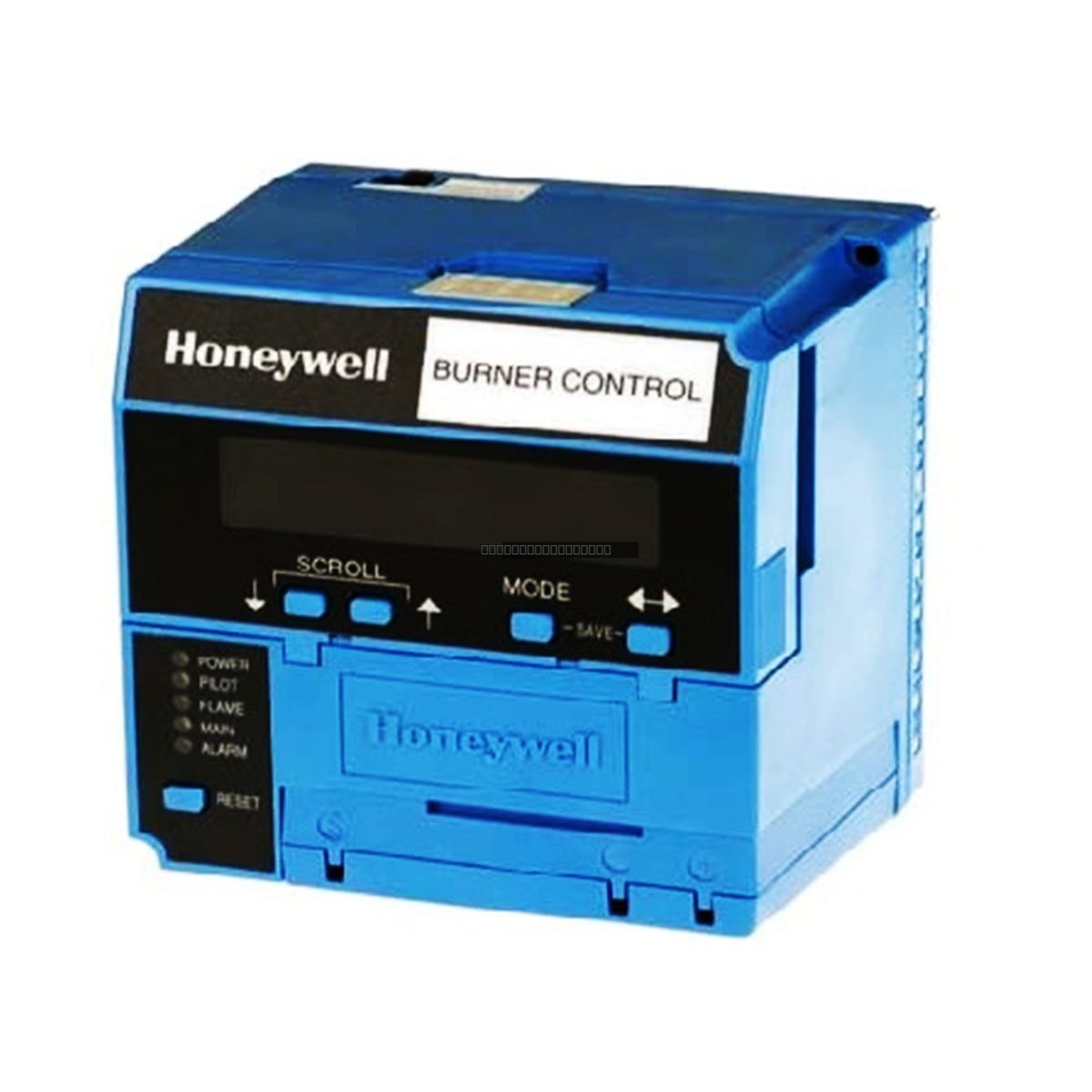

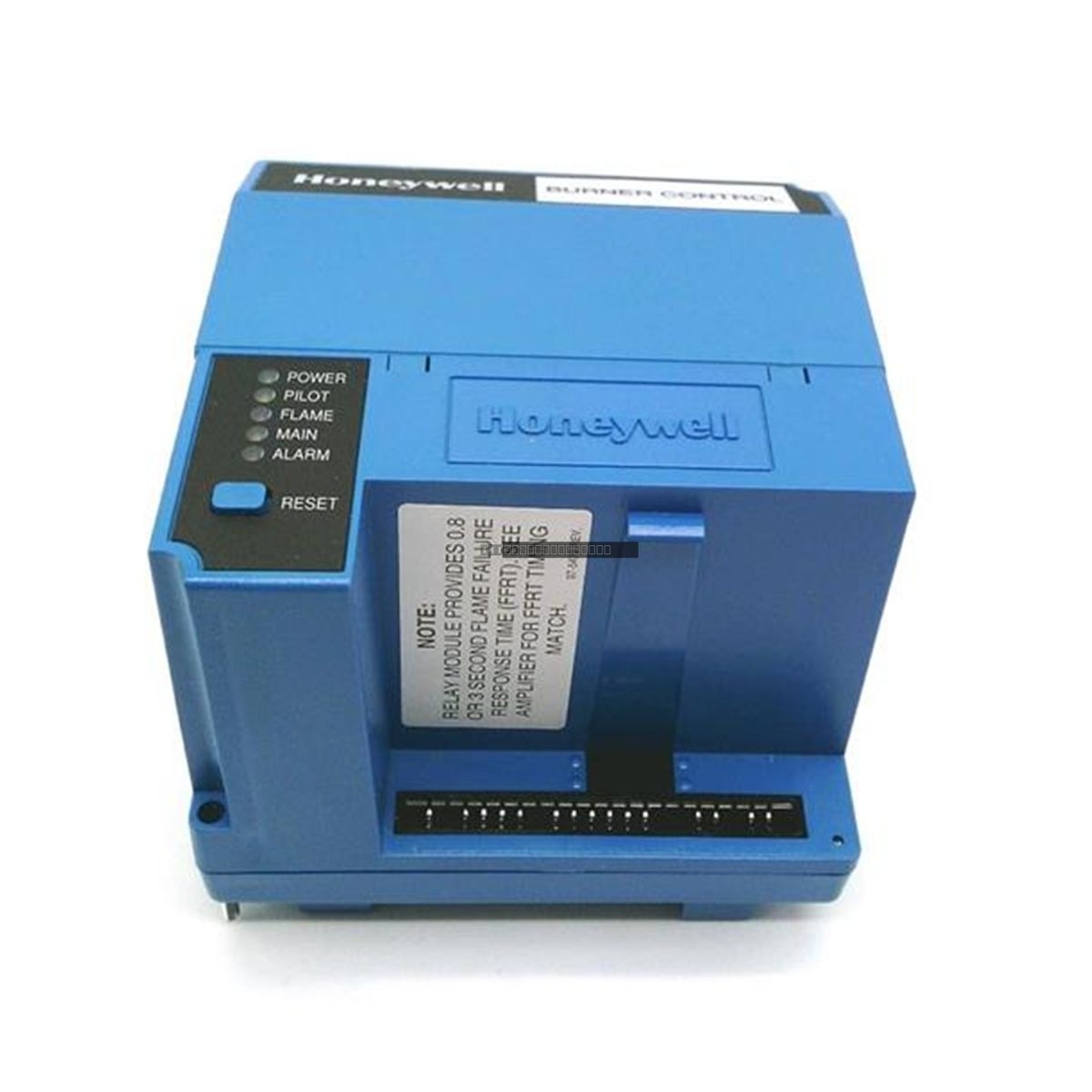

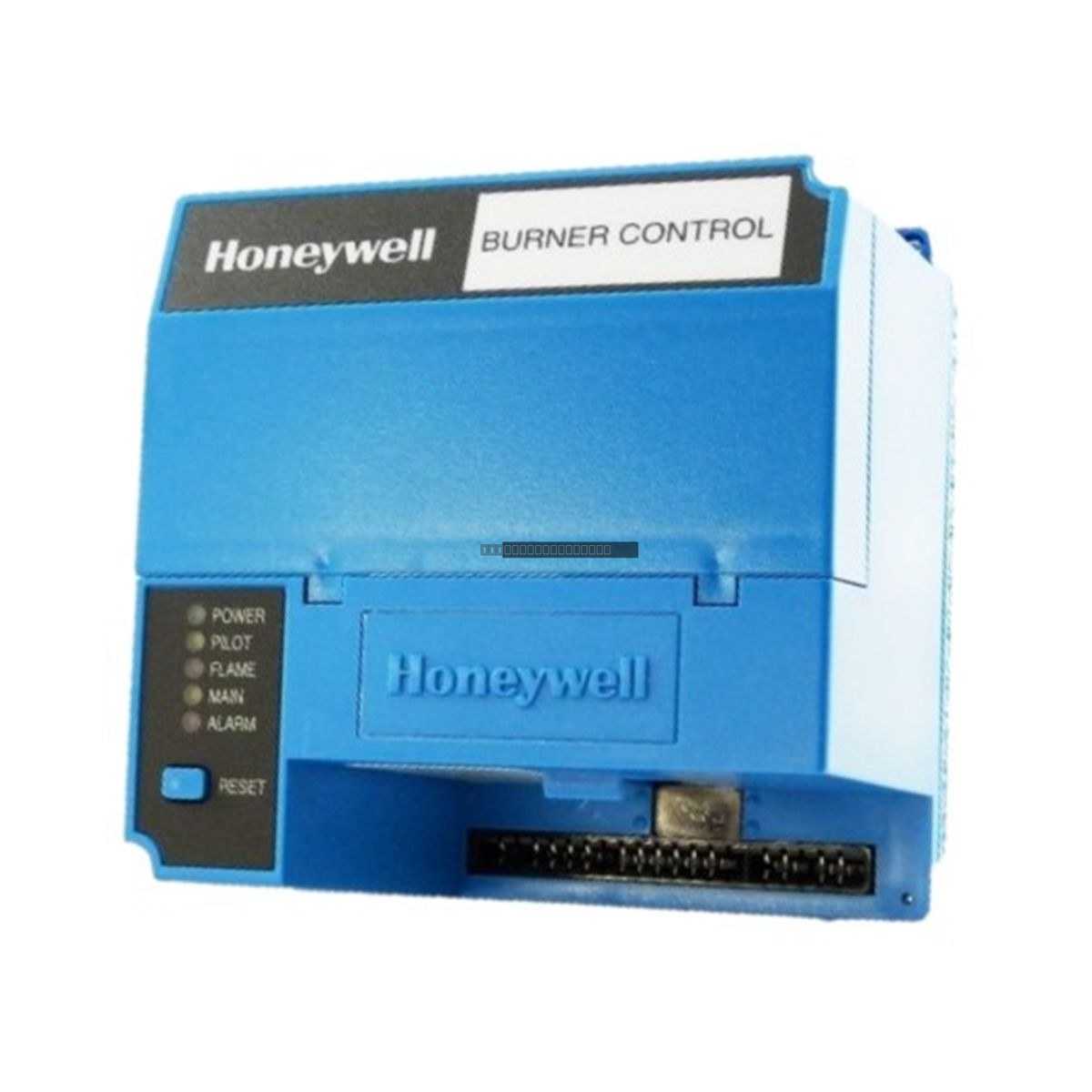

The Honeywell RM7840L1075 is a microprocessor-based integrated burner control relay module designed for industrial combustion applications. As part of the 7800 Series platform, this unit provides reliable sequencing, flame supervision, and safety interlock monitoring for gas, oil, or combination fuel burners. It is engineered to manage the entire combustion sequence, including purge, pilot ignition, main flame transition, and shutdown, ensuring deterministic operation in process heaters, boilers, and utility burners.
Features
- Programmable combustion sequencing with Valve Proofing System (VPS) support.
- Interrupted pilot ignition configuration for enhanced safety.
- Selectable airflow verification and second-stage pilot valve control.
- Integrated 5-second early spark termination logic.
- Comprehensive fault lockout and safety interlock supervision.
- Designed for continuous industrial duty with robust dust-resistant housing.
- Compatible with standard 7800 Series subbases and plug-in flame amplifiers.
Applications
This module is widely utilized in safety-critical combustion management systems, including:
- Industrial process furnaces and refinery heaters.
- Commercial and utility-scale boiler systems.
- Combustion trains requiring precise ignition and flame monitoring.
- Multi-stage burner architectures requiring flexible safety sequencing.
Technical Specifications
| Model |
RM7840L1075 |
| Series |
7800 Series |
| Supply Voltage |
120 VAC |
| Frequency |
50/60 Hz |
| Power Consumption |
6 W |
| Operating Temperature |
0 to 60 deg C |
| Ignition Mode |
Interrupted Pilot |
| Weight |
1.36 kg (approx. 3.00 lbs) |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module from the subbase.
- Mount the module in a location protected from excessive vibration, moisture, and corrosive atmospheres.
- Verify that the subbase wiring matches the required configuration for the RM7840L1075 before applying power.
- Ensure proper grounding of the burner chassis to prevent EMI interference with flame detection signals.
- Maintain adequate clearance around the unit to facilitate airflow and heat dissipation.
- Always perform a full safety checkout of the burner sequence after installation or maintenance.
FAQ
What is the primary function of the RM7840L1075?
The RM7840L1075 acts as the central safety controller for industrial burners, managing the startup sequence, flame detection, and emergency shutdown protocols to prevent hazardous combustion conditions.
Is this module compatible with existing 7800 Series installations?
Yes, the RM7840L1075 is designed as a plug-in replacement for the 7800 Series platform, utilizing standard Honeywell subbases and flame amplifier modules.
What does the 5-second early spark termination mean?
This feature ensures that the ignition spark is de-energized 5 seconds after the pilot valve is opened, preventing unnecessary spark plug wear and reducing potential interference with flame detection systems.
