Description

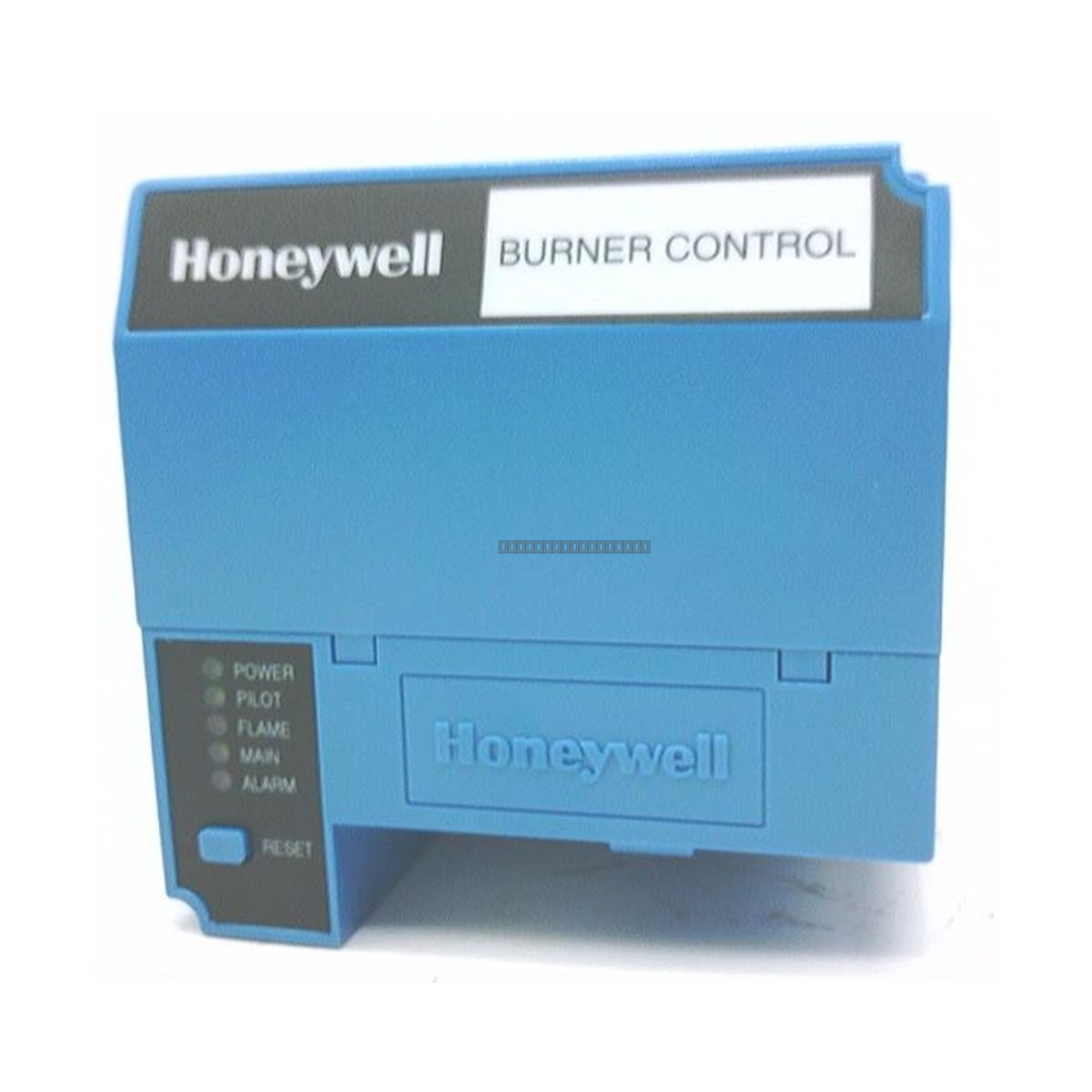

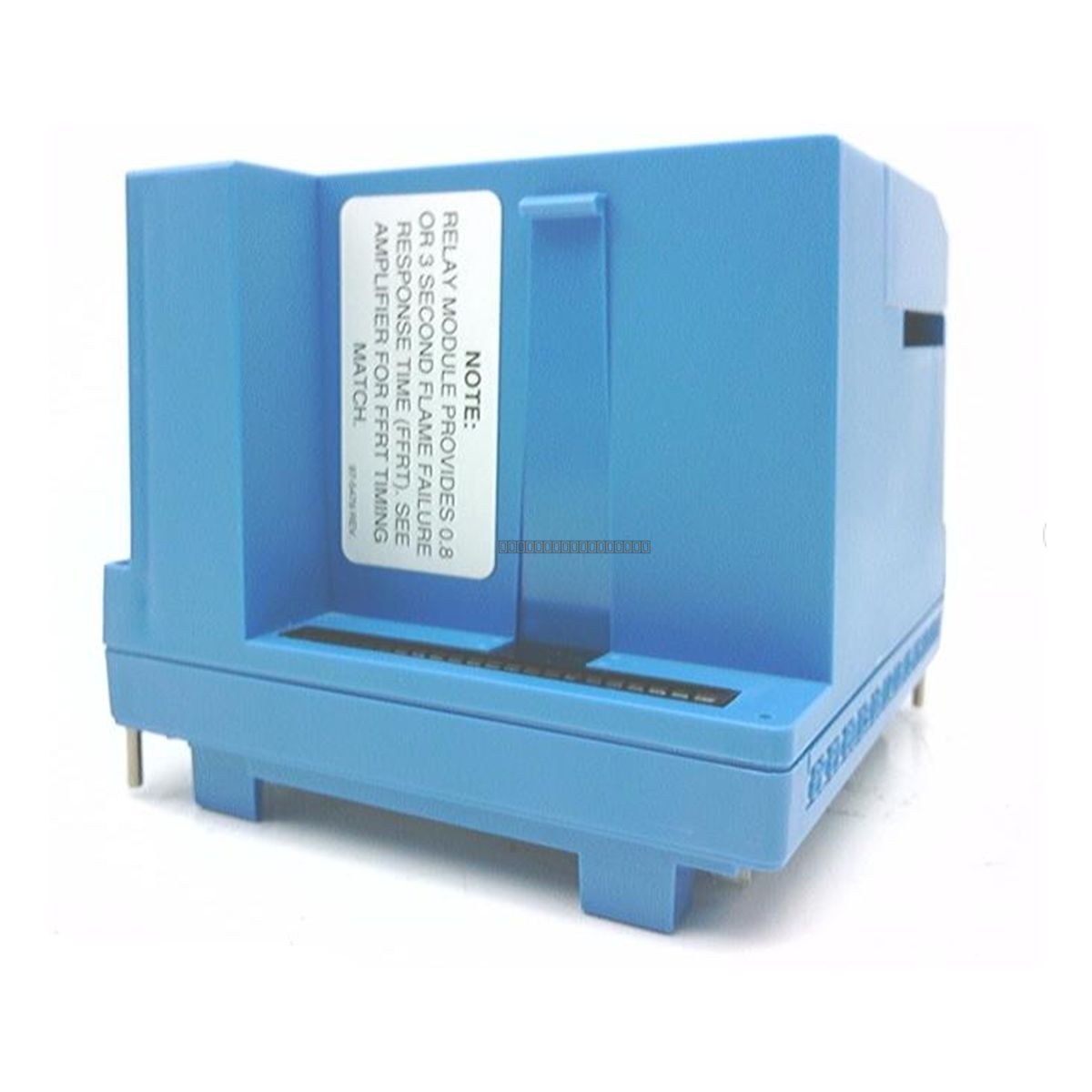

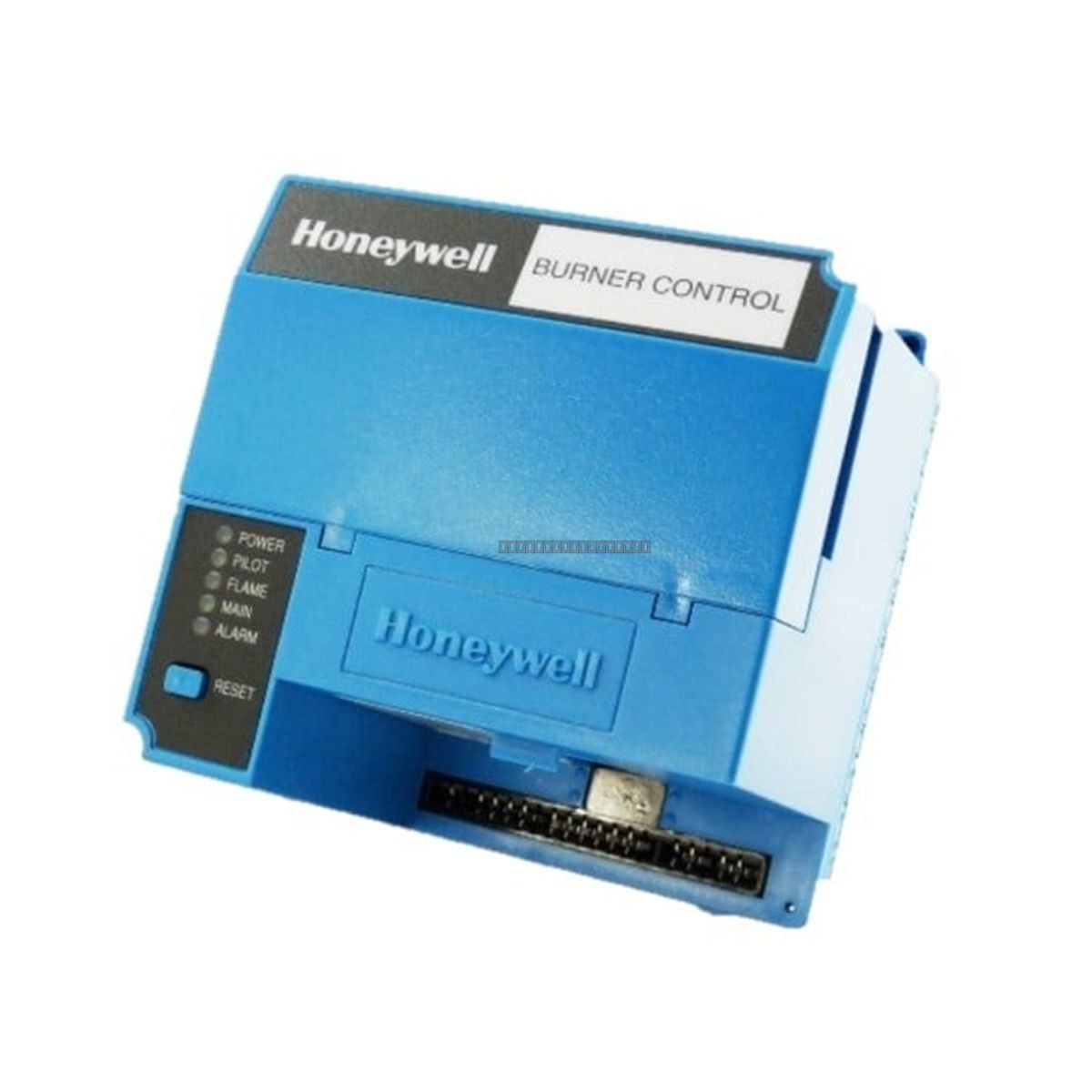

The Honeywell RM7840L1018 is a microprocessor-based burner control relay module engineered for advanced flame safeguard and burner sequencing in industrial combustion systems. As part of the Honeywell 7800 Series platform, this module provides integrated valve proving, flame monitoring, ignition control, and safety shutdown functions. It is designed to enhance operational safety by verifying fuel valve integrity prior to burner startup, effectively mitigating risks associated with fuel leakage. The module features a 5-second Early Spark Termination (EST) to optimize ignition sequences and reduce electrode wear, contributing to improved system reliability and component longevity.
Features
- Integrated Valve Proving System (VPS) for pre-ignition fuel valve integrity verification.
- 5-second Early Spark Termination (EST) to extend ignition component life.
- Continuous diagnostic monitoring with comprehensive fault history and lockout protection.
- Protective dust cover for enhanced durability in harsh industrial environments.
- Full compatibility with existing Honeywell 7800 Series subbases, display modules, and communication interfaces.
- Direct functional replacement for the RM7840L1042 model.
Applications
The RM7840L1018 is suitable for a wide range of critical industrial combustion applications, including:
- Utility and industrial boilers
- Refinery heaters and process furnaces
- Power generation facilities
- Petrochemical processing plants
- Thermal oxidizers and thermal processing equipment
Technical Specifications
| Model |
RM7840L1018 |
| Series |
7800 Series |
| Input Voltage |
120 VAC |
| Frequency |
50/60 Hz |
| Power Consumption |
Approx. 12 W |
| Operating Temperature |
-40 to 66 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Control Technology |
Microprocessor-Based |
| Replacement Model |
RM7840L1042 |
Installation Guidelines
- Ensure the system power is completely disconnected before installing or removing the module from the subbase.
- Mount the module onto a compatible Honeywell 7800 Series wiring subbase, ensuring a secure connection to the terminal blocks.
- Handle the module with care to prevent electrostatic discharge (ESD) damage to internal microelectronics.
- Verify that all wiring connections are tight and conform to local electrical codes and the specific burner system schematic.
- Ensure adequate ventilation around the control cabinet to maintain operating temperatures within the specified -40 to 66 deg C range.
- Perform a full system checkout and safety test after installation to confirm proper sequencing and flame detection functionality.
FAQ
Is the RM7840L1018 compatible with my existing 7800 Series subbase?
Yes, the RM7840L1018 is designed for full compatibility with standard Honeywell 7800 Series wiring subbases, allowing for seamless integration into existing control panels.
What is the benefit of the Early Spark Termination feature?
The 5-second Early Spark Termination automatically removes the ignition spark once a flame is successfully established. This reduces unnecessary wear on the ignition electrode and helps extend the service life of ignition components.
