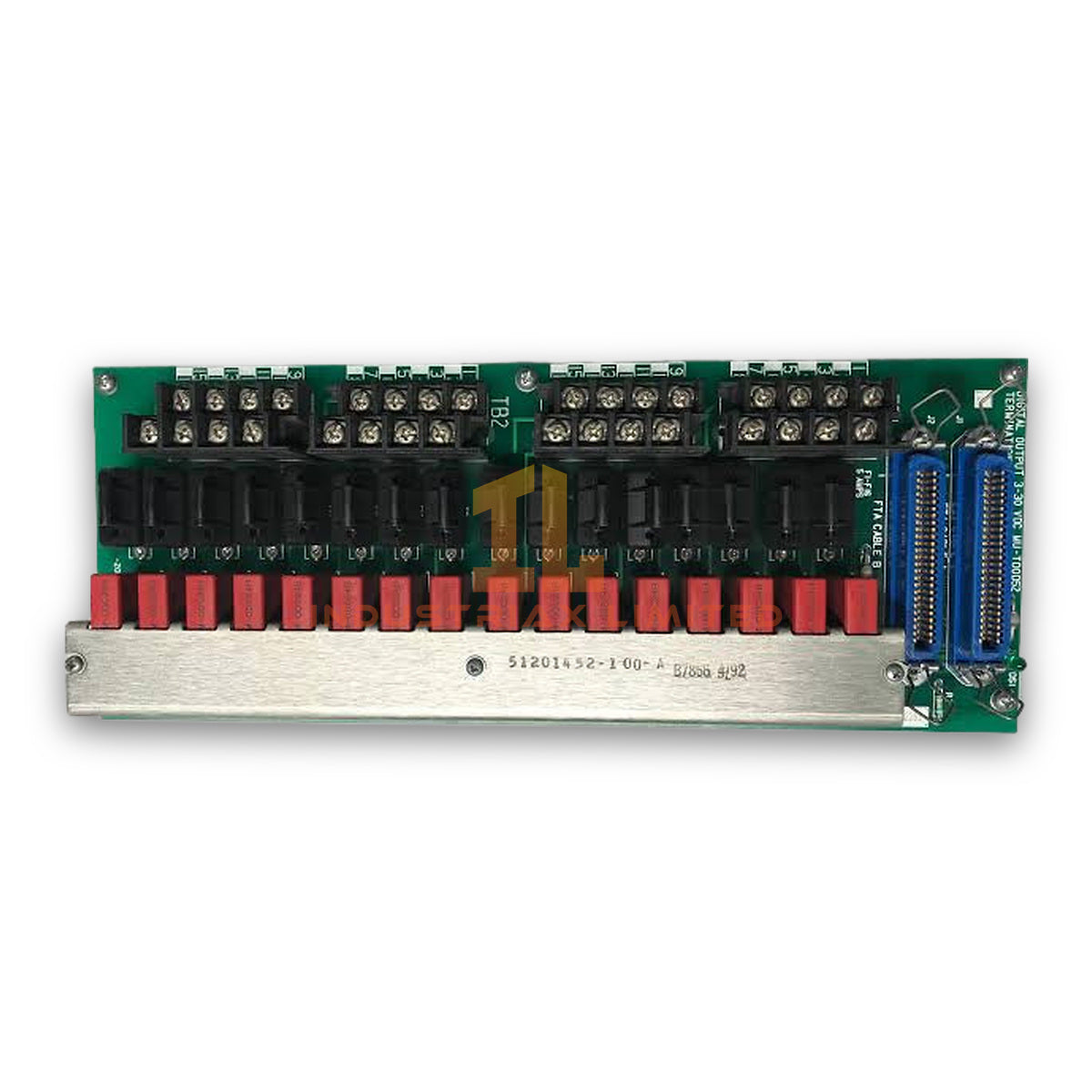

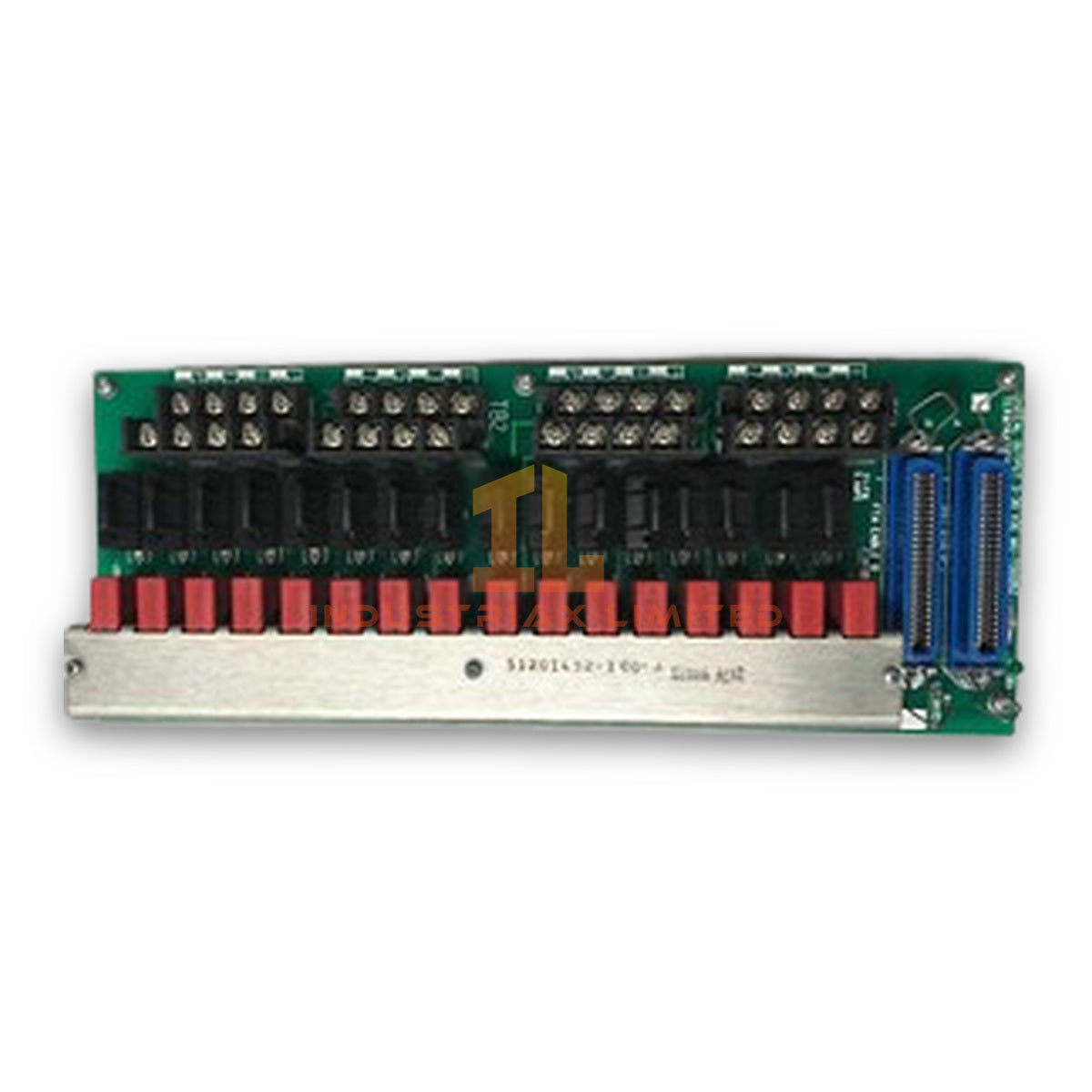

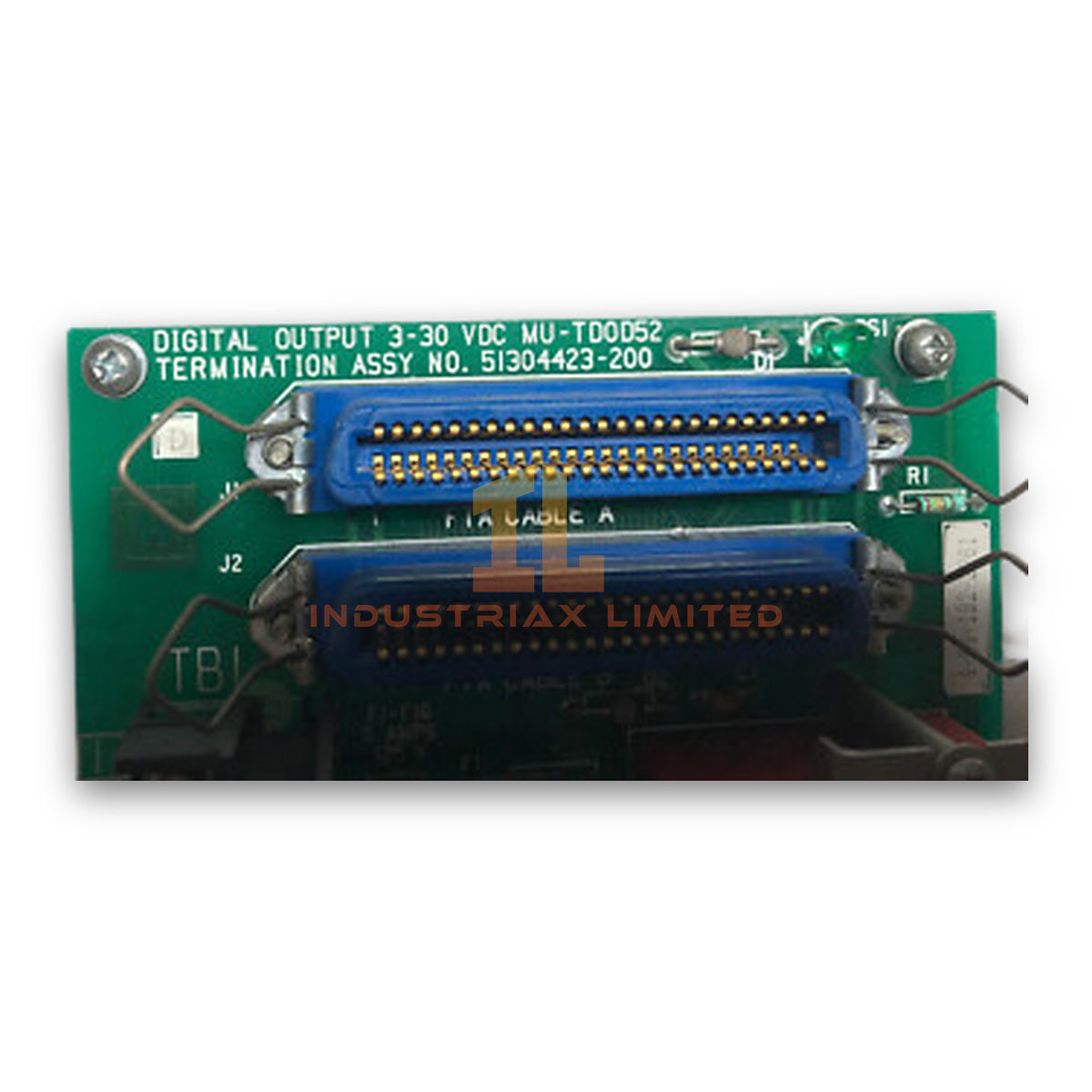

Honeywell MU-TDOD52 Digital Output Field Termination Assembly

The Honeywell MU-TDOD52 (51304423-200), also cataloged as the MU-TDOD52 Digital Output Field Termination Assembly, operates as a dedicated hardware component for digital signal execution within Honeywell TDC 3000 and TotalPlant Solution systems.

Hardware Specifications

Parameter	Specification
Model	MU-TDOD52 (51304423-200)
Brand	Honeywell
Origin	USA
Operating Temp	0 deg C to 60 deg C
Power Consumption	Not specified
System Compatibility	Honeywell TDC 3000, TPS, Process Manager, Advanced Process Manager, High Performance Process Manager
Module Type	Digital Output Field Termination Assembly (FTA)
Signal Function	Digital output interface between controller logic and field devices
Channel Capacity	16 or 32 channels depending on configuration
Operating Voltage	24 VDC nominal
Output Interface	Solid-state or relay-based digital output interface depending on system configuration
Isolation Type	Channel-to-system electrical isolation
Mounting Method	Cabinet installation with field termination assembly mounting arrangement
Storage Temperature	-40 deg C to 85 deg C
Relative Humidity	5% to 95% non-condensing

Process Control Signal Interface and Isolation Characteristics

The Honeywell MU-TDOD52 provides direct electrical termination between TDC 3000 control outputs and field digital devices. It receives discrete commands from the control processor and transfers switching signals to external loads such as solenoid valves, relay circuits, indicators, and actuator interfaces.

Furthermore, the module applies channel-to-system isolation to separate field wiring conditions from internal controller electronics. This design limits electrical interference transfer and supports stable digital output operation in distributed control environments.

The unit follows Honeywell DCS field termination concepts, allowing integration with Process Manager based I/O architectures. Additionally, the termination design supports structured cabinet wiring and simplified maintenance procedures.

Frequently Asked Questions

Q: Does the MU-TDOD52 support direct connection to field actuators?
A: The MU-TDOD52 provides field termination for digital output circuits. External interface devices such as relays or load drivers may be required according to the connected field equipment specifications.

Q: Does the module provide electrical isolation between field signals and the control system?
A: Yes. The assembly provides channel-to-system electrical isolation to reduce the influence of field-side electrical conditions on internal control electronics.

Q: Can the MU-TDOD52 be installed in redundant control configurations?
A: The module supports Honeywell Process Manager system architectures according to the configured I/O arrangement. Redundancy capability depends on the overall controller and termination design.

Field Installation Guidelines

Install the MU-TDOD52 inside the designated Honeywell control cabinet according to the applicable TDC 3000 or TPS hardware documentation.

Terminate field wiring using approved industrial wiring practices. Keep digital output cables separated from high-voltage power conductors to reduce electrical noise coupling.

Connect cable shields according to the grounding requirements of the installed control system. Avoid multiple grounding points that may create unwanted ground loops.

Verify field device voltage ratings before applying power. Confirm terminal assignments, channel mapping, and load requirements before commissioning the digital output circuits.

Inspect all terminal connections for correct torque and mechanical stability during installation and maintenance activities.
