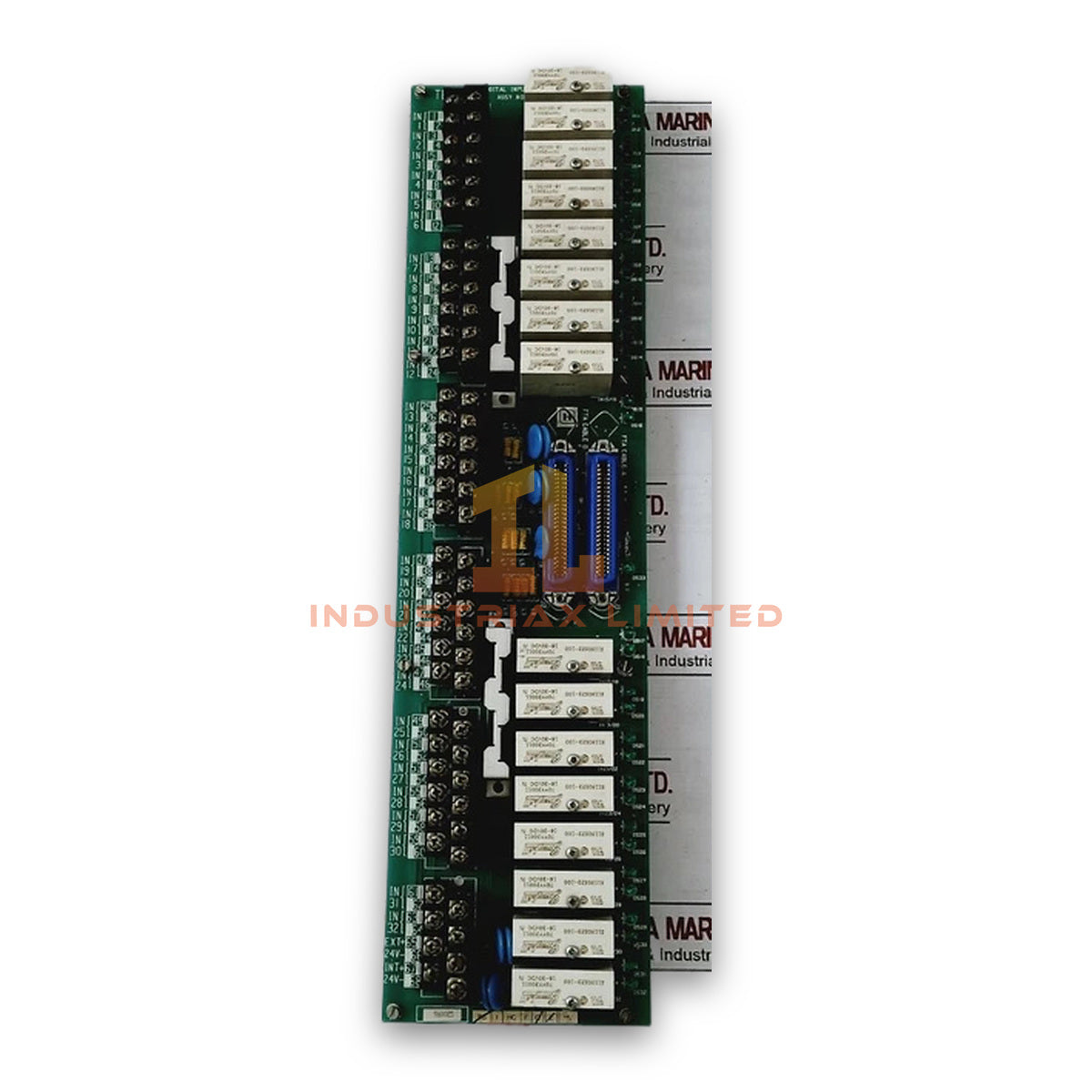

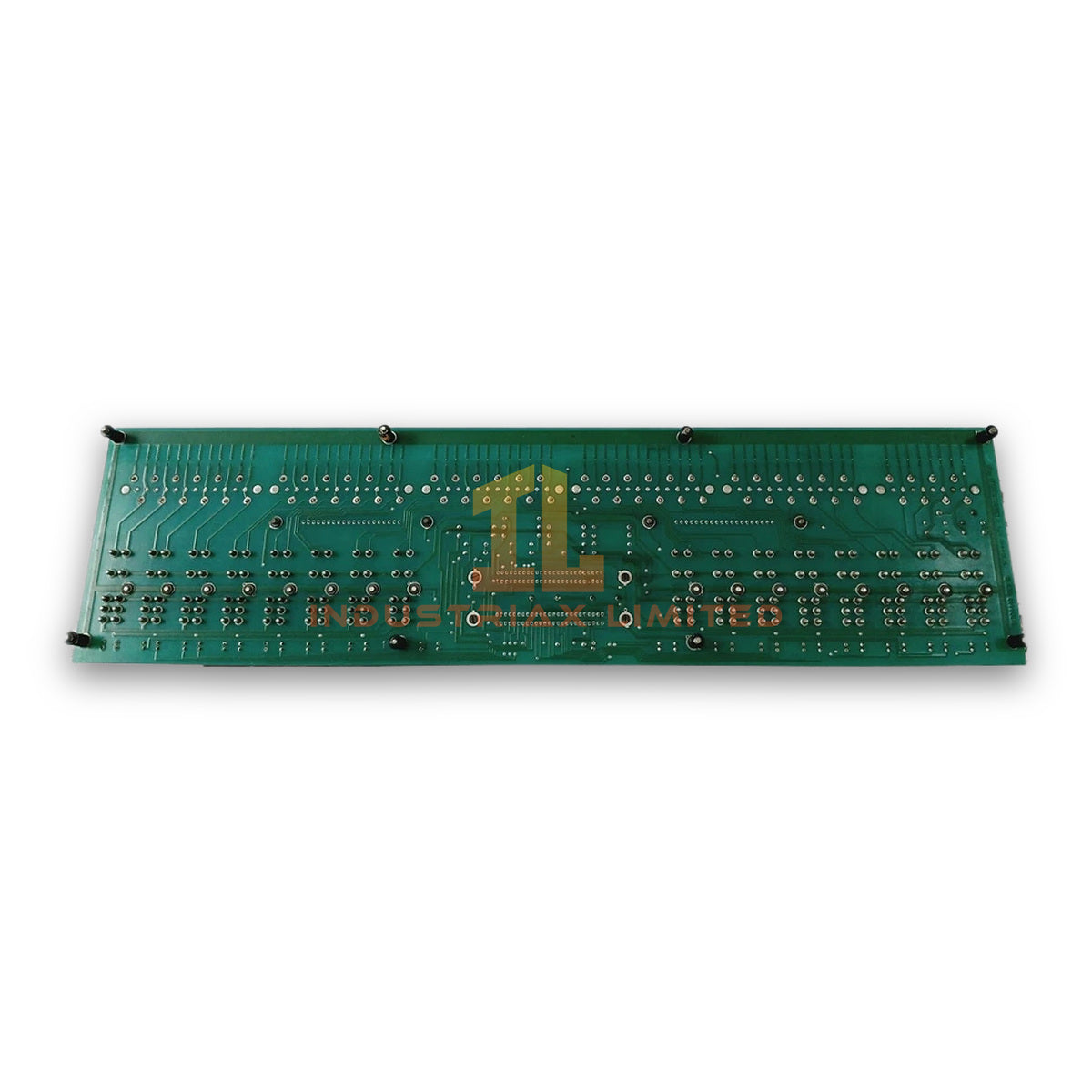

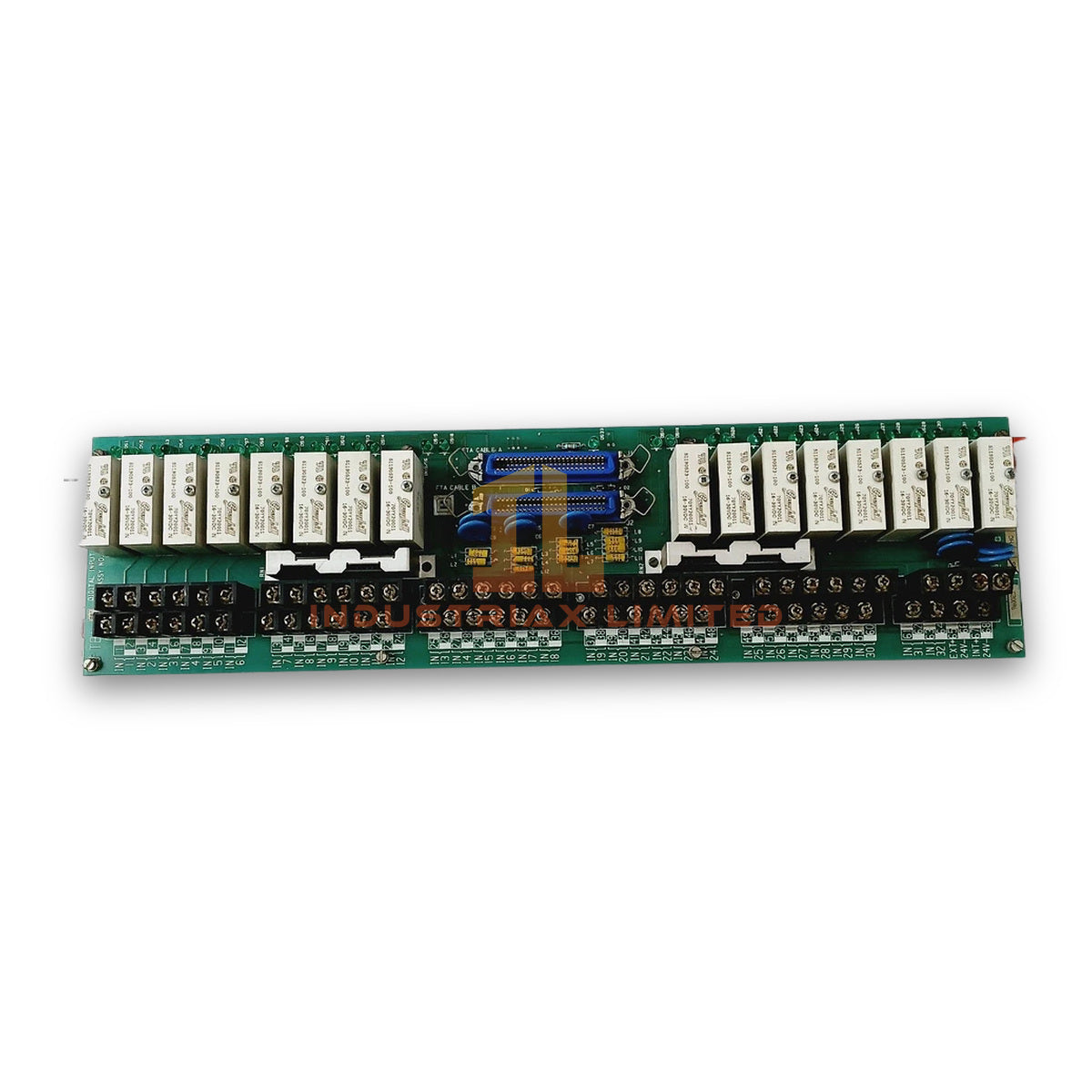

Honeywell MU-TDID52 Digital Input Field Termination Assembly

The Honeywell MU-TDID52-200, also cataloged as the MU-TDID52 Digital Input Field Termination Assembly, operates as a dedicated hardware component for discrete signal acquisition within Honeywell TDC 3000 and Experion PKS HPM control platforms.

Hardware Specifications

Parameter	Specification
Model	MU-TDID52 / 51304441-200
Brand	Honeywell
Origin	United States
Module Type	Digital Input Field Termination Assembly (FTA)
System Platform	Honeywell TDC 3000 / Experion PKS HPM
Signal Function	Discrete ON/OFF field signal termination
Input Signal Voltage	24 VDC
Channel Count	32 Digital Input Channels
Signal Type	Dry Contact / 24 VDC Wetting Input
Isolation Type	Optical isolation between field wiring and system logic
Mounting Type	Cabinet / FTA mounting channel
Assembly Type	MU standard cabinet board assembly
Operating Temp	0 deg C to +60 deg C
Storage Temp	-40 deg C to +85 deg C
Relative Humidity	5% to 95% non-condensing
Power Consumption	Determined by connected I/O interface load

Honeywell DCS Signal Interface Characteristics

The MU-TDID52 provides direct termination of binary field inputs before signal processing by the Honeywell Digital Input I/O Processor. Therefore, the assembly accepts discrete contact states from field devices and transfers conditioned logic signals to the control system.

The module supports standard Honeywell process control wiring practices. In addition, the design separates field-side electrical conditions from controller-side logic through optical isolation, which reduces interference transfer between external devices and internal control electronics.

For Honeywell process instrumentation architectures, the I/O family supports structured field integration methods used across DCS platforms. However, the MU-TDID52 is specifically dedicated to discrete input termination and does not provide 4-20 mA HART, FOUNDATION Fieldbus, or Profibus PA communication functions.

Frequently Asked Questions

Q: Does the MU-TDID52 support analog input signals?
A: No. The MU-TDID52 is a digital input field termination assembly designed for binary ON/OFF signals, dry contacts, and 24 VDC wetting inputs.

Q: Does the MU-TDID52 provide electrical isolation?
A: Yes. The assembly provides optical isolation between field-side circuits and system logic circuits to separate external signal conditions from the controller interface.

Q: Can the MU-TDID52 operate as a standalone controller module?
A: No. The MU-TDID52 functions as an FTA interface assembly and requires connection to the corresponding Honeywell Digital Input I/O processing hardware.

Field Installation Guidelines

• Install the MU-TDID52 inside the designated Honeywell cabinet or approved FTA mounting location.
• Verify field wiring polarity and terminal assignments before connecting 24 VDC digital input circuits.
• Separate low-level signal wiring from high-voltage power cables to reduce electrical interference.
• Apply proper cabinet grounding practices according to the control system installation manual.
• Maintain correct shielding and grounding methods for field cables where shielded instrumentation wiring is used.
• Confirm compatibility between the FTA assembly and the installed Honeywell I/O processor before commissioning.
• Inspect terminal connections and cable routing during maintenance activities to prevent loose contacts and signal instability.
