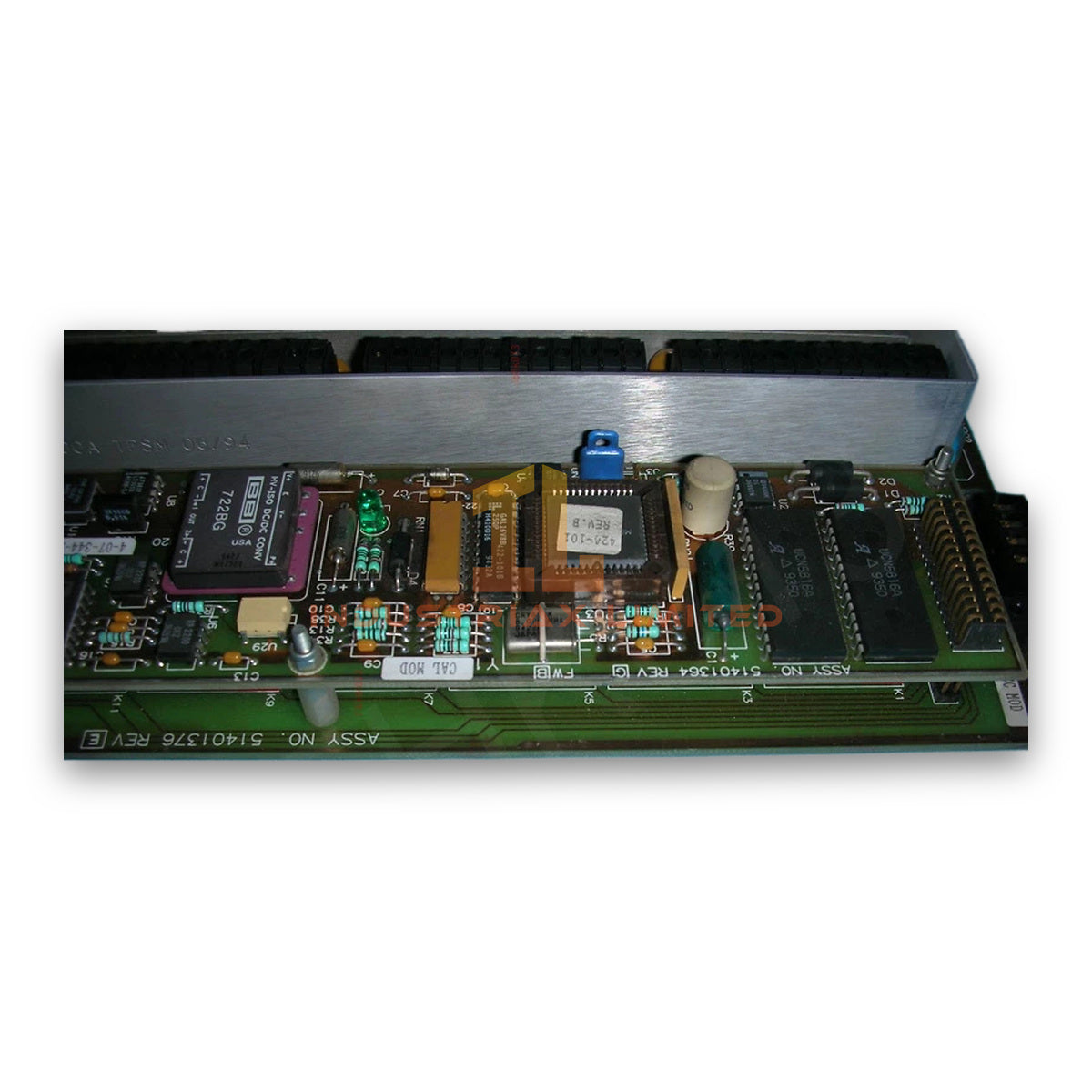

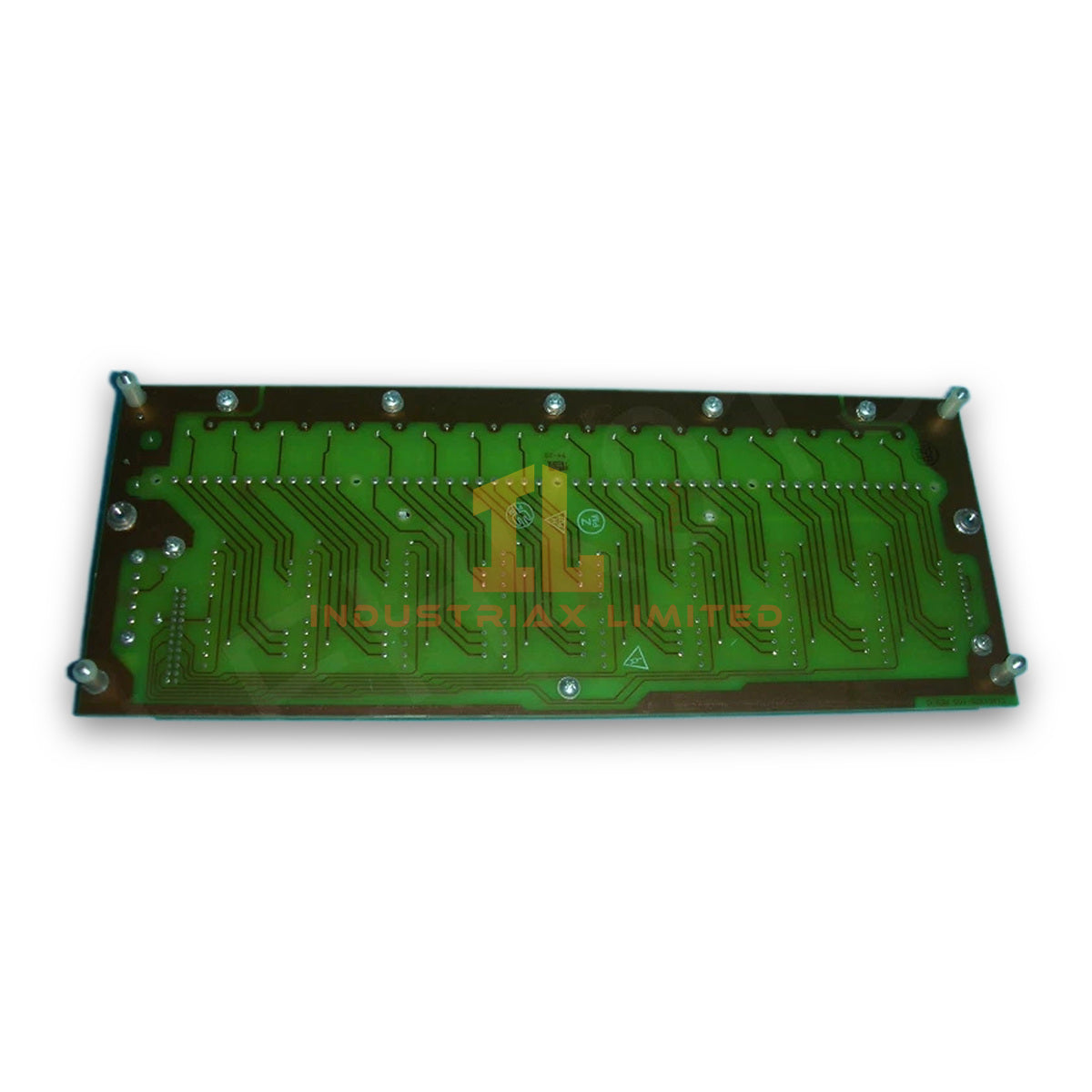

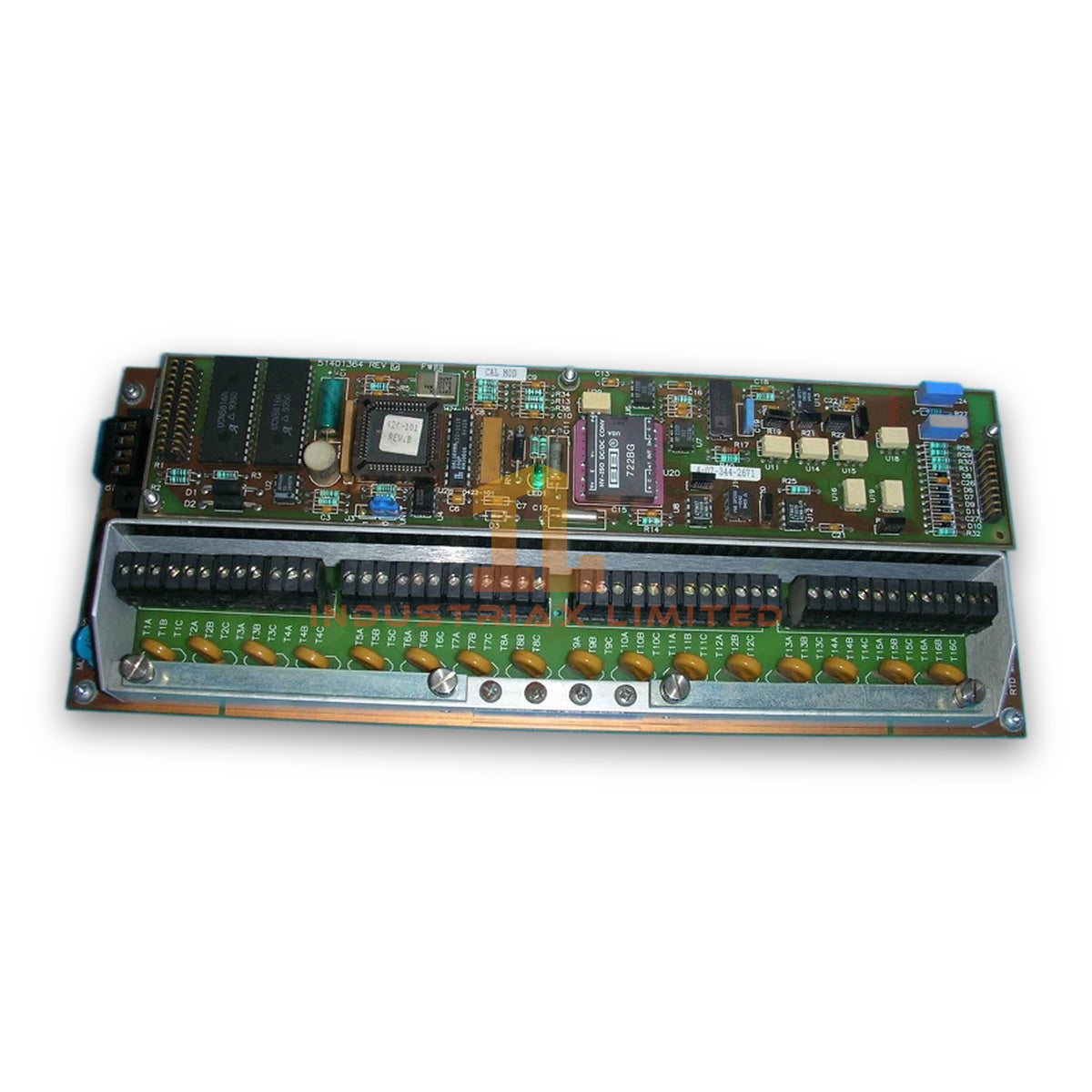

Honeywell MU-TAMR02 Analog Input Terminal Assembly Module

Configured for redundant analog signal termination in Honeywell TDC 3000 and Experion PKS platforms, the Honeywell MU-TAMR02 (MU-TAMR02 Analog Input Terminal Assembly Module) provides direct field wiring interface execution between 4-20 mA instrumentation loops and HPM I/O processing modules.

Hardware Specifications

Parameter	Specification
Model	MU-TAMR02
Brand	Honeywell
Origin	USA
Module Type	Redundant Analog Input Terminal Assembly Module
Part Number	51301376-100 / 51301376-200
System Compatibility	Honeywell TDC 3000, Experion PKS, Process Manager, High-Performance Process Manager
Function	Analog input field termination and signal routing
Channel Capacity	16 analog input channels
Signal Type	4-20 mA DC / 1-5 V DC
Configuration	Redundant I/O termination configuration
Termination Type	Screw terminal blocks / compression terminals
Mounting Type	Cabinet terminal panel or DIN rail mounting arrangement
Operating Temp	0 deg C to +60 deg C
Storage Temp	-40 deg C to +85 deg C
Relative Humidity	5% to 95% non-condensing
Weight	Not specified by manufacturer
Dimensions	Not specified by manufacturer
Power Consumption	Passive termination assembly; no independent power input specified

DCS Analog Signal Interface and Isolation Features

The MU-TAMR02 operates as a field termination interface within Honeywell process control architectures. It accepts standard analog instrumentation signals and routes them to associated HPM or Process Manager I/O modules.

The assembly supports Honeywell DCS analog input configurations based on 4-20 mA HART loop protocol compatibility at the system I/O level. In addition, the termination design supports organized field wiring separation and channel-to-channel signal management when installed with compatible I/O modules.

The redundant TAMR configuration allows two I/O processing paths to access the same field termination point. Therefore, the control system can maintain signal availability during a single I/O path fault condition.

Frequently Asked Questions

Q: Does the MU-TAMR02 provide independent signal measurement processing?
A: No. The MU-TAMR02 functions as a terminal assembly interface. Analog signal conversion and processing occur inside the connected Honeywell I/O modules.

Q: Can the MU-TAMR02 support redundant I/O configurations?
A: Yes. The TAMR designation indicates a redundant terminal assembly arrangement designed for connection with redundant Honeywell I/O processing configurations.

Q: Does the MU-TAMR02 require separate field power wiring?
A: No independent power supply connection is specified. The assembly provides field signal termination and routing functions for compatible Honeywell I/O systems.

Field Installation Guidelines

• Install the MU-TAMR02 inside an approved Honeywell control cabinet or compatible terminal panel assembly.
• Verify terminal assignments before connecting field analog instruments to prevent incorrect channel mapping.
• Use shielded instrumentation cable for low-level analog signal wiring where required by the plant grounding specification.
• Connect cable shields according to the site grounding practice and avoid multiple grounding points that may introduce signal noise.
• Separate analog signal wiring from high-voltage power cables and switching circuits to reduce electromagnetic interference.
• Confirm redundant I/O wiring paths before system commissioning to ensure correct signal routing.
• Inspect terminal connections periodically for mechanical tightness and signs of corrosion in field environments.
