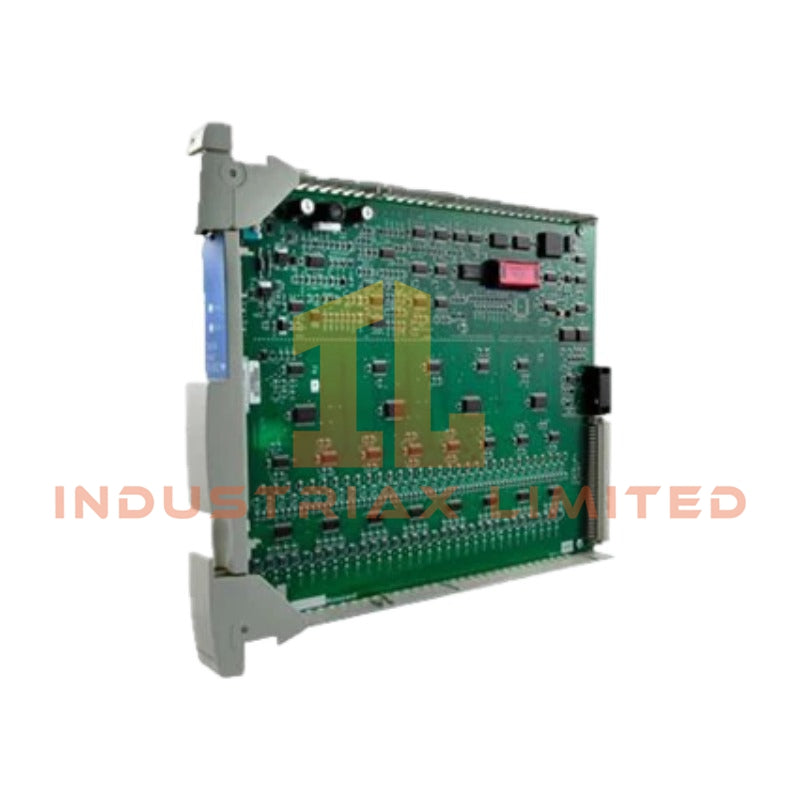

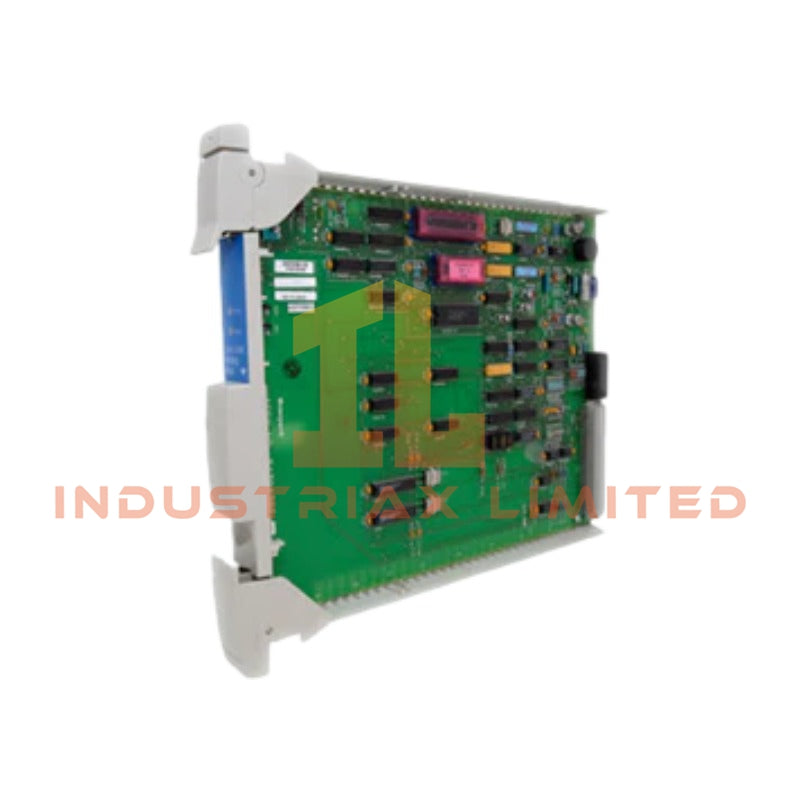

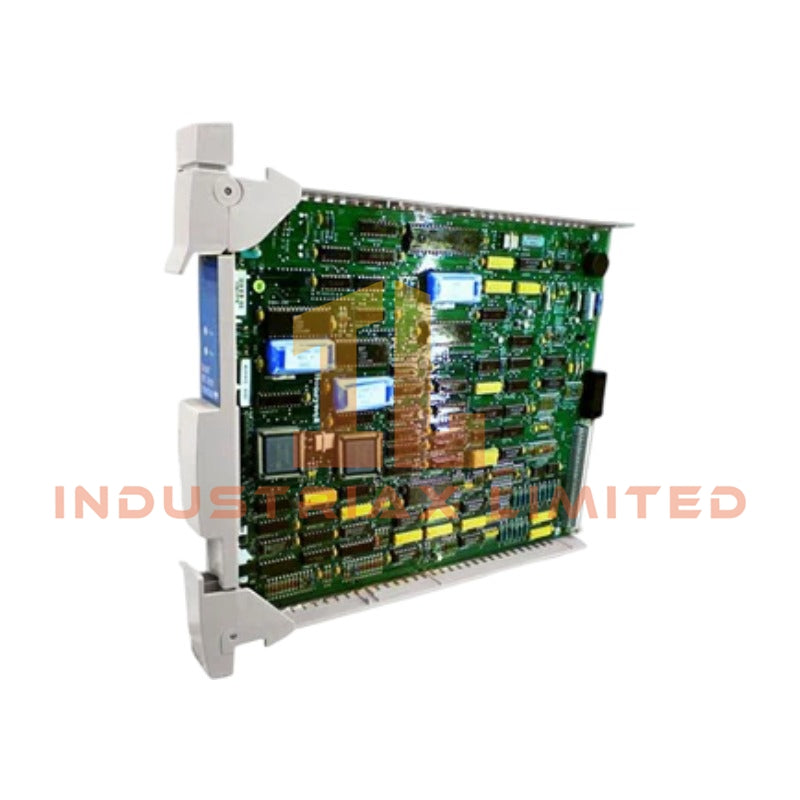

Honeywell MU-TAIH13 High-Level Analog Input FTA Module

Configured for high-level analog signal termination in Honeywell Experion PKS and TPS/TDC 3000 systems, the Honeywell MU-TAIH13 (MU-TAIH13 High-Level Analog Input FTA Module) provides direct physical and electrical execution for 16 differential field input channels.

Hardware Specifications

Parameter	Specification
Model	MU-TAIH13
Brand	Honeywell
Product Type	High-Level Analog Input FTA Module
Origin	USA
Operating Temp	0 deg C to 50 deg C
Power Consumption	Supplied through system interface, value not specified
Number of Channels	16 differential analog input channels
Input Signal Ranges	4-20 mA via 250 Ohm resistor, 1-5 VDC, 0-5 VDC
A/D Converter Resolution	16-bit converter, typically 14 bits utilized
Common Mode Rejection Ratio	Greater than 70 dB from DC to 60 Hz
Normal Mode Rejection Ratio	Greater than 32 dB at 60 Hz
Maximum Differential Input Voltage	+/-30 VDC
Accuracy	+/-0.075% of full scale at 23.5 deg C
Sampling Rate	4 samples/second per channel
Mounting Type	DIN rail or dedicated FTA mounting channel
Humidity Range	5% to 95% relative humidity, non-condensing
System Compatibility	Honeywell Experion PKS, TPS, TDC 3000 HPM/EHPM architecture

Process Instrument Signal Interface and Isolation Characteristics

The MU-TAIH13 performs field-level analog signal termination and routing for Honeywell process control platforms. It accepts current and voltage signals from transmitters, sensors, and field instruments, while the integrated precision resistor network converts current loops into voltage measurement signals.

Furthermore, the module supports 4-20 mA HART loop protocol applications through compatible system configurations. Channel-to-channel isolation and input protection circuits reduce interference from field wiring conditions. The termination assembly also provides loop power capability for standard 2-wire transmitters when configured within supported Honeywell I/O architectures.

The module maintains analog measurement integrity through common mode rejection and normal mode noise rejection characteristics. Therefore, field signal conversion remains stable during typical industrial electrical disturbances.

Frequently Asked Questions

Q: Does the MU-TAIH13 provide direct connection for 4-20 mA field transmitters?
A: Yes. The module supports 4-20 mA input signals through integrated 250 Ohm precision shunt resistors and provides termination for compatible field transmitters.

Q: Is the MU-TAIH13 compatible with Honeywell Experion PKS systems?
A: Yes. The module is designed for Honeywell Experion PKS and legacy TPS/TDC 3000 HPM/EHPM I/O architectures.

Q: Does the MU-TAIH13 support voltage input signals?
A: Yes. The module accepts voltage input ranges including 1-5 VDC and 0-5 VDC through its analog input channels.

Field Installation Guidelines

Install the MU-TAIH13 on the specified FTA mounting channel or DIN rail structure according to Honeywell system installation documentation.

Terminate field wiring using correct polarity for differential analog inputs. Use shielded instrument cables for low-level analog signals and connect cable shields according to the site grounding standard.

Separate analog signal wiring from high-voltage power cables and switching circuits to reduce electromagnetic interference. Verify transmitter loop polarity, signal range configuration, and input channel assignment before system commissioning.

Confirm that field devices operate within the specified input voltage and current ranges before applying power. Check grounding continuity and protective wiring before connecting the FTA to the control system.
