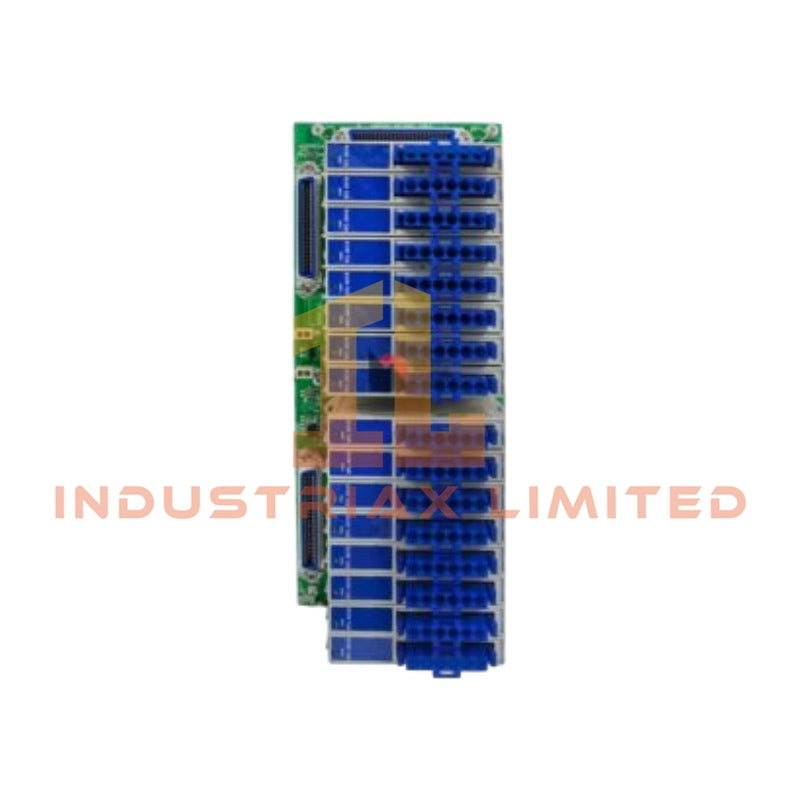

Honeywell MU-GAIH84 High-Level Analog Input Module

Configured for analog signal acquisition in Honeywell DCS platforms, the Honeywell MU-GAIH84 (MU-GAIH84 High-Level Analog Input Module) provides direct physical and electrical execution for field transmitter input processing within Honeywell control system architectures.

Hardware Specifications

Parameter	Specification
Model	MU-GAIH84
Brand	Honeywell
Product Type	High-Level Analog Input Module
System Compatibility	Honeywell TDC 3000 / Experion PKS related DCS platforms
Signal Input	4-20 mA DC, 1-5 VDC analog signals
Channel Capacity	Typically 16 analog input channels, depending on chassis configuration
A/D Conversion Resolution	16-bit minimum
Accuracy	+/- 0.05% of full scale at 25 deg C
Temperature Drift	+/- 0.005% per deg C
Input Impedance	250 ohm nominal for current input; greater than 1 Mohm for voltage input
Isolation	Channel-to-logic isolation up to 500 VDC or 1500 VAC
HART Support	HART pass-through capability depending on carrier configuration
Hot-Swap Capability	Supported in compatible system configurations
Operating Temp	0 deg C to 60 deg C
Storage Temp	-40 deg C to 85 deg C
Relative Humidity	5% to 95% RH, non-condensing
Power Consumption	Approx. 3.5 W to 5 W

DCS Instrument Interface and Signal Isolation

The MU-GAIH84 processes standard process transmitter signals and transfers converted measurement data to the Honeywell control architecture. The module supports 4-20 mA HART loop protocol pass-through functions when the installed carrier and system configuration provide this capability.

Furthermore, the module applies channel-to-channel isolation techniques to reduce interference caused by field wiring conditions and ground potential differences. The analog input circuitry maintains signal integrity during continuous process measurement operations.

The module design aligns with Honeywell process control I/O architectures that require isolated analog measurement channels, diagnostic monitoring, and field instrument connectivity.

Frequently Asked Questions

Q: Does the Honeywell MU-GAIH84 support direct connection to 4-20 mA field transmitters?
A: Yes. The module accepts standard 4-20 mA DC analog input signals from compatible field transmitters and converts them into controller-readable digital values.

Q: Can the MU-GAIH84 maintain operation during module replacement?
A: Hot-swap operation depends on the installed Honeywell chassis and system configuration. The replacement procedure must follow the applicable DCS maintenance instructions.

Q: Does the module provide electrical isolation between field signals and control electronics?
A: Yes. The module includes isolation between input channels and system logic circuits to reduce field-side electrical interference.

Field Installation Guidelines

• Install the MU-GAIH84 according to the applicable Honeywell rack and termination assembly documentation.
• Verify field transmitter wiring polarity before connecting analog input channels.
• Use shielded instrumentation cable for low-level analog signal transmission where required by the site wiring standard.
• Connect cable shields according to the plant grounding specification to prevent unwanted ground loops.
• Separate analog signal wiring from high-voltage power cables and high-current switching conductors.
• Confirm the configured input range matches the connected transmitter output before commissioning.
• Verify channel diagnostics and loop values after installation through the Honeywell engineering workstation.
