Description

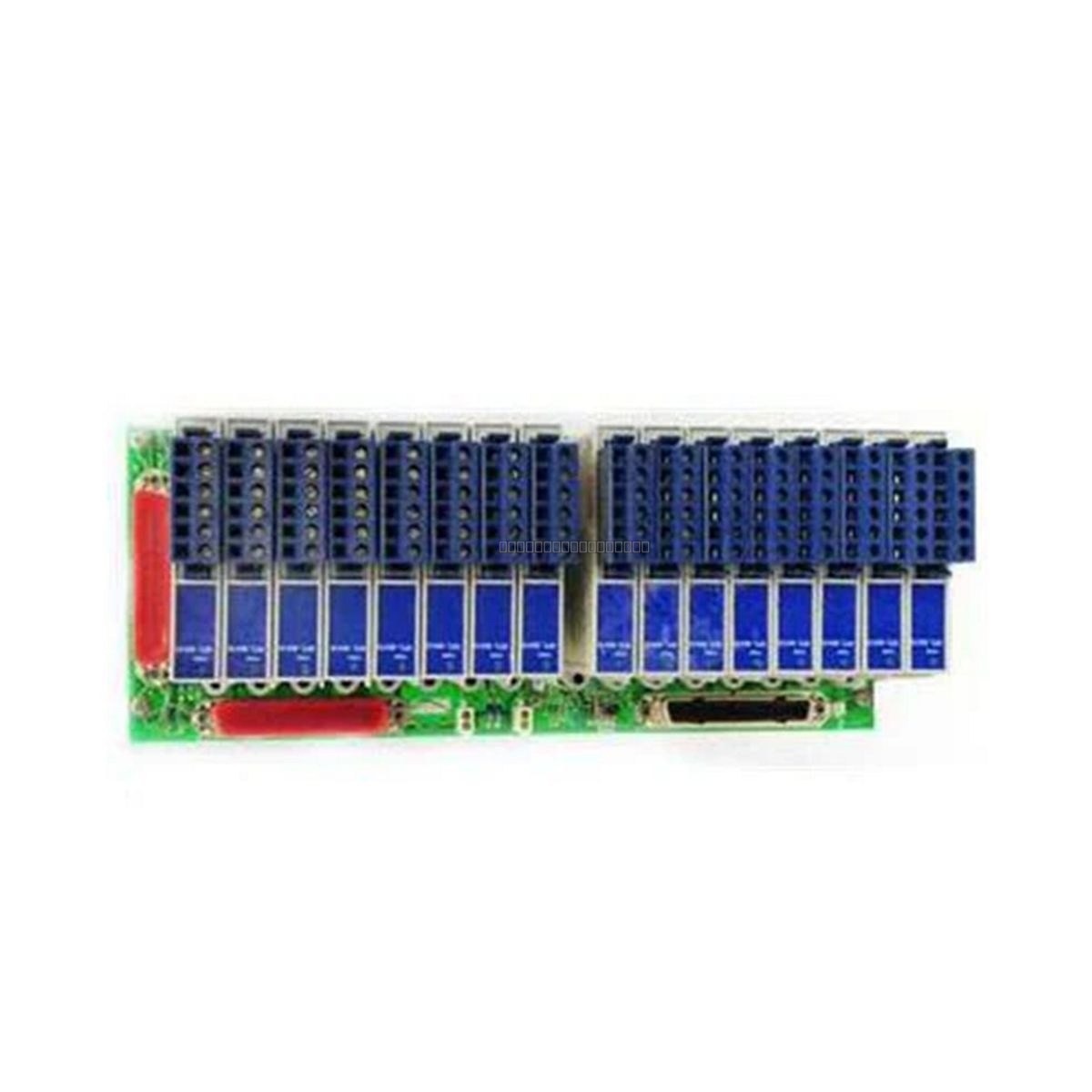

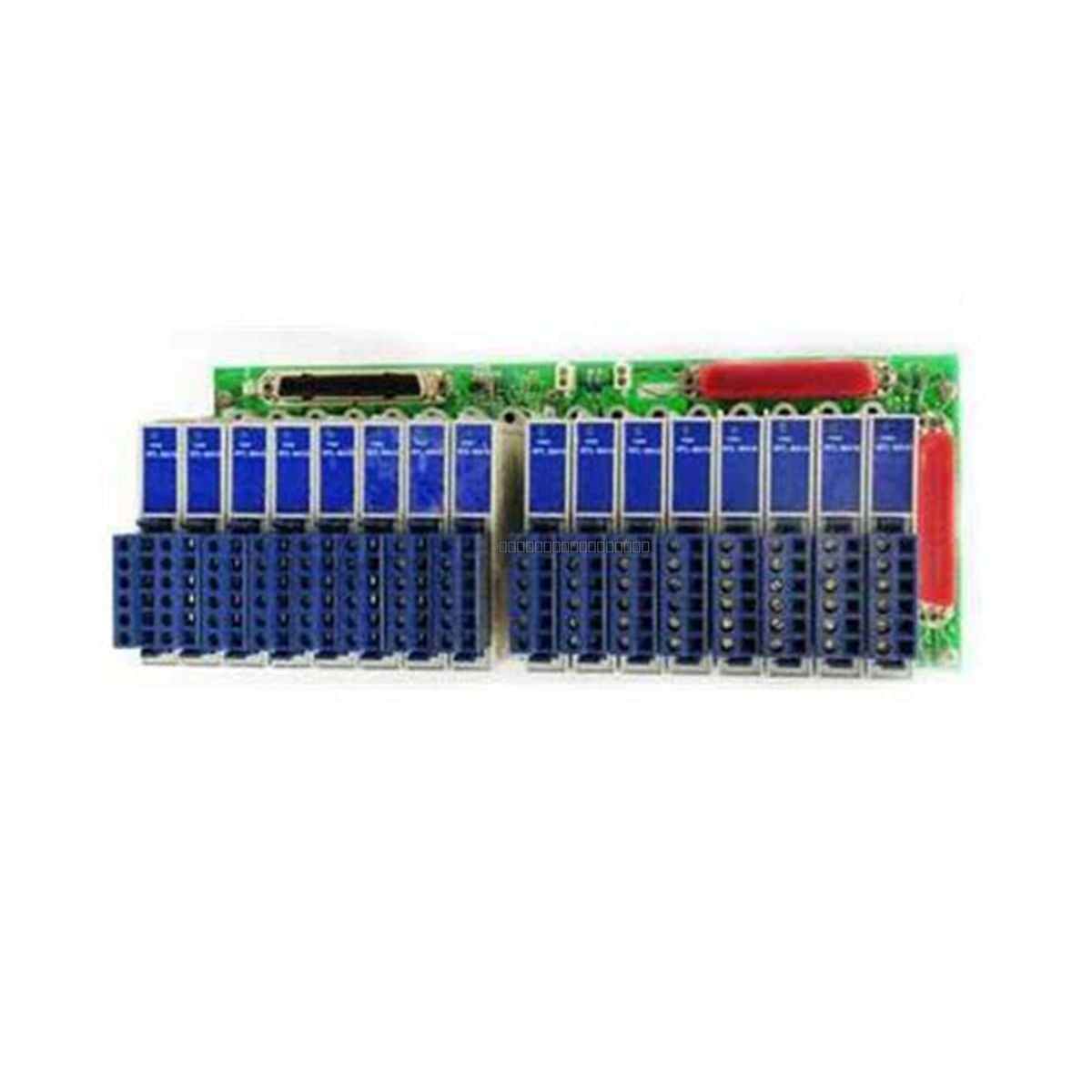

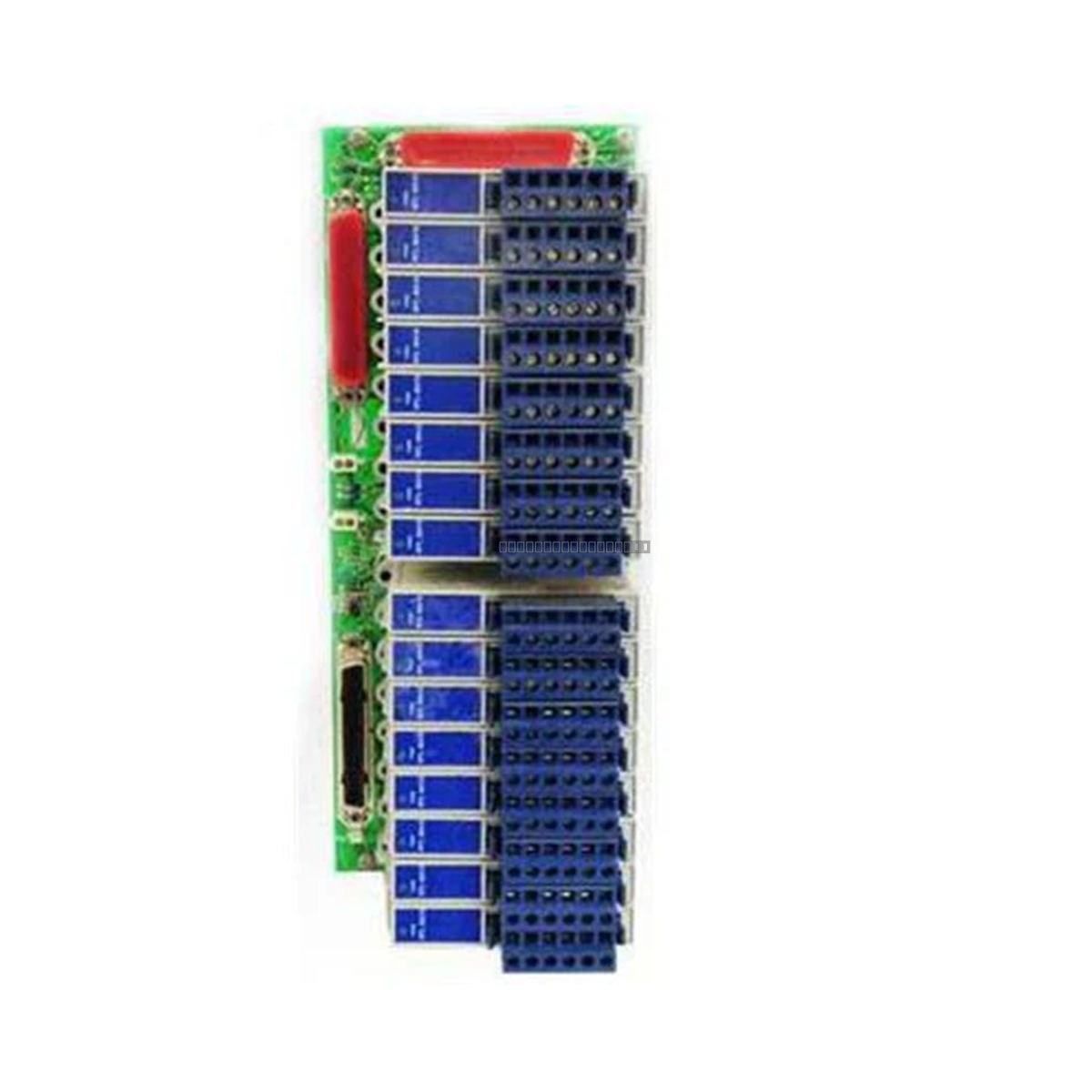

The Honeywell MU-GAIH22 is a high-level analog input Field Termination Assembly (FTA) engineered for seamless integration within Honeywell distributed control and safety instrumentation systems. This assembly serves as a critical interface between field-mounted process transmitters and the system's I/O electronics, providing robust signal conditioning and reliable termination for analog process loops.
Features
-
Signal Conditioning: Designed for high-level analog input signals, ensuring accurate data acquisition from field instrumentation.
-
Galvanic Isolation: Features built-in galvanic isolation to mitigate electrical noise, prevent ground loops, and protect sensitive control system electronics.
-
Compact Design: Optimized for space-constrained control panels with a standard DIN rail mounting configuration.
-
Industrial Durability: Engineered for stability in demanding environments, including chemical processing, oil and gas, and power generation facilities.
Applications
The MU-GAIH22 is utilized in industrial control architectures where high-level analog signal integrity is paramount. It is commonly deployed in process control loops for monitoring pressure, flow, temperature, and level transmitters that require stable, noise-free signal transmission to the central control system.
Technical Specifications
| Model |
MU-GAIH22 |
| Brand |
Honeywell |
| Product Type |
High Level Analog Input FTA |
| Mounting Type |
DIN Rail |
| Module Size Class |
B |
| Terminal Type |
C |
| Isolation |
Galvanically isolated channels |
| Operating Temperature |
-20 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
Installation Guidelines
-
Mounting: Ensure the assembly is securely snapped onto a standard DIN rail. Verify that the module is oriented to allow for proper airflow and heat dissipation.
-
Wiring: Use shielded twisted-pair cabling for all analog inputs to maintain signal integrity and minimize EMI/RFI interference. Ensure all field wiring is properly terminated to the designated terminals.
-
Grounding: Follow standard plant grounding procedures for analog signal loops to prevent ground loops and ensure effective operation of the isolation barriers.
-
Safety: Always power down the associated I/O subsystem before installing or removing the FTA to prevent electrical damage or unexpected system behavior.
-
Environment: Keep the module away from high-voltage power lines and sources of extreme electromagnetic interference to ensure optimal performance.
FAQ
What is the primary function of the MU-GAIH22?
The MU-GAIH22 acts as a field termination assembly that provides signal conditioning and galvanic isolation for high-level analog inputs, facilitating the connection between field sensors and Honeywell control systems.
Is this module compatible with all Honeywell systems?
The MU-GAIH22 is specifically designed for Honeywell distributed control and safety instrumentation systems. Please verify your system's I/O documentation to ensure compatibility with this specific FTA model.
