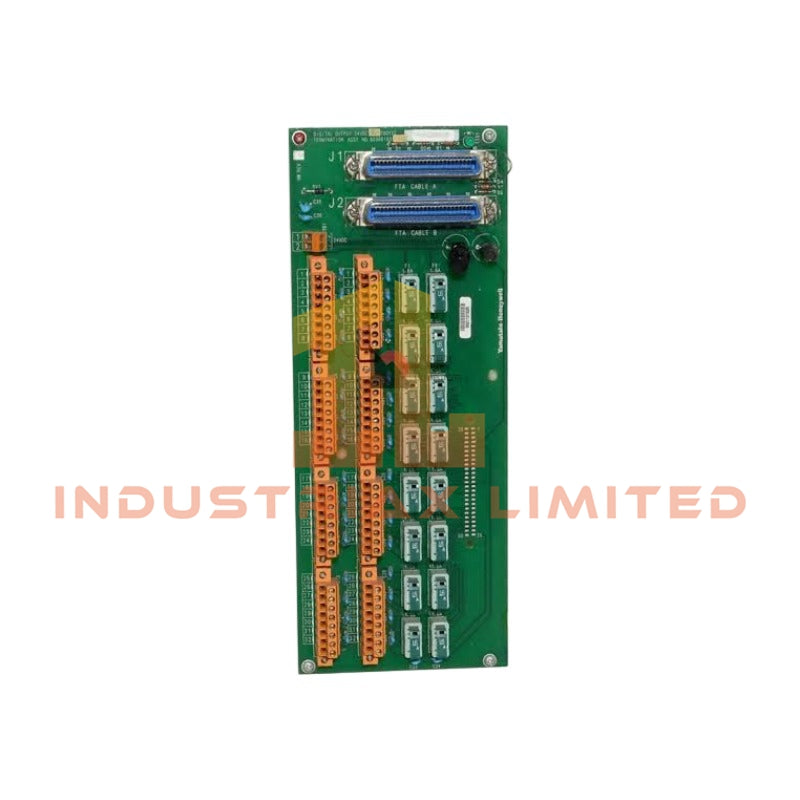

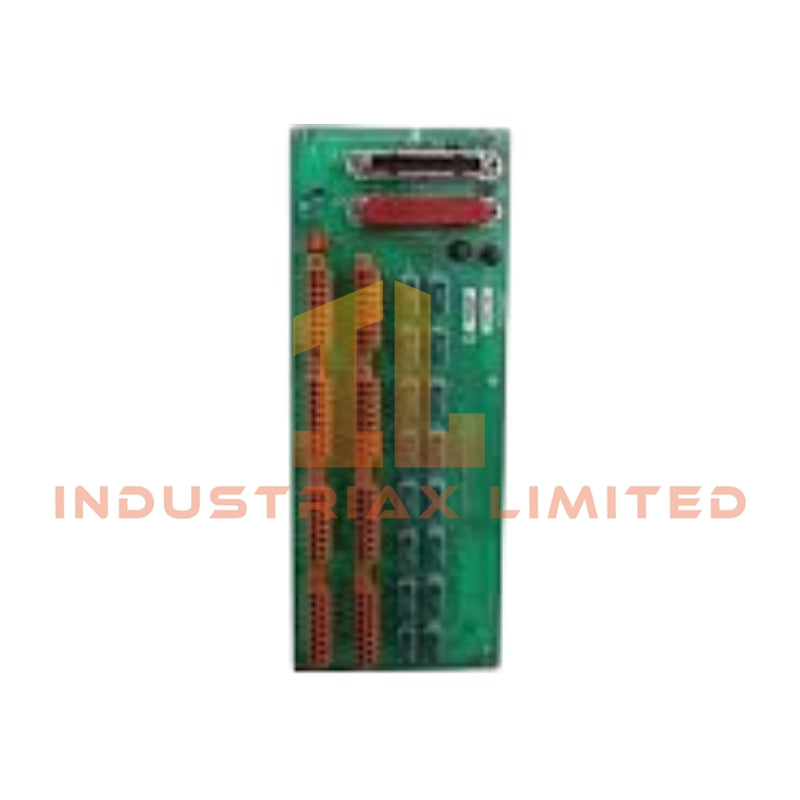

Honeywell MC-TDOY22 Digital Output HD Termination PCB

Configured for digital output signal termination in Honeywell TDC 3000 and Experion PKS I/O architectures, the Honeywell MC-TDOY22 (51204162-175) Digital Output HD Termination PCB provides direct electrical interface processing between field wiring and digital output channels.

Hardware Specifications

Parameter	Specification
Model	MC-TDOY22
Spare Model	51204162-175
Brand	Honeywell
Product Type	Digital Output HD Termination PCB Circuit Board
System Platform	Honeywell TDC 3000 / Experion PKS I/O Systems
Function	Digital output signal termination and field interface connection
Signal Type	Digital Output
Channel Interface	High Density Digital Output Termination Interface
Origin	USA
Weight	0.55 kg
Dimensions	30.8 x 12.1 x 5.5 cm
Power Consumption	Passive termination board, no independent power input specified

Channel-to-Channel Isolation and DCS Signal Interface

The Honeywell MC-TDOY22 provides termination functions for high density digital output channels within Honeywell process control systems. The PCB routes discrete output signals between the I/O processor assembly and field wiring terminals while maintaining defined electrical separation between connected circuits.

In addition, the module supports structured field signal management used in Honeywell DCS architectures. It operates as a termination interface rather than an active control processor, so the connected I/O module performs signal logic execution and diagnostics.

The termination assembly follows Honeywell process I/O hardware design principles, where channel-to-channel isolation, wiring organization, and field termination accuracy support stable digital signal transmission. Therefore, installation requires correct terminal assignment and proper cable shielding practices.

Frequently Asked Questions

Q: Is the MC-TDOY22 a standalone digital output controller?
A: No. The MC-TDOY22 is a Digital Output HD Termination PCB. The connected Honeywell I/O module performs digital output processing and control logic execution.

Q: Does the MC-TDOY22 require separate field power input?
A: No independent power specification is provided for this termination PCB. The board functions as a signal termination interface within the associated Honeywell I/O assembly.

Q: Can the MC-TDOY22 replace other Honeywell termination boards directly?
A: Replacement requires matching the exact termination model, spare number, and compatible I/O hardware configuration to maintain correct channel mapping.

Field Installation Guidelines

• Verify the MC-TDOY22 model and spare number before installation to prevent incorrect I/O channel termination.
• Install the PCB only in the designated Honeywell I/O chassis or termination assembly location.
• Route digital signal cables separately from high-voltage power cables to reduce electrical interference.
• Connect cable shields according to the plant grounding standard and avoid multiple uncontrolled grounding points.
• Confirm terminal assignments before applying field power to connected digital output circuits.
• Inspect connectors and PCB contacts for contamination or mechanical damage before commissioning.
• Follow Honeywell system documentation for I/O configuration, diagnostics, and maintenance procedures.
