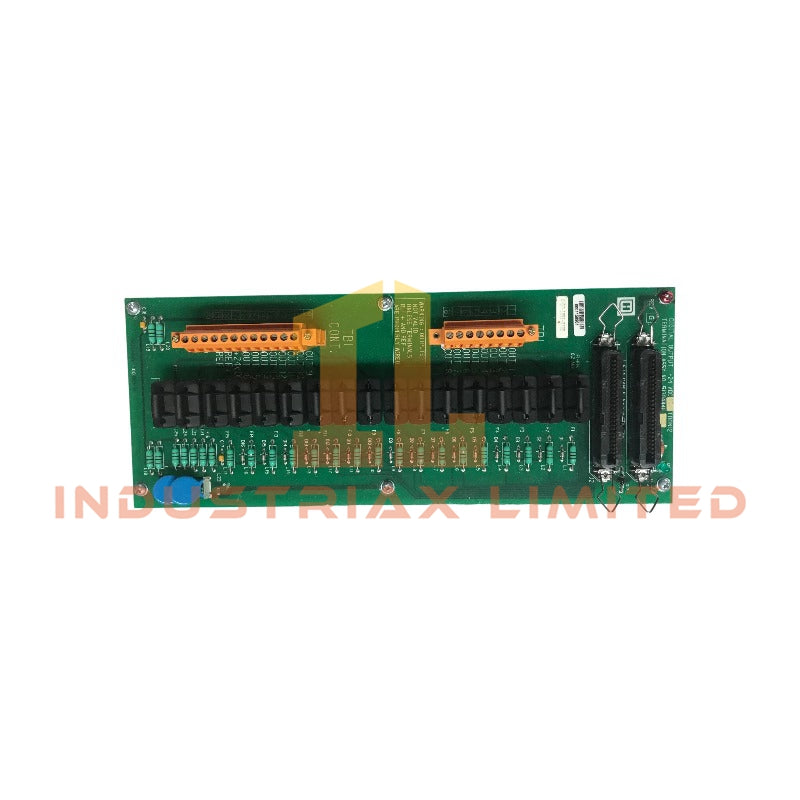

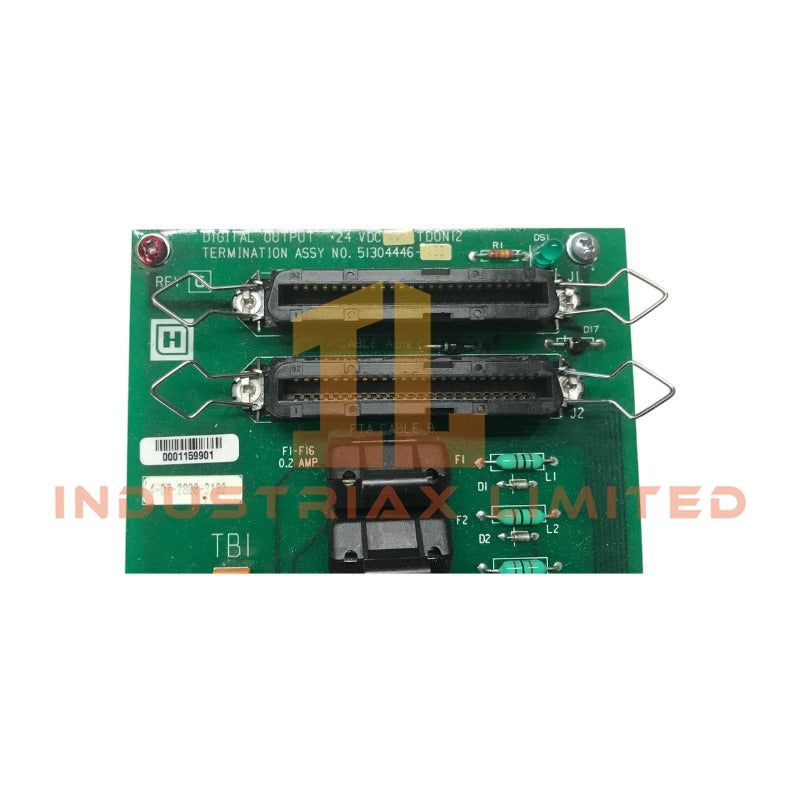

Honeywell MC-TDON12 Digital Output Field Termination Assembly

Configured for digital signal termination in Honeywell TDC 3000 and Experion PKS PMIO systems, the Honeywell MC-TDON12 51304441-175 (MC-TDON12 Digital Output Field Termination Assembly) provides direct electrical interface execution between Digital Output modules and field devices.

Hardware Specifications

Parameter	Specification
Model	MC-TDON12
Brand	Honeywell
Part Number	51304441-175
Origin	USA
Module Type	Digital Output Field Termination Assembly (FTA)
System Compatibility	Honeywell TDC 3000, Experion PKS PMIO
Signal Type	Digital Output, On/Off Control
Operating Voltage	24 VDC nominal
Channel Capacity	16 output channels
Redundancy	Non-redundant configuration
Mounting Type	DIN rail or cabinet mounting
Power Consumption	Determined by connected field output circuits
Conformal Coating	Available for MC series coated assemblies

DCS Digital Output Signal Interface Characteristics

The MC-TDON12 terminates digital output wiring between Honeywell process controllers and external field devices. It transfers discrete control signals to devices such as solenoid valves, relays, actuators, and status indicators.

The assembly supports 24 VDC digital output circuits and provides organized terminal connections for cabinet wiring. Additionally, the field termination design separates controller-side connections from field wiring points, which simplifies loop checking and maintenance activities.

For Honeywell process control environments, the termination assembly supports structured I/O installation with channel-to-channel wiring separation. Therefore, technicians can perform field inspections and signal verification without modifying controller hardware connections.

Frequently Asked Questions

Q: Does the MC-TDON12 provide direct field device control without a DO module?
A: No. The MC-TDON12 functions as a field termination interface and requires connection to a compatible Honeywell Digital Output module.

Q: Is the MC-TDON12 designed for redundant output operation?
A: The provided configuration information identifies the MC-TDON12 as a non-redundant field termination assembly.

Q: Can the MC-TDON12 be installed in standard process control cabinets?
A: Yes. The assembly supports cabinet installation with DIN rail or equivalent mounting arrangements according to system design requirements.

Field Installation Guidelines

• Install the MC-TDON12 inside an approved control cabinet with appropriate environmental protection.
• Route field wiring separately from high-voltage power cables to reduce electrical interference.
• Verify terminal identification before connecting solenoids, relays, or other digital output loads.
• Use proper shield grounding practices when field devices include shielded control cables.
• Confirm controller I/O assignment and channel mapping before commissioning.
• Follow Honeywell TDC 3000 or Experion PKS installation manuals for wiring limitations and system integration procedures.
