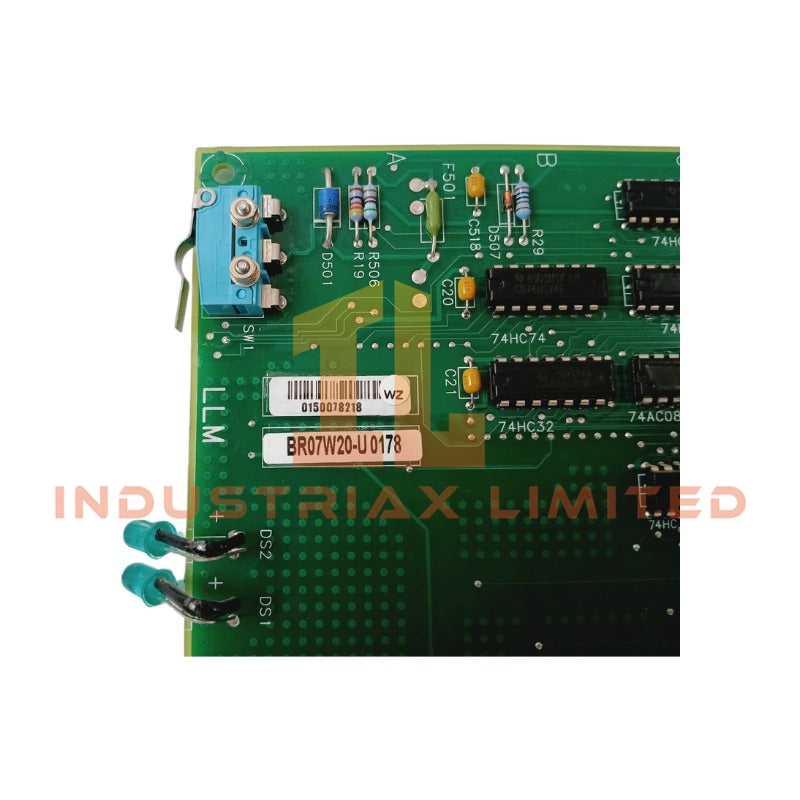

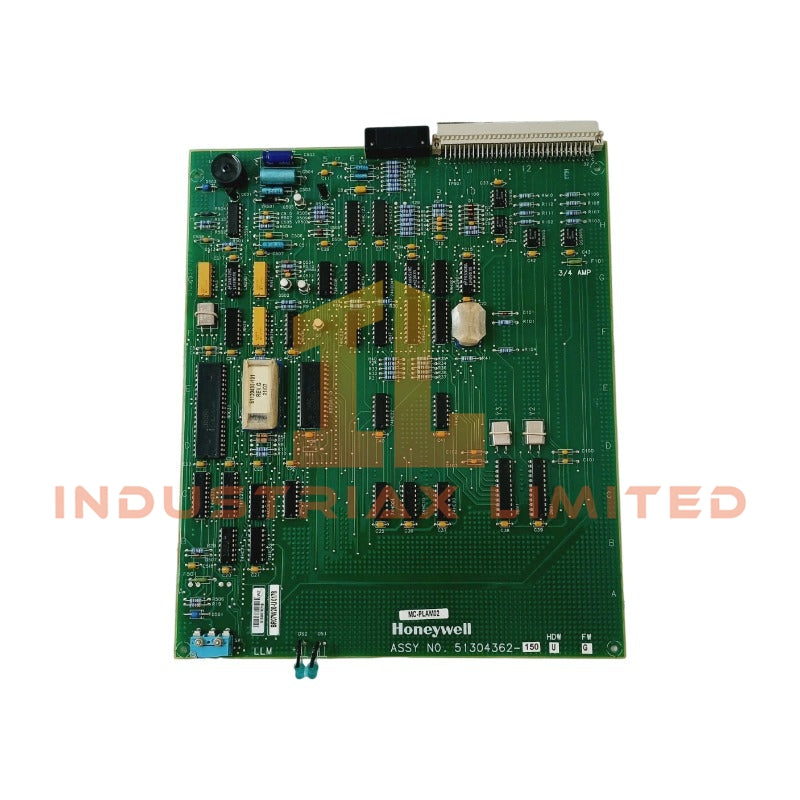

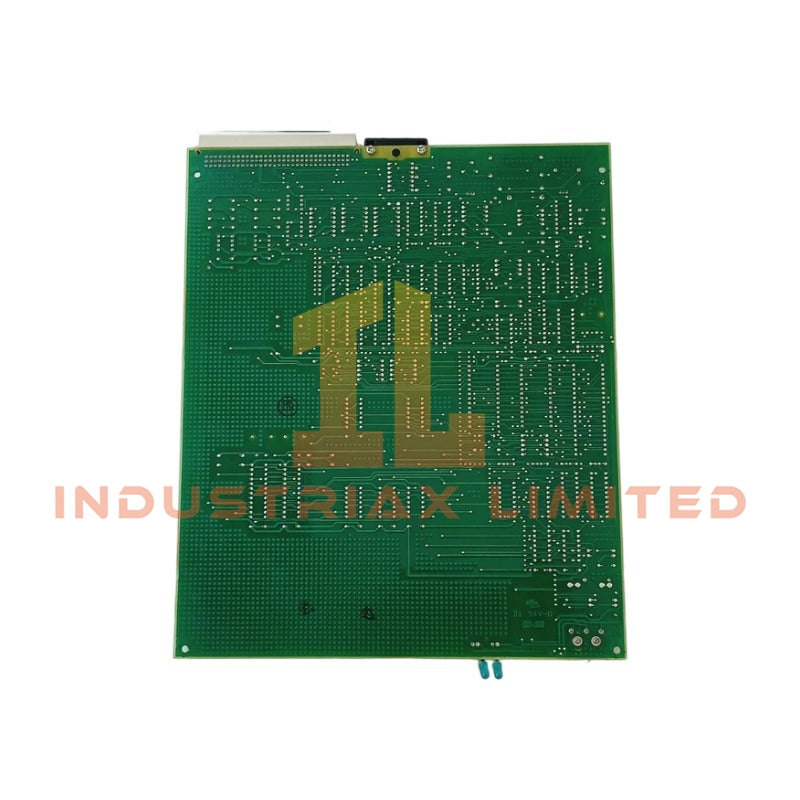

Honeywell MC-PLAM02 Low Level Analog Input Multiplexer Processor

The Honeywell 51304362-150 MC-PLAM02, also cataloged as the MC-PLAM02 Low Level Analog Input Multiplexer Processor, operates as a dedicated hardware component for low-level analog signal acquisition and multiplexing within Honeywell TDC 3000, TPS, PM, APM, and HPM control system platforms.

Hardware Specifications

Parameter	Specification
Model	MC-PLAM02
Brand	Honeywell
Origin	USA
Module Type	Low Level Analog Input Multiplexer Processor (LLMux IOP)
Assembly Part Numbers	51304362-150 / 51404092-400
System Compatibility	Honeywell TDC 3000, TPS, PM, APM, HPM systems
Input Channel Capacity	Up to 32 low-level analog input channels
Input Signal Types	Thermocouples, RTDs, millivolt signals, low-level analog process inputs
Signal Processing Function	Multiplexing and digitizing field analog signals for controller processing
Operating Voltage	24 VDC via backplane or I/O rack supply
Hardware Accuracy	Approximately +/- 0.065% of full scale
Environmental Protection	Conformal coated PCB
Operating Temp	-40 deg C to +85 deg C
Weight	Approximately 0.64 kg

Honeywell Process Signal Interface and Channel Management

The MC-PLAM02 processes low-level analog field signals through Honeywell I/O architectures and transfers digitized values to higher-level control processors. The module supports thermocouple, RTD, and millivolt input sources while maintaining independent I/O scanning operation.

Furthermore, the LLMux IOP reduces direct controller processing demand because it performs signal multiplexing and conversion before data transmission to the control processor. The module supports T-series Field Termination Assemblies (FTAs), including MU-TAM series interfaces, for field wiring termination and signal conditioning.

The Honeywell process control architecture supports channel-to-channel isolation design concepts for analog measurement applications. In addition, thermocouple applications can utilize cold junction compensation (CJC) functions through compatible Honeywell termination assemblies and input configurations.

Frequently Asked Questions

Q: Does the MC-PLAM02 directly execute control logic?
A: No. The MC-PLAM02 performs low-level analog input acquisition, multiplexing, and digitization. The controller executes the application control algorithms.

Q: What field devices can connect to the MC-PLAM02?
A: The module accepts low-level analog sources including thermocouples, RTDs, and millivolt signal devices through compatible Honeywell field termination assemblies.

Q: Can the MC-PLAM02 operate without Honeywell I/O termination hardware?
A: No. The module requires compatible Honeywell FTA hardware and system backplane connections to complete field signal routing and communication.

Field Installation Guidelines

• Install the MC-PLAM02 in the designated Honeywell controller or I/O rack position according to the system hardware configuration manual.
• Verify that the backplane connection is fully seated before applying system power.
• Use shielded field wiring for low-level analog signals to reduce electrical noise interference.
• Connect cable shields according to the plant grounding standard and avoid multiple grounding points that may introduce ground loops.
• Separate low-level analog wiring from high-voltage power cables and switching circuits.
• Confirm that connected FTAs match the configured input signal type before commissioning.
• Inspect terminal connections, cable routing, and module seating during maintenance procedures.
