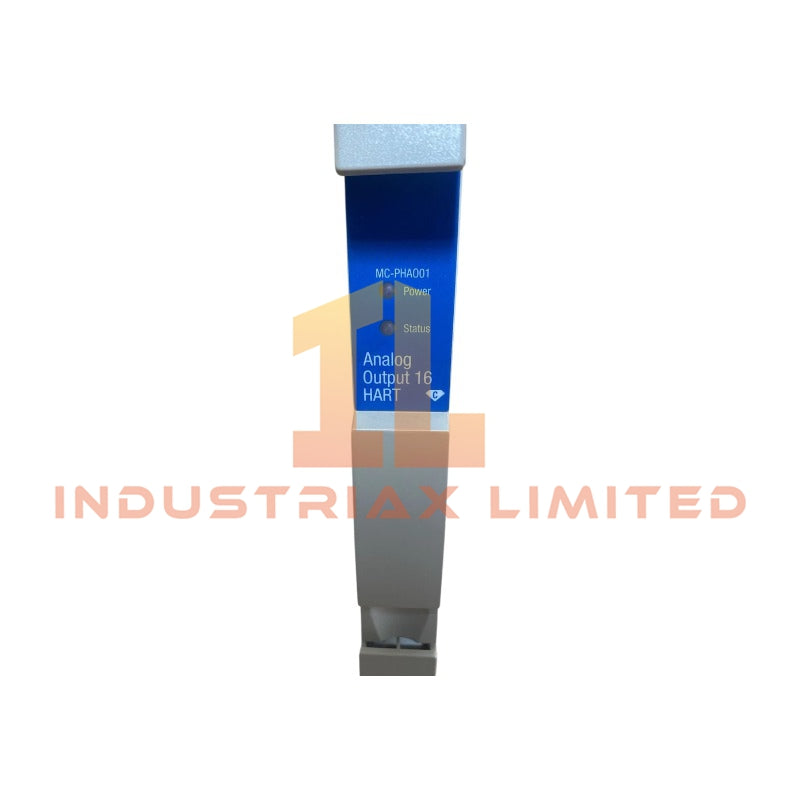

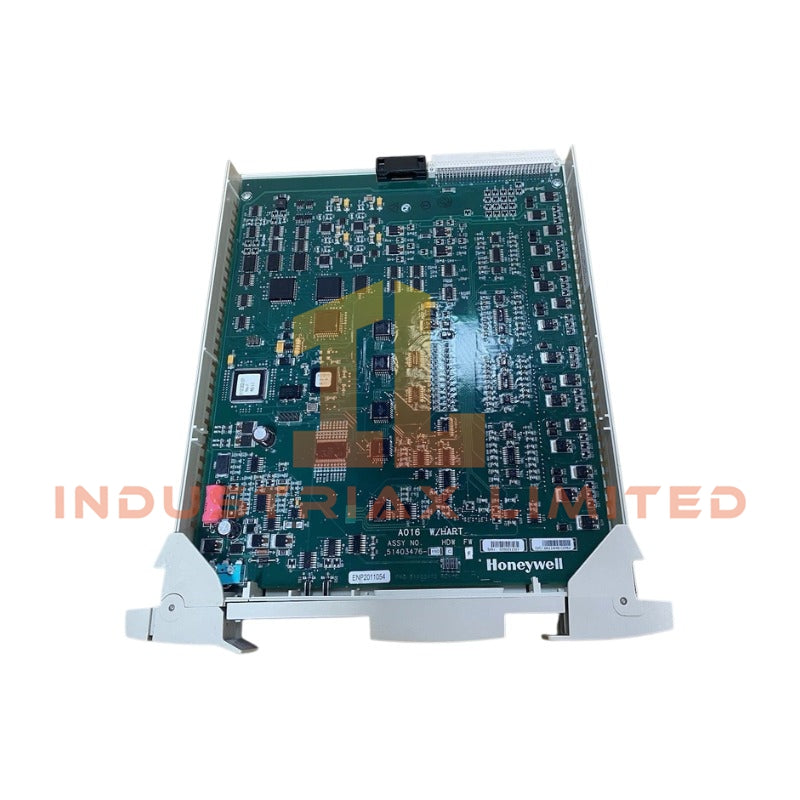

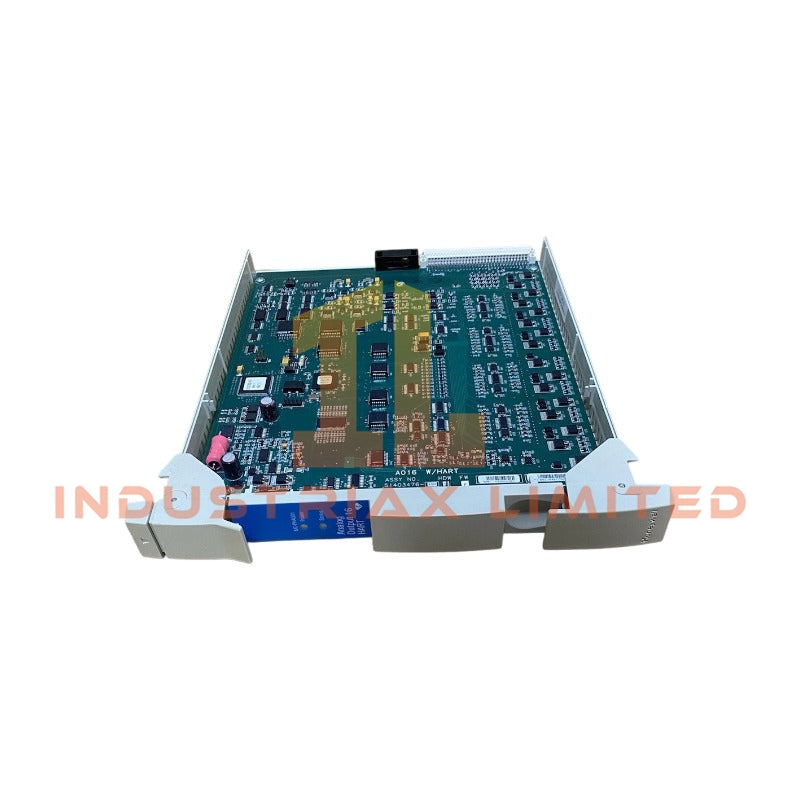

Honeywell MC-PHA001 Analog Output Module

Configured for 4-20 mA control signal execution in Honeywell Experion PKS, TDC 3000, and Process Manager platforms, the Honeywell MC-PHA001 51403476-150 (MC-PHA001 Analog Output Module) provides direct physical and electrical output control for field actuators.

Hardware Specifications

Parameter	Specification
Model	MC-PHA001
Brand	Honeywell
Origin	USA
Part Number	51403476-150
Module Type	Analog Output (AO) Module
Weight	Approx. 0.57 kg module weight; shipping weight varies with packaging
Dimensions	Not specified in available technical data
Operating Temp	-20 deg C to +70 deg C
Storage Temp	-40 deg C to +85 deg C
Power Consumption	24 VDC system supply; exact module consumption not specified
Channel Count	16 independent analog output channels
Output Signal	4-20 mA configurable output
Output Range	Supports 0-20 mA and 0-10 VDC configuration
Resolution	16-bit digital-to-analog conversion
Communication Protocol	HART communication support, Versions 5, 6, and 7
Isolation	Galvanic isolation between field circuits and system electronics
System Compatibility	Honeywell Experion PKS, TDC 3000, PM/APM/HPM systems
Installation Type	Honeywell DCS I/O rack mounting

HART Loop Protocol and Channel Isolation Characteristics

The Honeywell MC-PHA001 uses a 4-20 mA HART loop protocol interface for analog output applications. Therefore, the module can transmit continuous control signals while supporting digital communication with smart field devices.

The module provides 16 separate output channels, and each channel operates as an independent control loop interface. In addition, channel-to-channel isolation reduces electrical interaction between field circuits and protects system electronics from external signal disturbances.

The integrated HART pass-through function allows configuration and diagnostic data exchange between field instruments and asset management systems without requiring separate HART multiplexing hardware.

Frequently Asked Questions

Q: Does the MC-PHA001 support HART communication together with analog output signals?
A: Yes. The module supports HART communication pass-through while maintaining standard 4-20 mA analog output operation.

Q: Can the MC-PHA001 be replaced during system operation?
A: The module supports hot-swap installation in compatible Honeywell I/O rack configurations. The replacement procedure must follow the system maintenance manual and rack operating requirements.

Q: What installation factors affect analog output signal quality?
A: Proper shield grounding, separation from high-voltage cables, and correct field wiring practices reduce electrical noise and signal interference.

Field Installation Guidelines

• Install the MC-PHA001 module only in compatible Honeywell I/O chassis positions defined by the system configuration documentation.
• Verify the 24 VDC power supply quality before connecting field wiring.
• Use shielded signal cables for analog output loops and connect cable shields according to site grounding practices.
• Separate analog signal wiring from high-current power conductors and switching equipment.
• Confirm field device loop polarity before applying output signals.
• Check HART communication paths after installation to verify digital communication availability.
• Follow Honeywell maintenance procedures when performing module replacement or rack service operations.
