Description

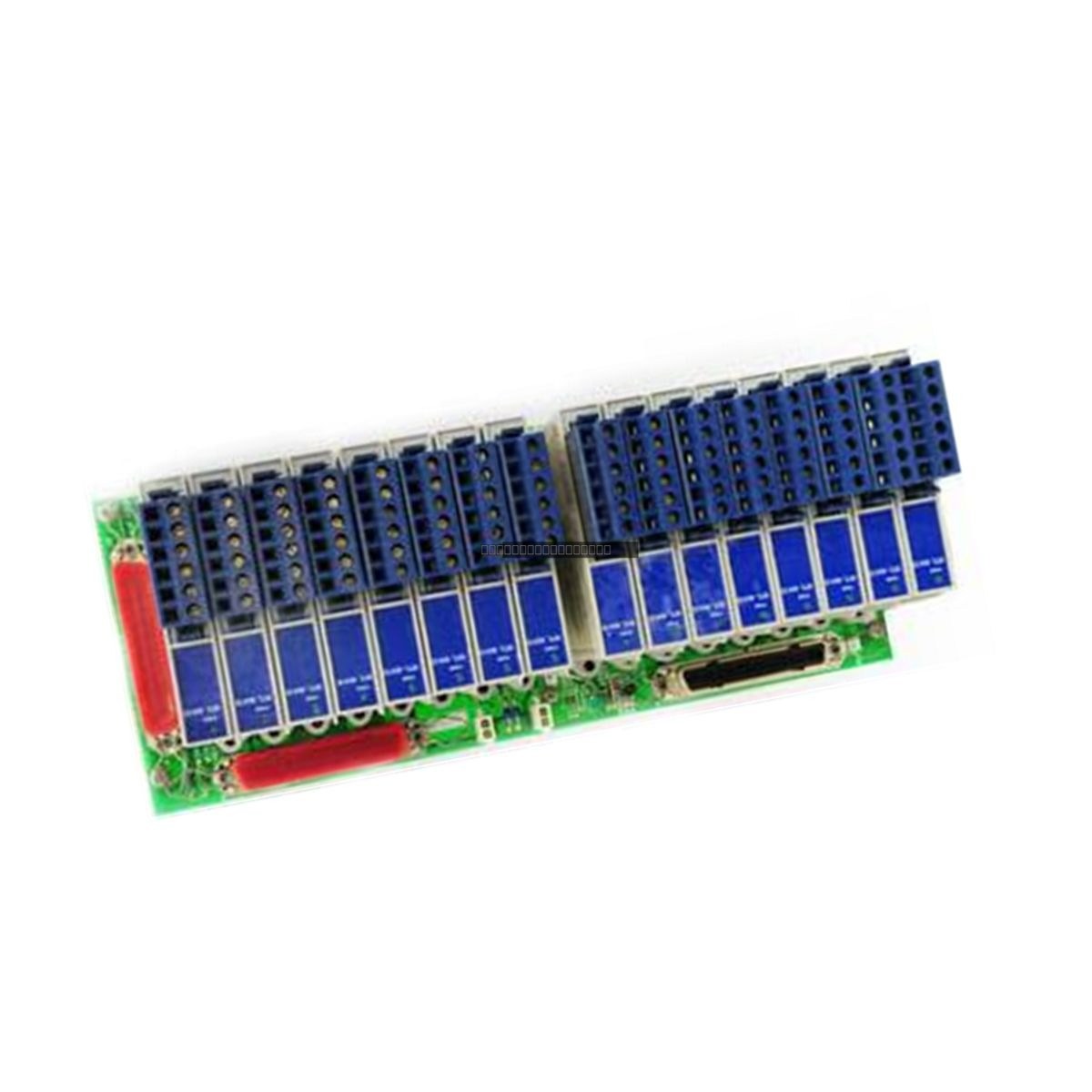

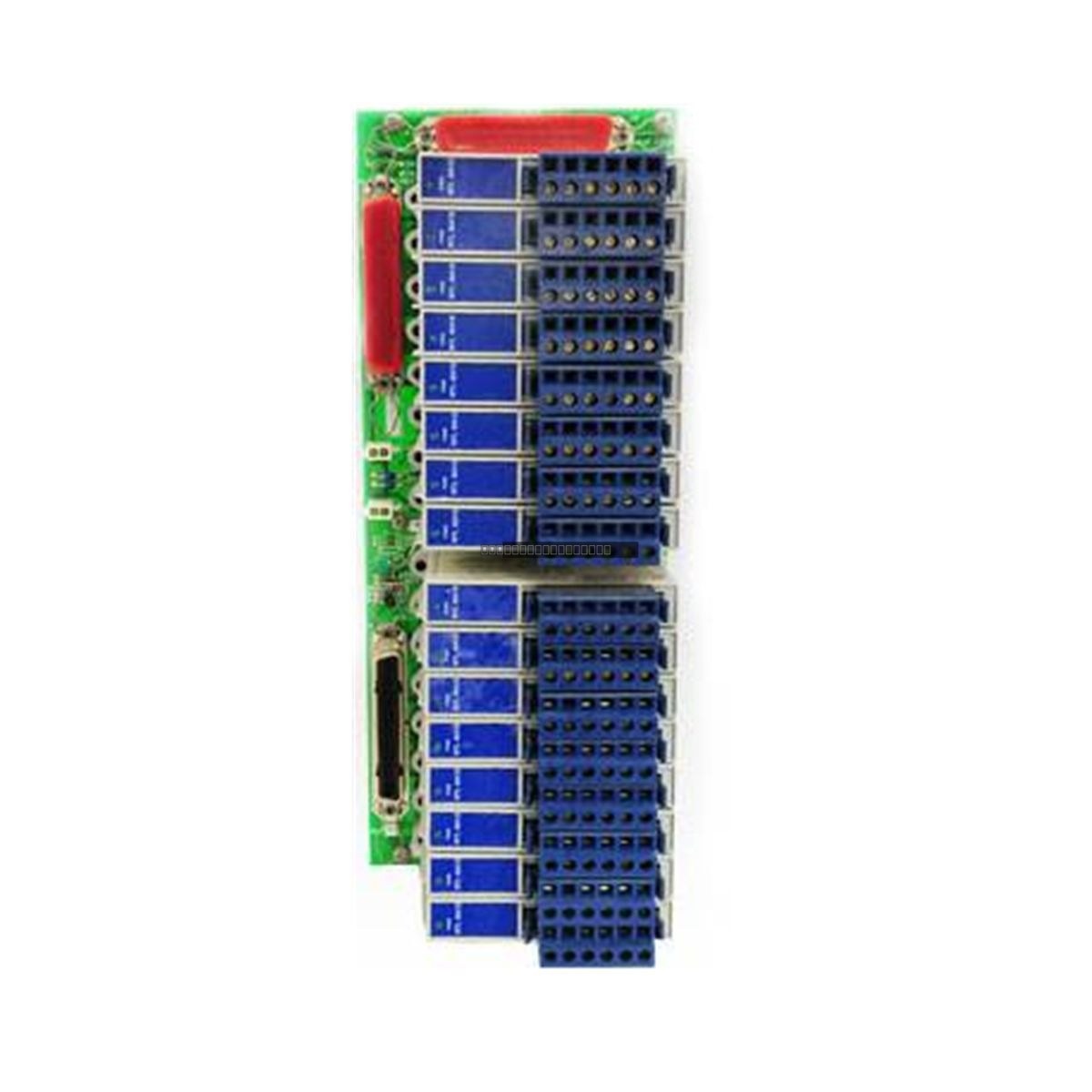

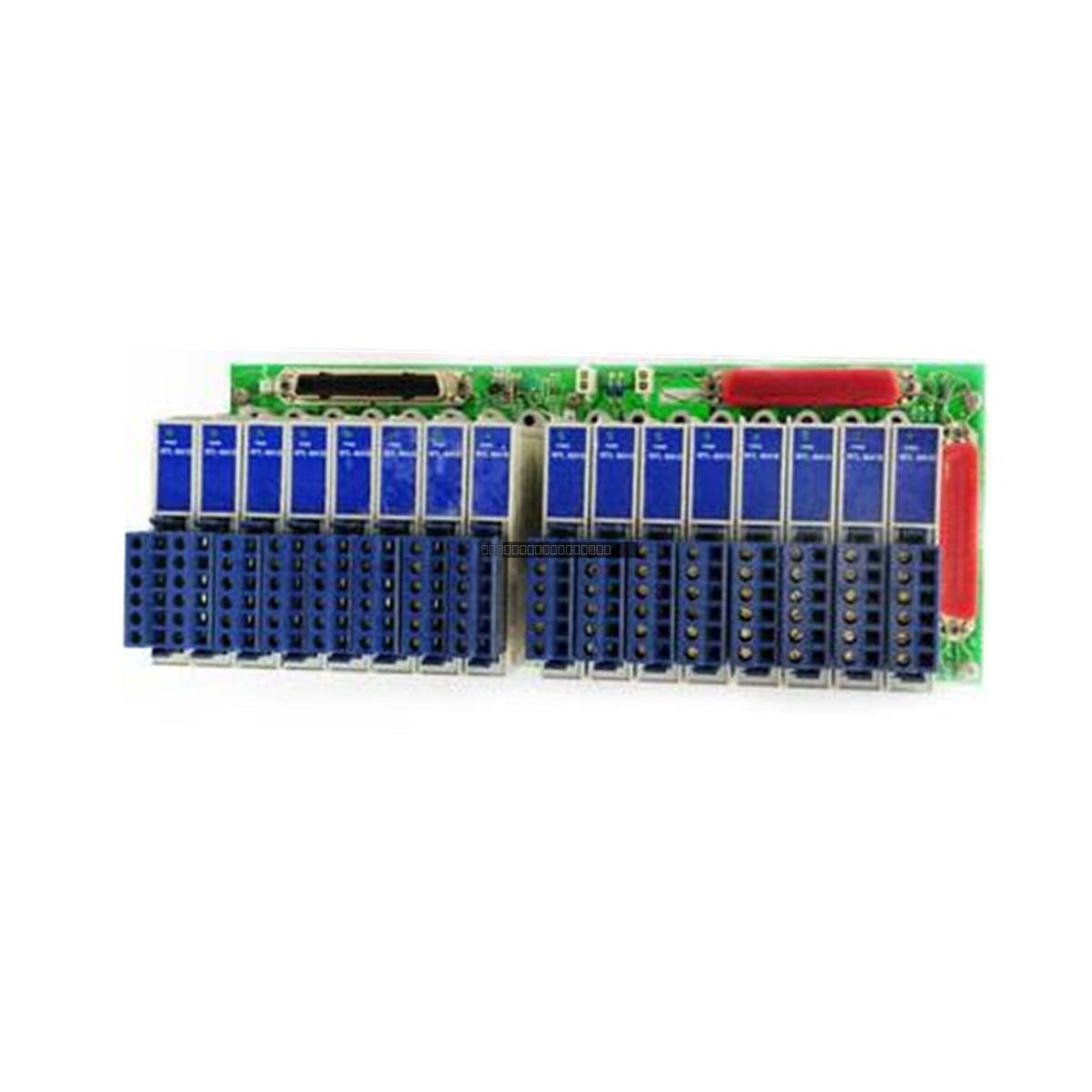

The Honeywell MC-GAIH13 (Part Number 51304718-175) is a high-performance Galvanic Isolator module designed for use within Honeywell Distributed Control Systems (DCS). This module serves as an HLAI/STI (High Level Analog Input / Smart Transmitter Interface) Field Termination Assembly, providing robust galvanic isolation for industrial analog signal loops. Engineered for reliability in demanding environments, this unit features conformal coating to protect against environmental contaminants and supports redundant configurations to ensure high system availability.
Features
- 16-channel capacity for high-density signal processing.
- Full galvanic isolation to prevent ground loops and protect control circuitry.
- Supports standard 4-20 mA analog signal loops.
- Conformally coated PCB for enhanced durability in harsh industrial conditions.
- Compression-style terminals for secure field wiring.
- Designed for integration with Honeywell DCS architecture.
Technical Specifications
| Model Number |
MC-GAIH13 |
| Part Number |
51304718-175 |
| Signal Type |
4-20 mA |
| Channel Count |
16 |
| Galvanic Isolation |
1500V AC |
| Channel-to-Channel Isolation |
300V AC |
| Operating Temperature |
-40 degC to +85 degC |
| Relative Humidity |
0-95% non-condensing |
| Termination Type |
Compression |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module from the rack to prevent electrical damage.
- Mount the module in an environment that meets the specified temperature and humidity ranges to maintain operational integrity.
- Use appropriate shielded cabling for analog signal loops to minimize EMI/RFI interference.
- Verify that all compression terminal connections are tightened to the correct torque to prevent intermittent signal loss.
- Maintain proper grounding practices for the cabinet to ensure the effectiveness of the galvanic isolation.
- Handle the module using ESD-safe procedures to protect sensitive onboard components.
FAQ
What is the primary function of the MC-GAIH13 module?
The MC-GAIH13 acts as a galvanic isolator for 4-20 mA analog inputs, protecting the DCS from ground loops and electrical surges in field instrumentation.
Does this module support redundancy?
Yes, the MC-GAIH13 is designed to support redundant configurations within the Honeywell DCS framework, which is critical for maintaining process uptime.
Is this unit suitable for outdoor or high-humidity environments?
The module is conformally coated and rated for 0-95% non-condensing humidity, making it suitable for industrial environments, though it should be housed within an appropriate NEMA or IP-rated enclosure.
