Description

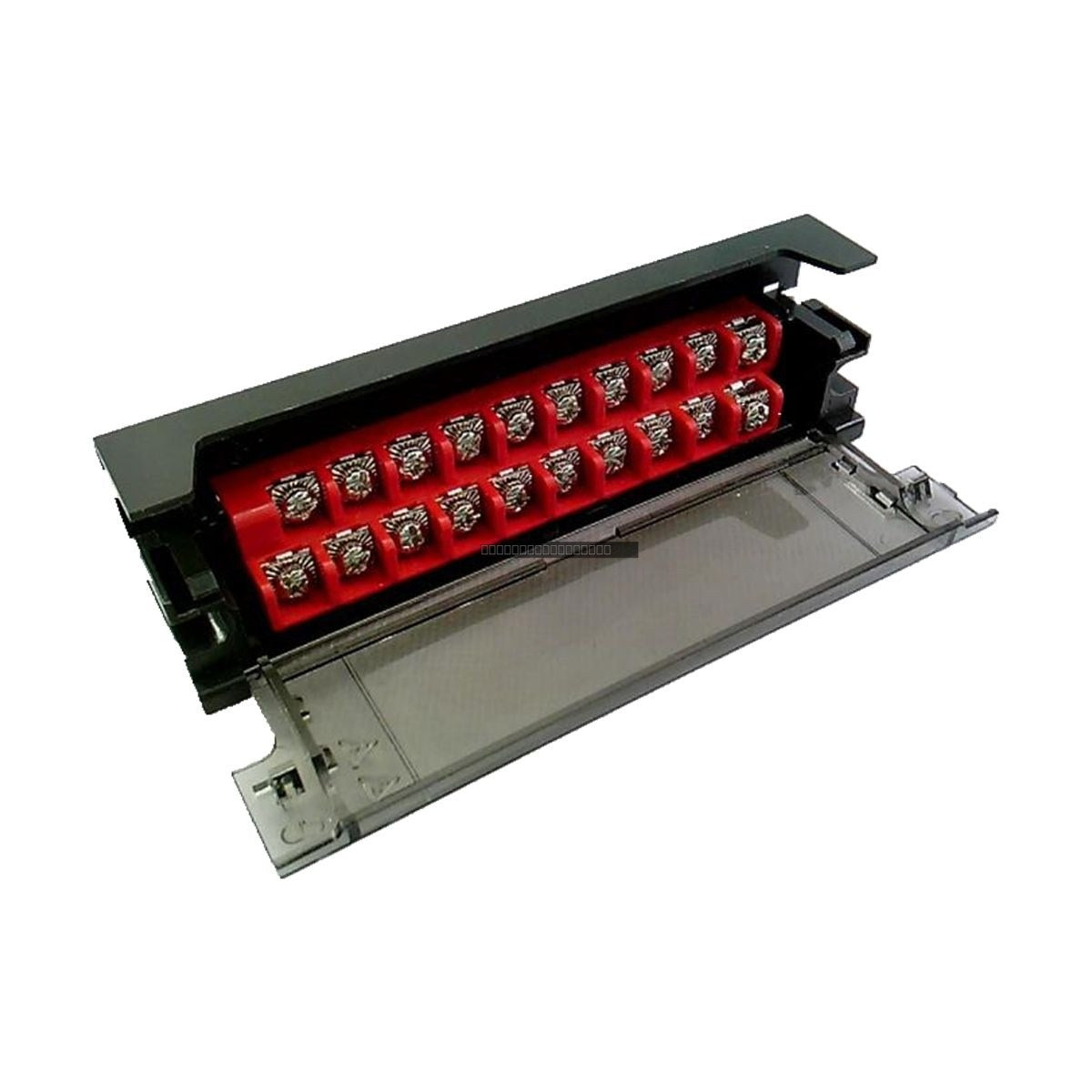

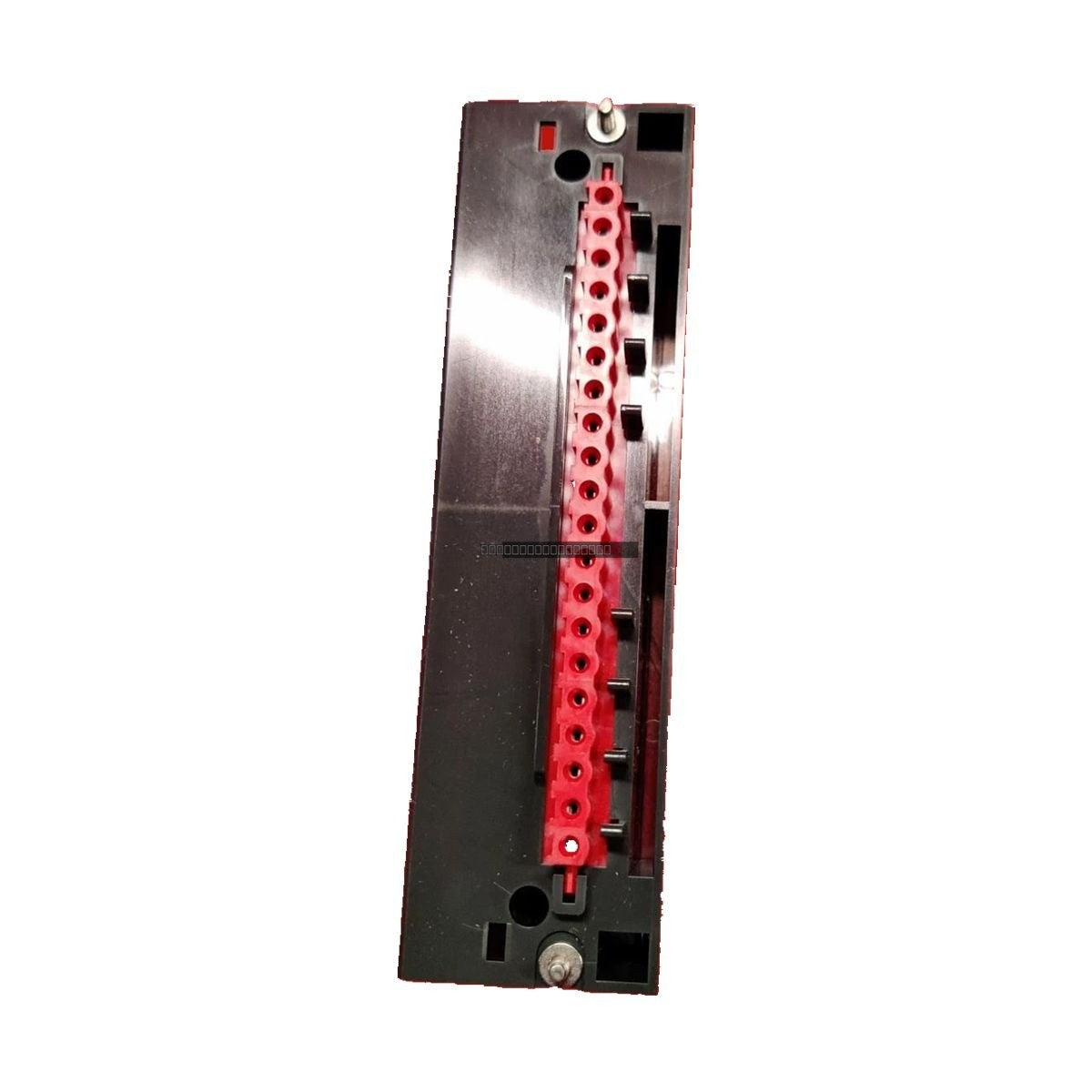

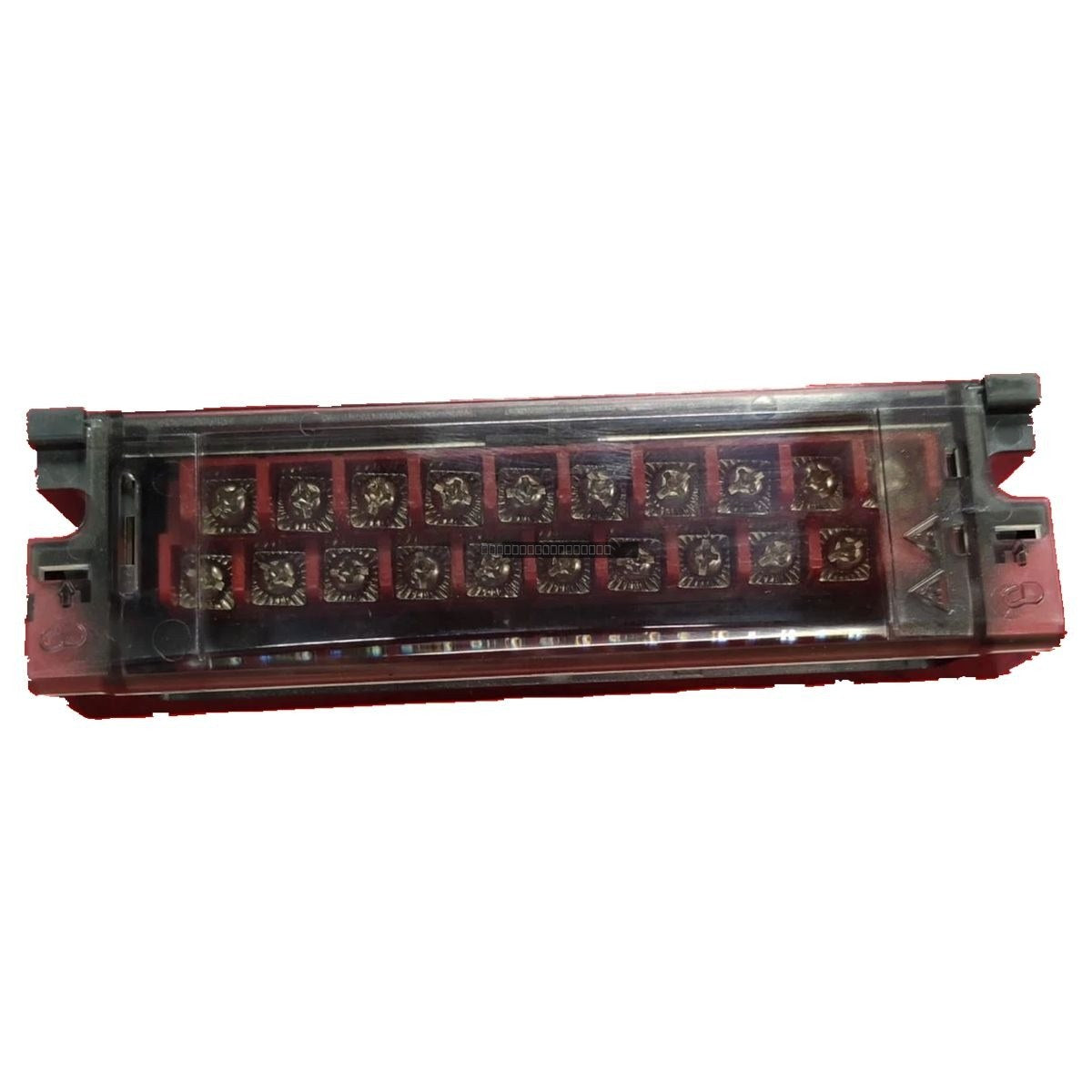

The Honeywell 900TBR-0001 is a 20-position, high-voltage barrier-style terminal block designed specifically for the HC900 process automation platform. This component serves as a critical interface for field wiring, providing secure, electrically isolated terminations between the controller I/O modules and external field devices. The barrier architecture is engineered to prevent accidental short circuits, ensuring robust separation between adjacent connections in high-voltage industrial environments.
Features
-
High-Density Termination: Features 20 independent positions for efficient field wiring in control cabinets.
-
Barrier Design: Integrated insulating partitions enhance safety and prevent cross-connection or accidental shorts.
-
Secure Connectivity: Utilizes reliable screw-clamp terminations to maintain electrical integrity under conditions of thermal expansion and mechanical vibration.
-
Passive Operation: As a passive wiring component, it requires no power and offers high reliability with no active electronic failure points.
-
HC900 Compatibility: Designed for seamless integration with the HC900 rack and I/O assembly ecosystem.
Applications
The 900TBR-0001 is widely utilized in process-critical industries including power generation, oil and gas, and chemical processing. It is ideal for applications requiring structured, high-voltage signal routing where maintenance safety and troubleshooting efficiency are prioritized.
Technical Specifications
| Model |
900TBR-0001 |
| Brand |
Honeywell |
| Positions |
20 |
| Terminal Type |
Screw clamp barrier style |
| Operating Temperature |
-20 to 70 deg C |
| Power Consumption |
0 W (Passive) |
| Mounting |
HC900 Rack/Panel Integrated |
Installation Guidelines
-
Power Down: Always ensure the associated I/O module and controller power are disconnected before installing or removing terminal blocks.
-
Wiring Integrity: Ensure wires are properly stripped and fully seated within the screw clamp to prevent high-resistance connections or overheating.
-
Torque: Tighten screw terminals to the manufacturer's recommended torque specifications to ensure long-term contact stability.
-
Environment: Install in a clean, dry environment within the specified temperature range to maintain the dielectric properties of the insulating material.
-
Cable Management: Utilize the integrated structure to organize field wiring, ensuring that cables are not under tension and are routed to avoid sharp edges.
FAQ
Is this terminal block compatible with all HC900 modules?
The 900TBR-0001 is designed for the HC900 system. Please verify your specific I/O module's datasheet to ensure it requires the 20-position high-voltage barrier block configuration.
Does this module require any configuration or software setup?
No, the 900TBR-0001 is a passive hardware component. It requires no software configuration or external power supply.
