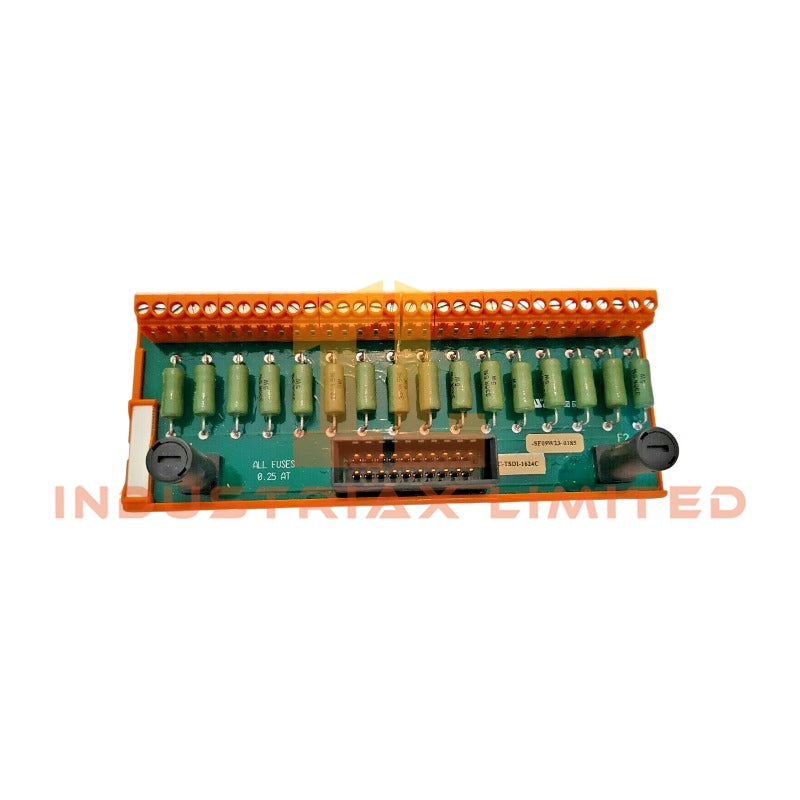

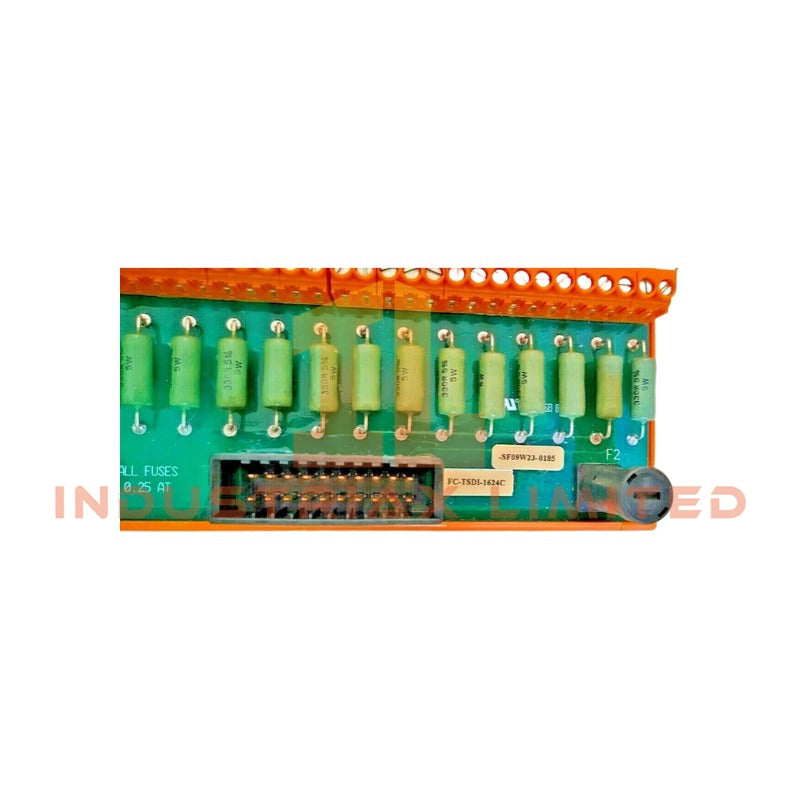

Honeywell FC-TSDI-16115 Safe Active Passive Digital Input FTA

Configured for safe digital signal conversion in Honeywell safety control platforms, the Honeywell FC-TSDI-16115 (TSDI-16115 Safe Active Passive Digital Input FTA) provides direct electrical execution for 115 V AC/DC field input processing with 16 isolated channels.

Hardware Specifications

Parameter	Specification
Model	FC-TSDI-16115
Brand	Honeywell
Product Type	Safe Active Passive Digital Input FTA
Origin	USA
Weight	0.2 kg
Dimensions	Estimated shipping size 17 x 7 x 5.8 cm
Operating Temp	Not specified in supplied data
Power Consumption	Not specified in supplied data
Input Channels	16
Input Voltage	115 V, -15% to +30%
Input Frequency	DC or 40-300 Hz
Input Current	7.5 mA +/- 1 mA at 115 V
Input Impedance	Non-inductive, > 9 kOhm
Input LOW Level	U <= 15 V or I <= 1.2 mA
Input Type	Safe active/passive digital input
Input Isolation	All inputs galvanically isolated
Certifications	UL, CE, TUV, CSA
Tariff Code	8537101190

Channel-to-Channel Isolation and Field Signal Processing

The FC-TSDI-16115 processes 115 V AC or 115 V DC field signals through a 16-channel safe input conversion structure. In addition, each input channel uses galvanic isolation to separate field circuits and reduce electrical interaction between channels.

The module accepts both active and passive digital input configurations. Therefore, it supports flexible field device connection methods while maintaining defined input threshold characteristics. The input circuit uses non-inductive impedance design for industrial switching signal measurement.

For Honeywell safety and process control architectures, this FTA design supports discrete signal termination between field wiring and the control system interface. Furthermore, the isolated input arrangement helps maintain signal separation during multi-channel digital monitoring.

Frequently Asked Questions

Q: What voltage signals can the FC-TSDI-16115 accept?
A: The module accepts 115 V AC and 115 V DC input signals with an input range of -15% to +30% from the nominal voltage.

Q: How many digital input channels does this module provide?
A: The FC-TSDI-16115 provides 16 digital input channels with galvanic isolation between field inputs.

Q: Does the module support both active and passive field devices?
A: Yes. The FC-TSDI-16115 supports safe active and passive digital input configurations for field signal conversion.

Field Installation Guidelines

• Install the FC-TSDI-16115 inside the designated Honeywell field termination assembly location according to system hardware documentation.
• Verify field wiring polarity and voltage level before connecting 115 V AC/DC input circuits.
• Route digital input cables separately from high-current power cables to reduce electrical interference.
• Connect cable shields according to the control cabinet grounding practice defined for the installation site.
• Confirm each field input channel before commissioning to verify correct switching status and input threshold response.
• Use approved terminal connections and maintain proper wire identification for future maintenance activities.
