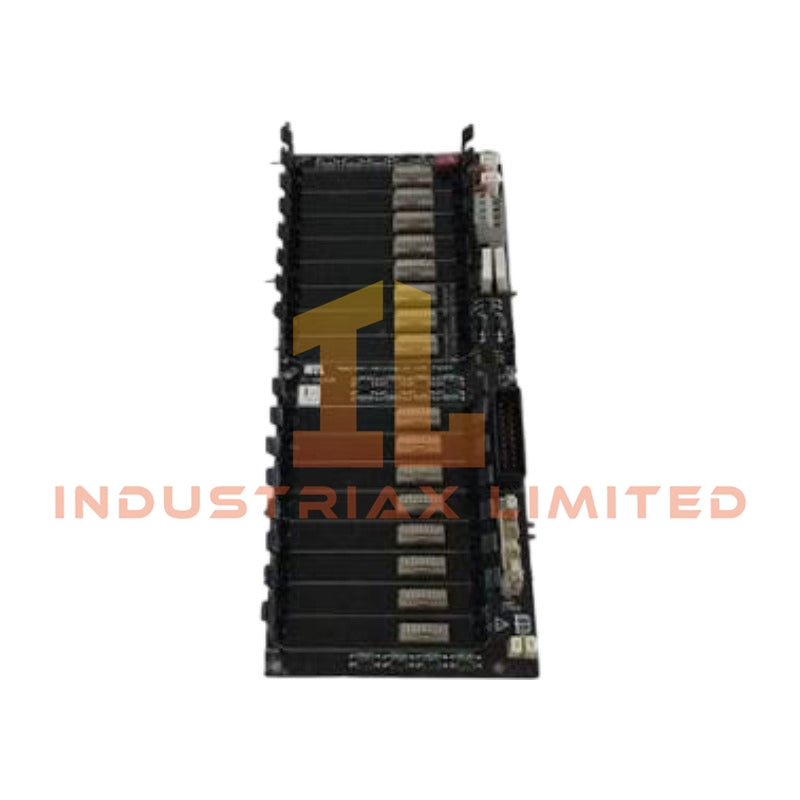

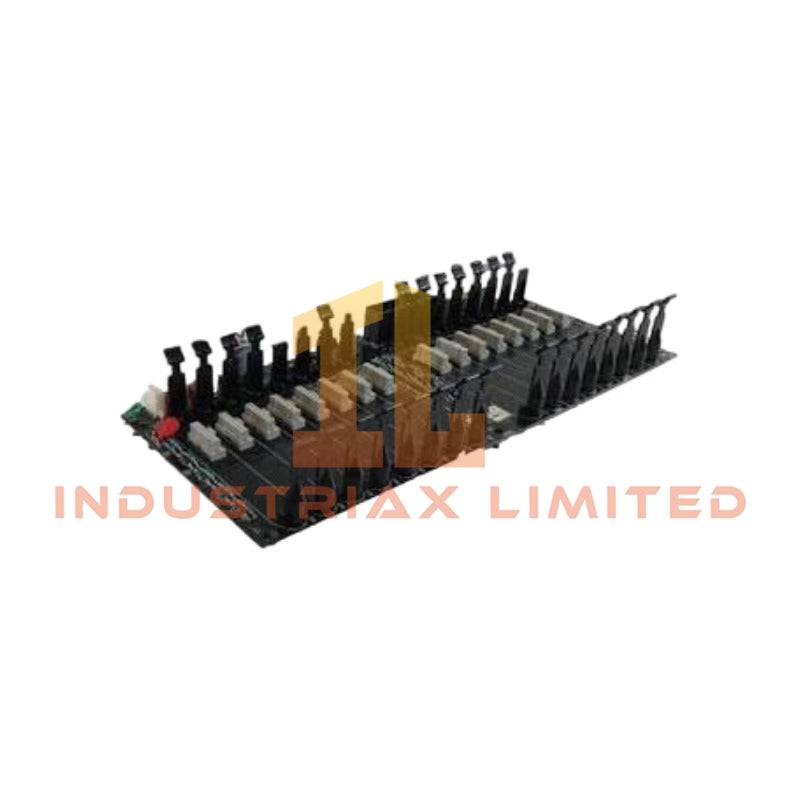

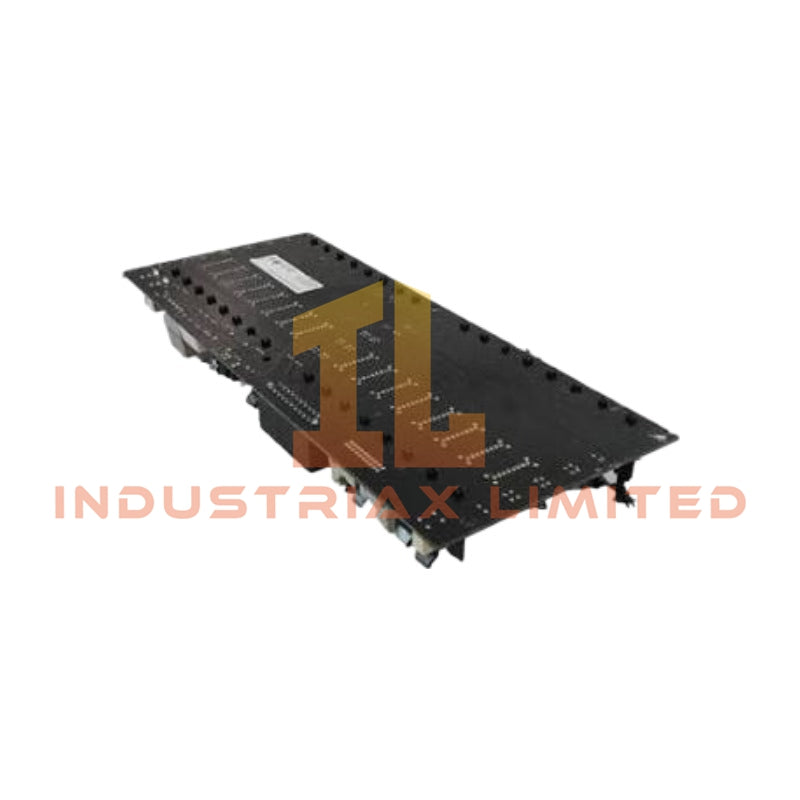

Honeywell FC-GMDL08 Digital Output Module

Configured for 8-channel discrete signal execution in Honeywell Safety Manager and Experion PKS systems, the Honeywell FC-GMDL08 (FC-GMDL08 Digital Output Module) provides direct physical switching control with Local Fault Detection (LFD) for field actuators.

Hardware Specifications

Parameter	Specification
Model	FC-GMDL08
Brand	Honeywell
Part Number	50016077A
Product Type	Digital Output Module / FTA
Number of Channels	8 independent digital output channels
Output Function	Discrete field device switching and control
Fault Detection	Local Fault Detection (LFD) for open line and short circuit monitoring
System Compatibility	Honeywell Safety Manager, Experion PKS, FSC Systems
Operating Voltage	24 VDC typical; up to 120 VAC depending on FTA configuration
Mounting Type	DIN rail mounting, TS32 / TS35 compatible
Operating Temp	-20 deg C to +60 deg C
Storage Temp	-40 deg C to +85 deg C
Relative Humidity	5% to 95% RH, non-condensing
Certifications	CE, RoHS, SIL 2/3 system compatible
Dimensions	Approx. 10.9 cm x 5.6 cm x 1.8 cm
Weight	Approx. 0.18 kg
Power Consumption	Not specified in available data

Honeywell Safety I/O Diagnostic and Channel Isolation Features

The FC-GMDL08 performs discrete output execution with integrated Local Fault Detection functions. The module continuously monitors output circuits and identifies field wiring conditions including open circuits and short circuits.

Furthermore, the module supports channel-level diagnostic processing within Honeywell Safety Manager architectures. It provides electrical switching paths for safety actuators, solenoid valves, interlocks, and alarm devices while maintaining diagnostic feedback for system supervision.

For Honeywell process control environments, the module architecture follows the requirements of safety I/O systems where signal integrity and fault identification are required. The design focuses on discrete loop monitoring rather than analog measurement functions such as 4-20 mA HART or FOUNDATION Fieldbus communication.

Frequently Asked Questions

Q: Does the FC-GMDL08 support analog input measurement functions?
A: No. The FC-GMDL08 is a digital output module designed for discrete switching control and output circuit diagnostics.

Q: What diagnostic functions are available on the FC-GMDL08 channels?
A: The module provides Local Fault Detection (LFD) functions that monitor output loop conditions, including open line and short circuit faults.

Q: Can the FC-GMDL08 operate independently without a Honeywell safety controller?
A: No. The module is designed for integration with Honeywell Safety Manager, Experion PKS, and compatible FSC system architectures.

Field Installation Guidelines

• Install the FC-GMDL08 on a compatible DIN rail mounting system and maintain proper mechanical fixing before field wiring.
• Verify the module power supply rating and field device voltage requirements before connecting output circuits.
• Route output signal wiring separately from high-voltage power cables to reduce electrical interference.
• Use appropriate shield grounding practices when field devices require shielded control cables.
• Confirm terminal assignments, loop polarity, and actuator wiring before system commissioning.
• Perform channel diagnostic checks after installation to verify Local Fault Detection operation.
• Follow Honeywell system engineering documentation for rack configuration, controller communication, and safety validation procedures.
