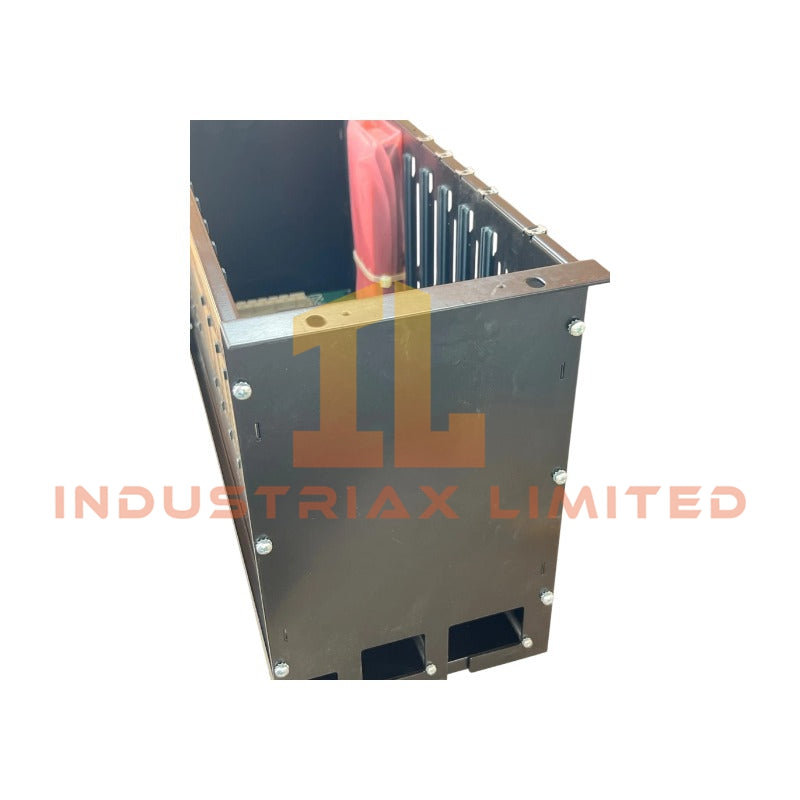

Honeywell FC-CPCHAS-0001 Controller Chassis

The Honeywell FC-CPCHAS-0001, also cataloged as the FC-CPCHAS-0001 Controller Chassis, operates as a dedicated hardware component for controller module mounting, power distribution, and backplane interconnection within Honeywell Safety Manager SIS platforms.

Hardware Specifications

Parameter	Specification
Model	FC-CPCHAS-0001
Brand	Honeywell
Product Type	Controller Chassis
System Platform	Honeywell Safety Manager SIS
Origin	USA
Weight	4.9 kg
Dimensions	48.3 x 28 x 17.7 cm
Operating Temp	-5 deg C to +70 deg C
Storage Temperature	-25 deg C to +80 deg C
Power Consumption	Internal Power Rails: +5V-1: 0.05 A; +5V-2: 0.05 A
Supply Voltage	24 VDC
Housing Standard	19-inch rack-mountable
Approvals	CE, UL, CSA, TUV, FM
Tariff Code	8537101190
Shipment Location	Xiamen, China
Installation Function	Controller module housing, electrical backplane connection, system power distribution

Safety Manager Controller Backplane and SIS Integration

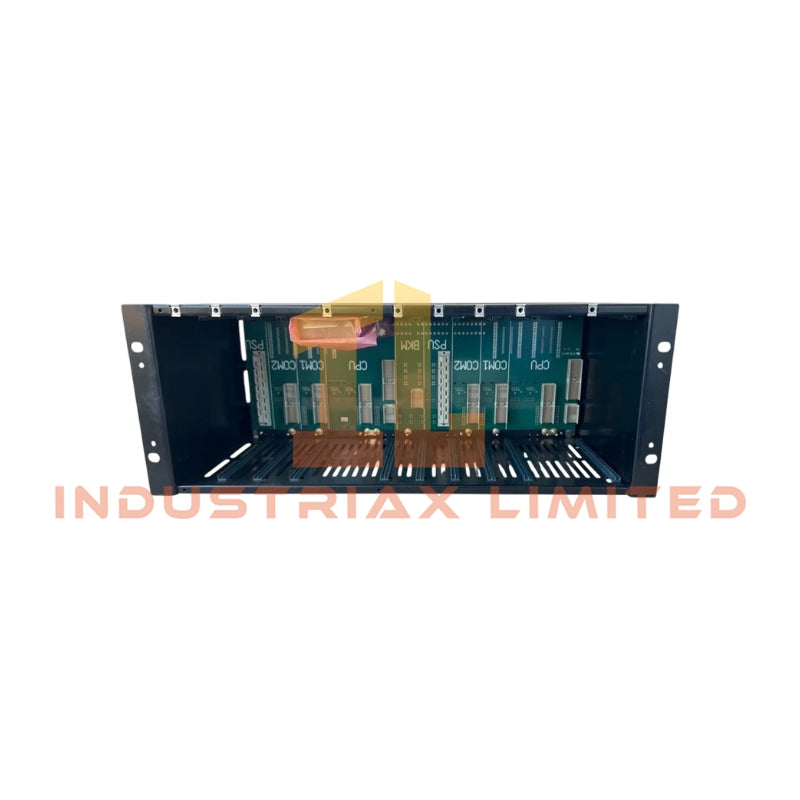

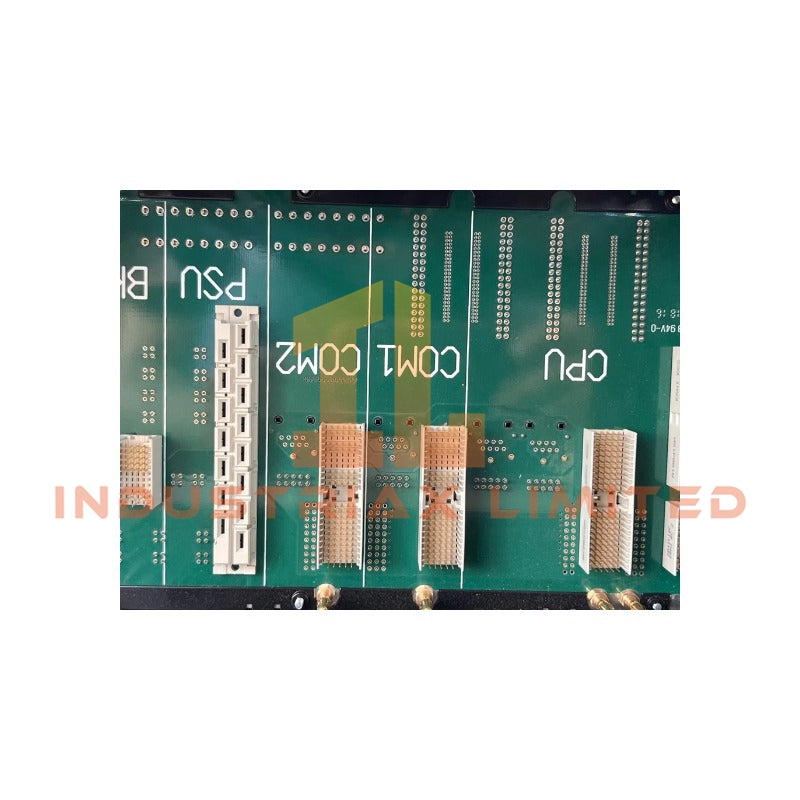

The FC-CPCHAS-0001 provides the mechanical frame and electrical backplane interface for Honeywell Safety Manager controller assemblies. It accepts Control Processor modules and distributes internal power through dedicated chassis rails.

Furthermore, the chassis supports both redundant and non-redundant controller arrangements. The backplane maintains module-to-module electrical connections for processor communication, power routing, and controller system integration.

Honeywell Safety Manager architectures use this chassis structure to organize controller modules separately from I/O chassis assemblies. Typically, the FC-CPCHAS-0001 mounts at the upper section of the cabinet, while field I/O chassis install below the controller layer.

The chassis design supports Safety Instrumented System configurations requiring deterministic module placement, controlled power distribution, and defined cabinet wiring paths.

Frequently Asked Questions

Q: What modules can be installed in the FC-CPCHAS-0001 chassis?
A: The FC-CPCHAS-0001 is designed for Honeywell Safety Manager Control Processor modules and associated controller hardware compatible with its chassis backplane.

Q: Does the FC-CPCHAS-0001 support redundant controller configurations?
A: Yes. The chassis supports redundant and non-redundant controller arrangements according to the Safety Manager system configuration requirements.

Q: What power connections are available inside the chassis?
A: The chassis provides internal +5V-1 and +5V-2 power rails with current specifications of 0.05 A each for supported controller hardware.

Field Installation Guidelines

• Install the FC-CPCHAS-0001 inside a compatible 19-inch rack cabinet using the specified mounting hardware.
• Verify cabinet grounding before connecting controller modules and external wiring.
• Maintain proper separation between power cables and signal communication wiring to reduce electrical interference.
• Confirm that the chassis backplane connectors are clean and properly aligned before module insertion.
• Check supply voltage compatibility and verify the 24 VDC input source before system energization.
• Follow Honeywell Safety Manager installation documentation for module positioning, cabinet layout, and protective grounding requirements.
