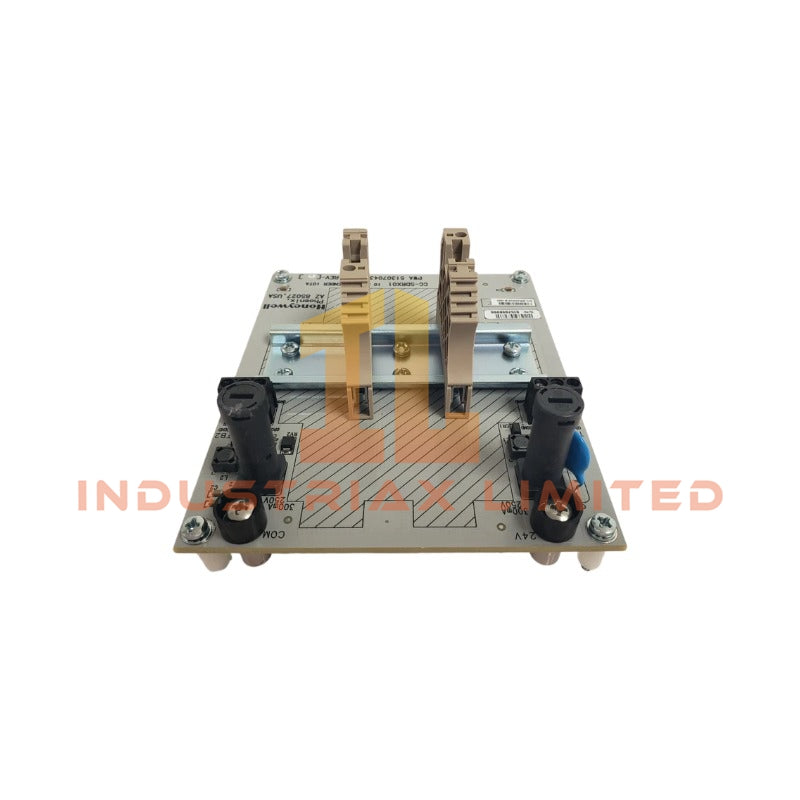

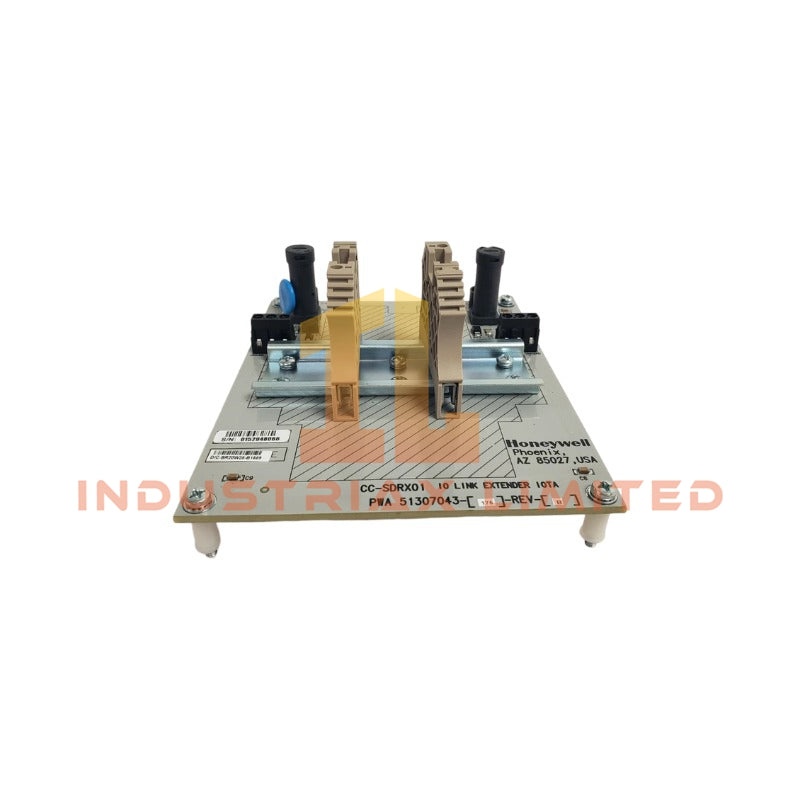

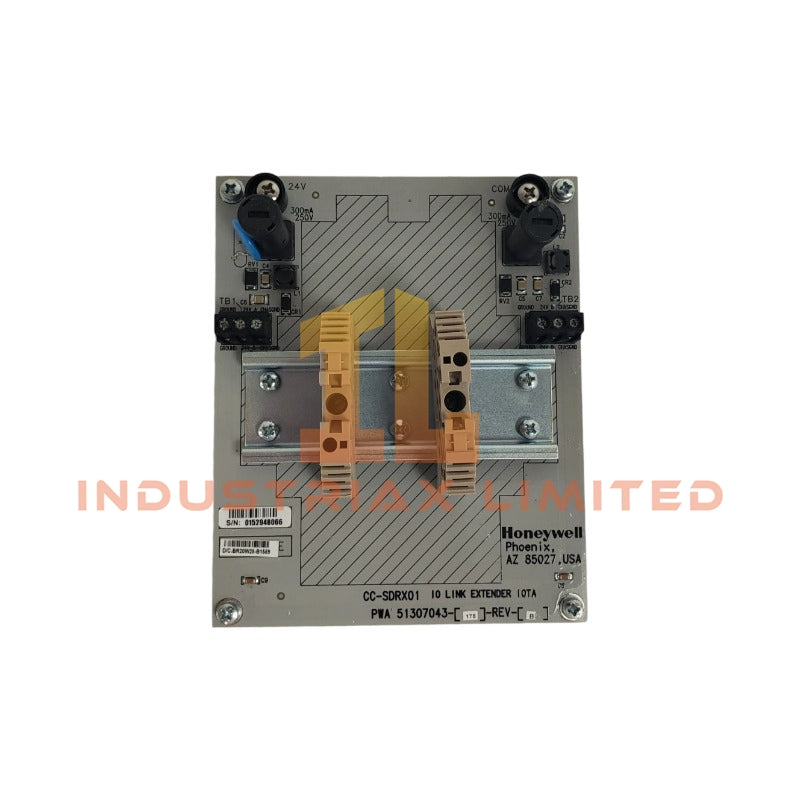

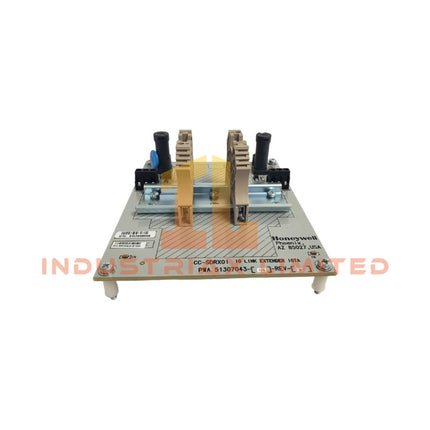

Honeywell CC-SDRX01 51307043-175 I/O Link Fiber Optic Converter Module

The Honeywell CC-SDRX01 51307043-175, also cataloged as the CC-SDRX01 fiber optic converter module, operates as a dedicated hardware component for I/O link signal transport and electrical-to-optical conversion within Experion PKS C300 I/O infrastructure. The unit executes multi-port fiber transmission routing for analog output signal backplane extension and distributed I/O segmentation over isolated communication paths.

Hardware Specifications

Parameter	Specification
Model	CC-SDRX01 51307043-175
Brand	Honeywell
Origin	USA
Weight	0.38 kg
Dimensions	6 x 12.8 x 8.2 cm
Operating Temp	0 deg C to +60 deg C
Storage Temp	-40 deg C to +85 deg C
Humidity	5% to 95% RH non-condensing
Power Supply	24 VDC
Power Consumption	Not specified
Isolation	500 Vrms
Inrush Current	<= 2 A for 5 ms

Process Control Communication and Isolation Architecture

In Honeywell Experion I/O architecture, the module implements optical domain separation between field I/O link segments and controller-side electrical domains. The 9-port fiber optic interface structure is designed to maintain deterministic signal propagation across segmented I/O nodes while preserving galvanic isolation boundaries up to 500 Vrms.

Within distributed analog output channel structures, the device supports backplane-level signal tunneling where electrical loop integrity is preserved through optical conversion stages. This architecture aligns with channel isolation strategies typically used in 4-20 mA loop environments and mixed analog output termination assemblies, where interference suppression is enforced through physical medium separation rather than protocol filtering.

Frequently Asked Questions (FAQ)

Q: Does the CC-SDRX01 support hot-swap replacement during active I/O operation?
A: Hot-swap capability is dependent on the C300 I/O carrier configuration. Electrical disconnection may interrupt fiber link synchronization and requires system-level reinitialization after reinsertion.

Q: What is the isolation mechanism between ports in the fiber optic interface?
A: Isolation is implemented through optical conversion stages and internal galvanic separation rated at 500 Vrms, preventing direct electrical continuity between port groups.

Q: Does the module introduce measurable signal latency in analog output routing?
A: Latency is primarily determined by optical encoding and decoding cycles and remains deterministic within the I/O link communication frame structure.

Field Installation Guidelines

The module shall be installed on a compatible Honeywell Experion I/O termination or interface assembly with verified backplane alignment. Fiber optic cables must maintain minimum bend radius specifications defined by the system rack design to prevent attenuation loss. All 24 VDC supply lines shall be verified for ripple compliance prior to energization. Shield continuity must be maintained at termination grounding points to ensure EMC stability across mixed analog and optical domains.

Backplane insertion must be performed with zero power applied unless the carrier explicitly supports live insertion. Fiber ports must be cleaned using approved optical cleaning procedures prior to connection to avoid insertion loss due to contamination.
