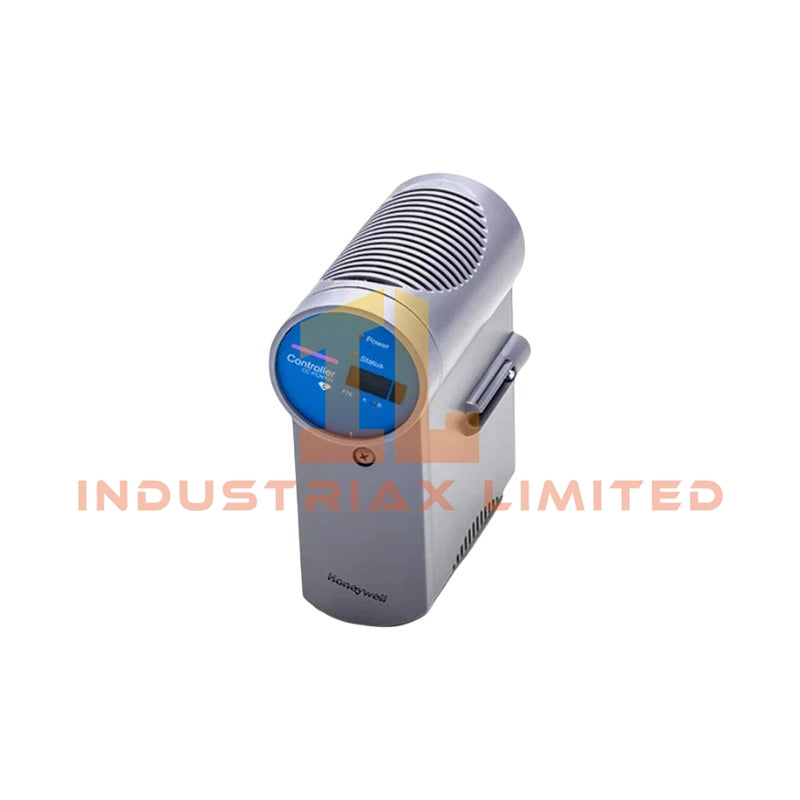

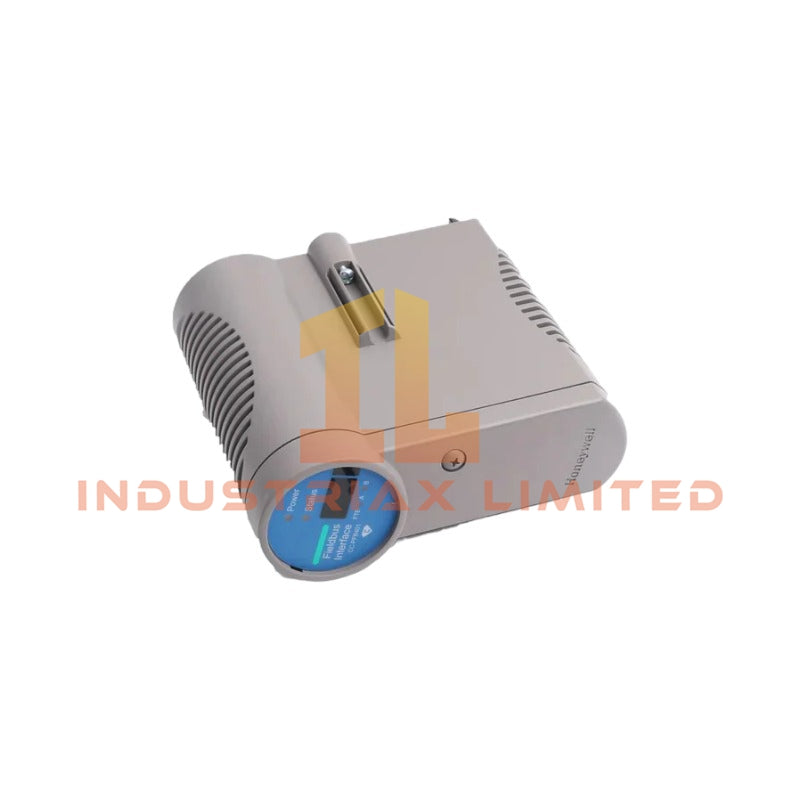

Honeywell CC-PUI031 Universal I/O Module

Configured for process control I/O aggregation in Honeywell Experion PKS I/O architecture, the Honeywell CC-PUI031 (CC-PUI031 Universal I/O Module) provides direct physical/electrical execution for mixed signal acquisition and output handling across a configurable distributed control system backplane.

The module implements a 32-channel universal I/O structure supporting AI, AO, DI, and DO signal types with per-channel configuration flexibility. It supports 4-20 mA analog interfaces, 24 V DC discrete inputs, and pulse input capability. A single HART modem per channel enables per-loop communication handling with deterministic scan scheduling at 10 ms intervals. Fail-safe behavior is implemented via configured FAILOPT state handling on system or communication fault conditions.

Suffix Breakdown & Model Matrix

Single fixed model designation CC-PUI031. No manufacturer-defined suffix segmentation or option-code matrix is published for this part number.

Hardware Specifications

Parameter	Specification
Model	CC-PUI031
Brand	Honeywell
Origin	USA
Weight	0.6 kg
Dimensions	7.3 x 15.5 x 16.5 cm
Power Supply	24 V DC
Power Consumption	1.5 W
Analog Input	4-20 mA
Analog Output	4-20 mA
Digital Input	24 V DC dry contact
Resolution	16-bit (analog channels)
Channel Capacity	32 configurable channels (AI/AO/DI/DO)
Input Scan Rate	10 ms
Pulse Input	Supported on 4 channels
Operating Temperature	-40 deg C to +70 deg C
Storage Temperature	-40 deg C to +85 deg C
Humidity	5% to 95% RH non-condensing
System Function	FAILOPT safe-state execution

Process Control I/O and HART Loop Execution Characteristics

The CC-PUI031 integrates per-channel 4-20 mA loop handling with embedded HART modem allocation at channel granularity. Each analog channel supports simultaneous signal acquisition and digital communication overlay, allowing loop diagnostics without external multiplexing hardware.

Channel-to-channel electrical separation is implemented at the I/O interface stage to reduce cross-interference during mixed signal operation. Scan scheduling is executed via prioritized I/O polling logic with fixed 10 ms cycle timing for deterministic update alignment across distributed control backplanes.

Frequently Asked Questions (FAQ)

Q: Does the CC-PUI031 support hot-swap insertion under energized backplane conditions?
A: Hot-swap capability is dependent on the host I/O chassis implementation. The module itself does not autonomously manage backplane arcing mitigation; insertion should follow system-level power sequencing rules.

Q: What is the backplane load contribution of the module?
A: The module draws from a 24 V DC supply at 1.5 W typical consumption. Backplane current budget must account for cumulative channel configuration and HART modem activation overhead.

Q: Can analog channels be configured independently per signal type?
A: Yes. Each of the 32 channels is software-configurable as AI, AO, DI, or DO, subject to system configuration constraints and I/O scanning policy.

Field Installation Guidelines

• Install on a grounded DIN rail or approved Honeywell I/O chassis slot with verified mechanical retention.
• Maintain shield termination at a single-point earth ground to prevent loop current distortion across 4-20 mA circuits.
• Ensure separation between analog loop wiring and 24 V DC discrete lines to minimize capacitive coupling effects.
• Verify correct backplane seating force alignment before energizing 24 V DC supply.
• Follow system-defined FAILOPT configuration prior to commissioning to ensure deterministic output state during fault conditions.
• Avoid routing high-frequency switching conductors parallel to analog signal harnesses within shared cable trays.
