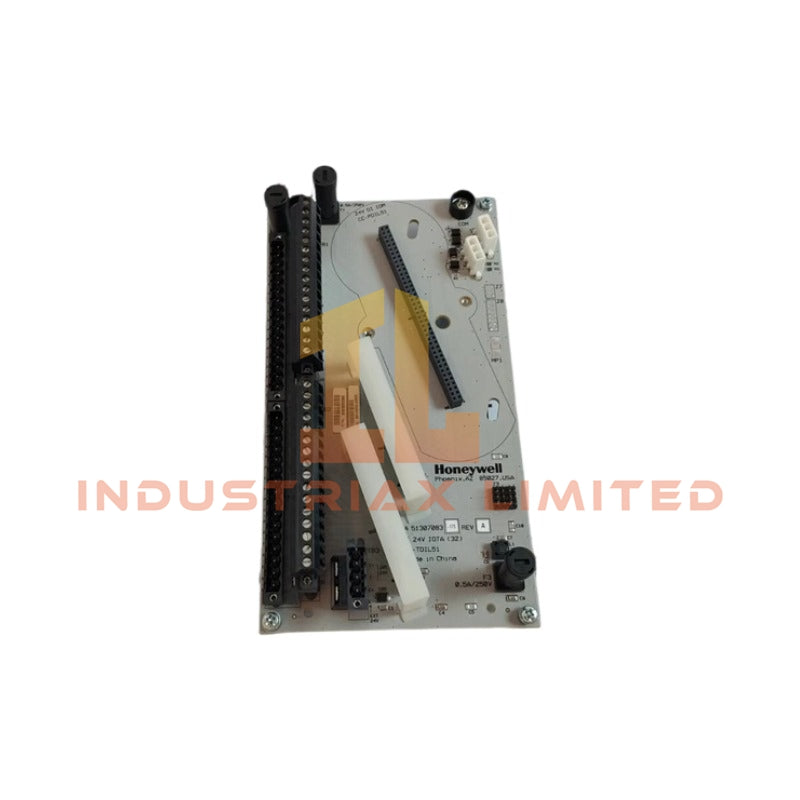

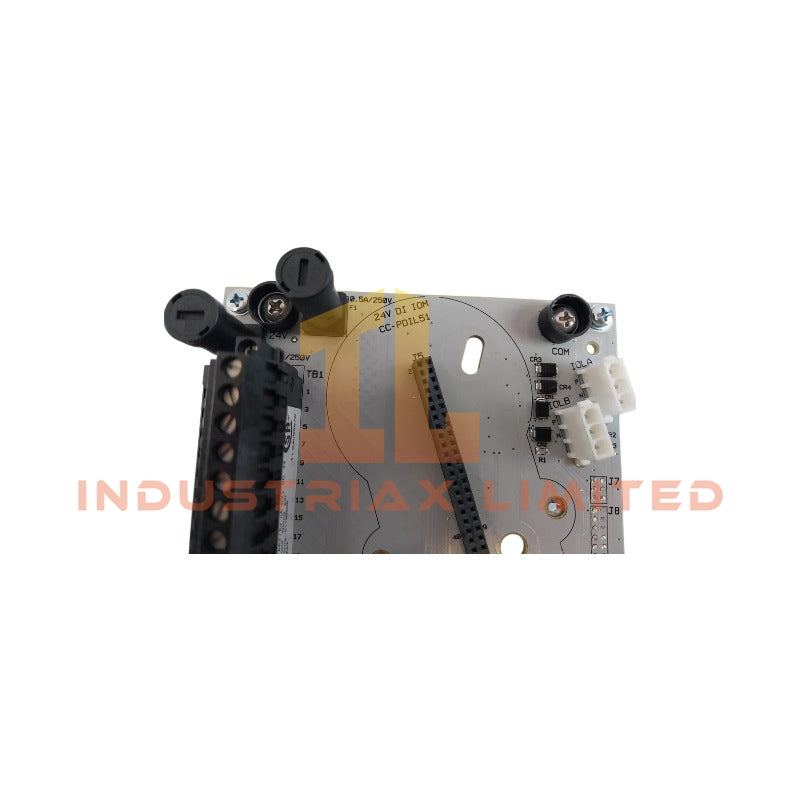

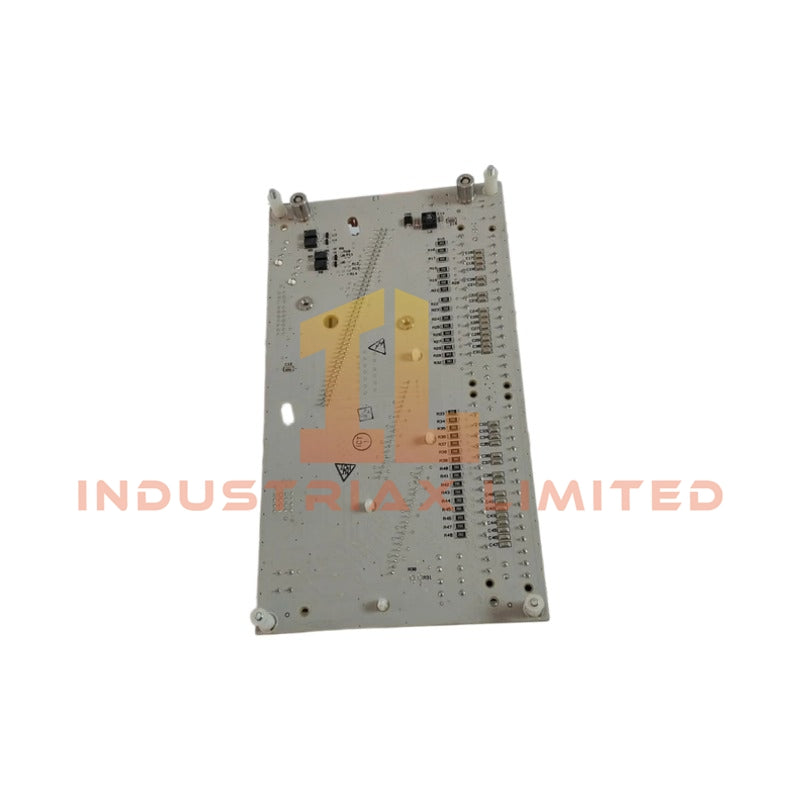

Honeywell CC-PDIL51 51307083-175 Digital Input Module

Configured for 24 VDC discrete signal acquisition in distributed I/O architectures, the Honeywell CC-PDIL51 51307083-175 (51307083-175 Digital Input Module) provides direct physical/electrical execution of 32-channel digital state monitoring within Honeywell process control I/O subsystems.

Suffix Breakdown & Model Matrix

No documented suffix segmentation or functional option matrix is provided in the supplied technical dataset for CC-PDIL51 or 51307083-175. All functional characteristics are derived directly from published electrical and channel specifications.

Hardware Specifications

Parameter	Specification
Model	CC-PDIL51 51307083-175
Brand	Honeywell
Origin	USA
Weight	0.5 kg
Dimensions	26 x 115.2 x 7.5 cm (shipping size)
Input Channels	32
Nominal Input Voltage	24 VDC
DI Power Voltage Range	18 to 30 VDC
ON Detection Threshold	>= 13 VDC or >= 3 mA
OFF Detection Threshold	<= 5 VDC or <= 1.2 mA
Input Impedance	4.2 kOhm
Isolation	1000 VAC RMS (galvanic isolation via optical stage)
Input Filtering Delay	5 ms ± 20%

Honeywell Channel Isolation and I/O Conditioning Characteristics

The module implements optical isolation within the I/O assembly stage, combined with channel-to-channel electrical separation at the system interface level. Isolation rating of 1000 VAC RMS defines the separation boundary between field-side discrete wiring and backplane-side logic processing. The input conditioning network is designed around fixed impedance and threshold detection, eliminating adjustable debounce configuration at module level. Signal acquisition timing is governed by a fixed filter chain introducing approximately 5 ms propagation delay across isolation and input conditioning stages.

Frequently Asked Questions (FAQ)

Q: Does the CC-PDIL51 support hot-swap insertion under live backplane power?
A: Hot-swap capability is dependent on the host I/O chassis design. The module itself does not define autonomous inrush or live insertion control circuitry.

Q: What is the backplane loading behavior of the 32-channel input architecture?
A: Backplane loading is determined by internal opto-isolation drive circuitry; per-channel loading is aggregated through shared internal excitation networks rather than individually addressed channel power draw.

Q: Is the input filter delay configurable at firmware level?
A: No configurable firmware parameter is indicated. Input delay is fixed at hardware-level filtering with 5 ms ± 20% propagation behavior.

Field Installation Guidelines

Install the module only in compatible Honeywell I/O carrier systems designed for 24 VDC discrete input cards. Maintain separation between field wiring and backplane wiring harnesses to preserve isolation integrity. Shielded twisted pair is recommended for long field runs, with shield termination performed at a single-point earth ground. Ensure field input commons are correctly referenced within the defined 18 to 30 VDC operating window to avoid threshold ambiguity. Avoid routing digital input cabling parallel to high-voltage switching conductors to minimize induced transient coupling into the optically isolated input stage.
