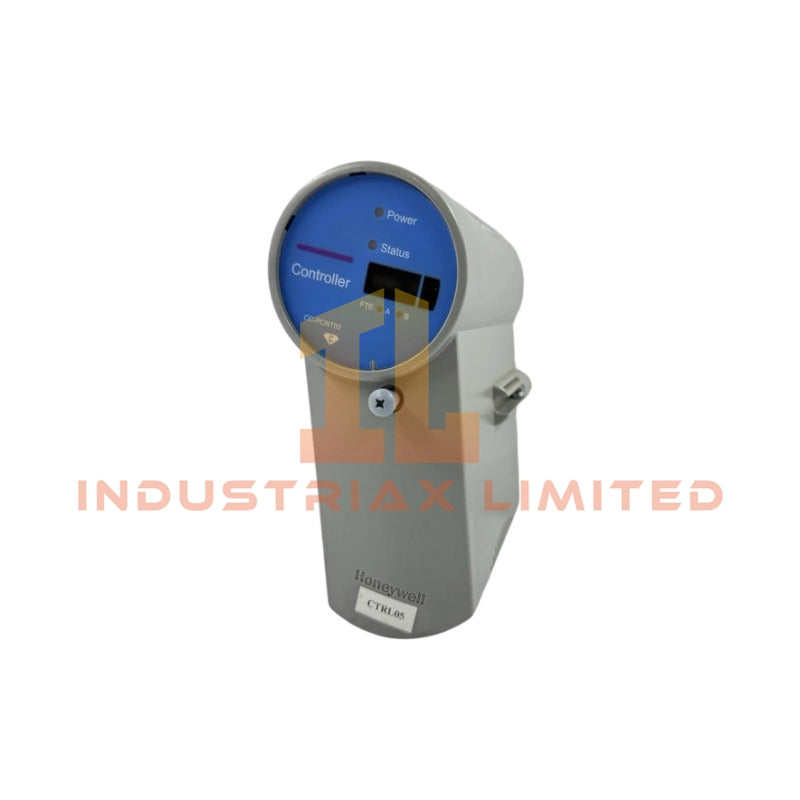

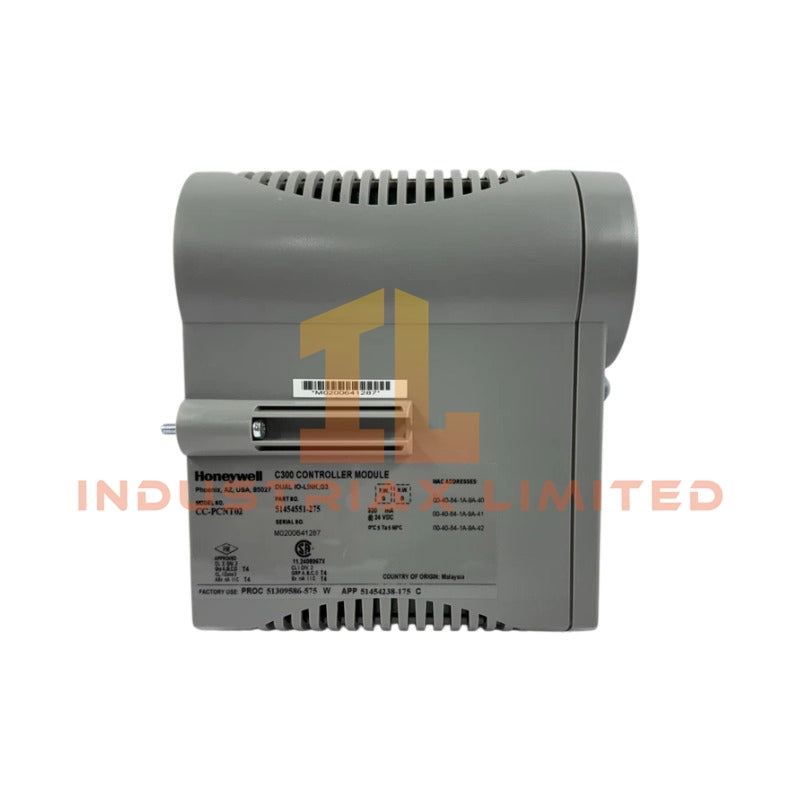

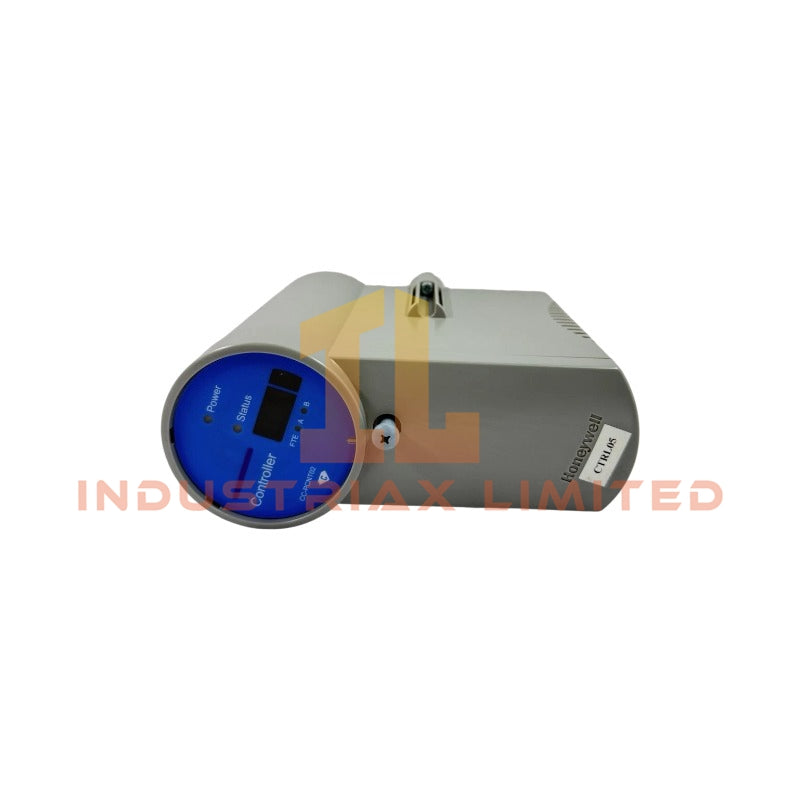

Honeywell CC-PCNT02 51454551-275 C300 Controller Module

The Honeywell CC-PCNT02 51454551-275, also cataloged as the CC-PCNT02 C300 Controller Module, serves as the primary processing unit utilized to execute deterministic control logic, I/O coordination, and communication scheduling across Honeywell Experion PKS architectures.

Suffix Breakdown & Model Matrix

No explicit manufacturer-provided suffix decomposition is defined for 51454551-275 within the supplied dataset. The identifier is treated as a single orderable hardware configuration mapped to CC-PCNT02 controller hardware revision and packaging variant.

Hardware Specifications

Parameter	Specification
Model	CC-PCNT02 51454551-275
Brand	Honeywell
Origin	USA
Weight	0.45 kg
Dimensions	7.3 x 15.3 x 16.5 cm
Operating Temp	Not specified
Power Consumption	Not specified
Product Type	C300 Controller Module
I/O Link Support	2 links
Link Speed	375 kbaud / 750 kbaud
Execution Period	50 ms
Device Index Range	1 to 510

Process Control Communication Characteristics (Honeywell DCS Architecture)

The CC-PCNT02 module interfaces with Experion PKS control layers through deterministic scan cycles, executing regulatory control blocks and sequence logic within a fixed 50 ms execution period. Communication handling supports channelized data exchange with field I/O subsystems using structured process variables aligned to controller index mapping.

Field-level integration follows process control signaling standards commonly associated with 4-20 mA HART loop architectures, enabling analog signal conditioning, device status polling, and diagnostic exchange. Where deployed with compatible I/O subsystems, the controller coordinates data aggregation across distributed channels with timing alignment constraints and execution scheduling consistency.

Frequently Asked Questions (FAQ)

Q: Does the CC-PCNT02 support hot-swap replacement during runtime operation?
A: Hot-swap capability depends on the chassis backplane configuration. Controller removal typically requires system-level control strategy hold or redundant controller takeover prior to physical extraction.

Q: What is the significance of the 50 ms execution period?
A: The 50 ms cycle defines the deterministic scan interval for logic execution, I/O processing, and communication updates within the controller task scheduler.

Q: How many I/O communication links can be active simultaneously?
A: The module supports 2 independent I/O links, operating at selectable speeds of 375 kbaud or 750 kbaud depending on network configuration.

Field Installation Guidelines

The CC-PCNT02 module shall be installed on a compatible Honeywell C300 backplane slot with verified mechanical alignment to guide rails and locking latches fully engaged. Backplane connectors must remain free of contamination prior to insertion.

Shielded communication cabling should maintain continuous grounding at a single reference point to prevent ground loop formation across distributed I/O segments. Signal routing must avoid parallel runs with high-energy switching conductors to reduce induced noise on process communication lines.

Module insertion and removal shall only be performed under controlled system states with verified controller redundancy or shutdown conditions as defined by the Experion PKS configuration.
