Description

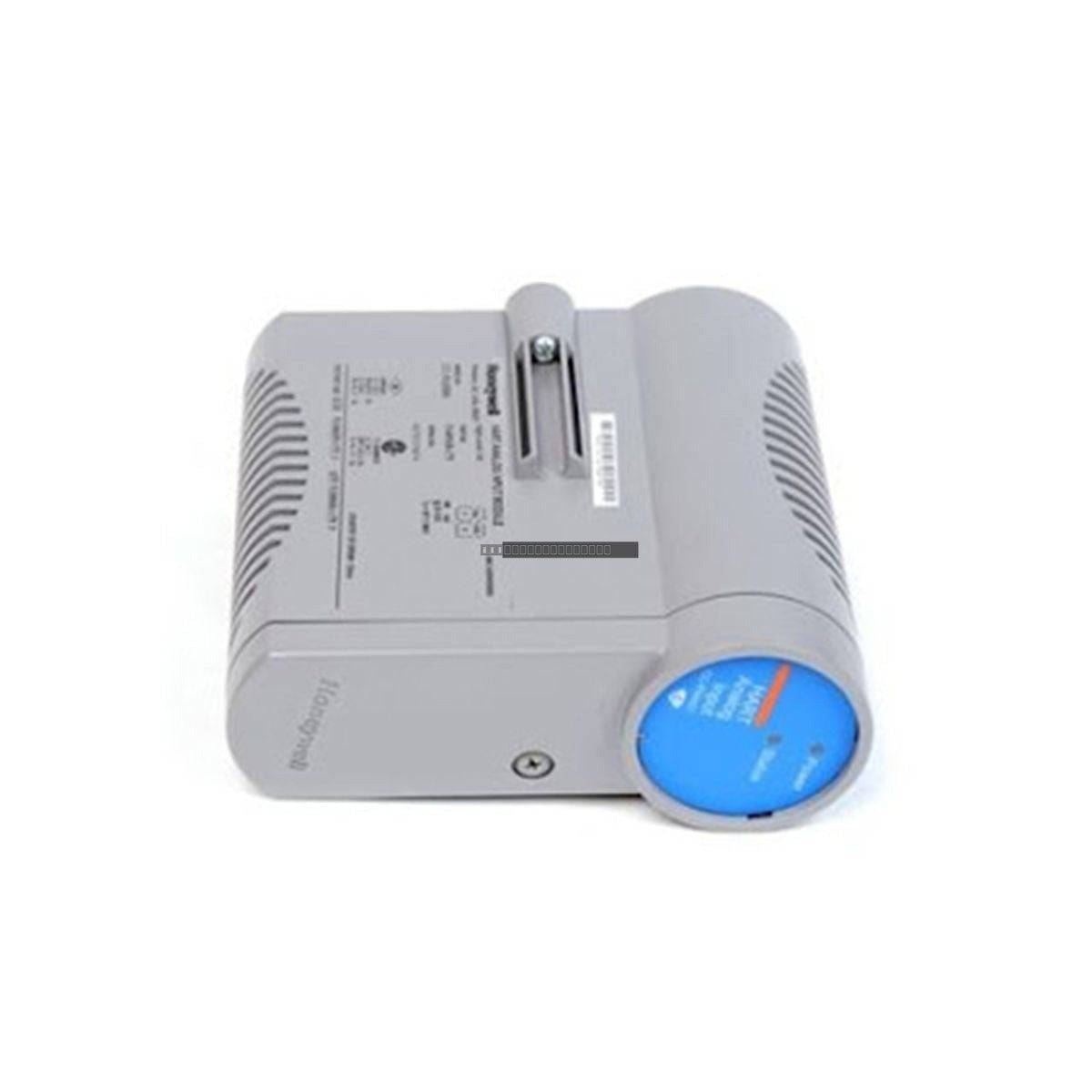

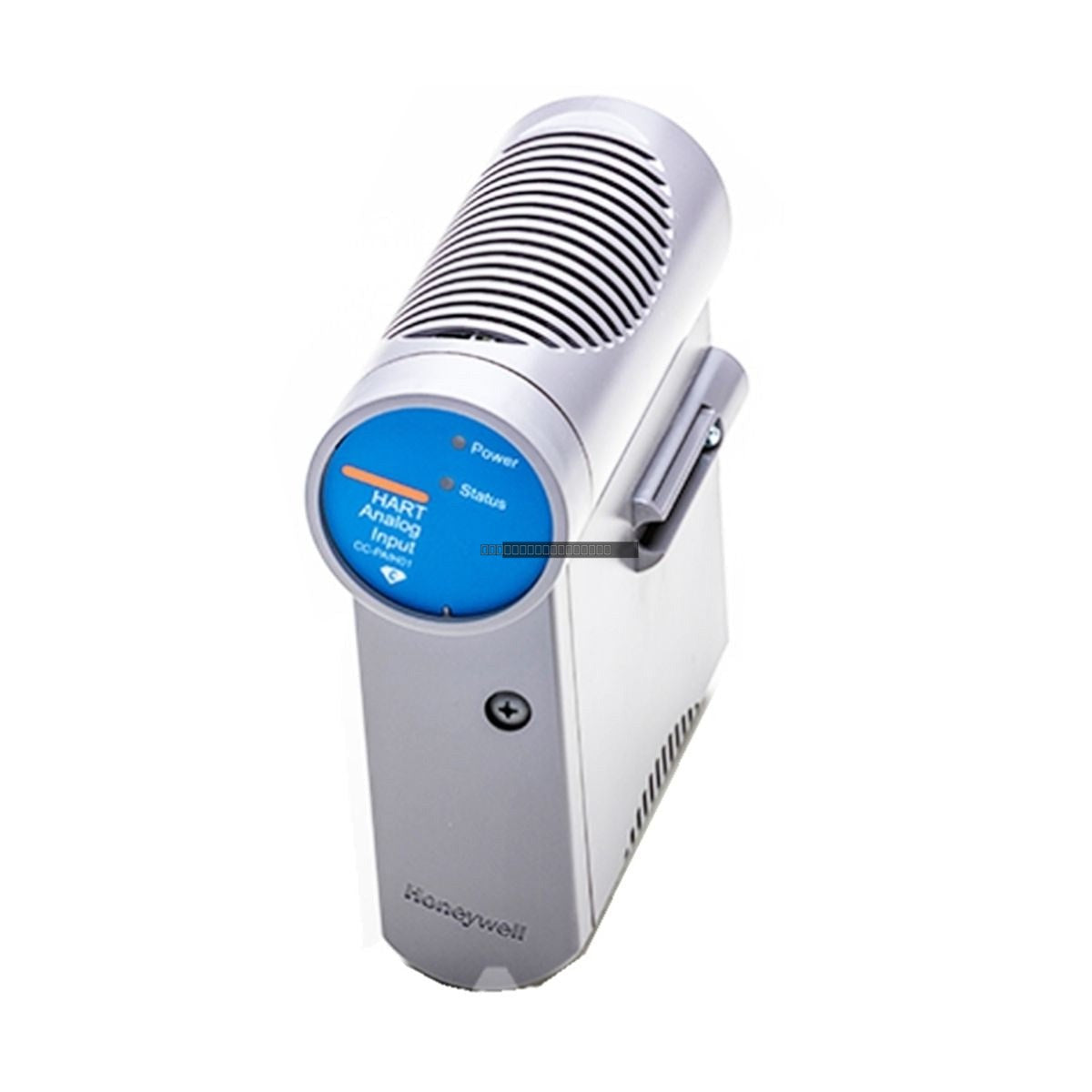

The Honeywell CC-PAIM01 is a specialized low-level analog multiplexing module engineered for the precise acquisition of millivolt-level signals, including thermocouple and RTD inputs. As a critical component in process control environments, this module performs channel selection and signal conditioning for low-amplitude analog inputs, ensuring high measurement integrity in temperature-sensitive instrumentation loops. It is widely utilized in refinery, power generation, and chemical processing applications where stable signal routing is required to minimize measurement drift and operational downtime.
Features
- Low-noise analog multiplexer architecture optimized for thermocouple and RTD signal processing.
- Bandwidth-limited design (0 to 4.7 Hz at -3 dB) to effectively filter electrical noise and enhance signal stability.
- High-precision measurement path designed to minimize gain drift and temperature-induced deviations.
- Supports millivolt-level thermocouple inputs and high-level diagnostic inputs within defined operational limits.
Applications
The CC-PAIM01 is designed for integration into industrial control systems requiring high-sensitivity analog data acquisition. Typical applications include:
- Temperature monitoring systems using thermocouples or RTDs.
- High-sensitivity process instrumentation loops.
- Industrial automation systems in power plants and chemical processing facilities.
Technical Specifications
| Parameter |
Specification |
| Model |
CC-PAIM01 |
| Module Type |
Low-Level Analog MUX Module |
| Channel Bandwidth |
0 to 4.7 Hz (-3 dB) |
| Nominal Input Range (TC) |
-20 to 100 mV |
| Max Input (TC Mode) |
-10 to 10 V |
| Max Input (RTD Mode) |
-1 to 2 V at 100 mA |
| Gain Error |
0.050% Full Scale (max) |
| Temperature Stability |
20 ppm per deg C (max) |
| Long Term Drift |
500 ppm |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
Installation Guidelines
- Ensure the system power is completely disconnected before inserting or removing the module from the rack.
- Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
- Ensure the module is fully seated in the designated slot to maintain reliable backplane communication.
- Route signal cables away from high-voltage or high-EMI sources to maintain signal integrity.
- Verify that the operating environment remains within the specified temperature range (0 to 60 deg C) to ensure optimal performance and longevity.
FAQ
What is the primary function of the CC-PAIM01?
The CC-PAIM01 is a multiplexer module used to acquire and condition low-level analog signals, such as those from thermocouples, for use in Honeywell process control systems.
Can this module handle high-voltage inputs?
No, this module is designed for low-level signals. While it has specified maximum continuous input limits for diagnostic purposes, it is not intended for high-voltage power measurement.
