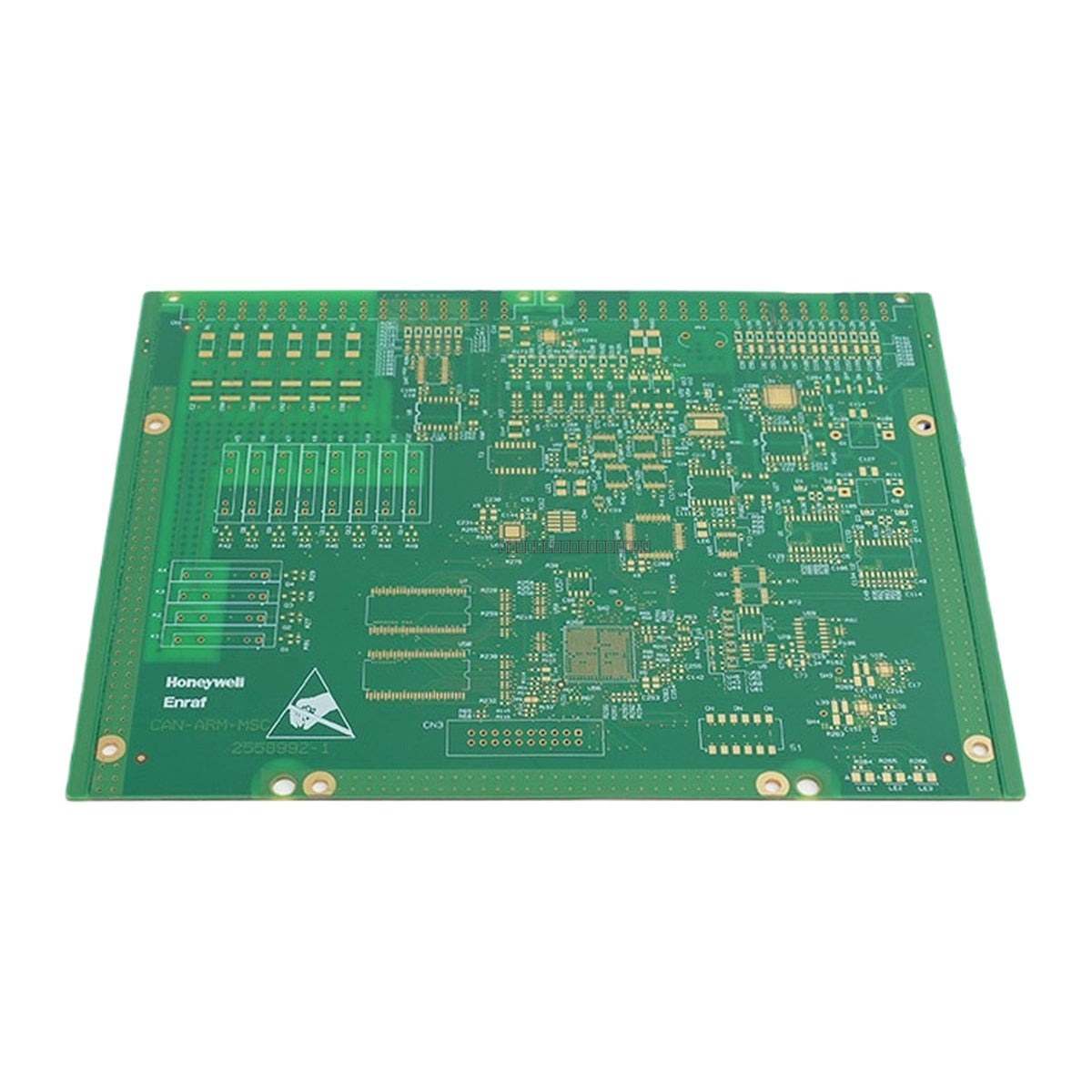

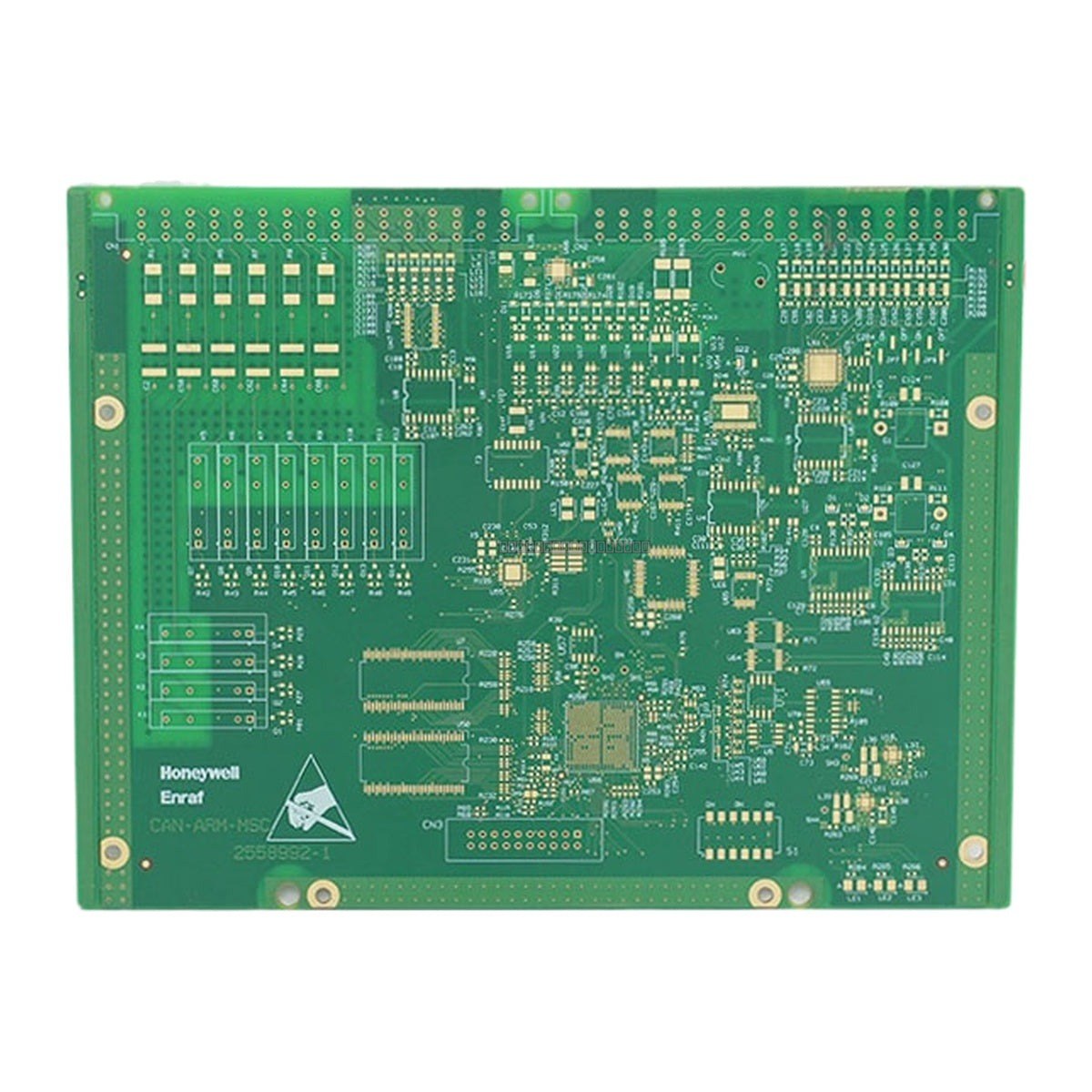

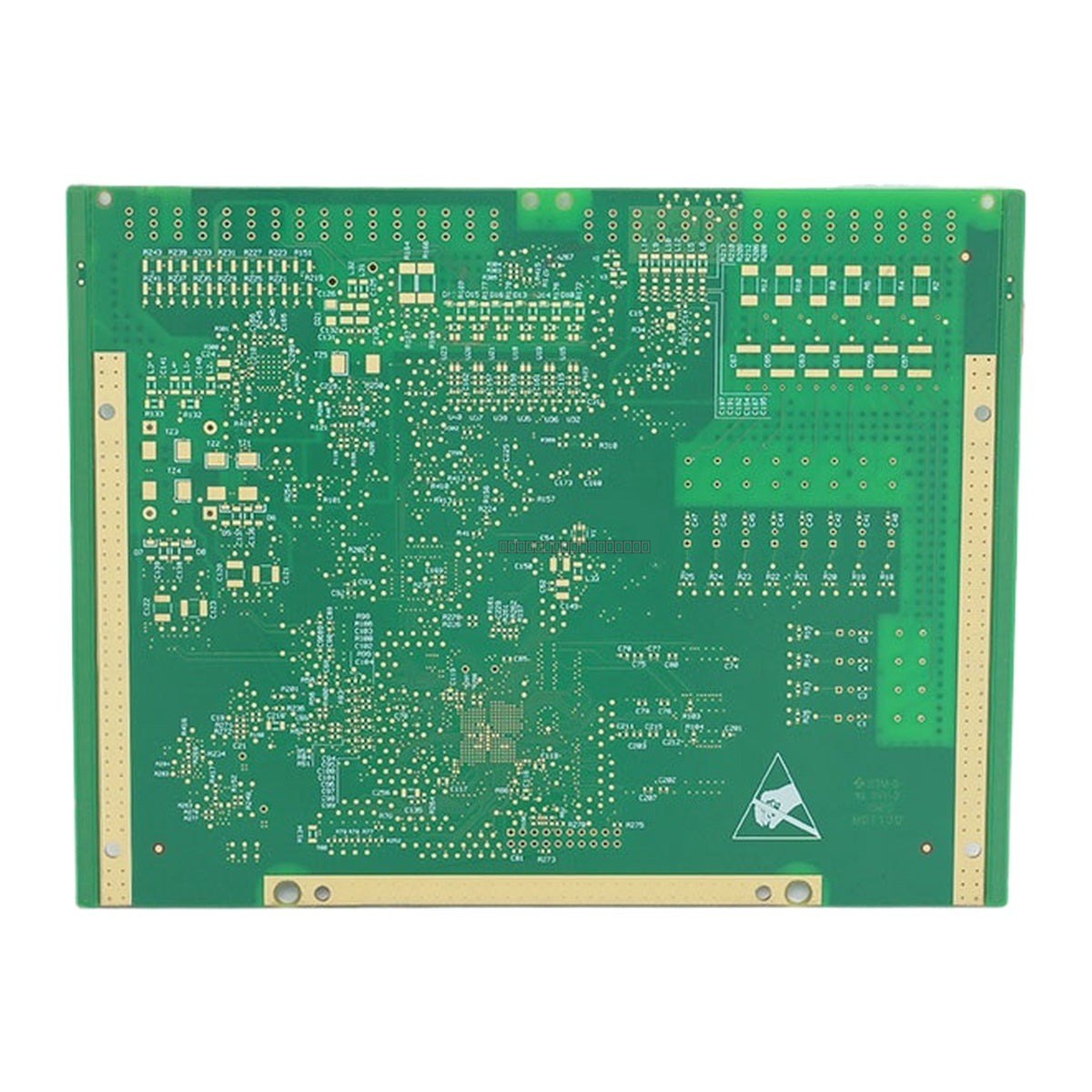

The Honeywell CAN-ARM-MSC 2558992-1 is a specialized Printed Circuit Board (PCB) module designed for the Honeywell Enraf Fusion4 Multistream Controller (MSC) series. This module serves as a critical component for managing loading arms, additive injection, and communication within petroleum and chemical terminal automation systems.
Features
- Designed for integration with Honeywell Enraf Fusion4 MSC-L and MSC-A controllers.
- Supports high-accuracy custody transfer and real-time diagnostics.
- Enables management of up to 6 loading arms and multiple additive injection streams.
- Industrial-grade construction suitable for demanding terminal environments.
- Field-upgradable firmware compatibility within the Fusion4 platform.
Applications
- Petroleum and chemical loading stations.
- Custody transfer and flow metering systems.
- Additive, dye, and marker injection control.
- Fuel blending operations including ethanol and bio-diesel.
- Hazardous area terminal automation.
Technical Specifications
| Model |
CAN-ARM-MSC 2558992-1 |
| Component Type |
Printed Circuit Board |
| Supply Voltage |
5V DC or 3.3V DC |
| Operating Temperature |
-40 degC to +85 degC |
| Storage Temperature |
-55 degC to +125 degC |
| Humidity |
Up to 95% non-condensing |
Installation Guidelines
-
Power Down: Always disconnect the AC power supply and backup batteries before removing or inserting any circuit boards to prevent permanent equipment damage.
-
Static Protection: This module contains static-sensitive components. Use a grounded wrist strap and static-suppressive packaging when handling the board.
-
Terminal Connections: Use color-coded, extractable connectors to ensure correct card placement. Do not exceed 9 in-lbs of torque on screw terminals to avoid damaging threads or reducing contact pressure.
-
Environment: Ensure the installation area is free from excessive vibration and moisture, consistent with industrial control cabinet standards.
FAQ
What is the CAN-ARM-MSC 2558992-1?
It is a PCB module designed for use within the Honeywell Enraf Fusion4 Multistream Controller series.
What does the MSC-A handle?
The MSC-A is an Advanced Additive Injection Controller designed for hazardous area applications, providing precise control over multiple additive streams.
What is the primary function of this module?
It acts as a peripheral or control module within the Fusion4 platform to manage loading arms, additive injection, and communication between system components.
