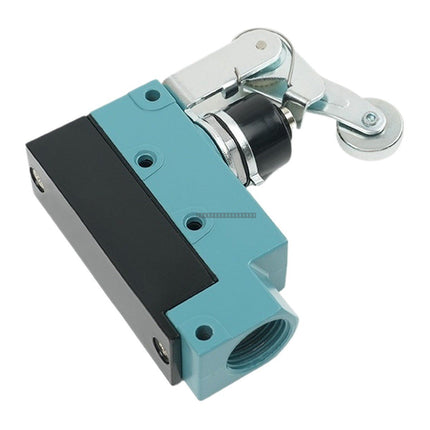

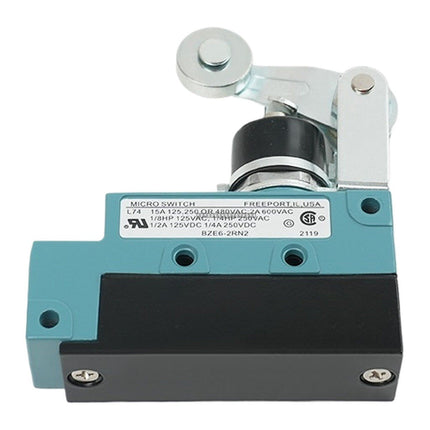

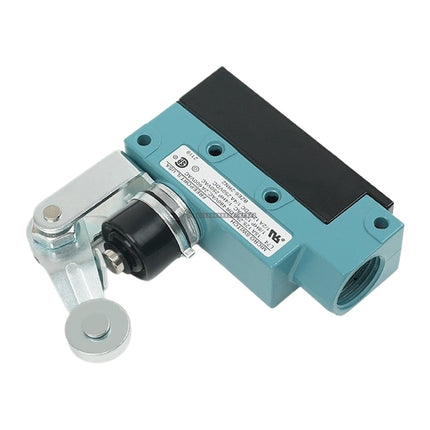

The Honeywell BZE6-2RN2 is a medium-duty, enclosed limit switch from the MICRO SWITCH E6/V6 series. Engineered for reliability in both indoor and outdoor environments, this switch features a robust zinc housing with an electrostatic epoxy coating for enhanced durability. It utilizes a proven snap-spring mechanism for consistent performance in demanding industrial applications.
Features
- Compact footprint suitable for space-constrained installations
- Adjustable roller lever actuator for versatile mechanical triggering
- Electrostatic epoxy-coated zinc housing for environmental protection
- Easy access to internal wiring terminals
- Internal ground screw provided for compliance with electrical codes
- IP66 and NEMA 1, 3, 4 rated for dust and water resistance
Applications
- Industrial Automation: Conveyor systems, gates, and material handling equipment
- Packaging Machinery: Balers and safety door interlocks
- Transportation & Construction: Panel interlocks and mobile equipment controls
- Agricultural Equipment: Grain handling systems
- Air Curtains: Industrial air movement control
Technical Specifications
| Model |
BZE6-2RN2 |
| Manufacturer |
Honeywell |
| Switch Type |
Enclosed Limit Switch |
| Actuator |
Adjustable Roller Lever |
| Current Rating |
15 A |
| Voltage Rating (AC) |
600 VAC |
| Voltage Rating (DC) |
250 VDC |
| Operating Force |
2.78 N to 5.57 N |
| Termination |
Screw Terminals |
| Mounting |
Chassis Mount |
| IP Rating |
IP66 |
| NEMA Rating |
1, 3, 4 |
Installation Guidelines
- Mount the switch on a flat, rigid surface to ensure proper alignment.
- Use #6 screws for mounting; do not enlarge mounting holes to maintain the internal seal integrity.
- Connect conduit to the 0.5 in - 14NPT opening. Ensure the switch is not the lowest point in the conduit run to prevent condensation from entering the housing.
- Utilize provided sealing washers under screw heads to preserve the IP66/NEMA 3, 4 rating.
- Ensure the system power is disconnected before performing wiring or maintenance.
FAQs
What is the BZE6-2RN2?
The Honeywell BZE6-2RN2 is a heavy-duty, side-mounted limit switch with a roller lever actuator, known for its ruggedness in industrial applications.
What type of actuator does it use?
It uses an adjustable roller lever actuator with a steel roller for smooth mechanical actuation.
What is the electrical rating of the BZE6-2RN2 limit switch?
It has a UL/CSA electrical rating of 15 A at 125, 250, or 480 VAC. For DC loads, the rating is 0.5 A at 125 VDC and 0.25 A at 250 VDC.
Is this switch weatherproof?
Yes, the unit features a boot-sealed roller lever actuator and is rated for IP66, providing protection against dust and powerful water jets, making it suitable for outdoor use.
