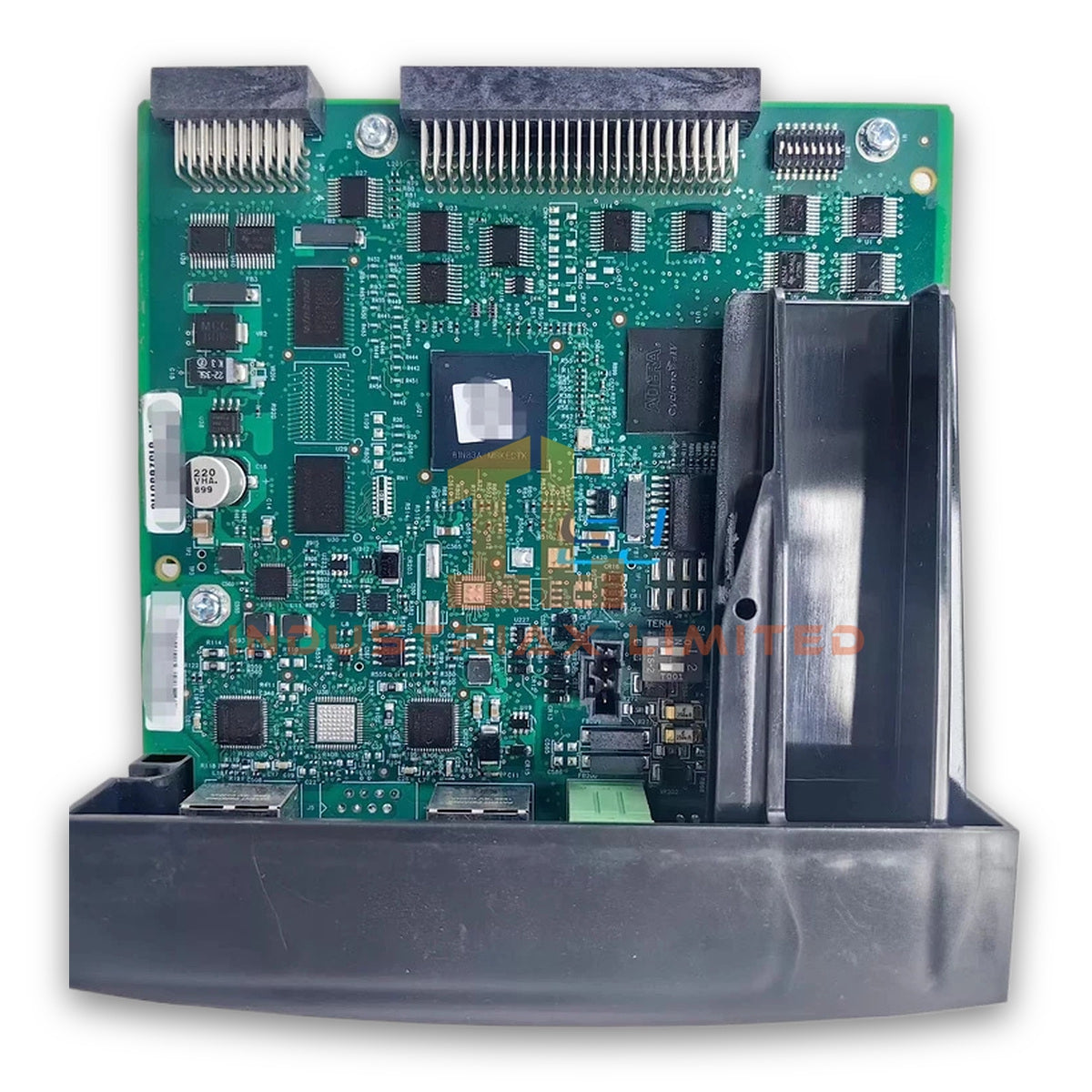

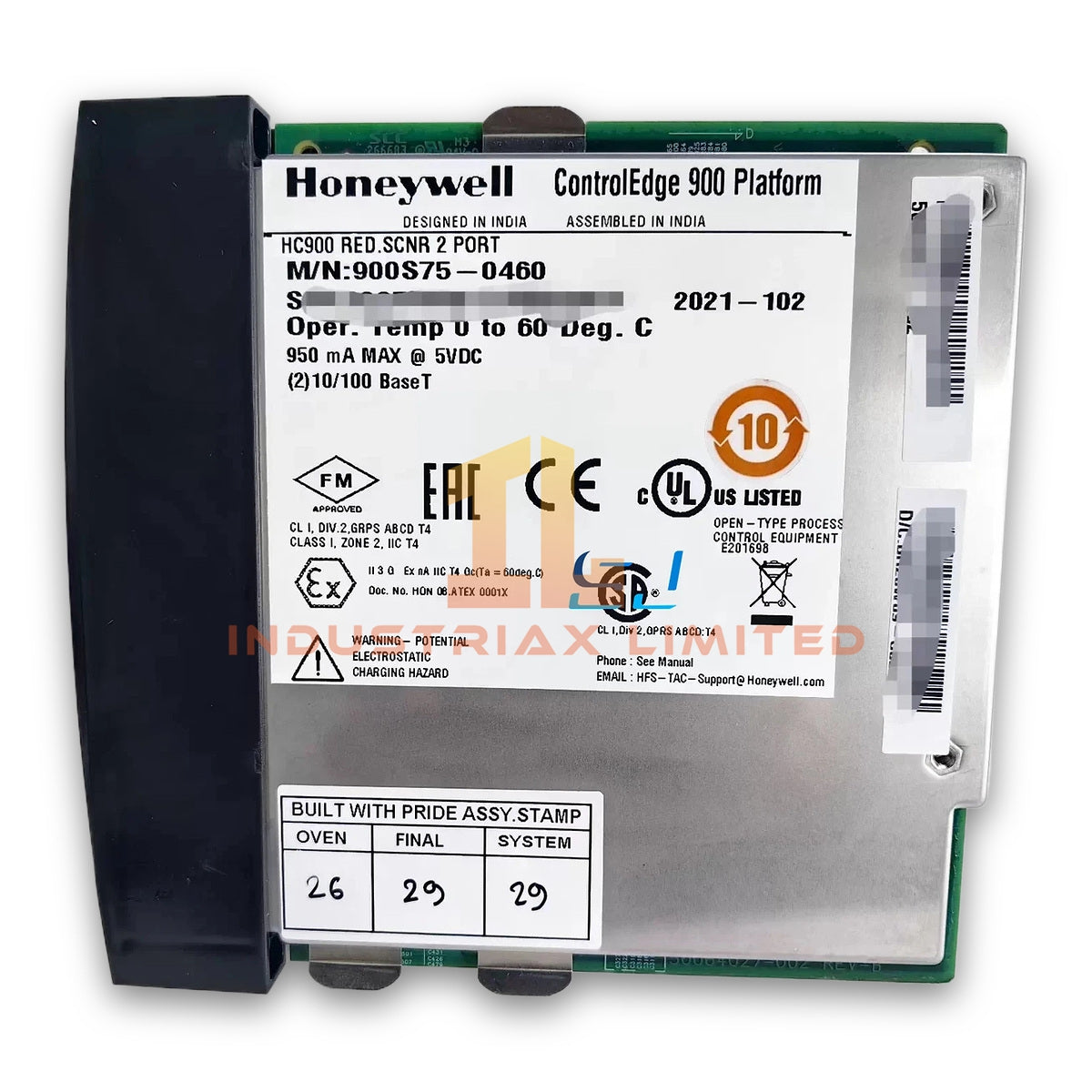

Honeywell 900S75S-0460 I/O Scanner Module

Configured for I/O data scanning and rack communication in the Honeywell ControlEdge 900 system, the Honeywell 900S75S-0460 (900S75S I/O Scanner Module) provides direct physical and electrical execution for controller-to-I/O rack signal exchange.

Hardware Specifications

Parameter	Specification
Model	900S75S-0460
Brand	Honeywell
Product Type	I/O Scanner Module
System Platform	Honeywell ControlEdge 900
Scanner Configuration	2 port I/O scanner
Rack Allocation	1 module per I/O rack
Origin	USA
Place of Shipment	Xiamen, China
Weight	0.4 kg
Dimensions	13.7 x 3.6 x 5.4 cm
Power Supply	24 VDC (18-36 VDC)
Power Consumption	15 W typical, 25 W maximum
Maximum I/O Points	Up to 512 points per controller
Operating Temp	-40 deg C to +70 deg C
Relative Humidity	5-95% non-condensing
Tariff Code	8537101190

ControlEdge 900 I/O Communication Characteristics

The 900S75S-0460 performs I/O scanning functions within the ControlEdge 900 controller architecture. It manages communication between the controller and connected I/O racks through dedicated scanner ports. In addition, the module supports high-density I/O configurations with up to 512 I/O points per controller.

The scanner module uses defined rack-level communication paths to exchange process data between field I/O modules and the control processor. Therefore, correct rack addressing, backplane connection, and module configuration are required during system integration.

Frequently Asked Questions

Q: What is the primary function of the Honeywell 900S75S-0460?
A: The 900S75S-0460 operates as an I/O Scanner Module for the ControlEdge 900 platform. It scans connected I/O racks and transfers process data between I/O modules and the controller.

Q: How many I/O points can the 900S75S-0460 system support?
A: The ControlEdge 900 configuration supports up to 512 I/O points per controller when configured with compatible I/O modules and rack structures.

Q: What power supply does the 900S75S-0460 require?
A: The module operates from a 24 VDC supply with an input range of 18-36 VDC. The typical power consumption is 15 W, with a maximum value of 25 W.

Field Installation Guidelines

Install the 900S75S-0460 on the designated ControlEdge 900 I/O rack position according to the system hardware configuration.

Verify the following installation conditions:

• Confirm that the 24 VDC power source meets the specified input range before energizing the module.
• Inspect the backplane connector and rack interface for proper mechanical alignment.
• Maintain separation between I/O communication wiring and high-voltage power cables to reduce electrical interference.
• Connect cable shields according to the site grounding standard for industrial control systems.
• Check module status indicators after startup and confirm normal scanner communication through the controller configuration software.
• Remove power before replacing or installing the module to prevent backplane damage.
