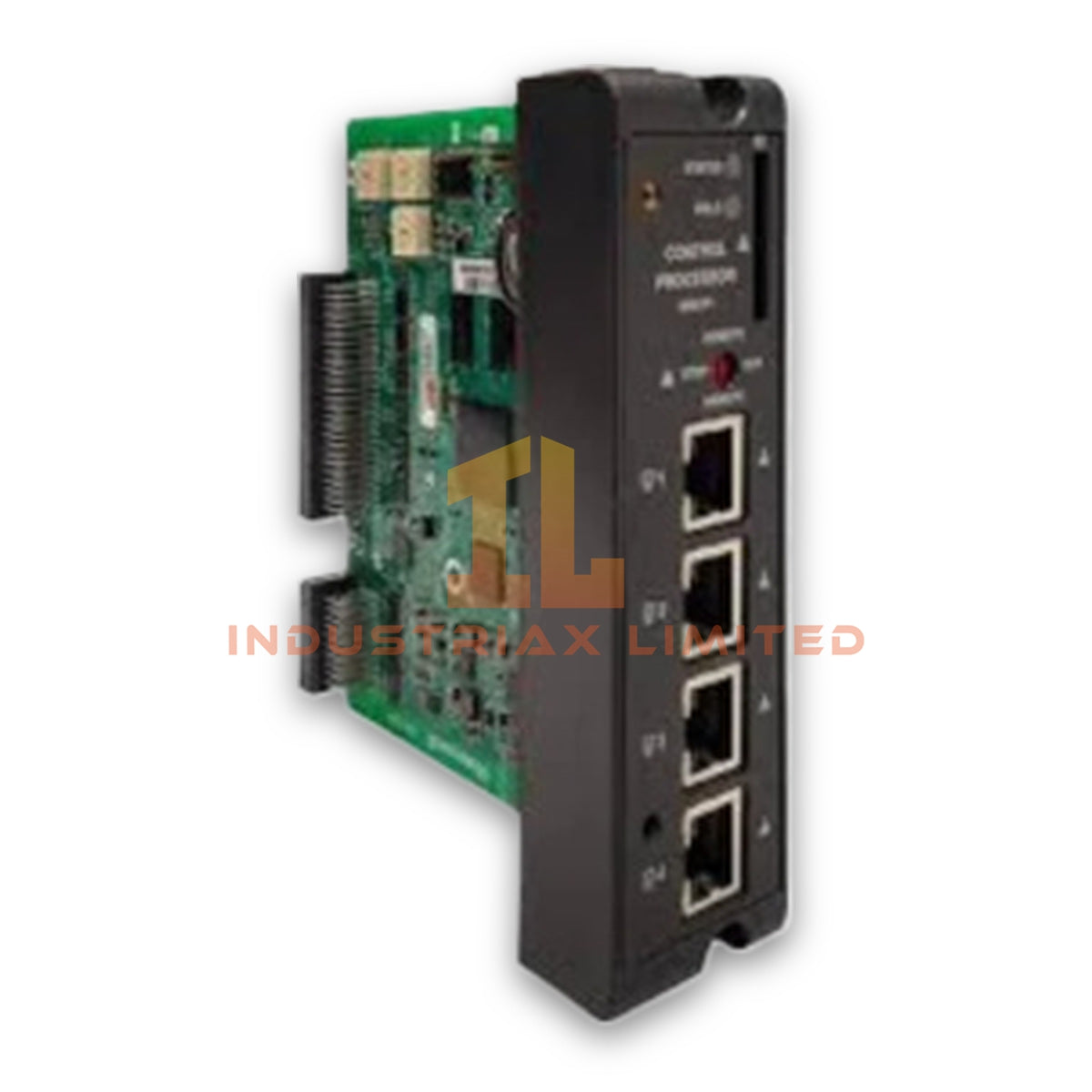

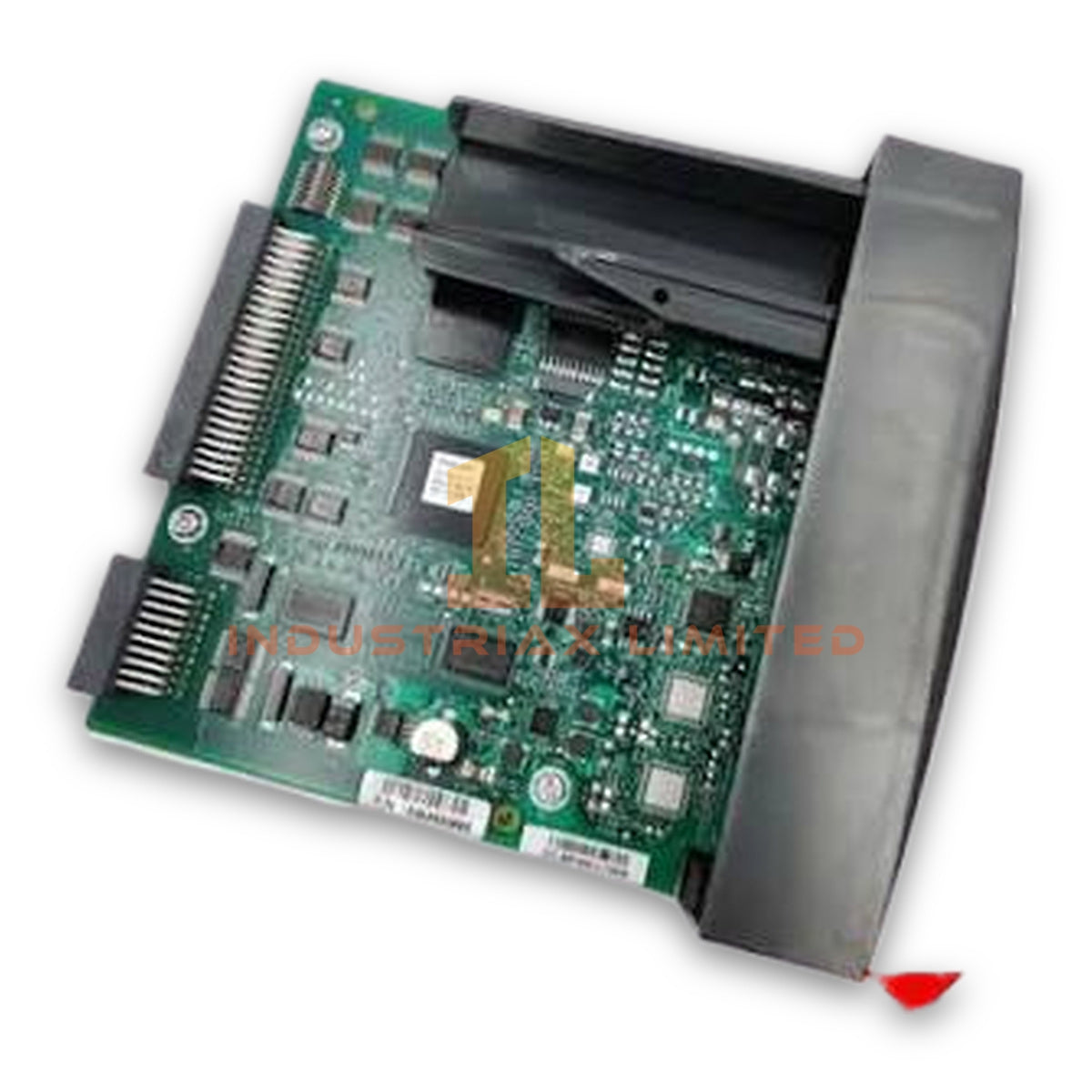

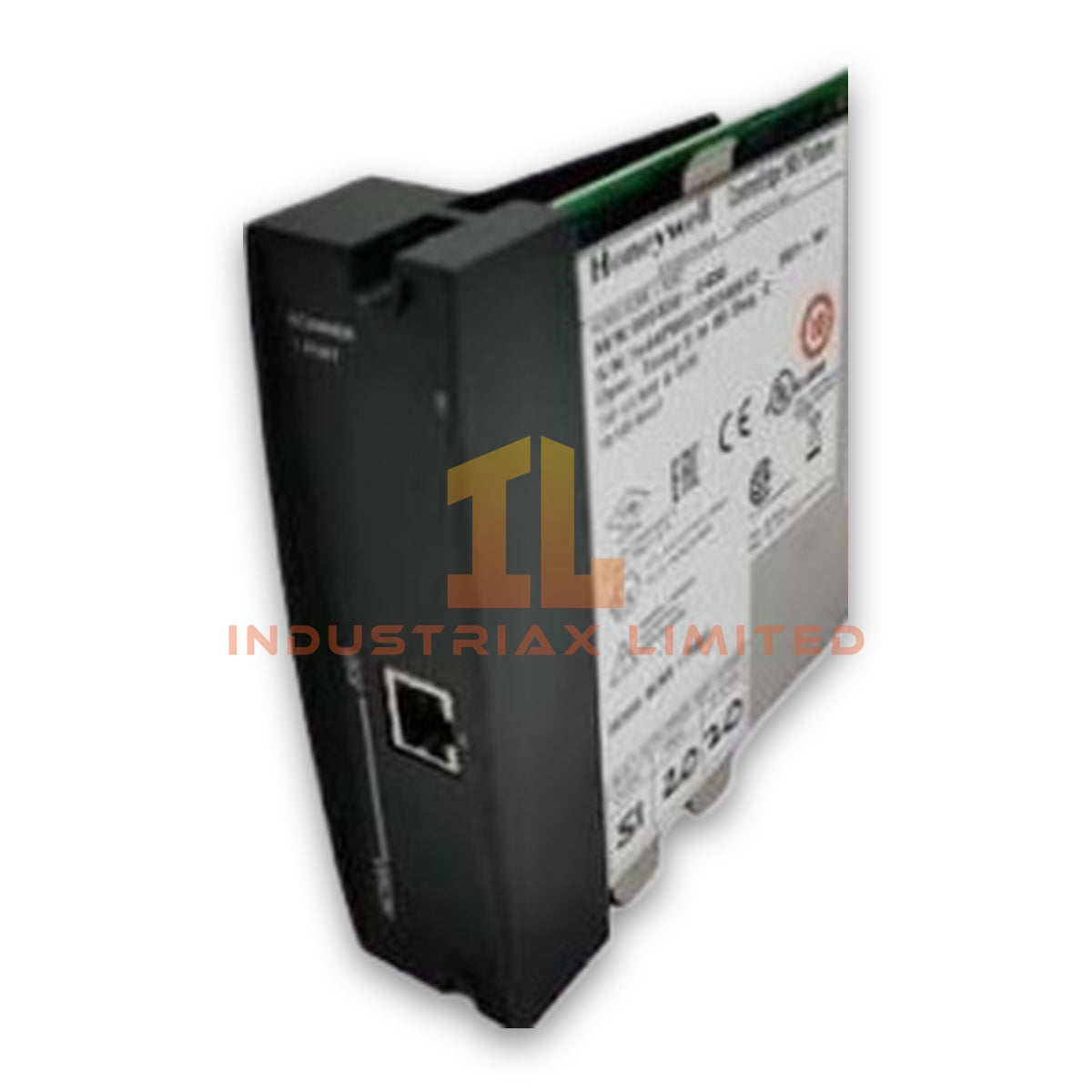

Honeywell 900S50S-0460 I/O Scanner Module

Configured for I/O data scanning and rack communication in the Honeywell ControlEdge 900 system, the Honeywell 900S50S-0460 (900S50S I/O Scanner Module) provides direct physical and electrical execution between the controller and distributed I/O racks.

Hardware Specifications

Parameter	Specification
Model	900S50S-0460
Brand	Honeywell
Product Type	I/O Scanner Module
System Platform	ControlEdge 900
Scanner Configuration	2 Port I/O Scanner, 1 per I/O Rack
Origin	USA
Weight	0.4 kg
Dimensions	13.7 x 3.6 x 5.4 cm
Operating Temp	-40 deg C to +70 deg C
Storage Temp	-40 deg C to +85 deg C
Power Supply	24 VDC (18-36 V)
Power Consumption	8 W typical, 12 W maximum
Isolation	1500 V AC
Relative Humidity	5-95% non-condensing
Tariff Code	8537101190
Shipment Location	Xiamen, China

Process Control Communication and Isolation Features

The Honeywell 900S50S-0460 performs I/O rack scanning functions within the ControlEdge 900 architecture. The module manages communication between the controller and connected I/O assemblies through dedicated scanner ports.

Additionally, the module uses electrical isolation rated at 1500 V AC to separate field-side signals from internal system circuits. Therefore, it reduces the influence of external electrical disturbances during signal exchange.

The ControlEdge 900 I/O architecture supports modular I/O density scaling by allowing one scanner module per I/O rack. Furthermore, the scanner design maintains organized data transfer between controller processing tasks and distributed I/O channels.

Frequently Asked Questions

Q: What is the primary function of the Honeywell 900S50S-0460 module?
A: The module operates as an I/O Scanner Module for the ControlEdge 900 platform and manages communication between the controller and an I/O rack.

Q: What power supply range does the 900S50S-0460 require?
A: The module requires a 24 VDC power source with an operating range of 18-36 VDC.

Q: Can the 900S50S-0460 operate in high temperature environments?
A: Yes. The module supports an operational temperature range from -40 deg C to +70 deg C according to the provided specifications.

Field Installation Guidelines

Install the 900S50S-0460 inside the designated ControlEdge 900 I/O rack position according to the system hardware configuration requirements.

Verify that the 24 VDC supply wiring maintains correct polarity before energizing the module. Use appropriate industrial wiring practices to separate power conductors from low-level communication and signal cables.

Connect grounding and shielding according to the cabinet design standard. Ensure that cable routing minimizes exposure to electromagnetic interference sources, including high-current switching devices and motor drive equipment.

Before commissioning, inspect module seating, rack connections, and communication interfaces. Confirm that the scanner status indicators show normal operating conditions after system power-up.
