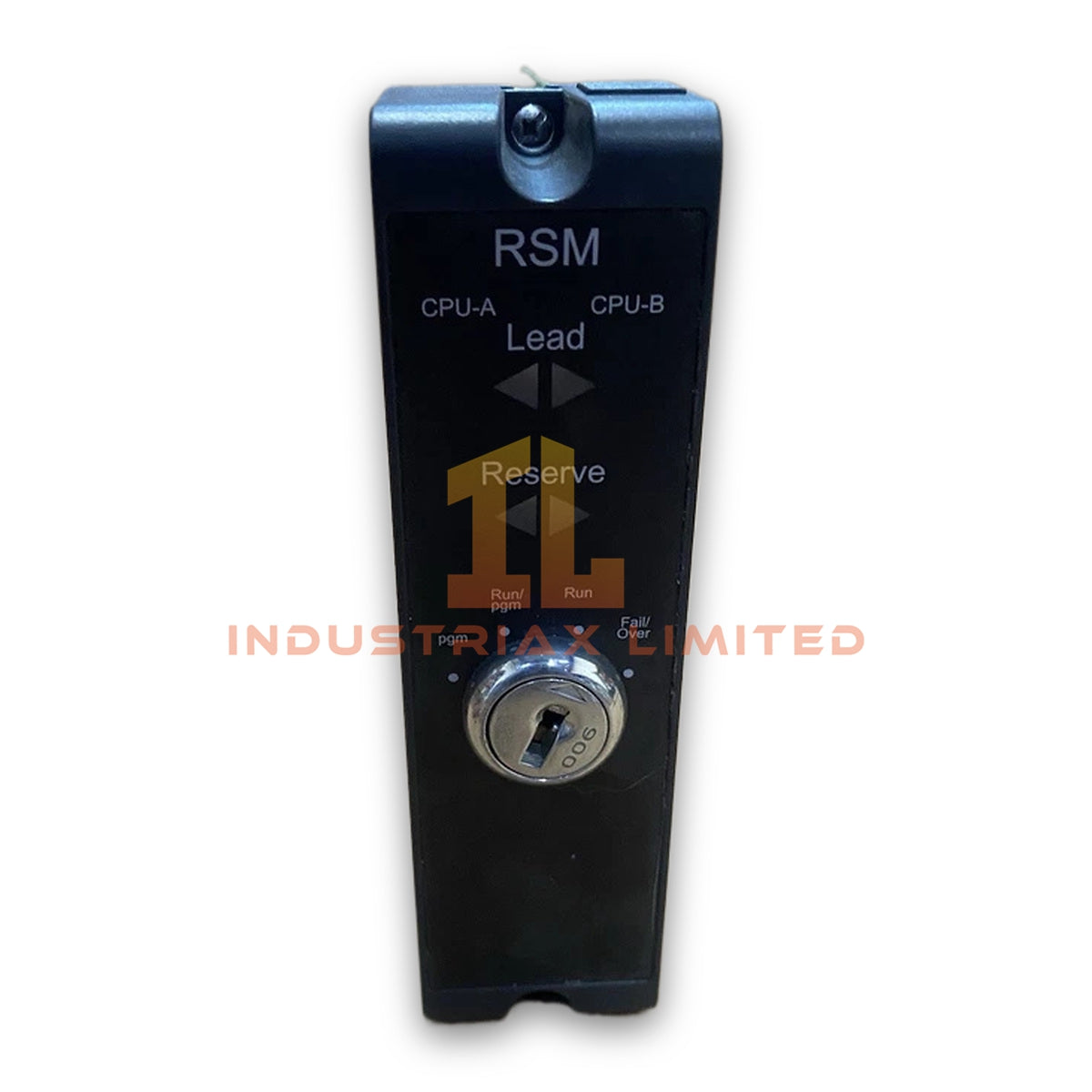

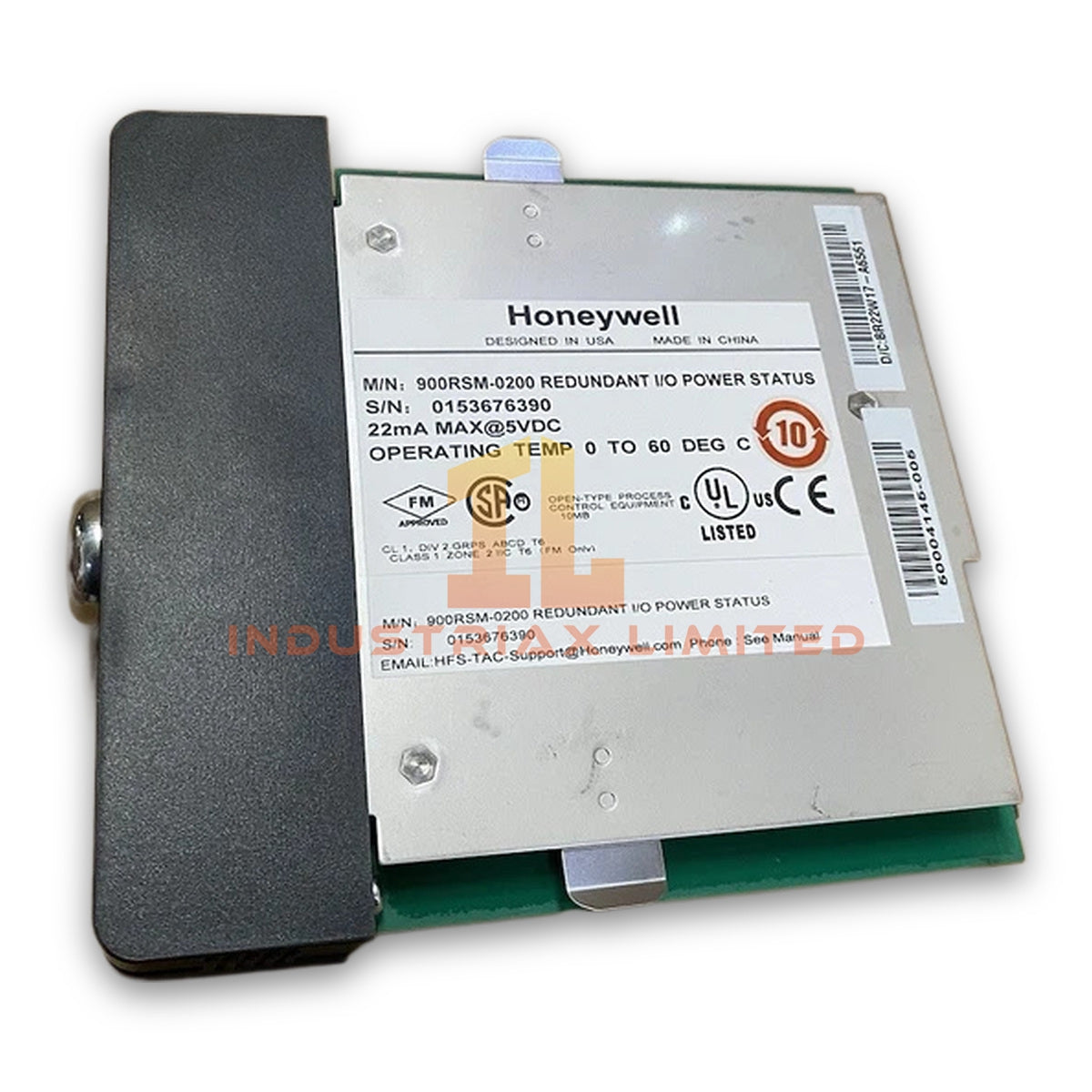

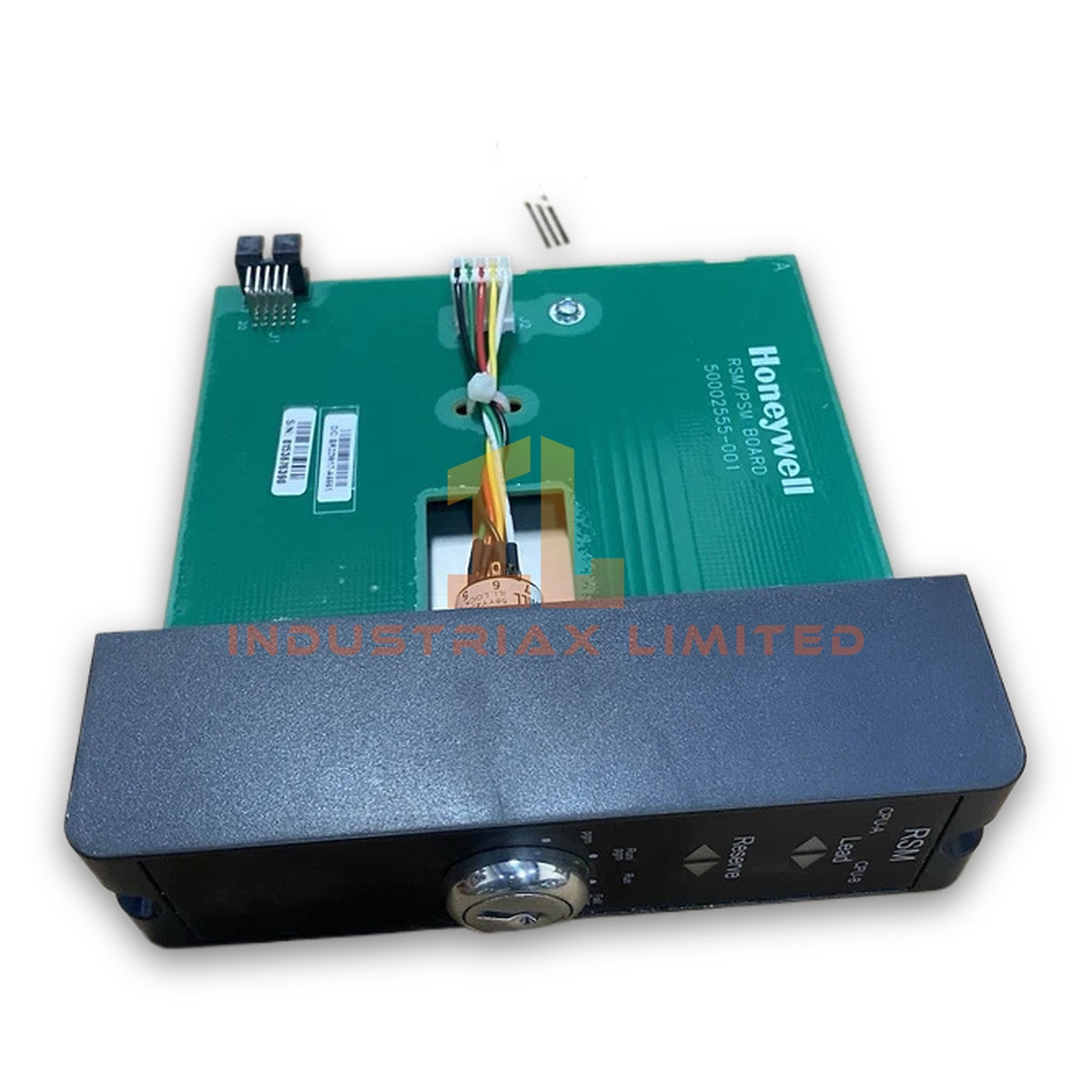

Honeywell 900RSM-0200 Redundant Switch Module

Configured for redundant controller switching operation in the Honeywell ControlEdge HC900 system, the Honeywell 900RSM-0200 (900RSM-0200 Redundant Switch Module) provides direct physical and electrical execution for controller rack redundancy selection and status indication.

Hardware Specifications

Parameter	Specification
Model	900RSM-0200
Brand	Honeywell
Product Type	Redundant Switch Module
System Platform	ControlEdge HC900
Origin	USA
Weight	0.4 kg
Dimensions	13.7 x 3.6 x 5.4 cm
Operating Temp	0 deg C to +60 deg C
Storage Temp	-40 deg C to +85 deg C
Power Consumption	5 V; 22 mA max
Lead/Reserve Indication	Green arrow LEDs
Mode Switch	Removable key, 2 keys supplied
Switch Positions	Three stationary positions and one momentary position
Tariff Code	8537101190
Shipment Location	Xiamen, China

Honeywell ControlEdge HC900 Redundant Switching Function

The 900RSM-0200 module manages redundant controller rack selection within the ControlEdge HC900 architecture. It uses a keyed mechanical switch assembly to define controller operating states and provides visual status indication through green arrow LEDs.

In addition, the module operates from a 5 V supply rail and maintains a maximum loading requirement of 22 mA. The switch mechanism provides three fixed positions and one momentary position for manual redundancy control operations.

The module supports Honeywell process control hardware configurations where redundant controller racks require local physical selection and status monitoring.

Frequently Asked Questions

Q: What is the primary function of the Honeywell 900RSM-0200?
A: The 900RSM-0200 functions as a redundant switch module for ControlEdge HC900 redundant controller rack configurations. It provides manual controller selection and LED status indication.

Q: What type of power supply does the 900RSM-0200 require?
A: The module operates from a 5 V power supply and has a maximum current loading of 22 mA.

Q: Does the module include a key switch mechanism?
A: Yes. The module includes a removable key switch with two supplied keys, three stationary positions, and one momentary position.

Field Installation Guidelines

Install the 900RSM-0200 module according to the ControlEdge HC900 rack installation requirements.

• Verify the module position and rack configuration before installation.
• Confirm the 5 V power connection before applying system power.
• Keep control wiring separated from high-voltage power cables to reduce electrical interference.
• Check the green arrow LED indicators after installation to confirm the selected redundant controller status.
• Maintain proper grounding practices for the controller rack and connected equipment.
• Use the supplied keys only for authorized redundancy switching operations.
