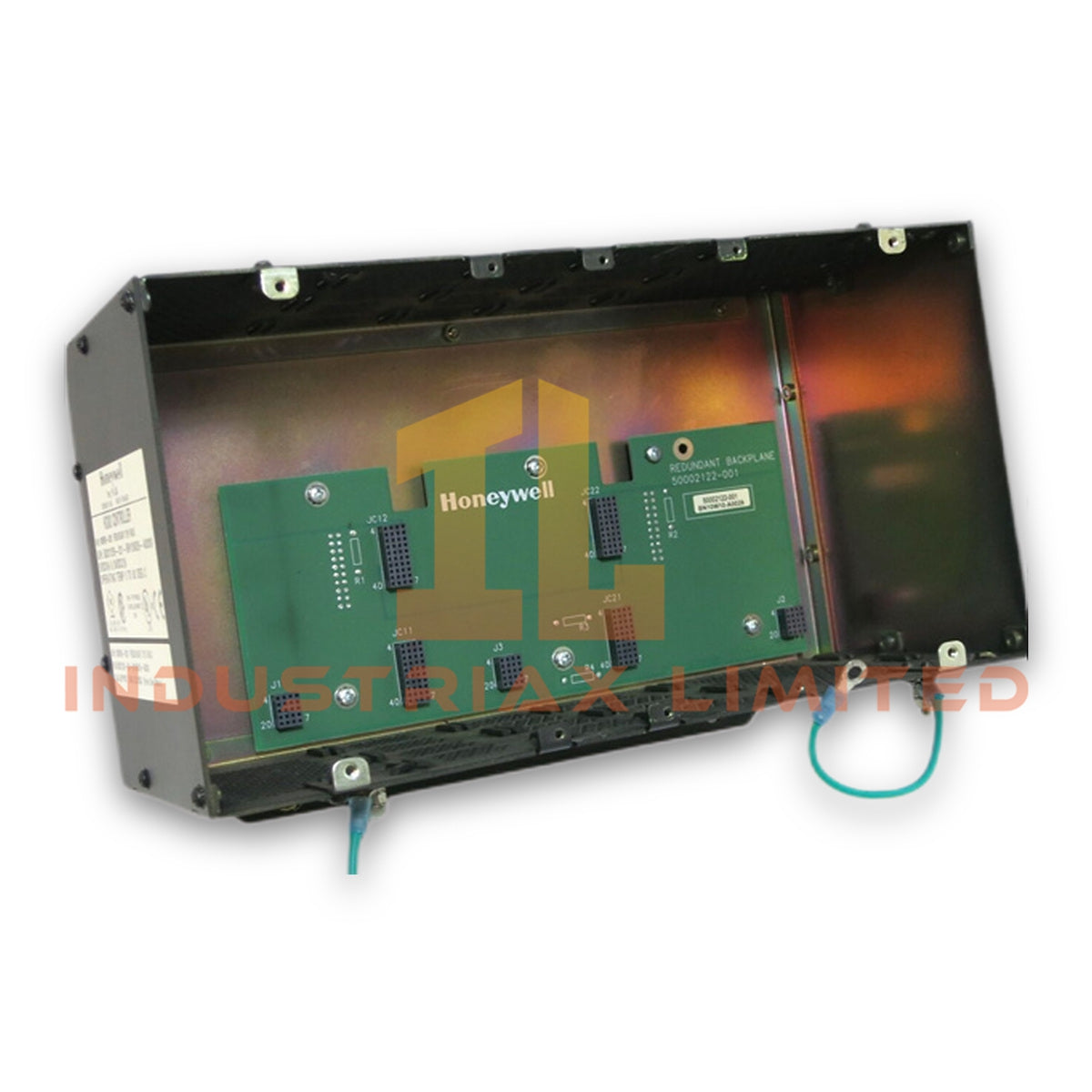

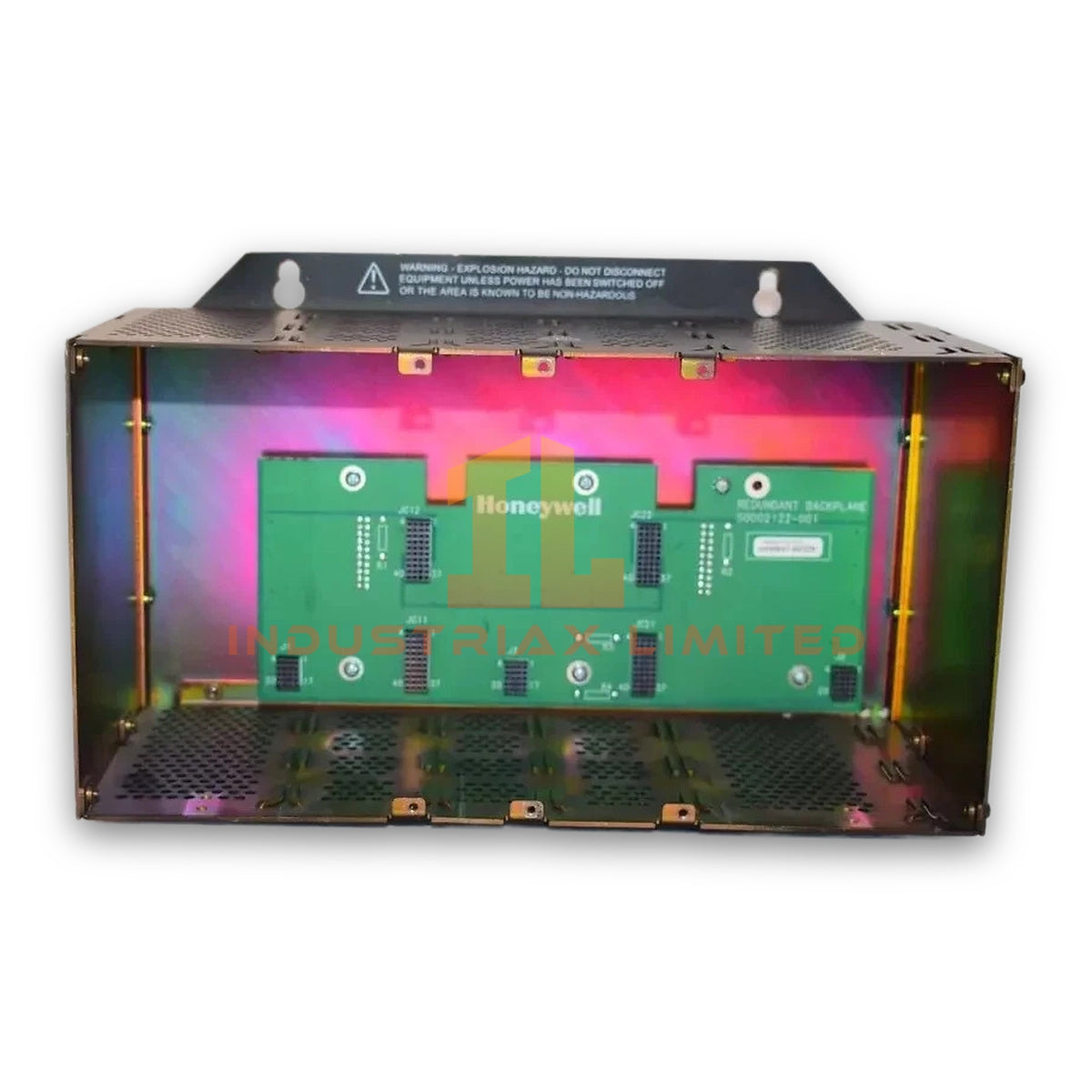

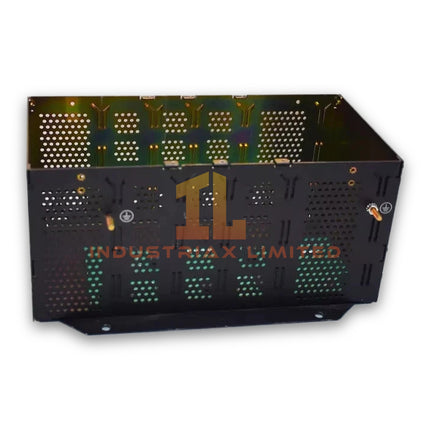

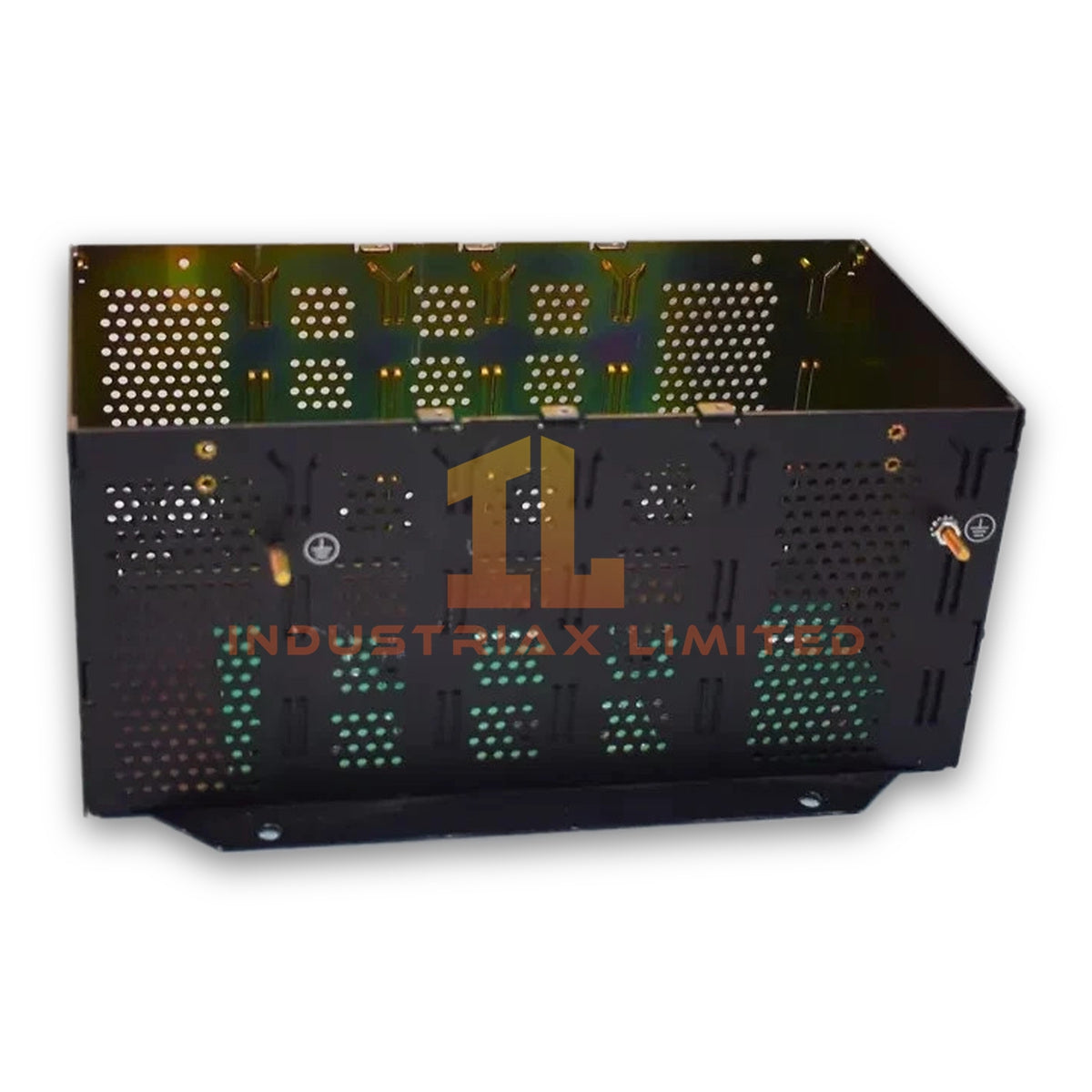

Honeywell 900RR0-0001 Redundant CPU Rack Assembly

Configured for redundant CPU module synchronization in the Honeywell ControlEdge HC900 system, the Honeywell 900RR0-0001 (900RR0-0001 Redundant CPU Rack Assembly) provides the physical rack structure and backplane interface for dual controller operation.

Hardware Specifications

Parameter	Specification
Model	900RR0-0001
Brand	Honeywell
Origin	Not specified
Product Type	Redundant CPU Rack Assembly
System Compatibility	Honeywell ControlEdge HC900 Hybrid Controller System
CPU Slot Capacity	Dual CPU module slots for redundant controller configuration
Backplane Interface	HC900 communication and CPU synchronization backplane
Power Distribution	Distributes regulated DC power from HC900 power supply modules
Mounting Type	Industrial cabinet rack mounting frame
Operating Temp	0 deg C to +60 deg C
Storage Temp	-40 deg C to +70 deg C
Relative Humidity	10% to 90% non-condensing
Power Consumption	Determined by installed CPU modules and connected HC900 hardware

ControlEdge HC900 Redundant Backplane Synchronization

The 900RR0-0001 rack assembly provides the mechanical and electrical interface required for redundant CPU operation within the ControlEdge HC900 platform. It supports dual CPU installation and maintains communication paths between active and standby controller modules.

In addition, the rack distributes internal power connections and maintains synchronization channels required for redundant controller coordination. The assembly does not execute control logic directly; instead, it provides the physical infrastructure for CPU modules, communication links, and system expansion components.

For Honeywell process controller installations, the rack architecture supports HC900 system communication methods and controller redundancy functions. The design allows installed CPU modules to exchange operational status information and perform controlled transfer procedures during controller state changes.

Frequently Asked Questions

Q: Does the Honeywell 900RR0-0001 execute application control programs directly?
A: No. The 900RR0-0001 is a rack and backplane assembly. Installed CPU modules execute application logic, while the rack provides mechanical mounting, power distribution, and communication connections.

Q: Can the 900RR0-0001 operate with a single CPU module?
A: The rack supports dual CPU module installation for redundant configurations. Actual operating mode depends on the installed HC900 controller hardware and system configuration.

Q: Does the 900RR0-0001 require separate firmware installation?
A: No. The rack assembly does not contain a standalone firmware application. Firmware compatibility applies to the installed CPU and controller modules.

Field Installation Guidelines

• Install the 900RR0-0001 inside a suitable industrial control cabinet with sufficient mechanical support.
• Verify rack positioning before inserting CPU modules to prevent connector damage.
• Confirm that all backplane connectors are clean and properly aligned before module installation.
• Maintain separation between power wiring and communication wiring to reduce electrical interference.
• Connect cabinet grounding according to industrial control panel grounding practices.
• Check installed CPU modules, power supply modules, and communication interfaces before system startup.
• Follow Honeywell ControlEdge HC900 hardware manuals for final rack configuration and commissioning procedures.
