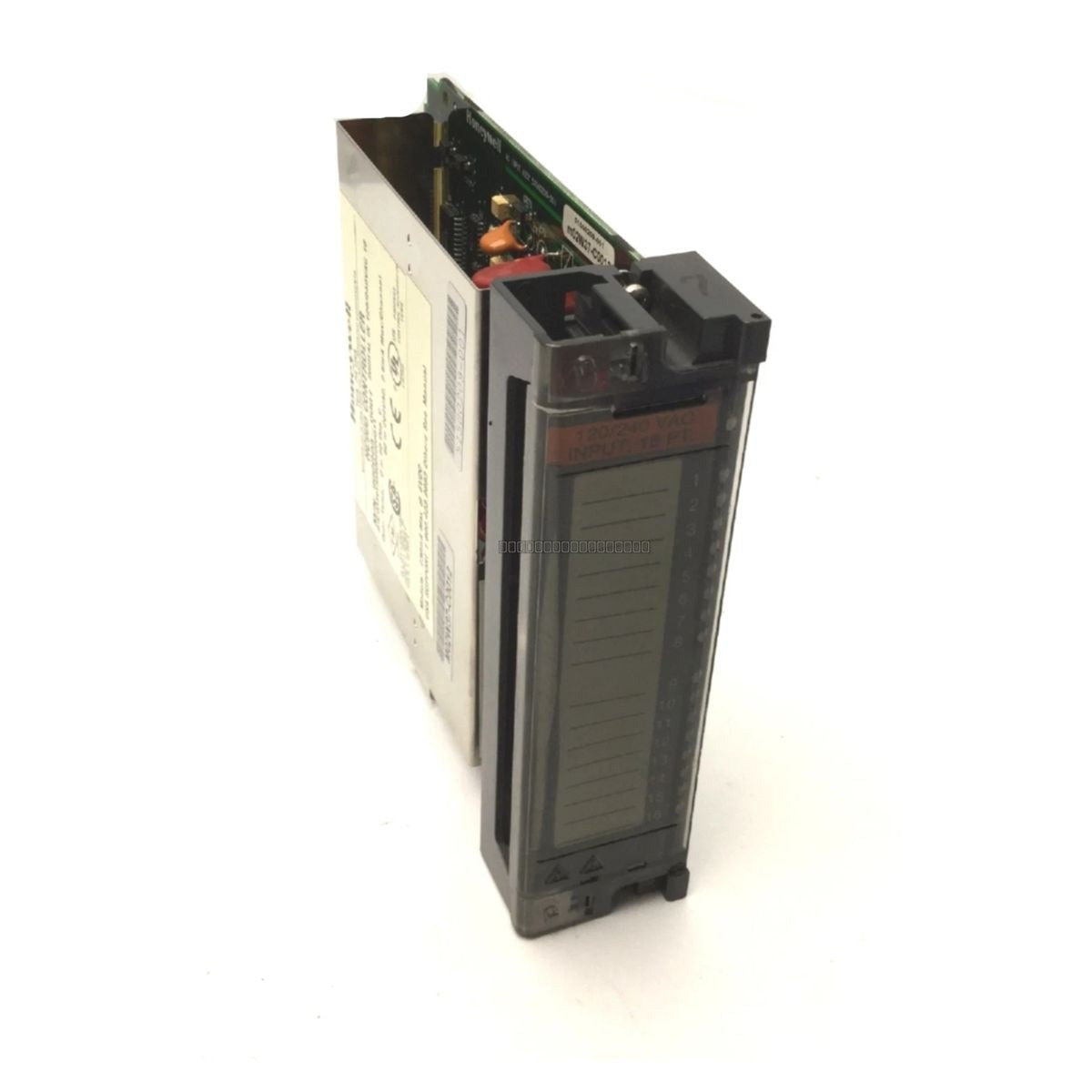

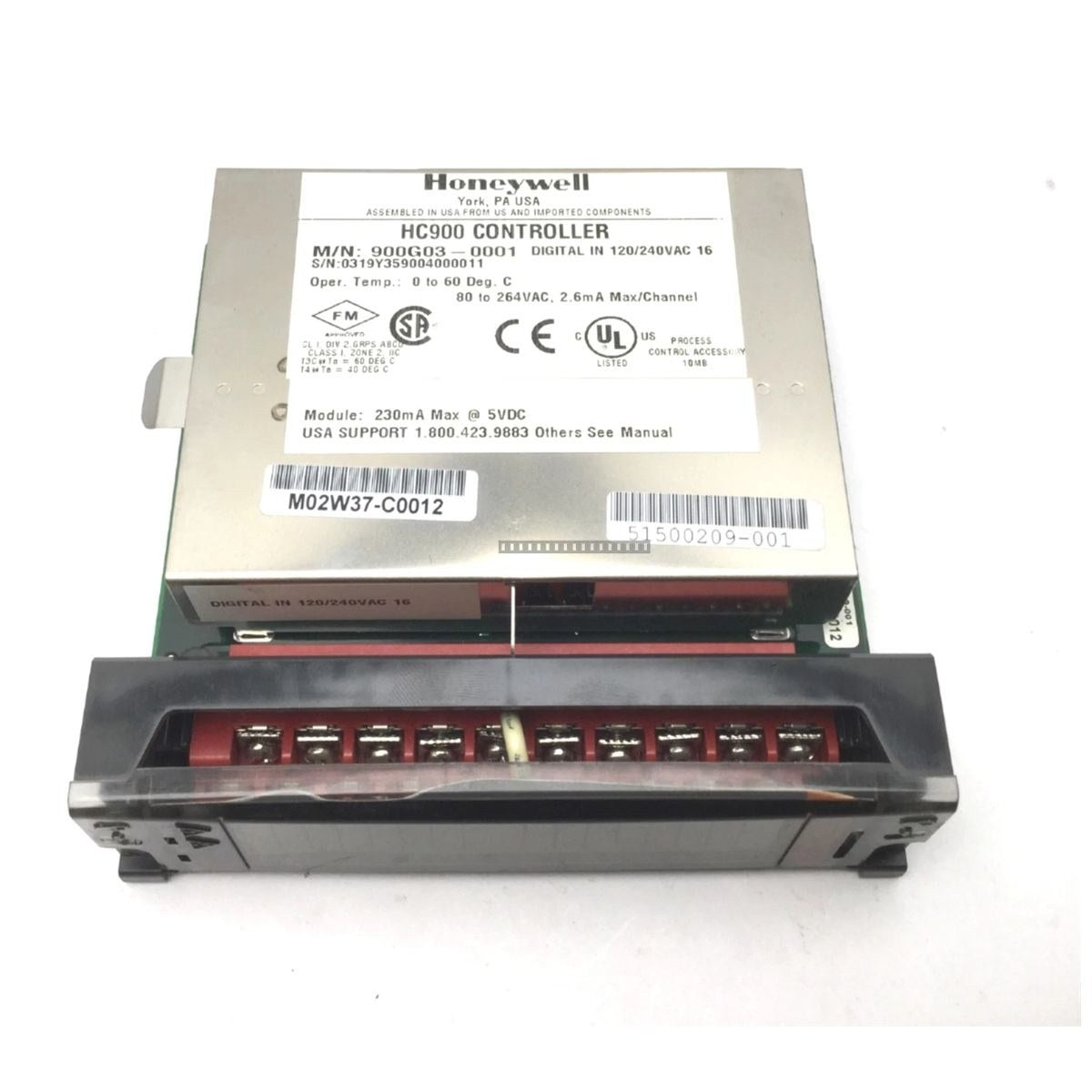

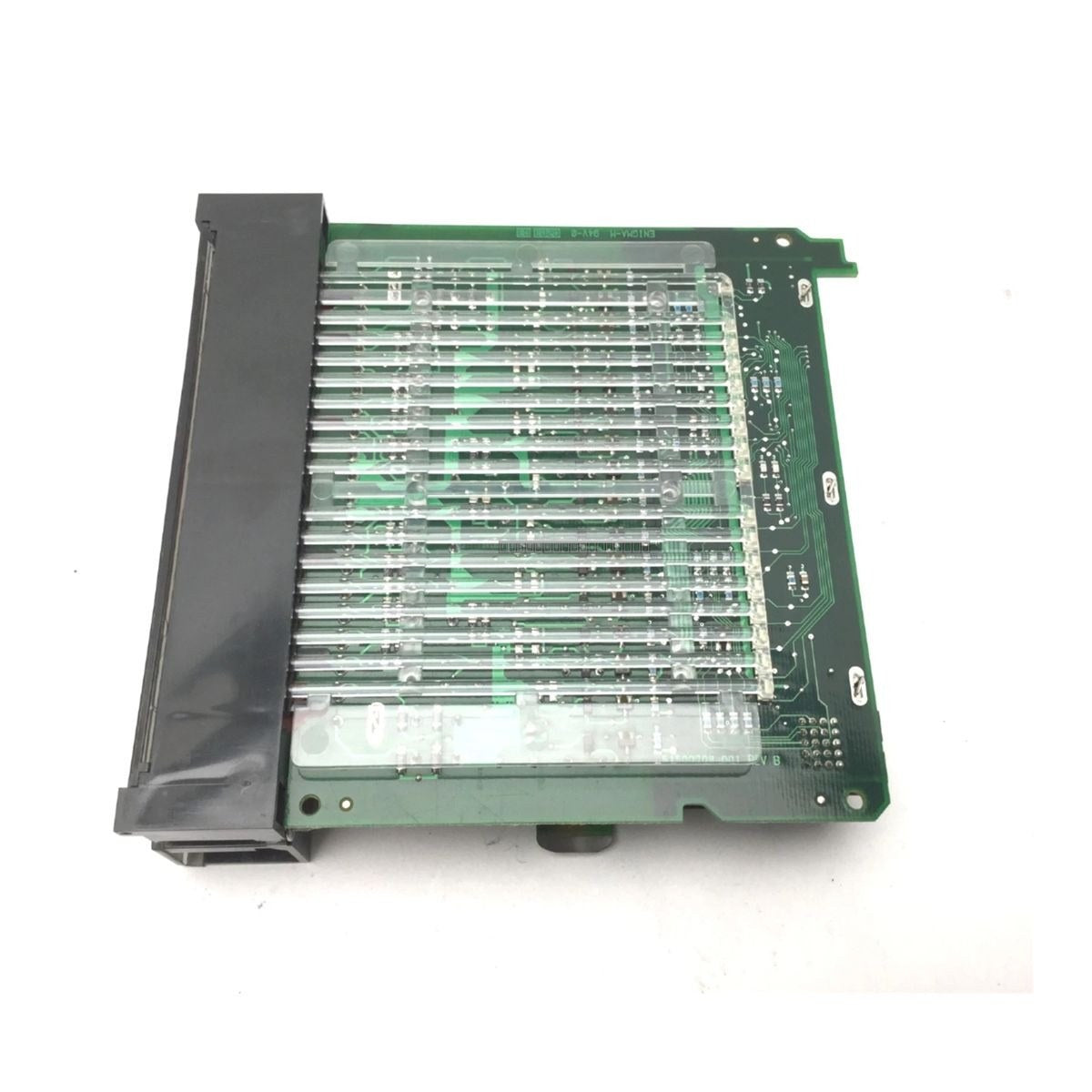

The Honeywell 900G03-0001 is a high-performance 16-channel digital input module designed for the HC900 and ControlEdge process automation platforms. This module is engineered for the acquisition of high-voltage AC signals, supporting a range of 80 to 264 VAC. It provides robust, isolated signal monitoring for industrial applications, including status detection for motors, breakers, switches, and critical interlock systems. Its compact design and high-density channel configuration allow for efficient cabinet space utilization in demanding process control environments.
Features
- 16 isolated digital input channels for high-density monitoring.
- Supports wide AC input voltage range: 80 to 264 VAC.
- Designed for seamless integration with Honeywell HC900 and ControlEdge control systems.
- Integrated signal filtering and electrical isolation to mitigate transient noise and switching disturbances.
- Optimized for direct connection to standard industrial AC control circuits.
- Compact form factor suitable for standard DIN rail or cabinet mounting.
Applications
The 900G03-0001 is widely utilized in mission-critical industrial sectors, including:
- Refinery and petrochemical process units.
- Turbine control and monitoring systems.
- Mining automation and material handling networks.
- Power generation facilities for alarm handling and equipment state indication.
Technical Specifications
| Model |
900G03-0001 |
| Brand |
Honeywell |
| Series |
HC900 ControlEdge |
| Input Channels |
16 |
| Input Voltage Range |
80 to 264 VAC |
| Nominal Voltage |
120/240 VAC |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Mounting |
DIN rail / Cabinet |
Installation Guidelines
- Ensure the control system power is disconnected before installing or removing the module from the rack.
- Use appropriate ESD protection when handling the module to prevent damage to internal circuitry.
- Ensure proper grounding of the cabinet and module chassis to maintain electrical noise immunity.
- Route AC signal wiring separately from low-voltage communication cables to prevent EMI interference.
- Verify that field wiring matches the voltage specifications of the module before applying power.
- Maintain adequate clearance around the module to ensure proper ventilation and cooling during operation.
FAQ
What is the primary function of the 900G03-0001 module?
This module acts as a digital input interface for the Honeywell HC900/ControlEdge system, allowing the controller to monitor the status of 16 individual high-voltage AC signals.
Is this module compatible with DC signals?
No, the 900G03-0001 is specifically designed for AC signal acquisition within the 80 to 264 VAC range. Using it with DC signals may result in improper operation or damage.
Does this module require external signal conditioning?
No, the module features integrated signal filtering and isolation, allowing for direct connection to standard industrial AC control circuits.
