Description

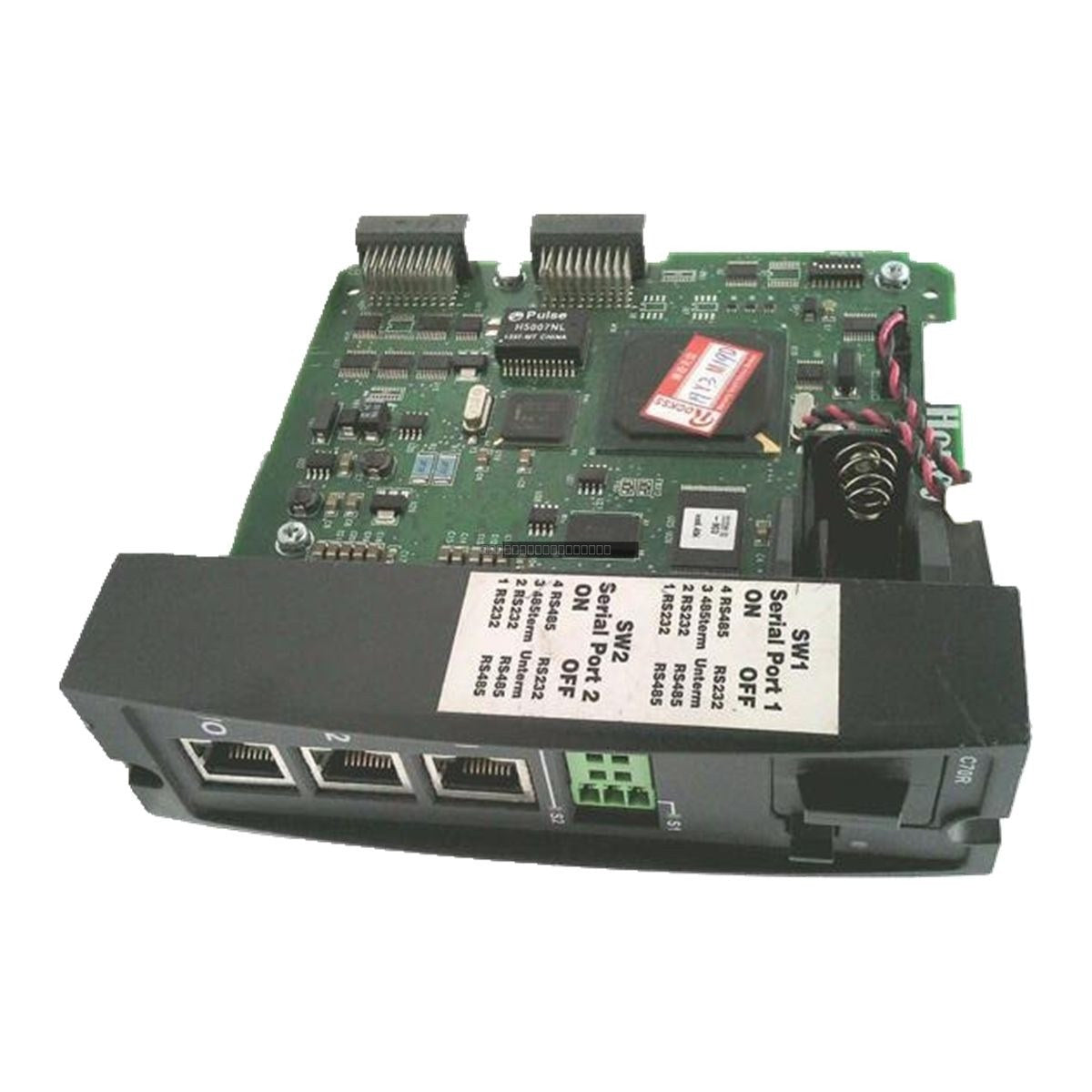

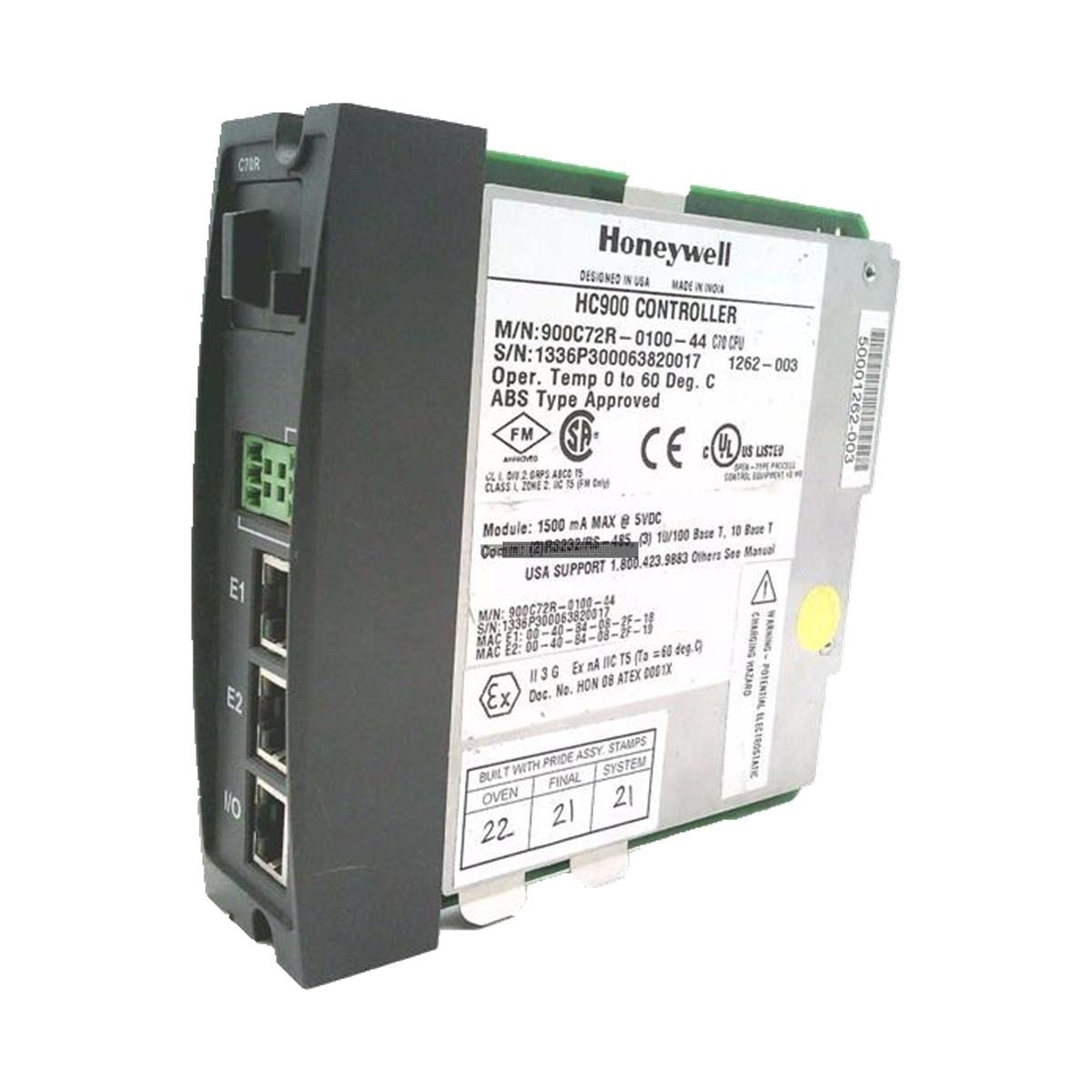

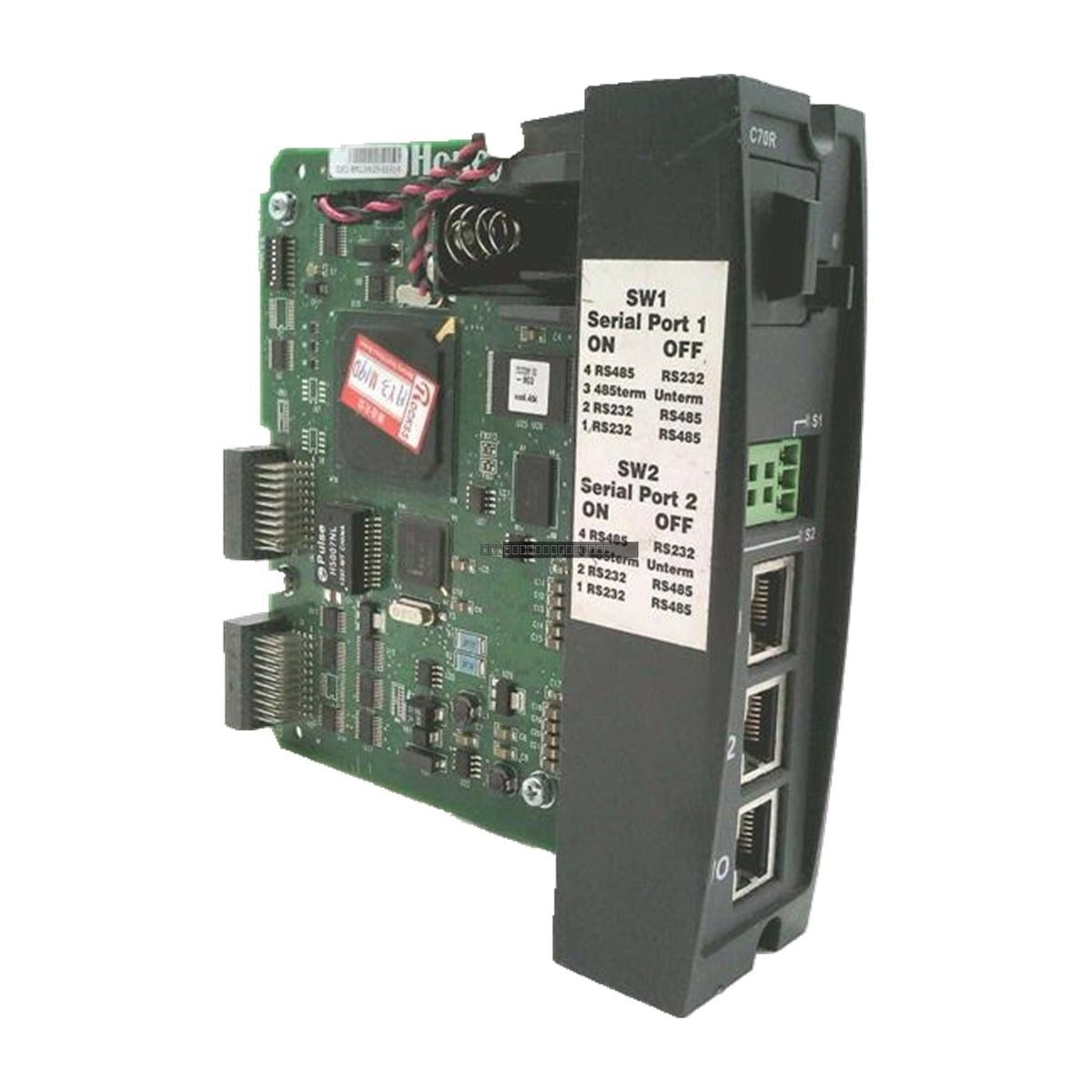

The Honeywell 900C72R-0100-44 is a high-performance C70R CPU module engineered for robust execution within industrial automation and distributed control system (DCS) environments. This processor unit is designed to handle demanding control tasks across critical sectors, including power generation, chemical processing, and oil and gas operations. By leveraging an embedded Linux operating system combined with industrial-grade hardware, the module ensures deterministic performance and reliable data management for complex process control applications.
Features
-
High-Performance Processing: Optimized architecture for deterministic control logic execution and continuous industrial operation.
-
Memory and Storage: Equipped with 4 GB of DDR4 RAM and 64 GB of eMMC storage to support intensive control applications and local data logging.
-
Versatile Connectivity: Features dual Ethernet ports for network redundancy, two USB 2.0 ports for peripheral access, and an RS-232 serial port for legacy device integration.
-
System Integration: Designed for seamless deployment within the Honeywell C70 controller platform, allowing for scalable system architecture.
Applications
This CPU module is primarily utilized in large-scale process automation where high availability and real-time responsiveness are required. Its ability to bridge modern Ethernet-based networks with traditional serial protocols makes it suitable for both greenfield installations and modernization projects involving legacy hardware upgrades.
Technical Specifications
| Model |
900C72R-0100-44 |
| Brand |
Honeywell |
| Series |
C70 Controller Series |
| Operating System |
Embedded Linux |
| Memory |
4 GB DDR4 |
| Storage |
64 GB eMMC |
| Communication |
2 x Ethernet, 2 x USB 2.0, 1 x RS-232 |
| Power Supply |
12 to 24 VDC |
| Power Consumption |
~12 W |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
-
Handling: Ensure proper ESD (Electrostatic Discharge) precautions are taken during handling and installation to prevent damage to internal circuitry.
-
Power: Verify that the input voltage is within the specified 12-24 VDC range before powering on the module.
-
Mounting: Secure the module within the designated C70 controller rack system, ensuring all connectors are fully seated and locked.
-
Environment: Install in a location that provides adequate airflow to maintain operating temperatures below 60 deg C.
-
Cabling: Use shielded communication cables for Ethernet and serial connections to minimize EMI (Electromagnetic Interference) impact in high-noise industrial environments.
FAQ
Is this module compatible with existing C70 series racks? Yes, the 900C72R-0100-44 is designed for direct integration into the Honeywell C70 controller platform.
What operating system does this unit run? The module utilizes an embedded Linux operating system optimized for deterministic industrial control.
Does this module support network redundancy? Yes, the dual Ethernet interfaces allow for redundant or segmented network configurations to improve system uptime.
