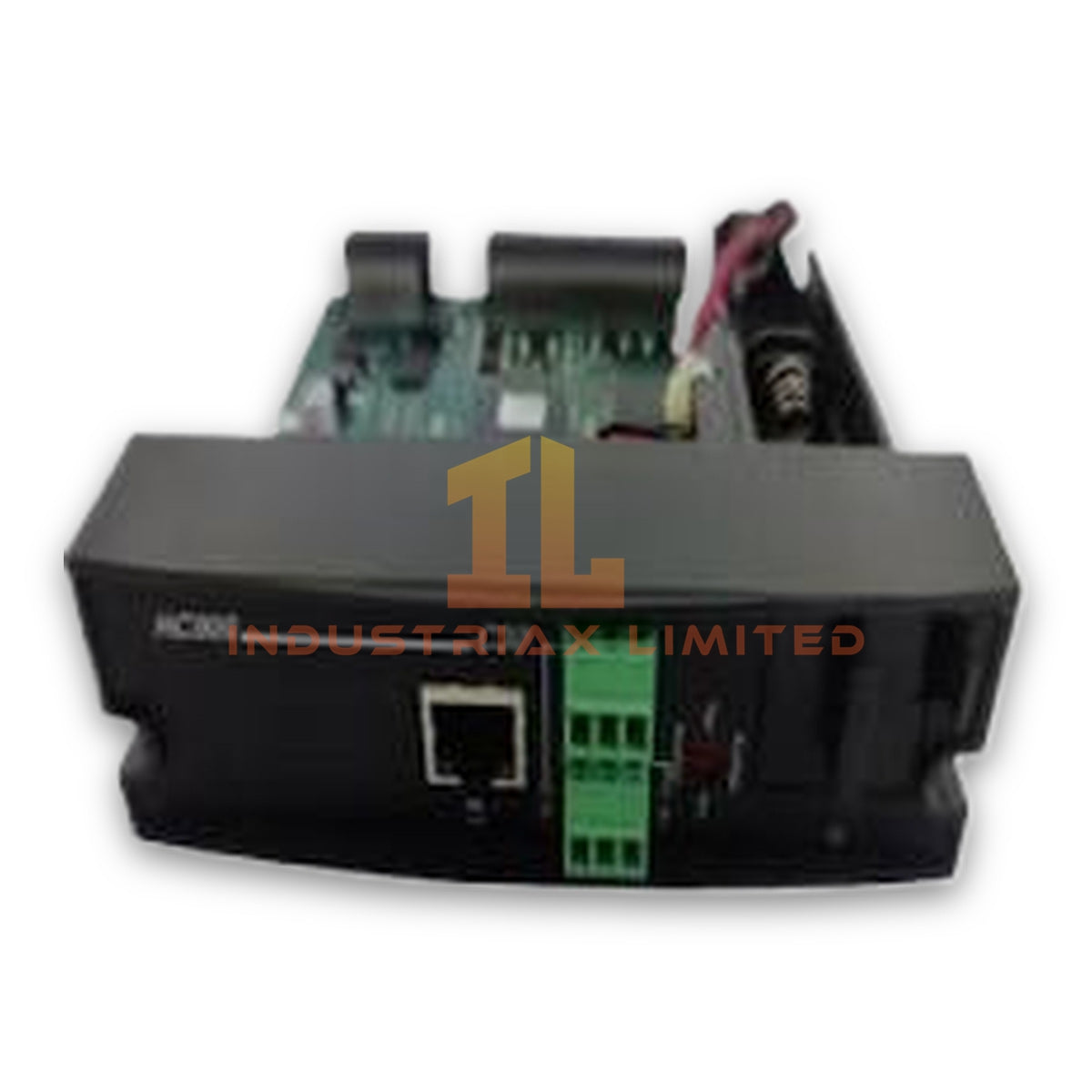

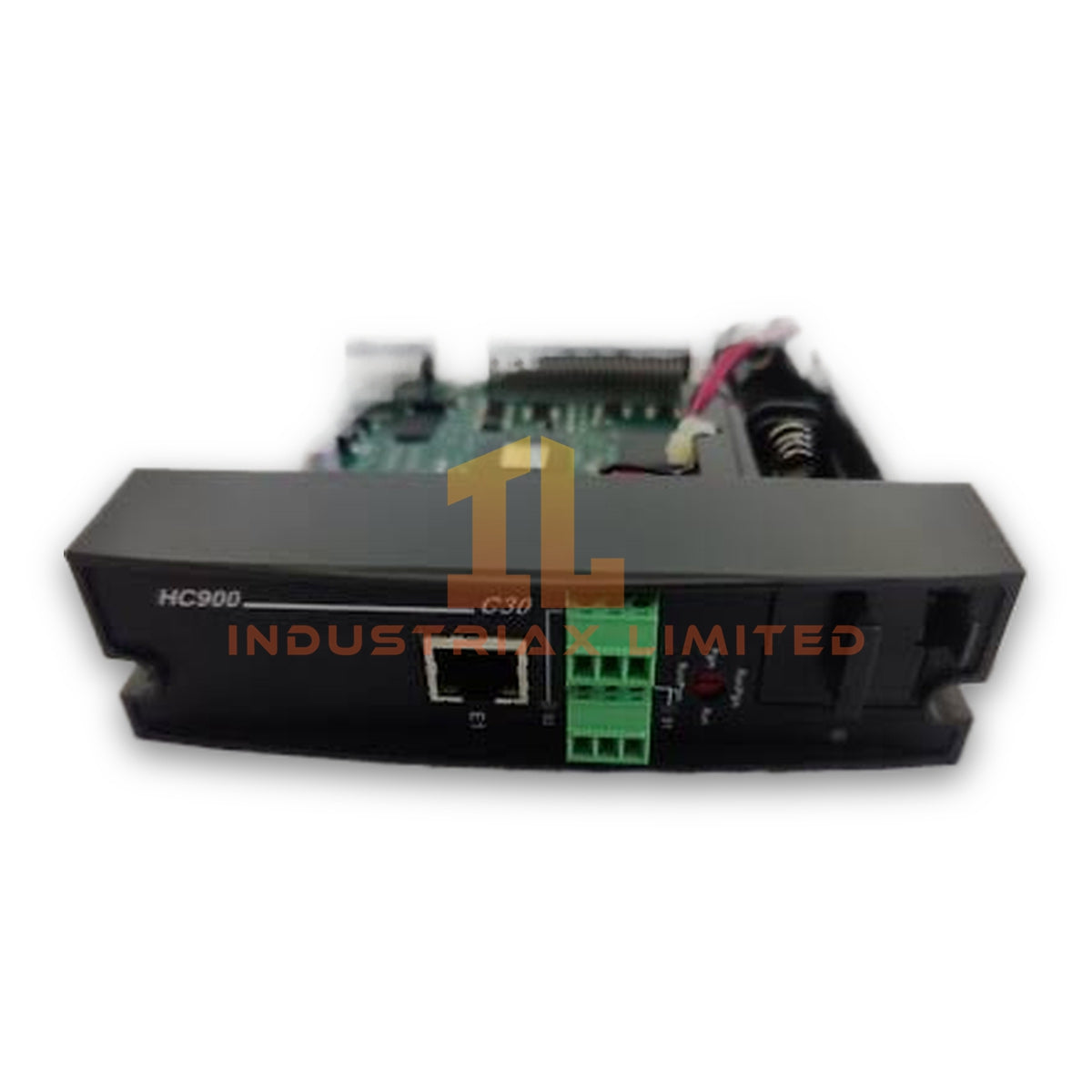

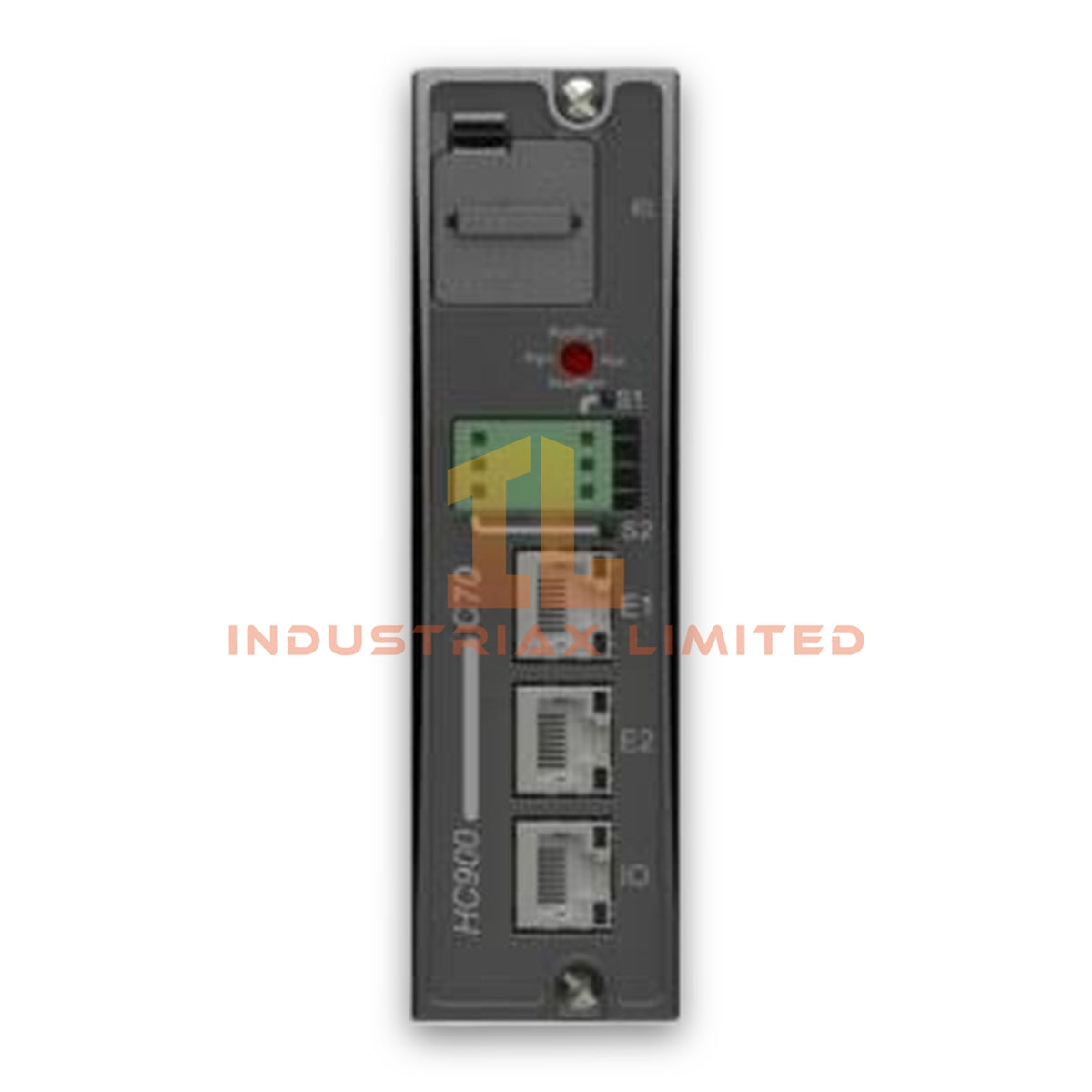

Honeywell 900C30S-0460 HC900 CPU Module

The Honeywell 900C30S-0460, also cataloged as the 900C30S CPU Module, operates as a dedicated hardware component for controller execution, I/O processing, and communication management within the Honeywell HC900 Control System.

Hardware Specifications

Parameter	Specification
Model	900C30S-0460
Brand	Honeywell
Product Type	CPU Module
Series	HC900
Origin	USA
Weight	0.4 kg
Dimensions	13.7 x 3.6 x 5.4 cm
Operating Temp	-40 deg C to +70 deg C
Power Consumption	15 W typical, 25 W maximum
Power Supply	24 VDC (18-36 V)
CPU Memory	128 MB battery-backed DDR2 RAM
Ethernet Communication	Dual Ethernet ports
Serial Communication	2 isolated RS-485 ports
Maximum I/O Capacity	Up to 512 points per controller
Supported I/O Types	Analog and digital I/O
Input Voltage Range	90-264 VAC, 50/60 Hz system supply option

Process Control Communication and I/O Management

The Honeywell 900C30S-0460 CPU module manages controller execution, signal processing, and field I/O data exchange in the HC900 architecture. The module provides dual Ethernet communication interfaces for network connectivity and isolated RS-485 ports for serial device integration.

In addition, the CPU module supports I/O density scaling up to 512 points per controller. The battery-backed DDR2 memory maintains controller data storage during power interruption conditions. The hardware processes analog and digital signals through connected HC900 I/O modules while maintaining deterministic controller operation.

The module design supports process control communication requirements, including interface compatibility with industrial field devices using standard analog and serial communication methods. Channel isolation within connected I/O architectures helps reduce electrical interference between field circuits.

Frequently Asked Questions

Q: What memory configuration does the Honeywell 900C30S-0460 CPU Module use?
A: The module uses 128 MB battery-backed DDR2 RAM for controller data retention and application execution.

Q: How does the 900C30S-0460 communicate with external devices?
A: The CPU module provides dual Ethernet ports and 2 isolated RS-485 communication ports for controller networking and serial device connections.

Q: What power input does the Honeywell 900C30S-0460 require?
A: The module operates from a 24 VDC power supply with an input range of 18-36 VDC.

Field Installation Guidelines

Install the 900C30S-0460 CPU module in the designated HC900 controller rack position according to the system hardware configuration.

Before installation, verify that the power supply voltage matches the specified 24 VDC input range. Disconnect power before inserting or removing the module to prevent electrical damage.

Connect Ethernet and RS-485 communication wiring using proper industrial cable routing practices. Keep communication cables separated from high-voltage power conductors to minimize electromagnetic interference.

Terminate RS-485 networks according to the system communication design and apply appropriate grounding methods for cable shields. Verify rack grounding, power polarity, and connector seating before controller startup.

After installation, check CPU status indicators, communication links, and connected I/O module recognition through the HC900 configuration environment.
