Description

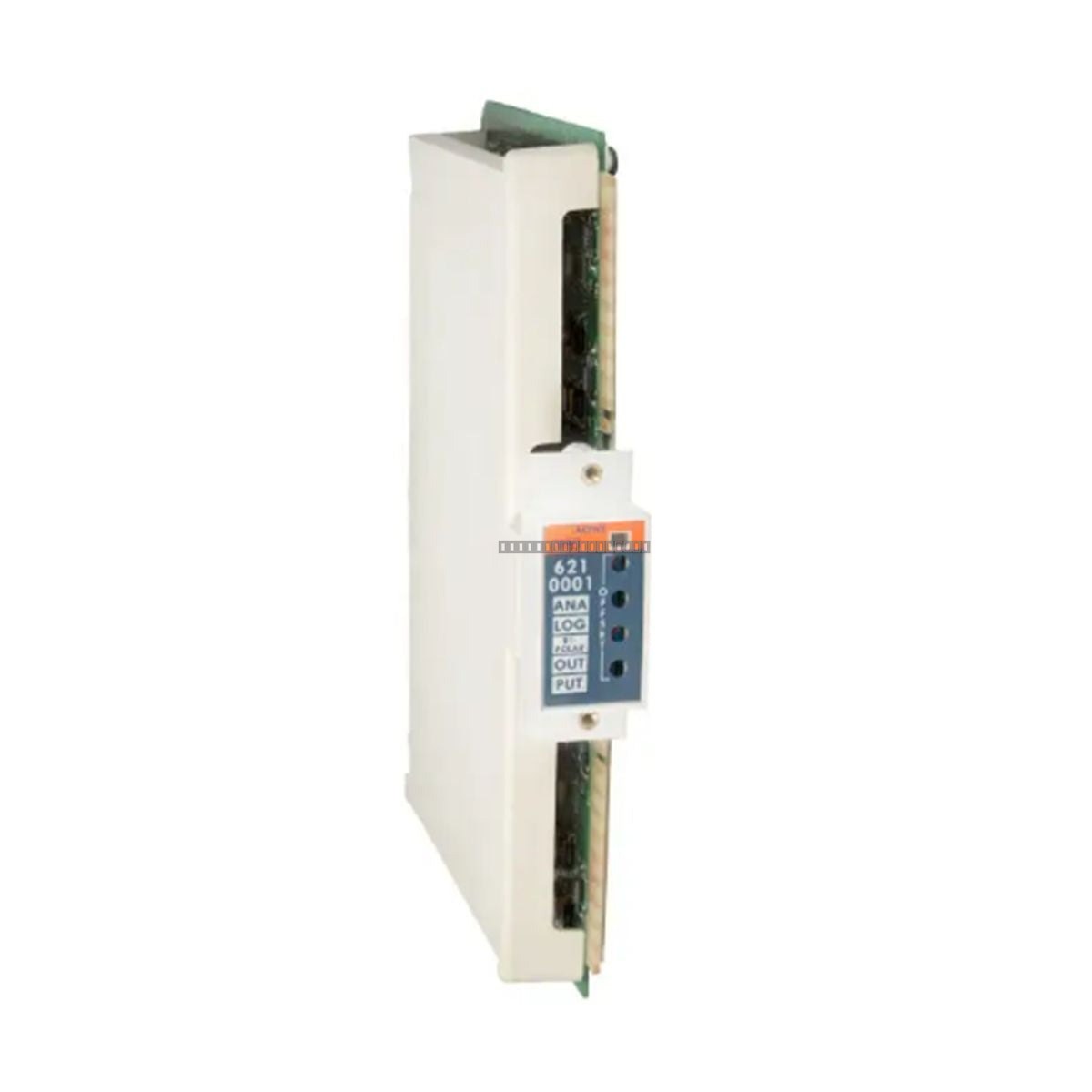

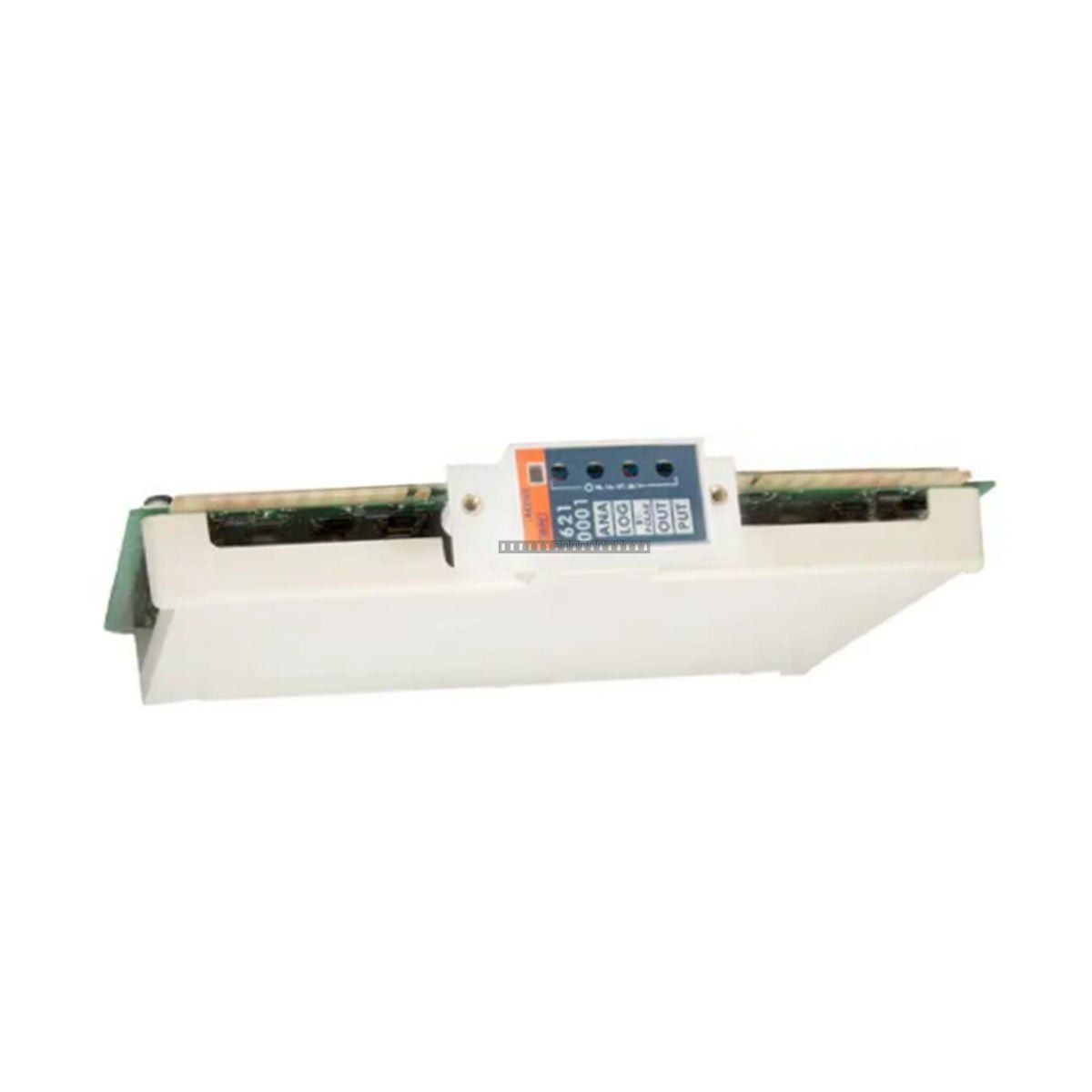

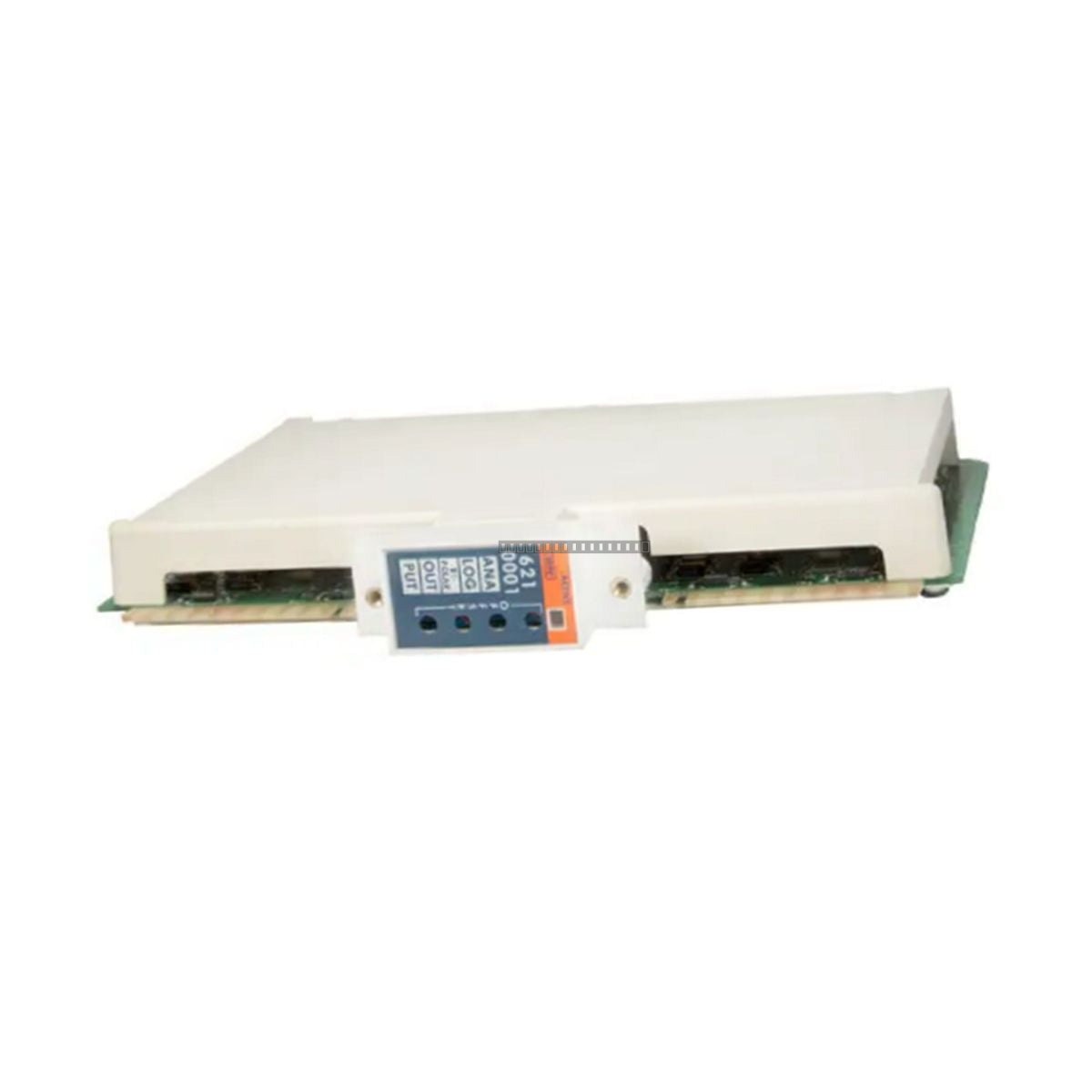

The Honeywell 621-0001 is an analog output module within the 621 Series, engineered for industrial process control systems that require stable and precise current or voltage signal conversion. This module serves as a critical interface between controller logic and field-level actuators, such as valves and drives. It is designed to maintain signal integrity in electrically noisy environments, ensuring consistent operation and minimizing the risk of unplanned process interruptions. The module features a compact, rack-based design that facilitates integration into distributed control architectures, allowing for efficient maintenance and rapid replacement.
Features
-
Signal Conversion: Provides reliable digital-to-analog signal conversion for precise control of field devices.
-
Isolated Channel Design: Incorporates internal isolation to minimize cross-channel interference and enhance signal stability.
-
Rack-Mounted Integration: Designed for standard backplane installation, enabling plug-in deployment without extensive rewiring.
-
Robust Performance: Engineered for continuous operation in demanding industrial environments, including refineries and power plants.
-
Linear Response: Internal conditioning circuits ensure linear output characteristics across varying load conditions.
Applications
The 621-0001 module is typically utilized in:
- Refinery control loops and process automation.
- Power plant auxiliary systems.
- Mining and heavy industry process regulation.
- Legacy and hybrid automation system upgrades where reliable analog interfacing is required.
Technical Specifications
| Model |
621-0001 |
| Series |
621 Series |
| Product Type |
Analog Output Module |
| Operating Temperature |
0 to 60 deg C |
| Power Consumption |
Approx 3 W |
| Mounting |
Rack-mounted backplane |
Installation Guidelines
-
Power Down: Always disconnect power to the rack before inserting or removing the module to prevent electrical damage.
-
ESD Protection: Handle the module using proper electrostatic discharge (ESD) prevention measures, such as wearing a grounded wrist strap.
-
Backplane Seating: Ensure the module is firmly seated in the rack slot to guarantee proper electrical contact with the backplane.
-
Signal Wiring: Use shielded cables for analog signal runs to minimize EMI/RFI interference. Ensure cable shields are grounded at the appropriate termination point.
-
Environment: Install in a clean, dry environment within the specified temperature range of 0 to 60 deg C. Provide adequate ventilation within the control cabinet to prevent heat buildup.
FAQ
What is the primary function of the Honeywell 621-0001?
The 621-0001 is an analog output module that converts digital control signals from the PLC backplane into proportional analog signals to drive field devices like valves, actuators, and variable frequency drives.
Is this module compatible with existing 621 Series racks?
Yes, the 621-0001 is designed for rack-mounted integration within the Honeywell 621 platform, allowing for plug-in installation into existing backplane architectures.
Does this module require external power?
The module is powered via the backplane connection. It has a power consumption of approximately 3 W during standard operation.
