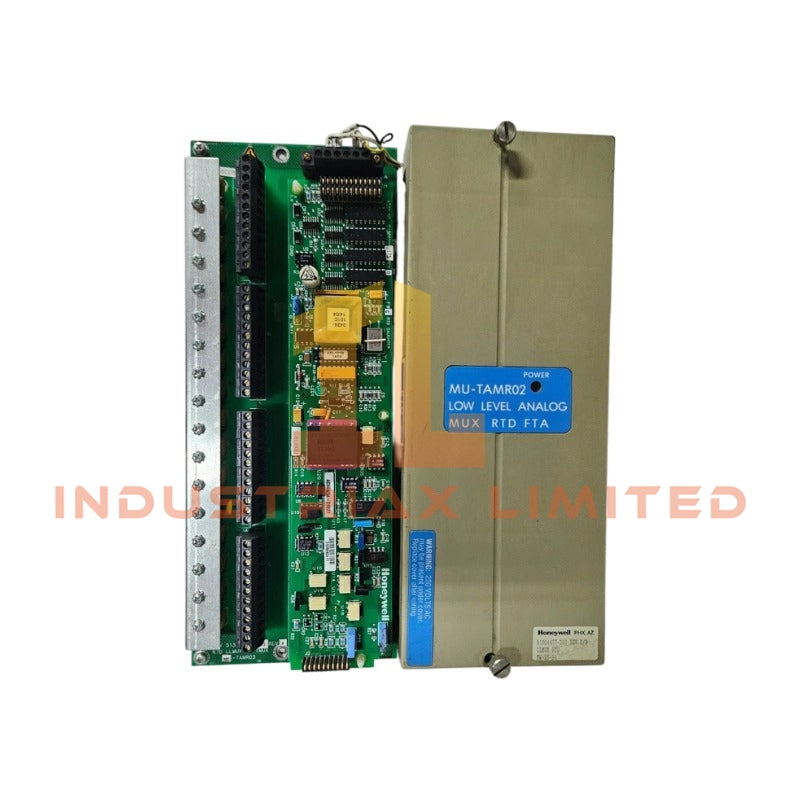

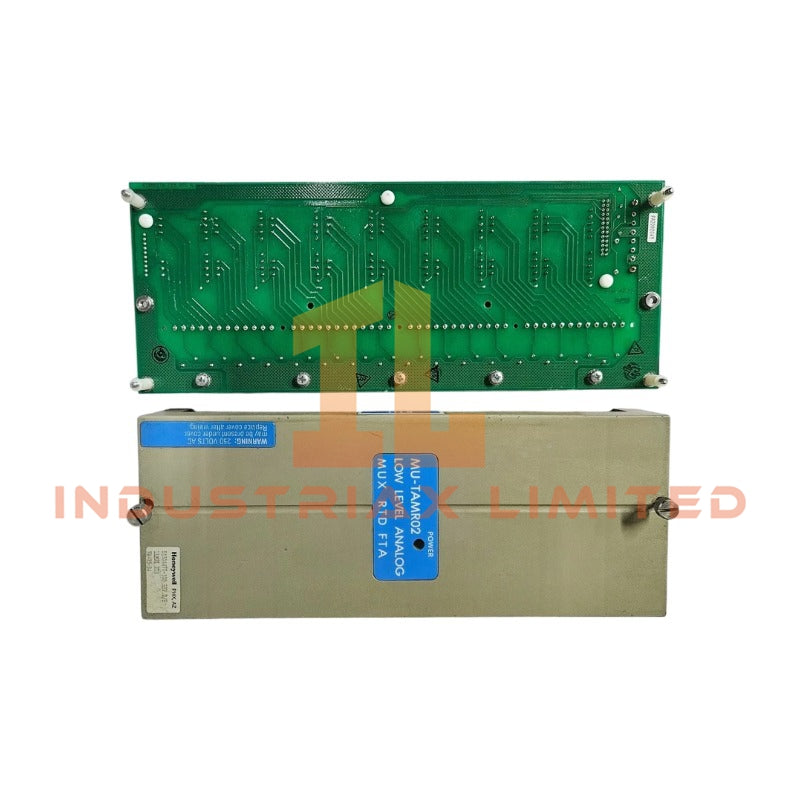

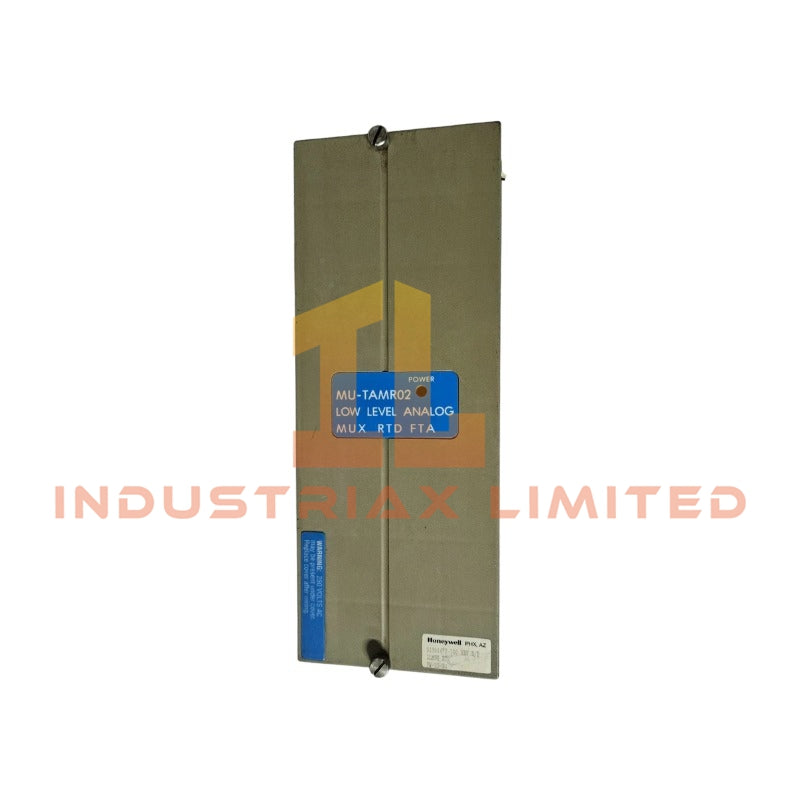

Honeywell 51304477-100 Low-Level Analog Input / Relay Multiplexer Module

The Honeywell 51304477-100, also cataloged as the MU-TAMR02 Low-Level Analog Input / Relay Multiplexer Module, performs low-level sensor signal conditioning and multiplexing within Honeywell TDC 3000 and Experion PKS Process Manager I/O architectures.

Hardware Specifications

Parameter	Specification
Model	MU-TAMR02
Brand	Honeywell
Origin	USA
Module Type	Low-Level Analog Input / Relay Multiplexer Module
System Compatibility	Honeywell TDC 3000, High-Performance Process Manager (HPM), Experion PKS PMIO
Input Signal Types	Thermocouples, RTDs, mV low-level analog signals
Signal Processing Function	Low-level analog signal conditioning and relay multiplexing
Channel Isolation	Electrical isolation between field input circuits and control system interfaces
Power Supply Requirements	System supplied through I/O chassis backplane, 24 VDC system power
Mounting	Honeywell TDC 3000 cabinet rack and I/O file structure
Operating Temp	0 deg C to +60 deg C
Storage Temperature	-40 deg C to +85 deg C
Relative Humidity	5% to 95% non-condensing
Power Consumption	System backplane supplied, exact value not specified

DCS Signal Conditioning and Channel Isolation

The Honeywell 51304477-100 module processes low-level analog signals from temperature measurement devices and transfers conditioned data to the Process Manager I/O subsystem. It accepts RTD, thermocouple, and millivolt signals while reducing field wiring complexity through multiplexed channel handling.

In addition, the module provides channel-to-channel isolation to limit interference from ground loops, transient voltages, and field-side electrical disturbances. This isolation design supports Honeywell DCS architectures where accurate analog acquisition and controlled signal transmission are required.

For Honeywell process instrumentation applications, the module architecture supports temperature input handling with cold junction compensation (CJC) compatibility when thermocouple measurement circuits are configured through the associated I/O processing hardware.

Frequently Asked Questions

Q: What field signals can the Honeywell 51304477-100 process?
A: The module processes low-level analog signals including RTD inputs, thermocouple inputs, and millivolt sensor signals through Honeywell TDC 3000 and Experion PKS PMIO systems.

Q: Does the 51304477-100 provide electrical isolation between field devices and controllers?
A: Yes. The module provides isolation functions that reduce field-side interference effects and help protect controller-side interfaces from electrical disturbances.

Q: Can the module operate as a standalone analog input device?
A: No. The 51304477-100 operates as an interface module within the Honeywell I/O architecture and requires connection to the supported I/O chassis and processing system.

Field Installation Guidelines

• Install the module inside the specified Honeywell TDC 3000 cabinet rack or I/O file assembly.
• Verify that the I/O chassis provides the required 24 VDC system backplane power before installation.
• Disconnect field wiring power sources before removing or installing the module.
• Use shielded cables for low-level analog signals to reduce electromagnetic interference.
• Terminate cable shields according to the plant grounding standard and avoid multiple grounding points that may introduce ground loops.
• Separate low-level analog wiring from high-voltage power cables and switching circuits.
• Confirm correct thermocouple polarity, RTD wiring configuration, and signal channel assignment before commissioning.
• When replacing an active module, place the associated process loop into a safe maintenance state and follow standard ESD protection procedures.
