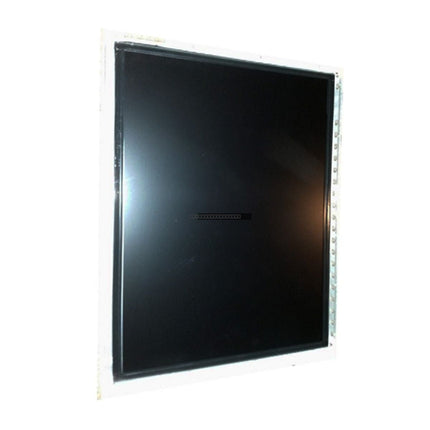

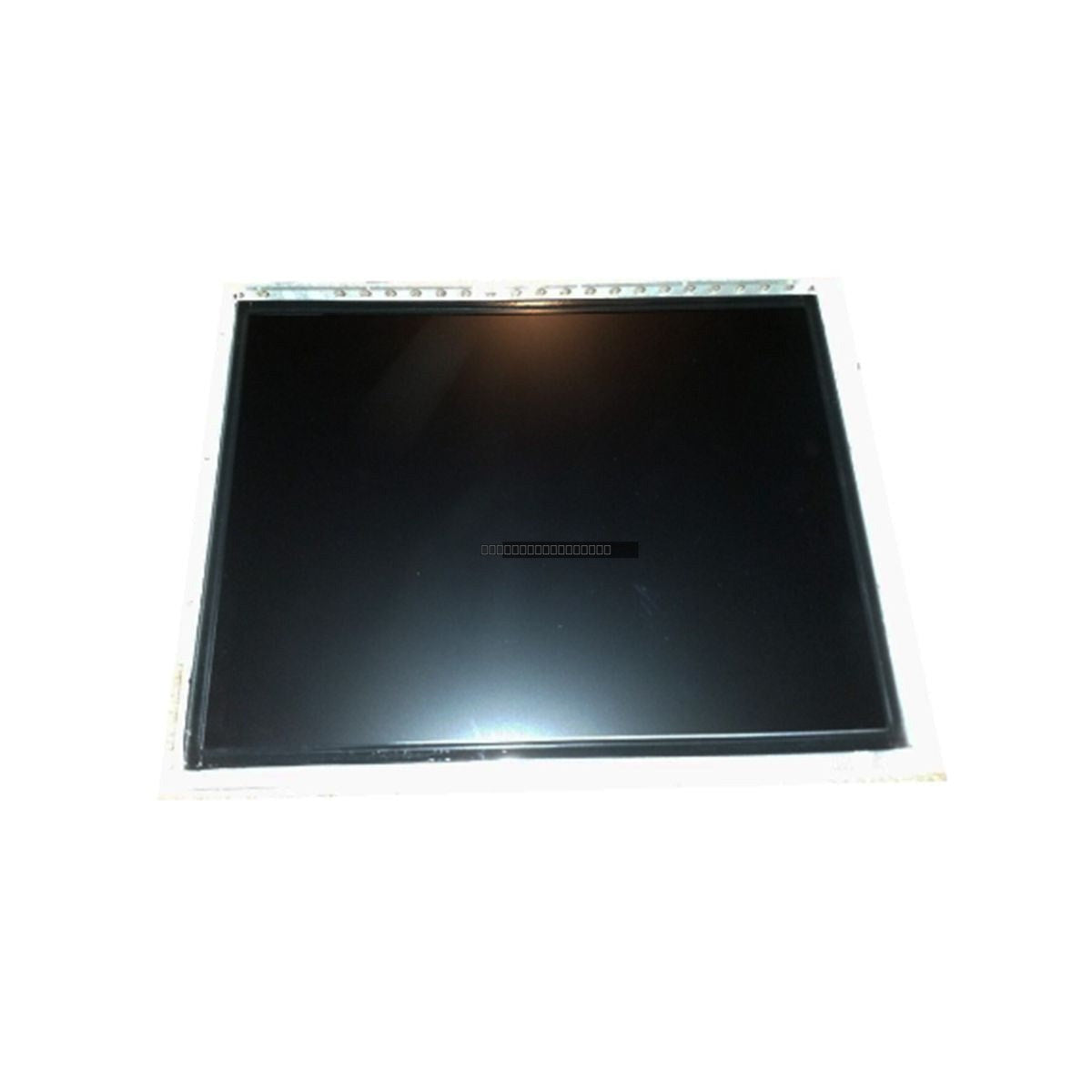

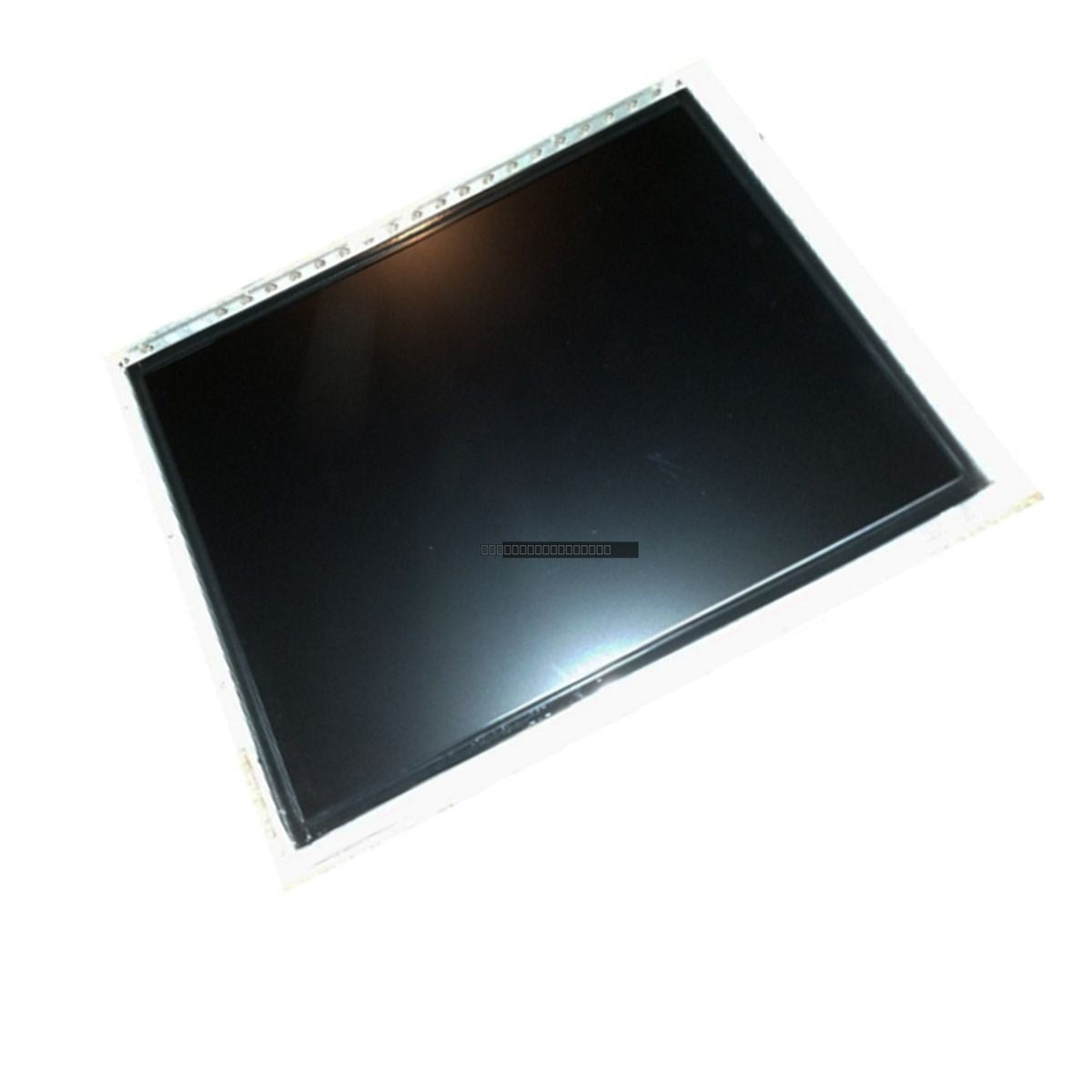

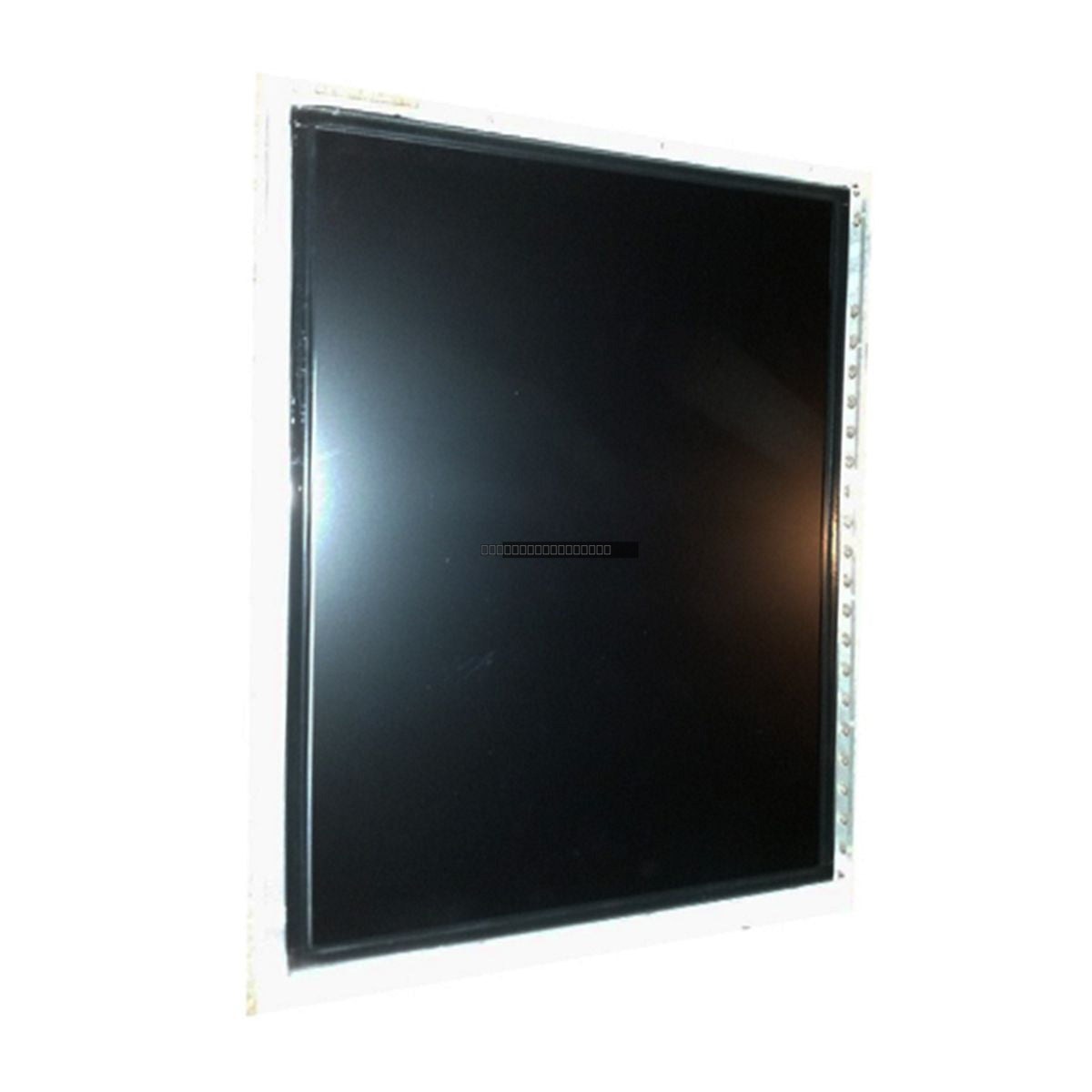

The Honeywell 51199194-100 is a 20.1-inch industrial LCD flat panel display engineered specifically for Z-Console Universal Station environments. This operator interface module serves as a critical visualization component within Honeywell Experion PKS and legacy distributed control system (DCS) platforms. It provides high-reliability monitoring of process graphics, alarm management, and operator control inputs in demanding industrial environments.
Features
- 20.1-inch active display area optimized for industrial HMI visualization.
- Designed for continuous 24-hour duty cycles in control room environments.
- Engineered for integration with Z-Console Universal Station architectures.
- Robust mechanical design for stable panel or rack mounting.
- Supports deterministic screen refresh performance for high-density process graphics and alarm flooding.
Applications
This display module is widely utilized in continuous process industries, including oil refining, petrochemical processing, and power generation facilities. It is primarily deployed in legacy control room environments where specific panel dimensions and interface compatibility are required for ongoing system maintenance and operational supervision.
Technical Specifications
| Model |
51199194-100 |
| Display Size |
20.1 inch diagonal |
| Display Type |
LCD Flat Panel |
| Operating Temperature |
0 deg C to 50 deg C |
| Storage Temperature |
-20 deg C to 70 deg C |
| Power Consumption |
40 W to 80 W (typical) |
| Lifecycle Status |
Discontinued |
Installation Guidelines
- Ensure the mounting surface is clean, level, and capable of supporting the weight of the display unit.
- Verify that the control room environment remains within the specified operating temperature range of 0 deg C to 50 deg C to prevent backlight degradation.
- Ensure proper ventilation around the rear of the unit to dissipate heat generated during continuous operation.
- Use shielded video cables to minimize electromagnetic interference (EMI) in the control room environment.
- Always power down the workstation and disconnect the power supply before performing installation, removal, or cable maintenance.
- Handle with care to avoid damage to the LCD surface; use ESD-safe practices when connecting internal interface cables.
FAQ
Is this display compatible with modern non-Honeywell workstations?
The 51199194-100 is designed specifically for Honeywell Z-Console Universal Station environments. It utilizes legacy industrial video interfaces that may not be compatible with standard commercial-off-the-shelf (COTS) PC hardware without specialized adapters or signal converters.
Can this unit be used in outdoor field environments?
No, this unit is designed for climate-controlled industrial control room environments. It is not rated for outdoor use, high humidity, or extreme temperature fluctuations.
