Description

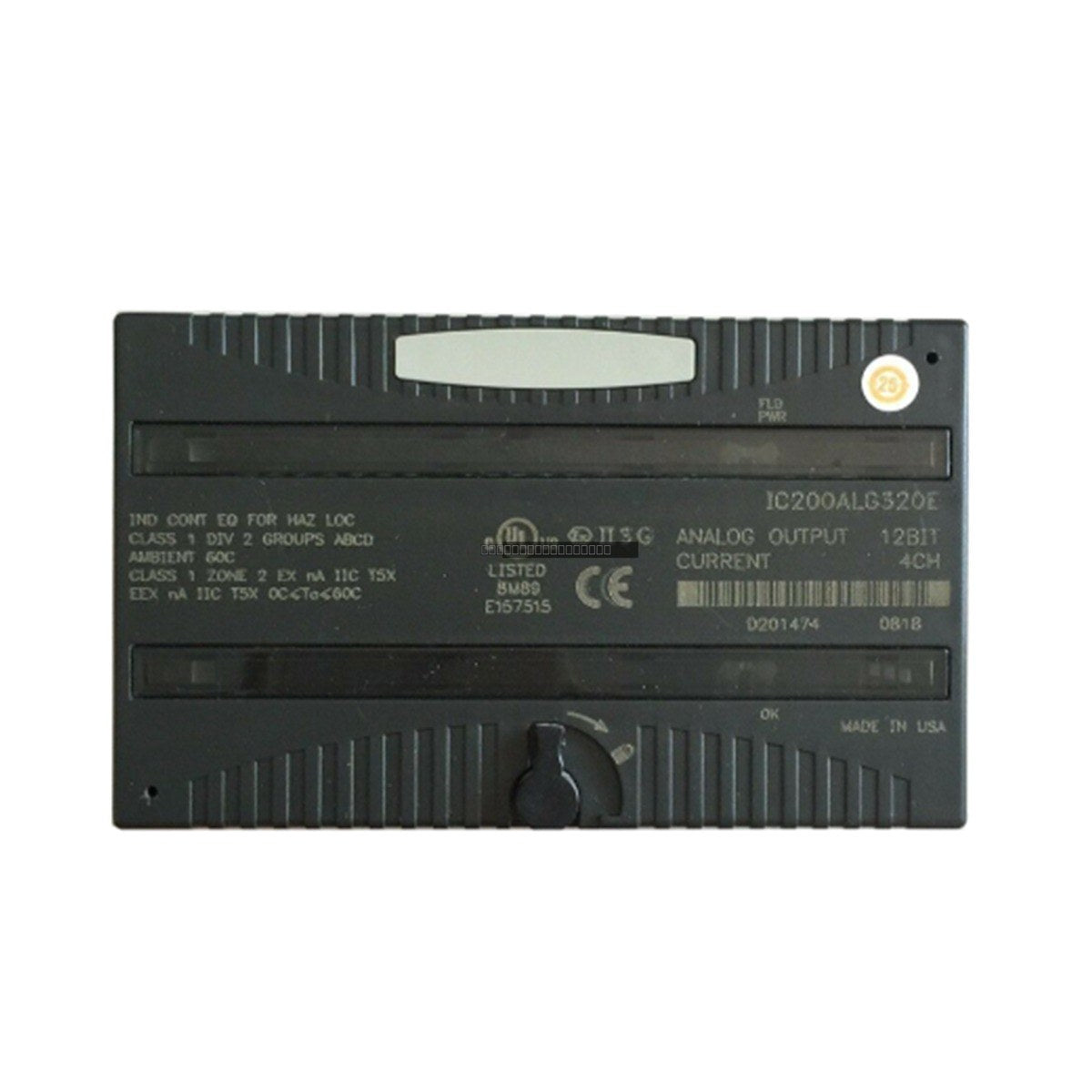

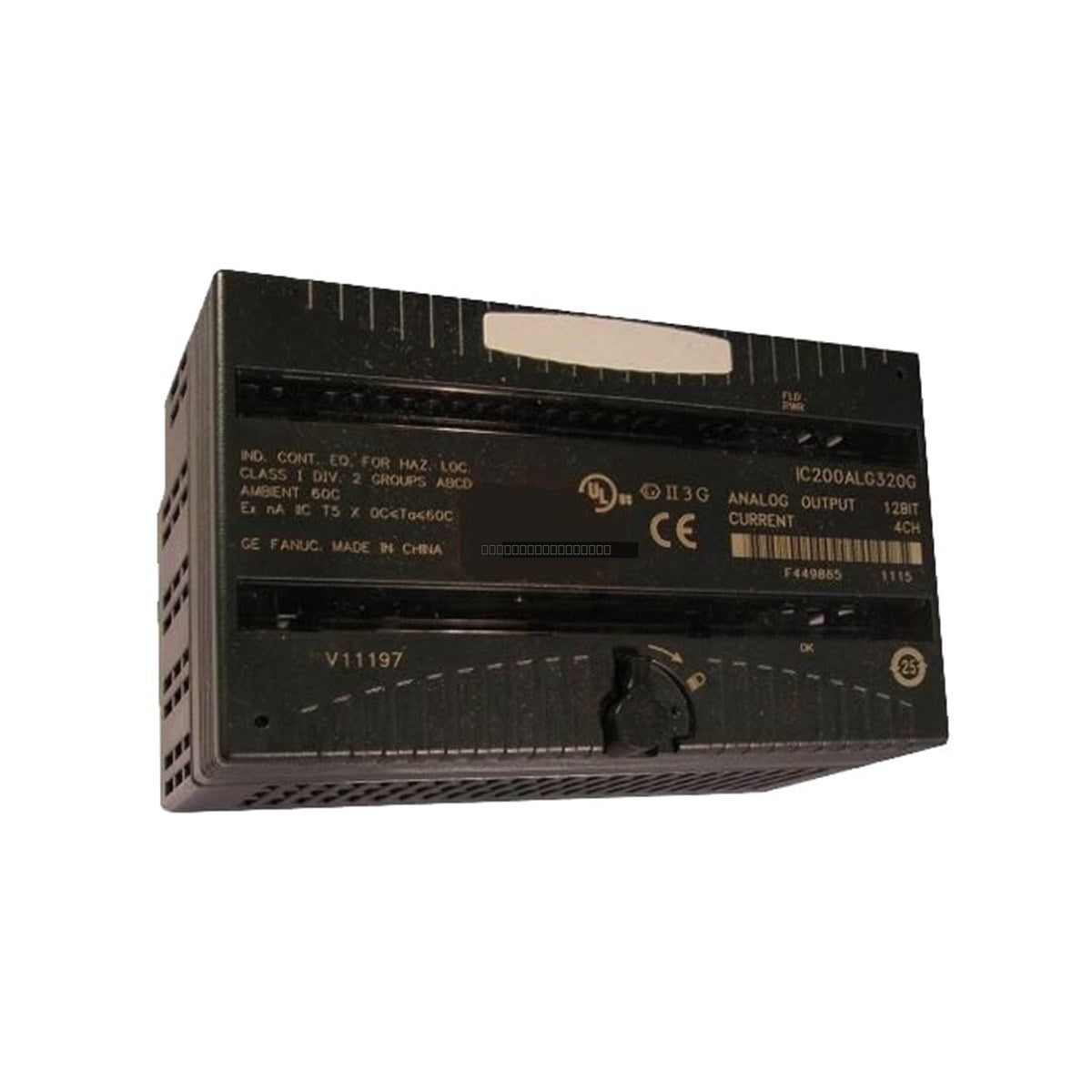

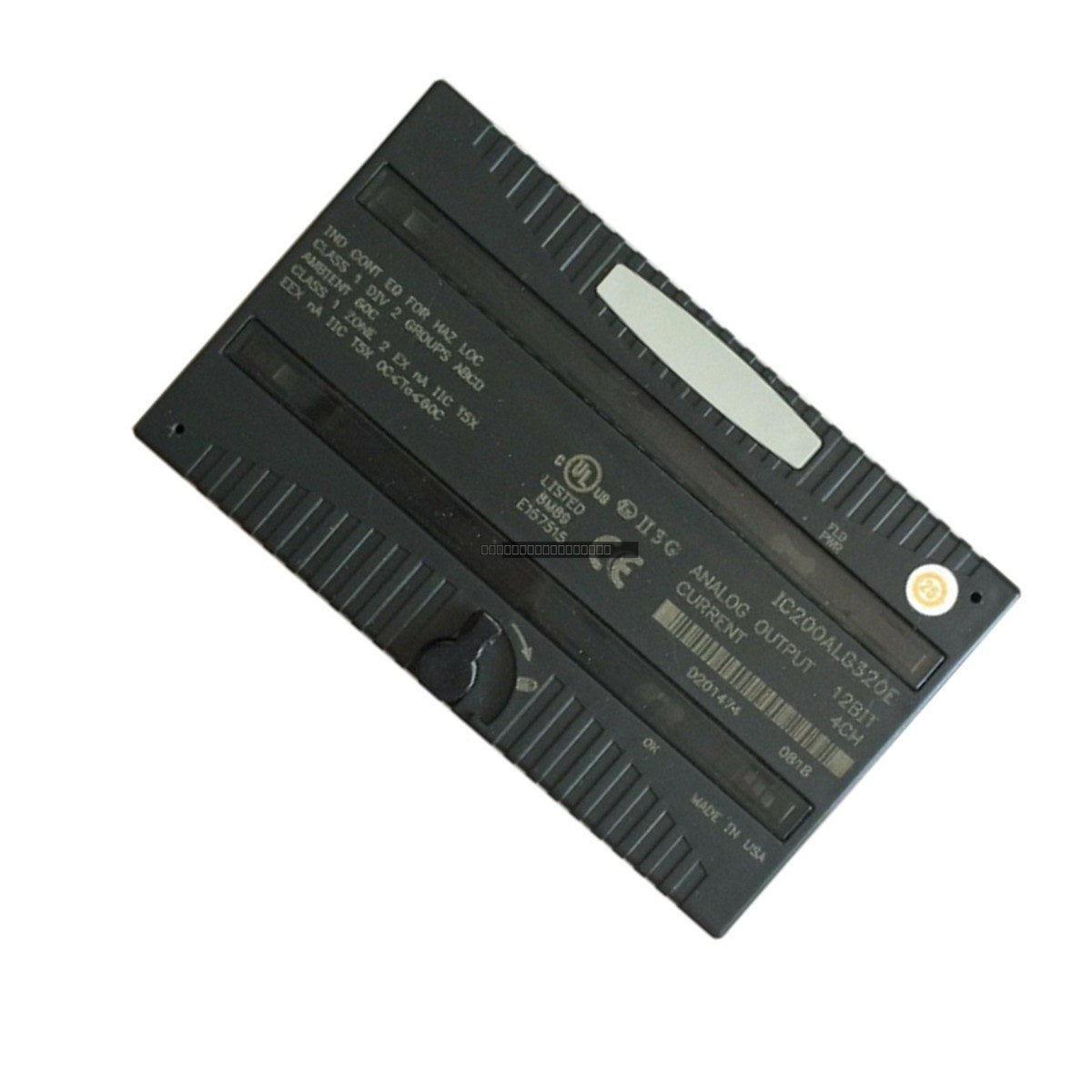

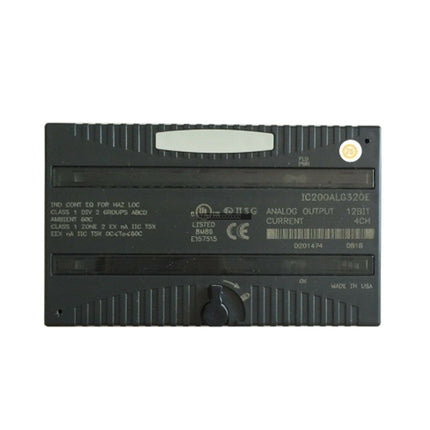

The General Electric IC200ALG320J is a high-performance analog output module designed for the VersaMax I/O system. This module provides four single-ended analog output channels, configured as a single group, to facilitate precise control of field devices in industrial automation environments. It is engineered to deliver reliable signal conversion and output regulation, ensuring consistent process control performance.
Features
- Four single-ended analog output channels.
- Supports a standard 4-20 mA current output range.
- Fast update rate of 0.3 ms for responsive control loops.
- Integrated LED status indicators for Field Power (FLD PWR) and module health (OK).
- Low power consumption, drawing 50 mA from the 5V backplane bus.
- Designed for seamless integration into the VersaMax modular I/O architecture.
Technical Specifications
| Model |
IC200ALG320J |
| Manufacturer |
General Electric |
| Number of Channels |
4 single-ended (one group) |
| Output Current Range |
4 - 20 mA |
| Voltage Range |
18 - 30 VDC |
| Update Rate |
0.3 ms |
| Power Consumption |
50 mA from 5V bus |
| Indicators |
FLD PWR, OK |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module from the I/O rack.
- Verify that the module is fully seated in the carrier to ensure proper backplane connection.
- Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
- Maintain proper grounding practices for the I/O rack to protect against electrical noise and surges.
- Ensure adequate ventilation in the control cabinet to maintain operating temperatures within specified limits.
- Handle the module using ESD-safe procedures to prevent damage to sensitive internal components.
FAQ
What is the primary function of the IC200ALG320J?
This module is an analog output unit used in the VersaMax system to convert digital data from the PLC into 4-20 mA current signals for controlling field devices such as actuators, valves, or variable frequency drives.
Does this module require external power?
Yes, the module requires an external field power supply within the 18-30 VDC range to drive the analog output channels.
How are the channels configured?
The module features four single-ended channels that share a common group, providing a compact solution for multi-channel analog control.
