Description

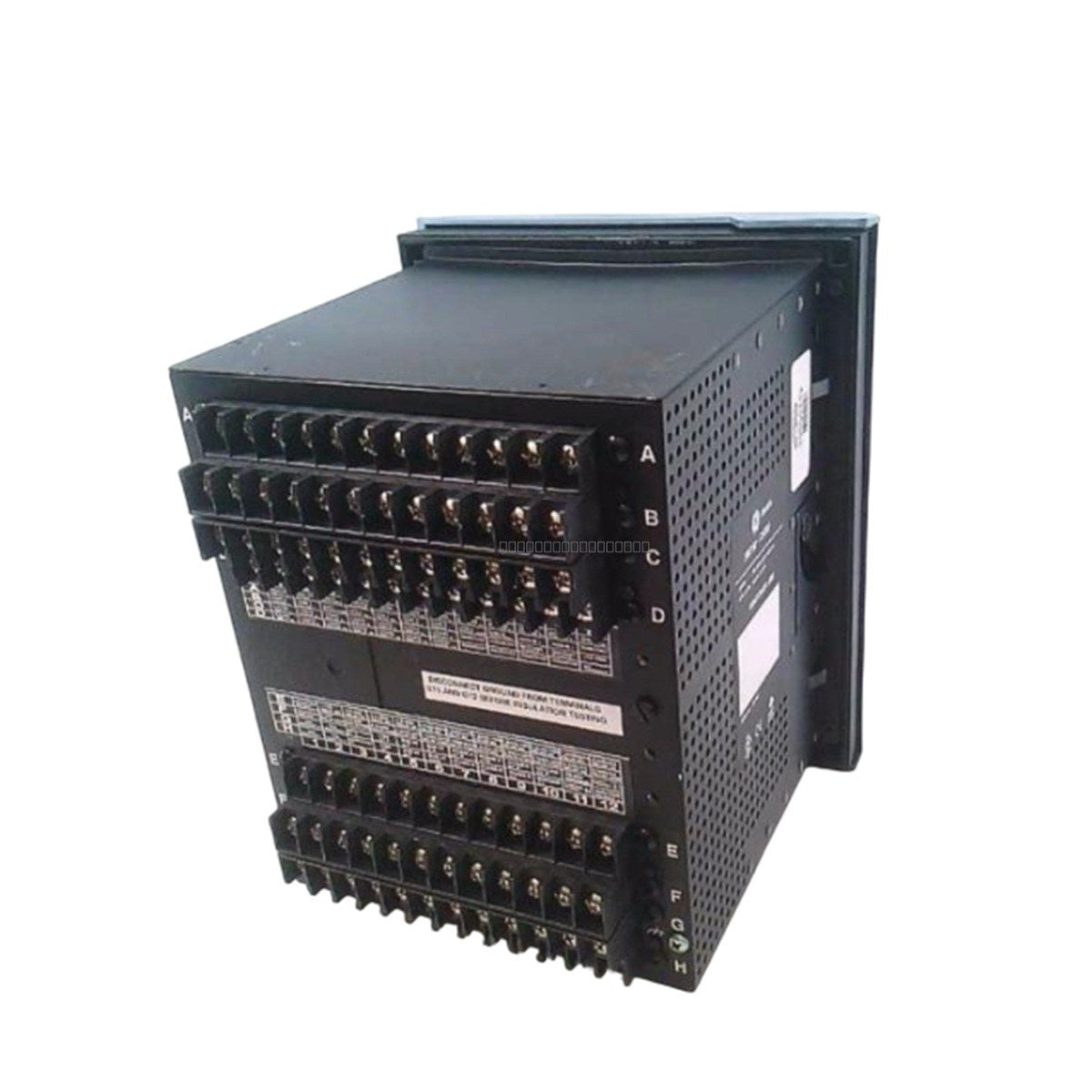

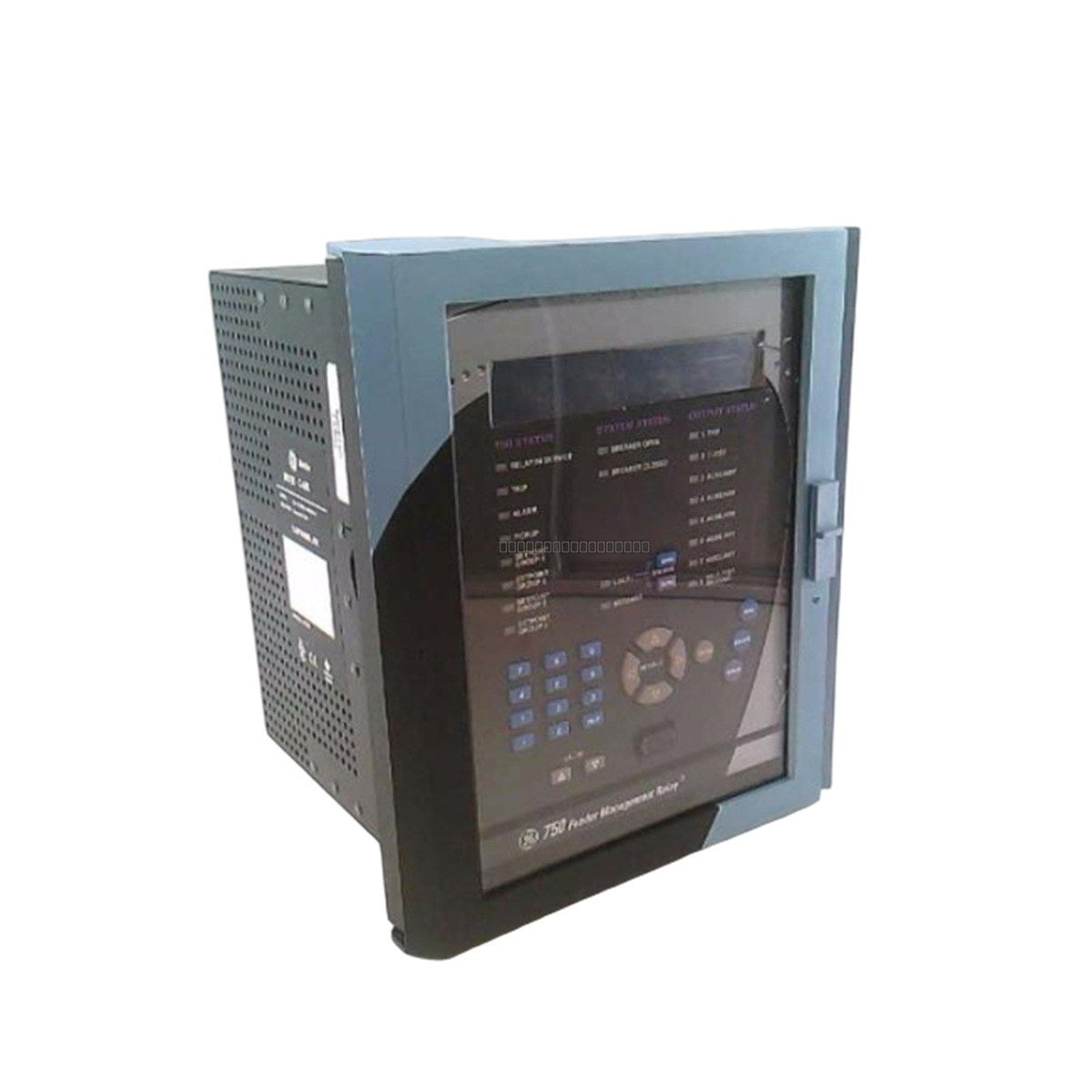

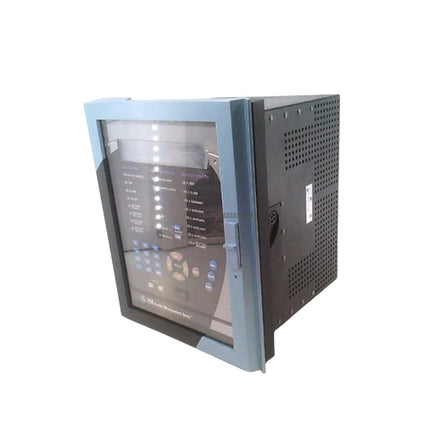

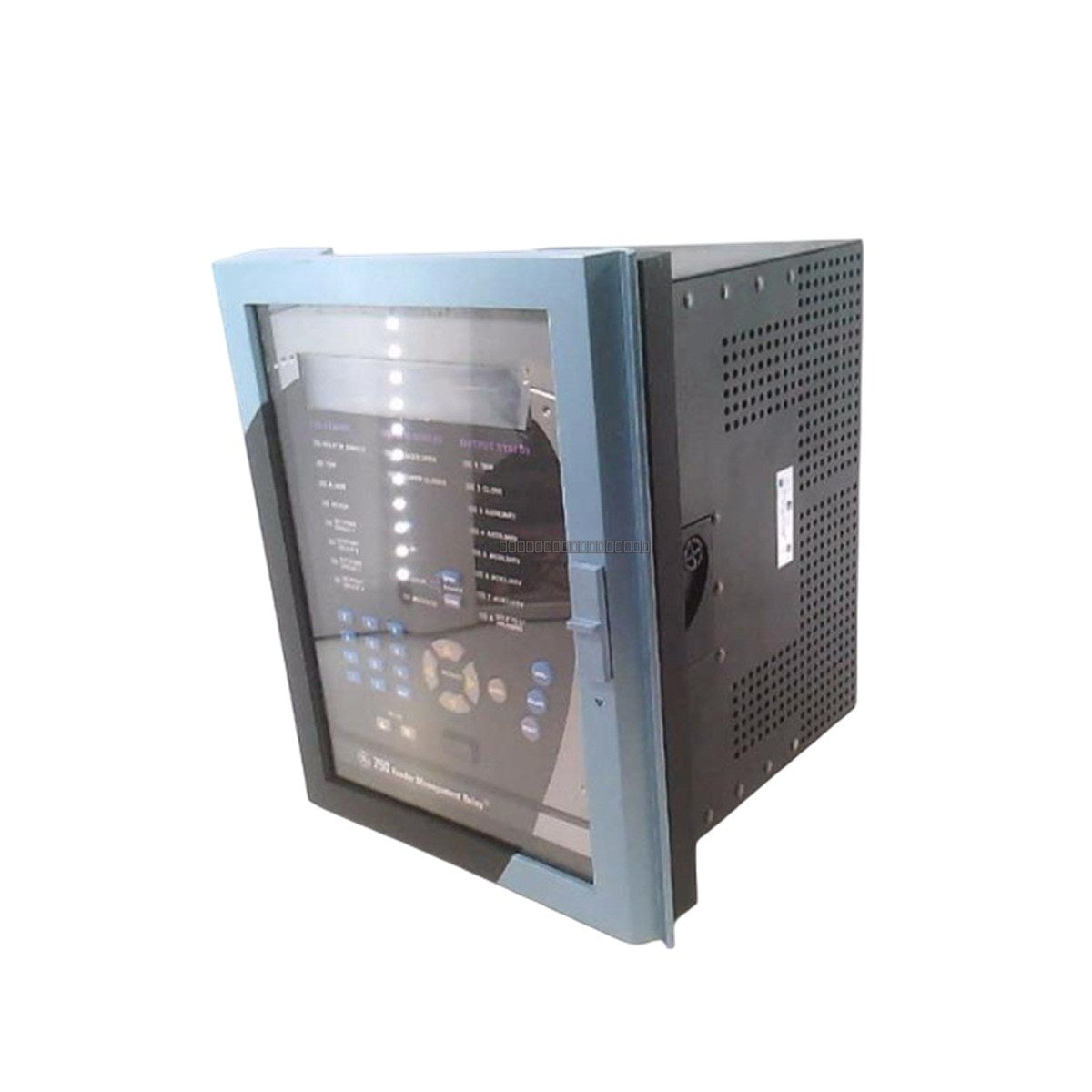

The General Electric Multilin 750-P5-G5-HI-A1-R-E is a high-performance Feeder Management Relay from the SR750 series. Designed for the protection, control, and monitoring of electrical distribution feeders, this relay provides comprehensive protection features for industrial and utility power systems. It features advanced metering capabilities and flexible communication options to ensure reliable operation in demanding electrical environments.
Features
- Phase current input: 5 Amp
- Ground current input: 5 Amp Zero Sequence
- Sensitive current input: 5 Amp
- Wide range power supply: 80-300 V DC or 70-265 V AC (48/62 Hz)
- Analog output: Eight 4-20 mA channels
- Visual indication: Red LED for breaker closed status
- Fully isolated outputs for enhanced noise immunity
- High-speed response: 100% indication in less than 3 power system cycles
Technical Specifications
| Product Model |
750-P5-G5-HI-A1-R-E |
| Manufacturer |
General Electric |
| Power Consumption |
25 VA nominal, 35 VA maximum |
| Make and Carry |
15 A @ 250 VDC for 500 ms |
| Accuracy |
+/- 1% of full scale |
| Voltage Loss Hold-up Time |
30 ms |
| Operating Temperature |
-40 degC to +60 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Humidity |
Up to 95% (non-condensing) @ 55 degC |
Installation Guidelines
- Ensure the relay is installed in a clean, dry environment protected from excessive dust and moisture.
- Verify that the control power supply matches the specified voltage range (80-300 V DC or 70-265 V AC) before applying power.
- Use shielded cables for analog inputs and outputs to minimize electromagnetic interference (EMI).
- Ensure proper grounding of the relay chassis to the panel ground bus to maintain signal integrity and safety.
- Perform all wiring connections while the system is de-energized to prevent accidental short circuits or damage to the internal electronics.
- Maintain adequate clearance around the unit to allow for proper heat dissipation and airflow.
FAQ
What is the primary function of the 750-P5-G5-HI-A1-R-E relay?
This unit is a feeder management relay designed to provide protection, control, and monitoring for electrical distribution systems, specifically handling phase, ground, and sensitive current inputs.
Does this relay require a specific power supply?
Yes, this model supports a wide range of input power, specifically 80-300 V DC or 70-265 V AC at 48/62 Hz.
What is the ambient operating temperature range?
The device is rated for operation in temperatures ranging from -40 degC to +60 degC.
