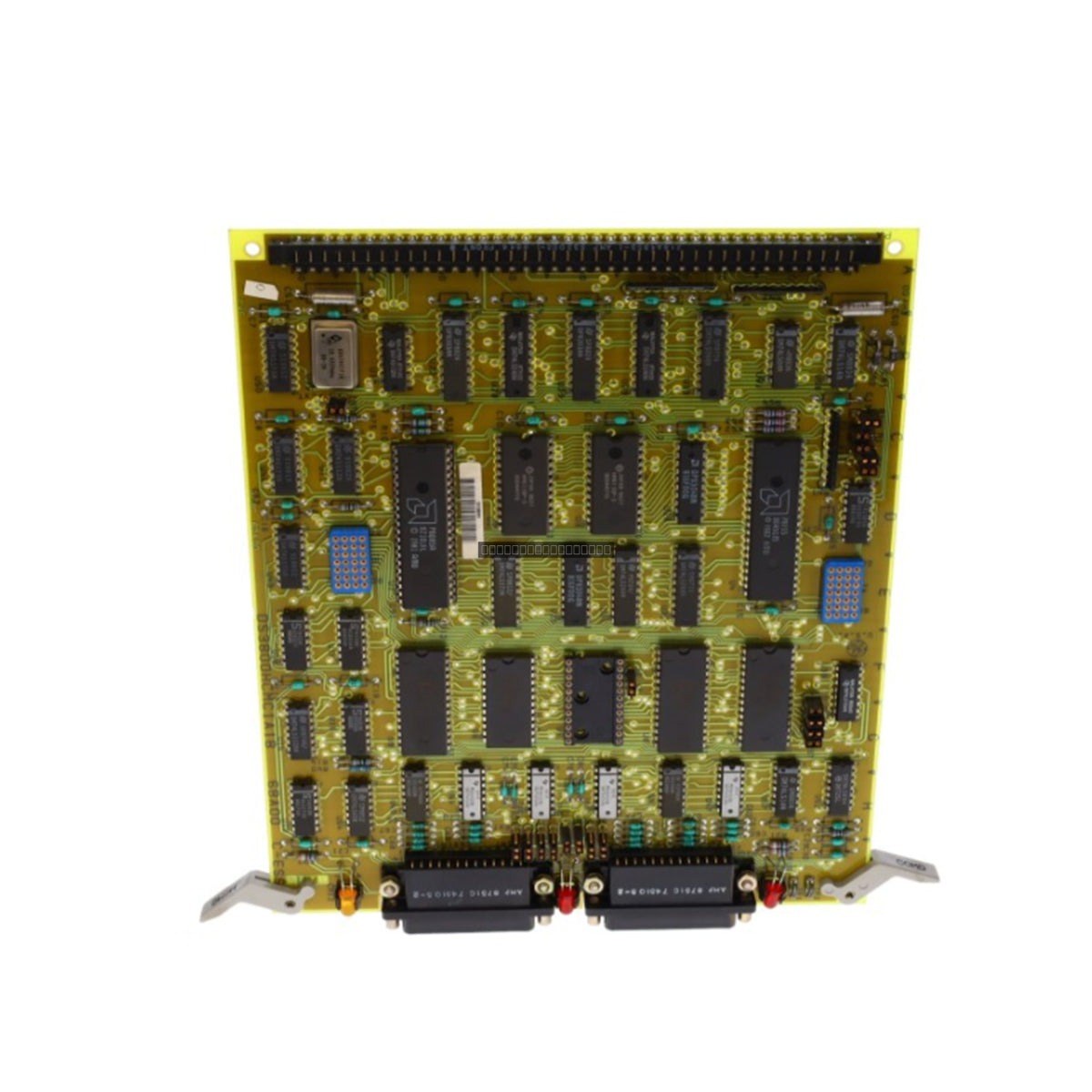

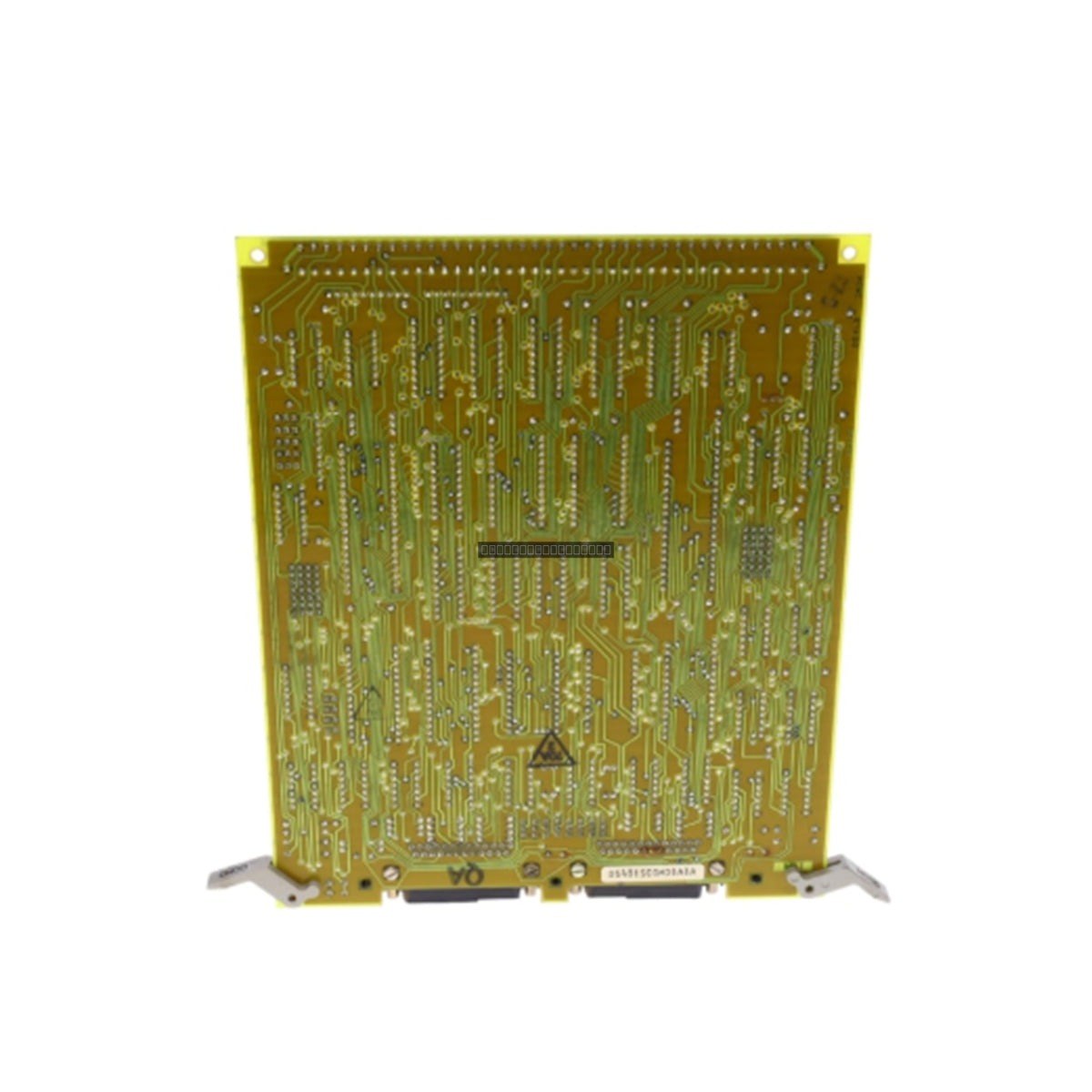

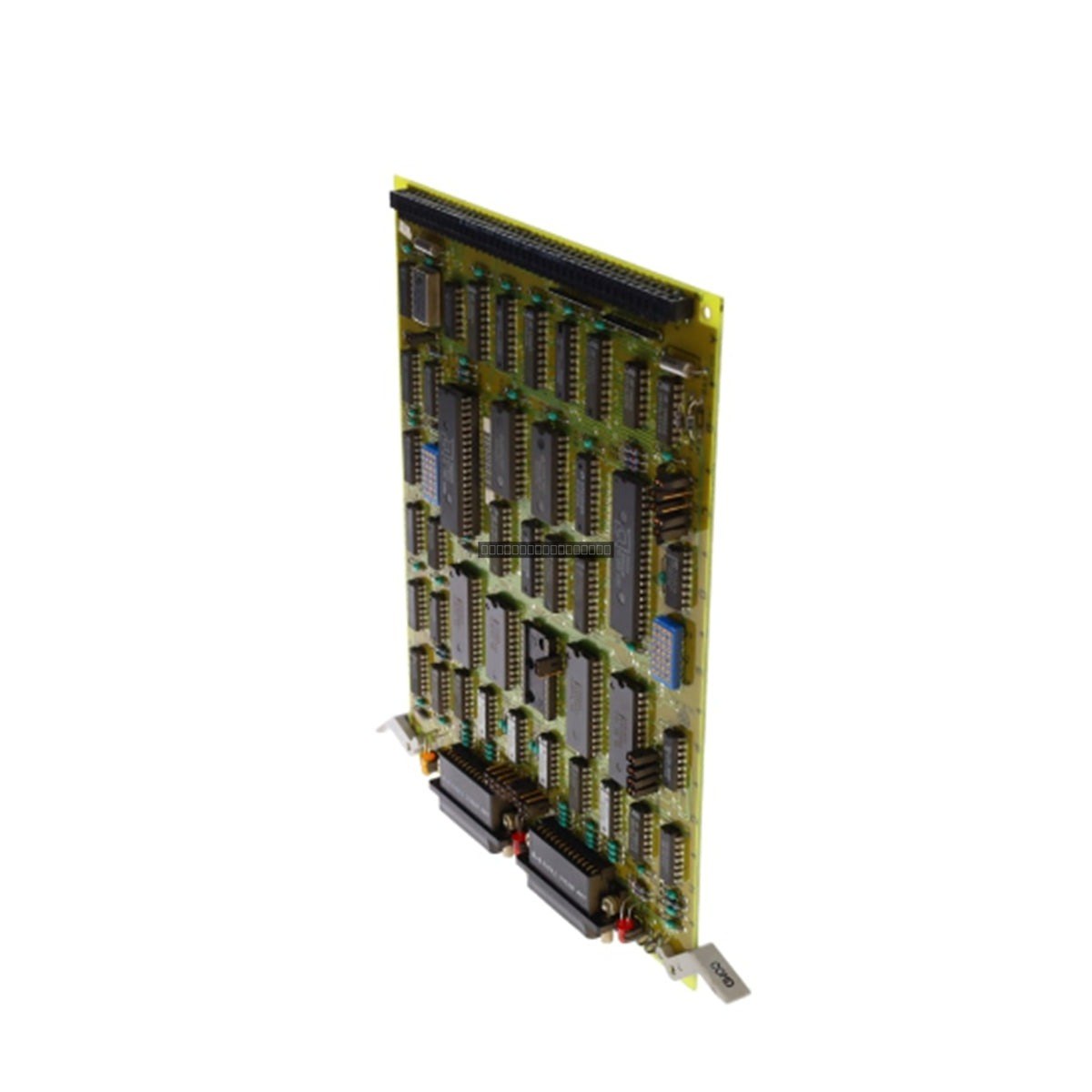

The DS3800HCMC1A1B is a dual-port isolation CAN communication card designed for the General Electric Speedtronic Mark IV gas turbine control system. This module provides high-speed, reliable data exchange across CAN networks in demanding industrial environments, such as power generation and petrochemical facilities. By utilizing high-tier galvanic isolation, the card protects sensitive control logic from voltage spikes, ground loops, and electromagnetic interference (EMI), ensuring system stability and minimizing downtime.
Features
- Dual-port configuration for independent network interfacing.
- Supports CAN 2.0A, CAN 2.0B, and CAN FD protocols.
- High-level galvanic isolation (1500 V to 2500 V) for signal integrity.
- Integrated 64-byte buffer memory to manage data flow and prevent overflow.
- Versatile power requirements with 3.3 V or 5 V logic supply support.
- Robust switching capability for field-side loads up to 250 VAC or 30 VDC.
Applications
This communication card is specifically engineered for use within the GE Mark IV turbine control architecture. It is suitable for critical control loops requiring noise-resistant communication between controllers, I/O nodes, and field instrumentation in heavy industrial settings.
Technical Specifications
| Model |
DS3800HCMC1A1B |
| Series |
Speedtronic Mark IV |
| Protocol Support |
CAN 2.0A, 2.0B, CAN FD |
| Ports |
2 (Dual independent) |
| Isolation Rating |
1500 V - 2500 V |
| Buffer Memory |
64-byte |
| Operating Voltage |
3.3 V / 5 V |
| Switching Voltage |
250 VAC / 30 VDC |
| Operating Temperature |
-20 to +70 deg C |
| Storage Temperature |
-40 to +85 deg C |
| Mounting |
DIN Rail or Rack Mount |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module to prevent electrical damage.
- Handle the card using ESD-safe practices to protect sensitive internal components.
- Ensure the module is securely seated in the rack or snapped firmly onto the DIN rail.
- Route communication cabling away from high-voltage power lines and high-EMI sources to maintain signal integrity.
- Verify that the logic supply voltage (3.3 V or 5 V) is correctly configured for the specific slot application.
FAQ
What is the primary function of the DS3800HCMC1A1B?
It acts as a dual-port CAN communication interface for the Mark IV control system, providing isolated, high-speed data transmission between control components.
Does this card support CAN FD?
Yes, the card is designed to support CAN 2.0A, 2.0B, and CAN FD protocols.
How is the card mounted?
The module is designed for flexible deployment and supports both standard DIN-rail mounting and rack-mount configurations within the control cabinet.
