Description

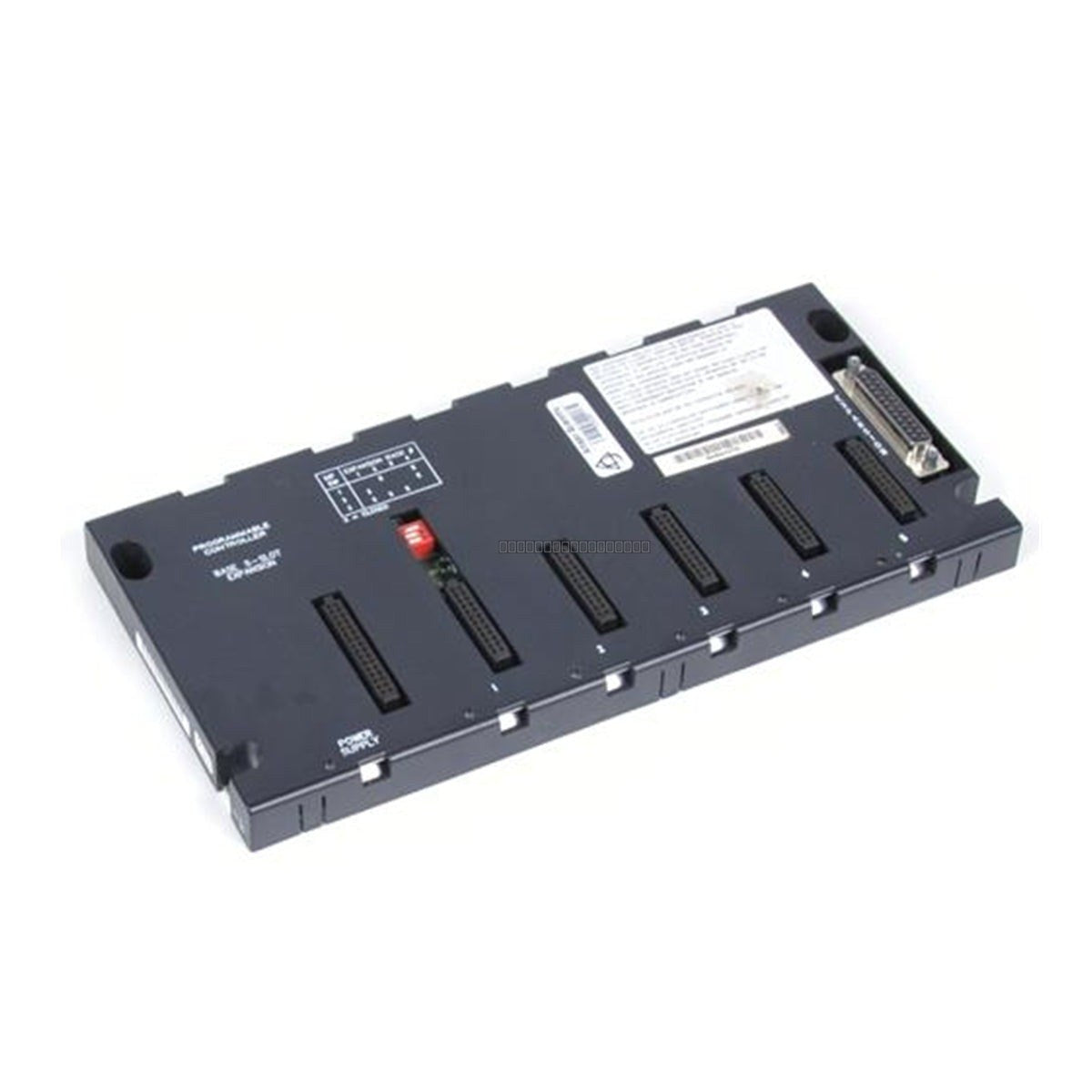

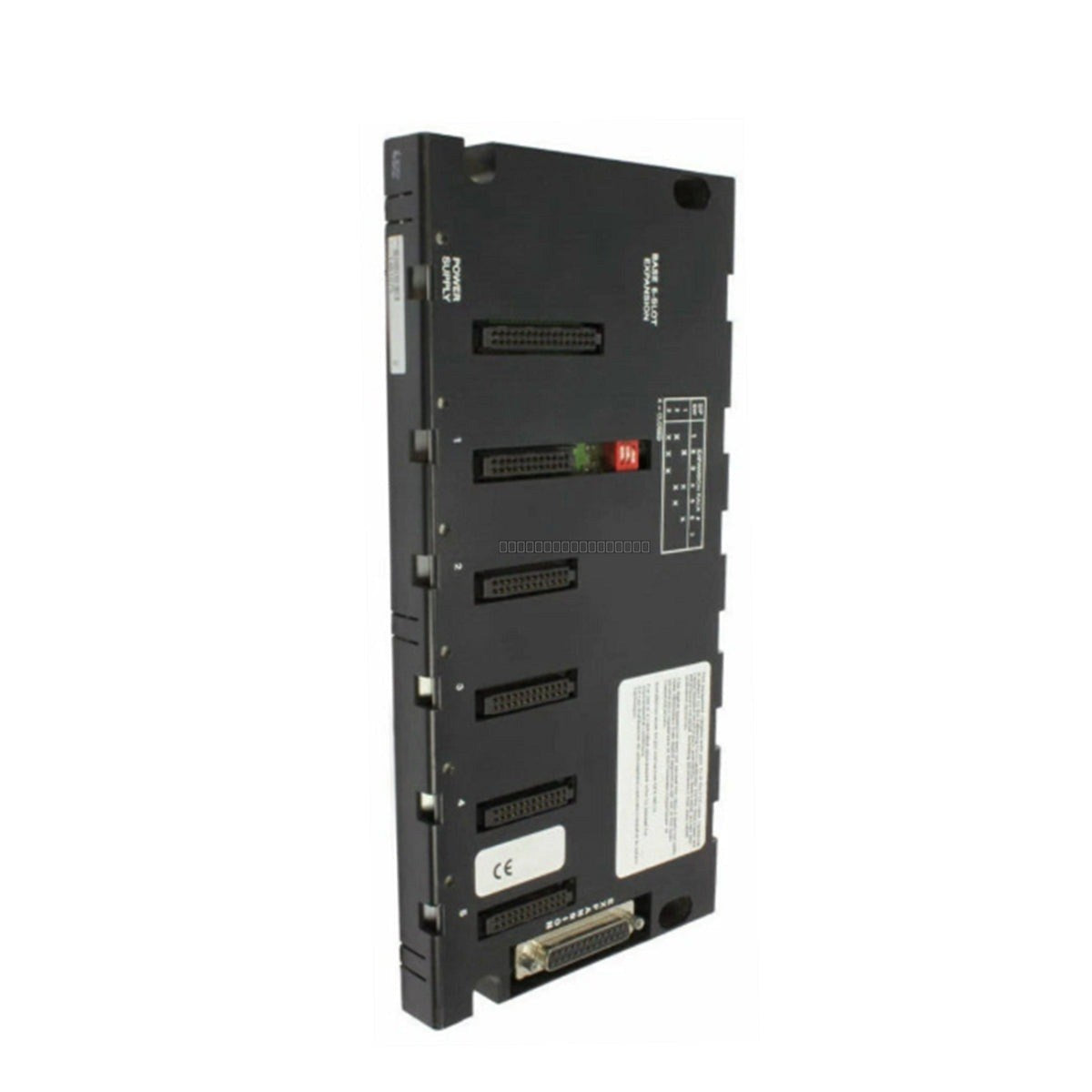

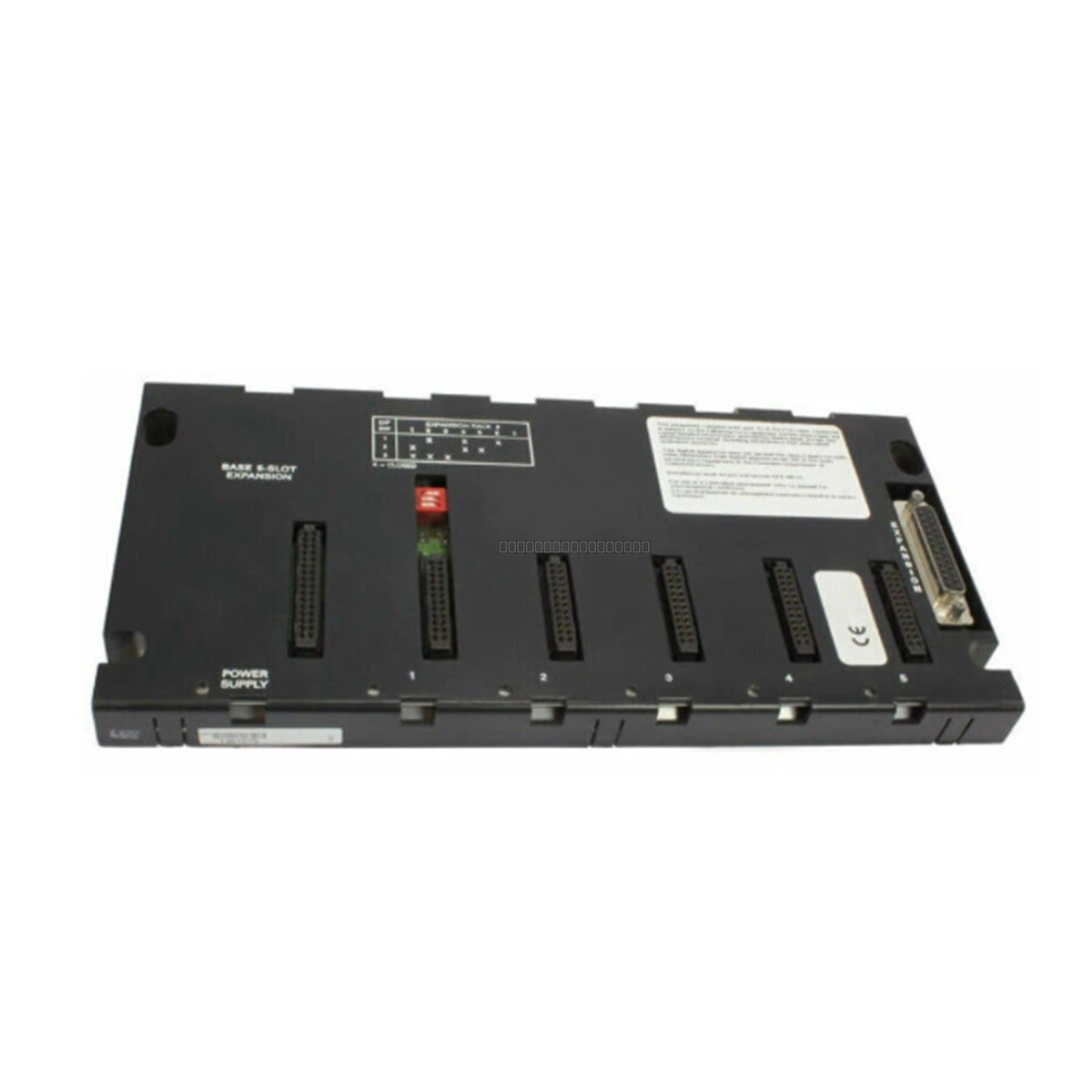

The General Electric IC693CHS398F is a 5-slot expansion baseplate designed for the Series 90-30 PLC system. This unit serves as an I/O expansion rack, allowing for the addition of extra I/O modules to a Series 90-30 system configuration. It features a total of six slots: one dedicated slot for a power supply and five slots for I/O modules.

Features

• Designed specifically for GE Series 90-30 PLC expansion requirements.
• Includes five dedicated slots for I/O modules and one slot for a power supply module.
• Equipped with a 25-pin D-shell female connector for system expansion.
• Rack address is configured via integrated DIP switches.
• Supports panel mounting for secure installation in industrial enclosures.

Technical Specifications

Product Model	IC693CHS398F
Series	Series 90-30
Total Slots	6
I/O Slots	5
Power Supply Slots	1
Internal Power Consumption	170 mA at 5 VDC
Expansion Connector	25-pin D-shell female
Mounting Type	Panel mount
Weight	0.56 kg

Installation Guidelines

• Ensure the baseplate is securely mounted to a flat, conductive panel surface to facilitate proper grounding.
• A common ground is required for the baseplate to ensure stable operation and noise immunity.
• Always disconnect all power sources before installing or removing modules from the baseplate slots.
• Use the 25-pin D-shell connector to link the expansion base to the main CPU rack; ensure the cable is properly seated and the locking screws are tightened.
• Configure the rack address using the onboard DIP switches before applying power to the system.
• Maintain adequate clearance around the baseplate to allow for proper ventilation and heat dissipation.

FAQ

What is the primary function of the IC693CHS398F?
This module acts as an expansion baseplate for the GE Series 90-30 PLC, providing additional slots to increase the I/O capacity of the control system.

How is the rack address determined?
The rack address for this expansion base is set manually using the DIP switches located on the unit.

Can this baseplate be used with any power supply?
It is designed to house one Series 90-30 compatible power supply module in the designated slot.
