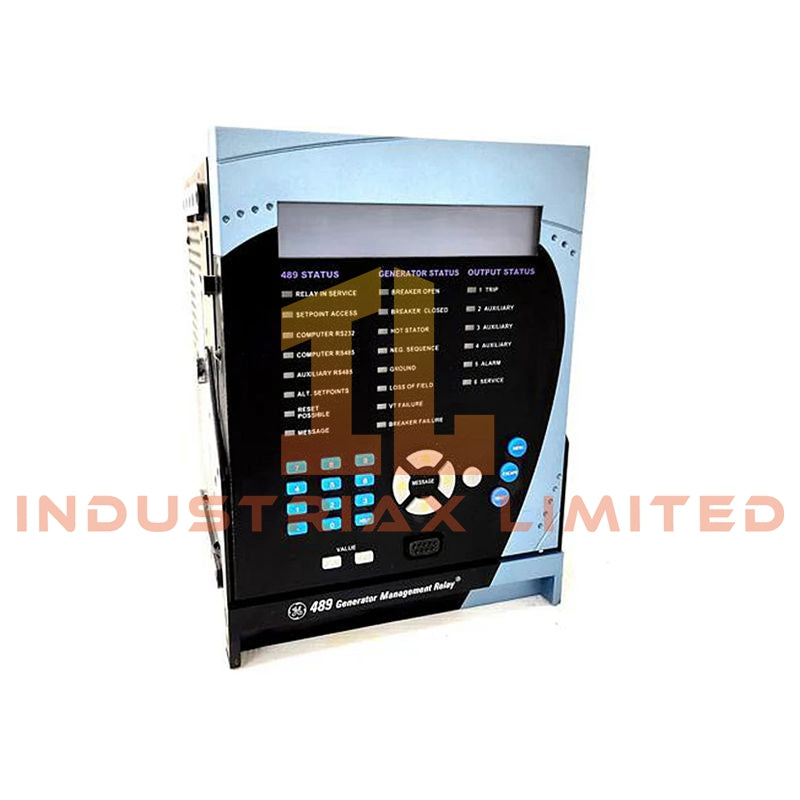

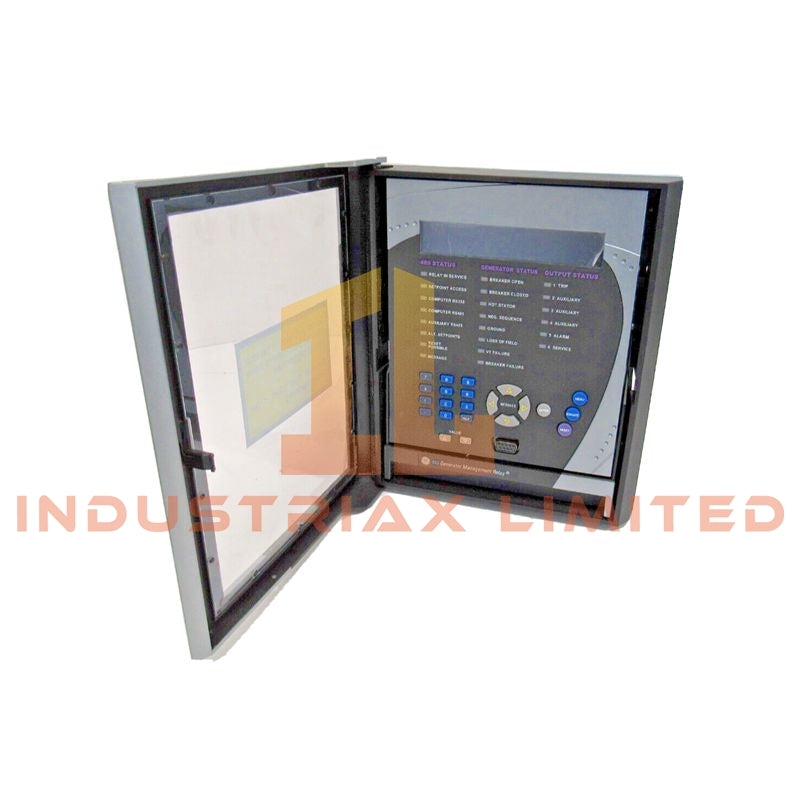

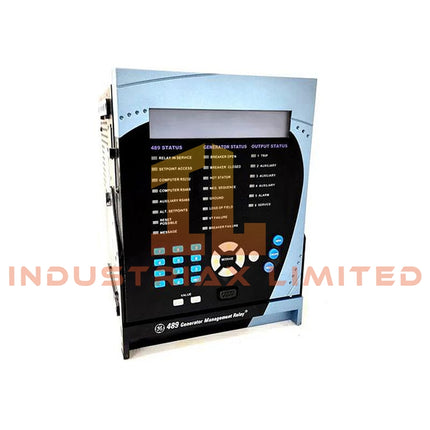

GE Multilin 489-P5-HI-A20-E Generator Management Relay

The GE Multilin 489-P5-HI-A20-E, also cataloged as the 489-P5-HI-A20-E Generator Management Relay, operates as a dedicated hardware component for generator protection, measurement, control, and monitoring within GE Multilin generator management platforms. The relay integrates CT/VT acquisition, RTD monitoring, configurable I/O, analog outputs, and serial communication interfaces for synchronous and induction generator applications.

Hardware Specifications

Parameter	Specification
Model	489-P5-HI-A20-E
Brand	GE Multilin
Weight	17.86 lb
Power Consumption	20 W nominal, 35 W maximum
Control Power Supply	88-300 VDC / 88-265 VAC, 48-62 Hz
Generator Frequency Range	20 Hz to 70 Hz tracking range
Phase Current Inputs	5 A CT secondary
Ground / Neutral CT Inputs	1 A / 5 A selectable
Voltage Inputs	50-240 VAC phase-to-neutral nominal
Digital Inputs	9 configurable dry contact inputs
Output Relays	6 Form-C / Form-A contacts
Analog Outputs	4 assignable 4-20 mA outputs
RTD Inputs	12 configurable RTD inputs
RTD Types	100 ohm Platinum, 120 ohm Nickel, 10 ohm Copper, 100 ohm Nickel
RS485 Communication	300, 1200, 2400, 4800, 9600, 19200 baud rates
Impulse Voltage Withstand	5 kV
EFT Standard	IEEE/ANSI C37.90.1
CT Thermal Withstand	20 x IN for 1 second, 3 x IN continuous
Phase CT Burden	Less than 0.2 VA at nominal rating

Profinet / EtherNet-IP Deterministic Network and Firmware Compatibility

The GE Multilin 489-P5-HI-A20-E applies industrial control architecture principles for deterministic protection data handling. The enhanced hardware option includes Ethernet communication capability for system integration, while RS485 serial communication supports configurable baud rates for supervisory connections.

The relay firmware manages generator protection functions, measurement processing, and control logic execution through a microprocessor-based platform. Hardware option selection defines available communication and display functions, requiring firmware compatibility with the installed relay configuration.

The device provides configurable I/O density scaling through nine contact inputs, six relay outputs, four 4-20 mA analog outputs, and twelve RTD monitoring channels. RTD channels support alarm and trip processing for connected temperature sensing elements.

Frequently Asked Questions

Q: What type of current transformers are supported by the 489-P5-HI-A20-E?
A: The relay uses P5 phase current inputs designed for 5 A CT secondary signals. Ground and neutral CT inputs support selectable 1 A or 5 A configurations.

Q: Does the relay support hot-swapping during operation?
A: The available technical data does not specify hot-swap capability. Installation and replacement procedures should follow GE Multilin relay service requirements with power removed before hardware access.

Q: What communication interface parameters are available for RS485 operation?
A: The RS485 interface supports selectable baud rates of 300, 1200, 2400, 4800, 9600, and 19200.

Field Installation Guidelines

Install the GE Multilin 489-P5-HI-A20-E in a suitable protective panel environment with appropriate clearance for wiring access and heat dissipation. Connect CT secondary circuits using dedicated twisted wiring and maintain correct polarity to prevent measurement errors.

Analog output wiring should be separated from high-voltage power conductors to reduce induced noise. Cable shields should be terminated according to site grounding practices, with attention to avoiding ground loops in low-level measurement circuits.

RTD wiring should use appropriate lead compensation methods and maintain separation from switching circuits. Communication wiring for RS485 should use shielded twisted pairs with proper termination practices according to the network installation design.

Verify control power voltage range, CT input configuration, VT connections, and relay contact assignments before energizing the protection system.
