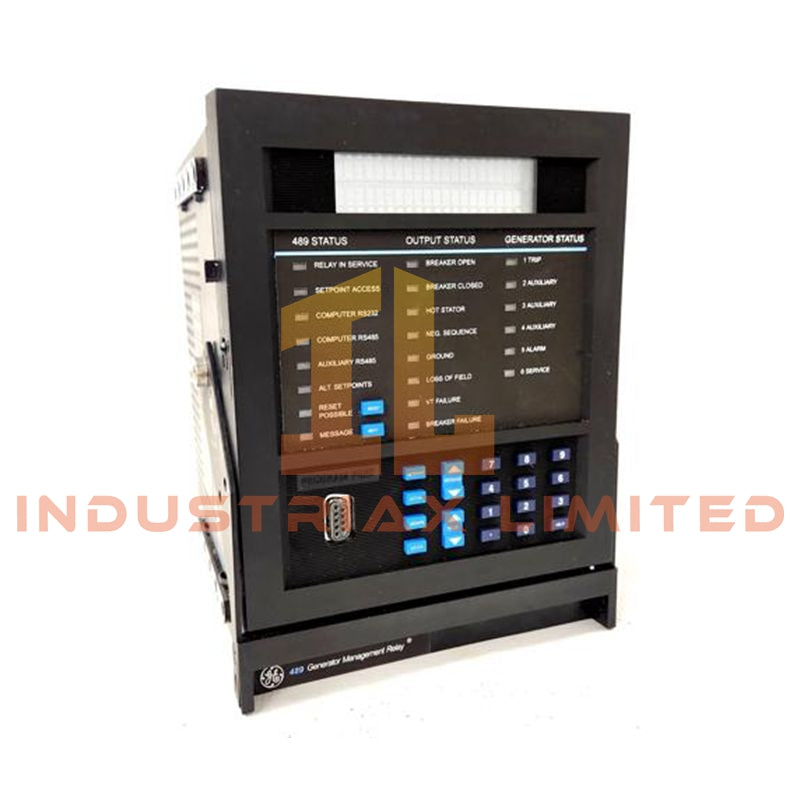

    GE Multilin 489-P1-LO-A20-E Generator Management Relay

    Configured for generator electrical protection, control execution, and measurement processing in the GE Multilin 489 generator management system, the GE Multilin 489-P1-LO-A20-E (489 Generator Management Relay) provides direct physical/electrical execution. The unit integrates CT inputs, voltage sensing, analog outputs, RTD monitoring, relay outputs, and communication interfaces for synchronous and induction generator applications.

    Hardware Specifications

    Parameter Specification
    Model 489-P1-LO-A20-E
    Brand GE Multilin
    Operating Temp -40 deg C to +60 deg C
    Power Consumption 25 VA typical, 45 VA maximum
    Product Type Generator Management Relay
    Phase Current Inputs 1 A CT secondary inputs
    Ground/Neutral CT Inputs Selectable 1 A / 5 A or 50:0.025 core-balance CT inputs
    Voltage Sensing Three-phase line/phase voltage inputs up to 240 V AC nominal
    Frequency Tracking Supports 50/60 Hz systems with 10 Hz/s tracking rate
    Control Power Input 20 to 60 V DC or 20 to 48 V AC at 48 to 62 Hz
    Analog Outputs 4 to 20 mA assignable outputs
    Analog Inputs Four transducer inputs: 0 to 1 mA, 0 to 20 mA, 4 to 20 mA
    RTD Inputs Twelve programmable RTD inputs
    Digital Inputs Nine assignable digital inputs
    Output Relays Six output relays for trip, alarm, and auxiliary functions
    Communication Ports RS232, RS485 / RS422 Modbus RTU, Ethernet 10Base-T RJ45 Modbus TCP/IP
    Energy Metering Update Rate 50 ms
    Relay Operation Time 10 ms
    Differential Curve Shape Dual slope
    IRIG-B DC Shift TTL

    Profinet / EtherNet/IP Deterministic Networks and Firmware Flash Compatibility

    The GE Multilin 489-P1-LO-A20-E incorporates Ethernet communication capability through a 10Base-T RJ45 interface supporting Modbus TCP/IP. The communication structure provides data exchange between the relay and supervisory control systems. Firmware compatibility must follow GE Multilin configuration requirements to maintain communication and protection function consistency during software maintenance procedures.

    The relay processes generator electrical quantities through current and voltage measurement circuits. Protection logic includes stator differential protection, thermal overload modeling, reverse and low forward power protection, loss of excitation detection, phase unbalance monitoring, and frequency protection functions.

    Frequently Asked Questions

    Q: What CT input configuration is supported by the 489-P1-LO-A20-E phase measurement circuit?
    A: The P1 option provides phase current inputs designed for 1 A CT secondary connections. Ground and neutral CT inputs support selectable 1 A / 5 A or 50:0.025 core-balance CT configurations.

    Q: Which communication interfaces are available for system integration?
    A: The relay provides front RS232 for local configuration, rear RS485 / RS422 with Modbus RTU, and Ethernet 10Base-T RJ45 with Modbus TCP/IP support.

    Q: What type of thermal monitoring inputs are available?
    A: The unit provides twelve programmable RTD inputs supporting 100 ohm Platinum, 120 ohm Nickel, 100 ohm Nickel, and 10 ohm Copper RTD types.

    Field Installation Guidelines

    Install the relay in a suitable protective enclosure with wiring arranged according to industrial electrical separation practices. Keep CT circuits separated from communication and low-level analog wiring to reduce measurement interference.

    Connect current transformer secondary circuits with appropriate terminal security and verify polarity before energization. Maintain shielded cable practices for analog signals and communication wiring where required by the installation environment.

    Verify control power voltage compatibility before applying power. Confirm RS485 / RS422 wiring polarity, termination requirements, and Modbus network addressing before connecting the relay to external control systems.

    For Ethernet connections, use suitable industrial network cabling practices and confirm communication settings before placing the relay into operational service.
